Long Running Suspended LED Linear Light with Seamless Connection for Office Lighting

Customization: Available
Light Source: LED
Material: Aluminum Alloy

Product Description

Basic Info.
Model NO.
EN-7575
Style
Modern
Quantity of Lights
More than 10
Frame Material
Aluminium Alloy
Frame Color
White
Certification
CE, CCC, RoHS, TUV, SAA
Beaming Angle
120°
Input Voltage
AC100-240V
LED Chip
SMD 2835
Wattage
36W/40W/48W
Luminous Efficiency
100 Lm /W
Warranty
5 Years
IP Grade
IP40
Applicable Places
Supermarket, Office, Stores
Product Description

Modern Office LED Linear Light

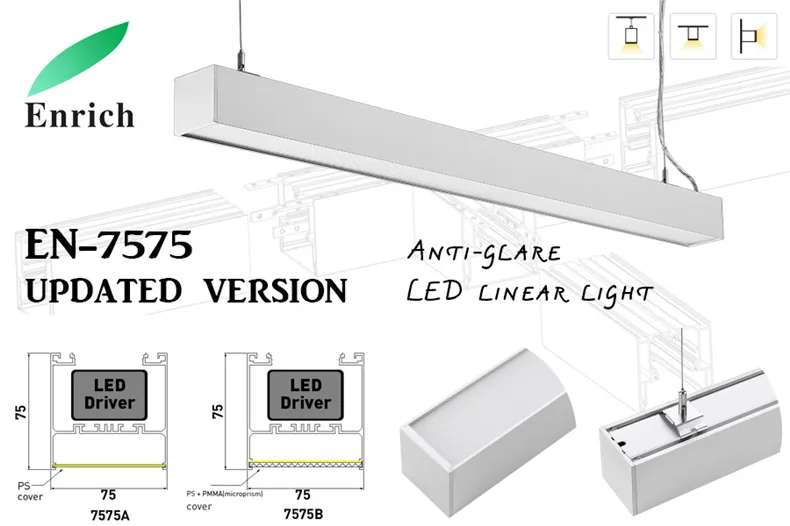

Long Running Suspended LED Linear Light

It can be connected with limitless pieces, with almost no gap and no dark space, widely suitable for supermarket, office, stores...anywhere linear light required.

Technical Specifications
Model Size Power Voltage LED Qty Luminous CCT Shell Color
EN-7575-LS20W06 L600*W75*H75mm 20W AC100-277V / AC200-240V SMD2835-144pcs 2100lm 3000K/4000K
5000K/6000K
White/Silver/Black
EN-7575-LS40W12 L1200*W75*H75mm 40W SMD2835-288pcs 4200lm
EN-7575-LS60W18 L1800*W75*H75mm 60W SMD2835-432pcs 6300lm
EN-7575-LS80W24 L2400*W75*H75mm 80W SMD2835-576pcs 8400lm
Product Features
  • Lamp body material 6063 aluminum alloy with good heat dissipation, anodized surface (hard, wear-resistant).
  • PC lens with high diffusion, soft light and good anti-glare effect.
  • Energy saving: more than 65% compared to traditional lamps.
  • 180 degree splicing capability.
  • Easy installation: suspended or ceiling mounted optional.
Feature Display
Installation Methods
A. Ceiling Mounted

1. Fix the mounting clip into the ceiling by screw.
2. Clip the led trunking lamp into mounting clip.
3. Make electrical connection with mains supply.

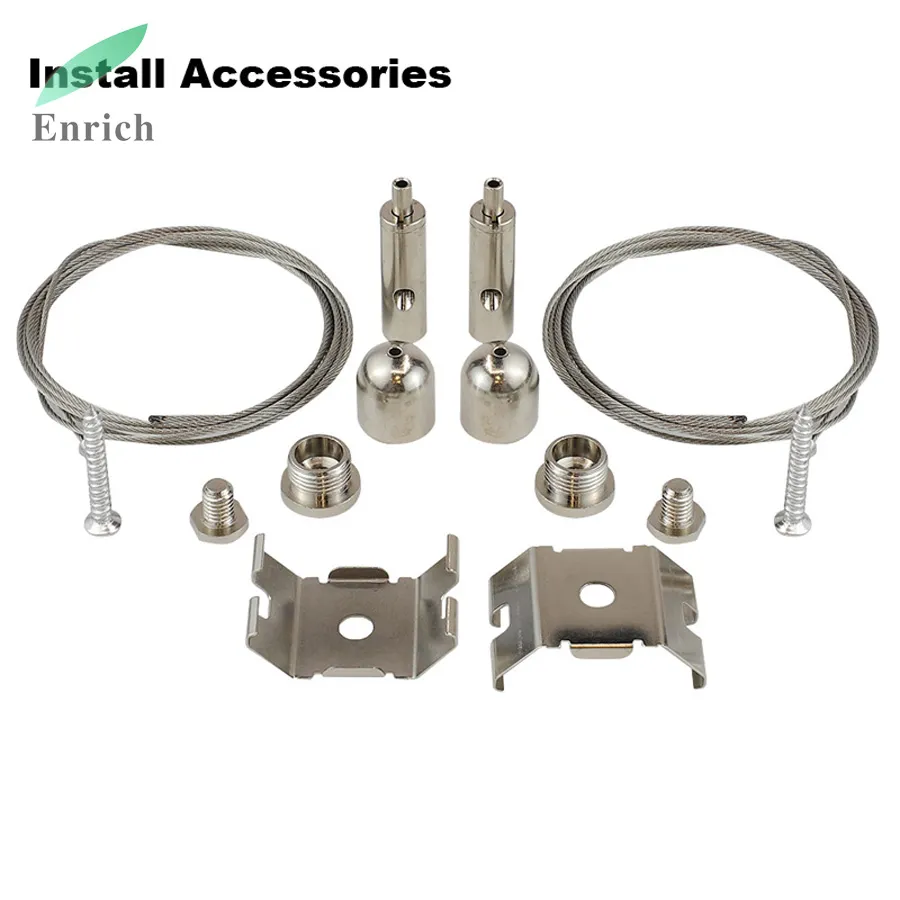

B. Suspended Mounted

1. Feed wire suspension cable.
2. Adjust the suspension cable on the same level.
3. Make electrical connection.

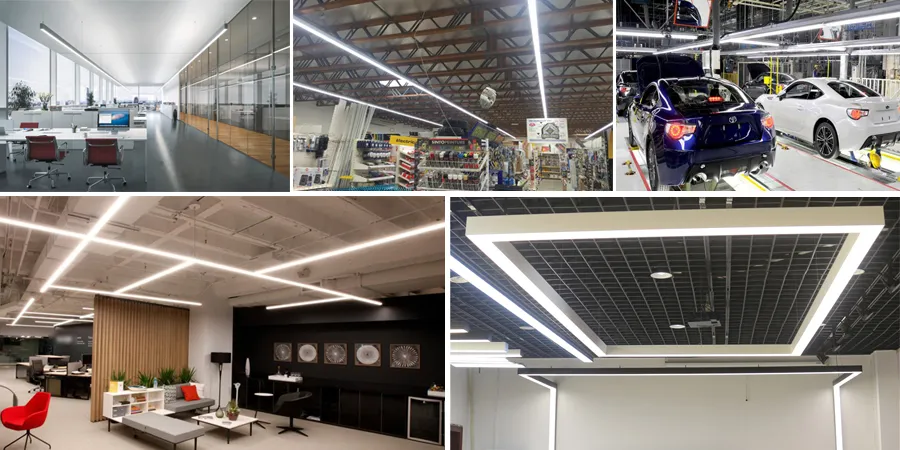

Installation Guide
Installation Shapes

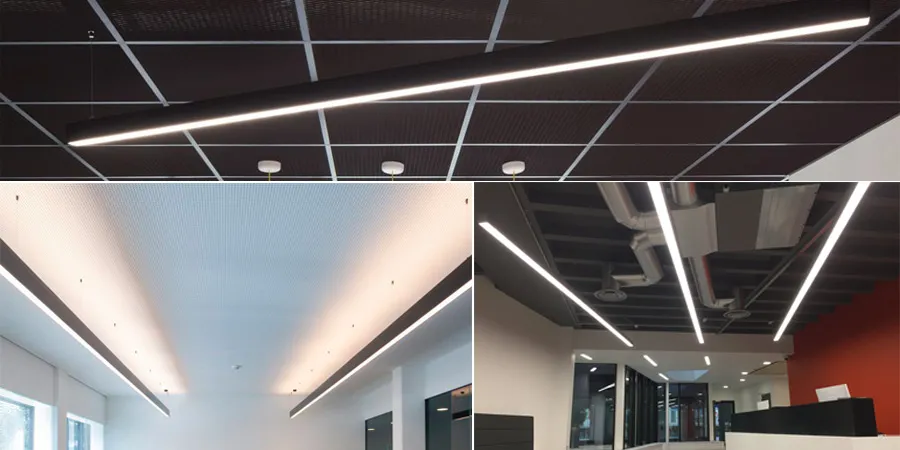

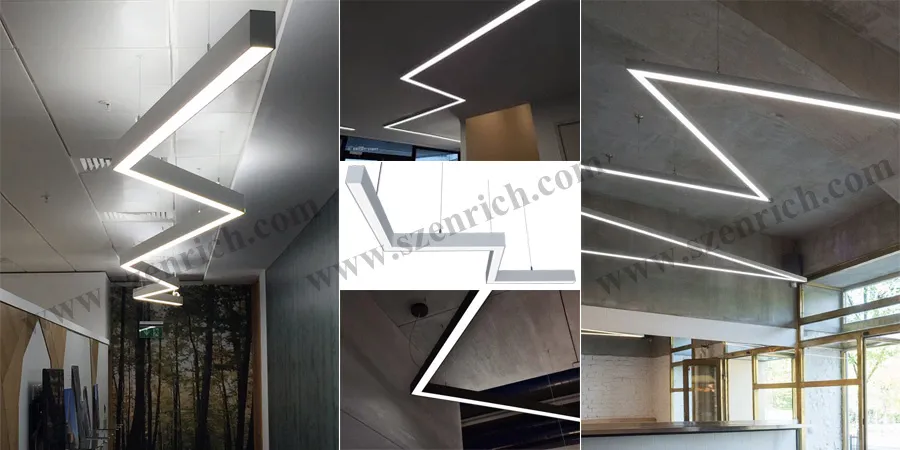

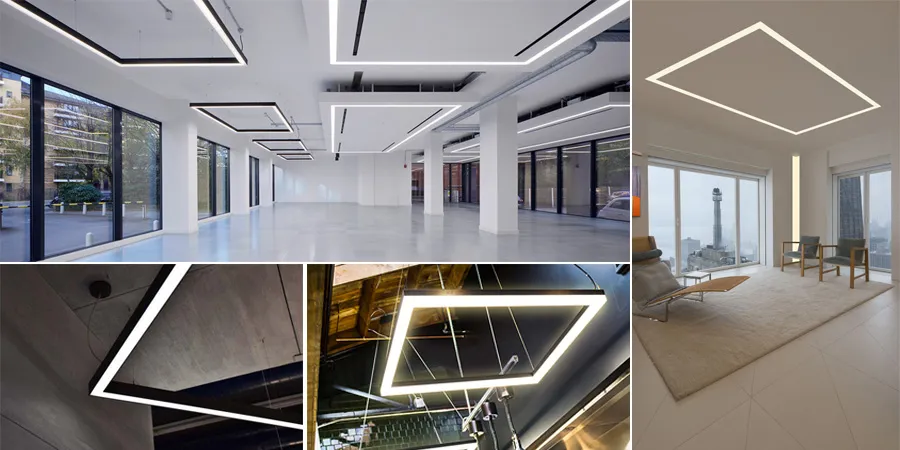

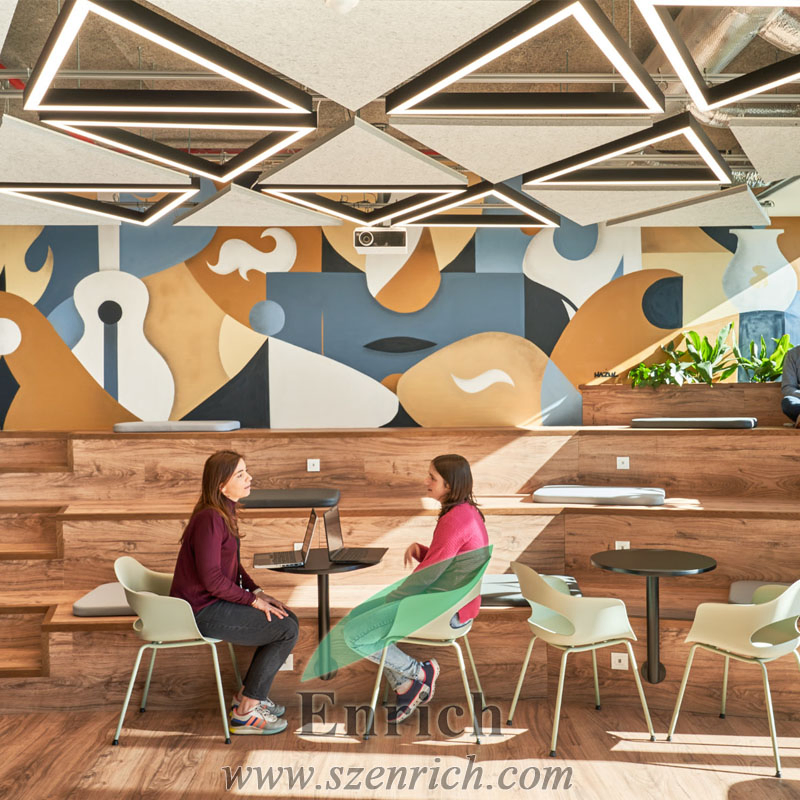

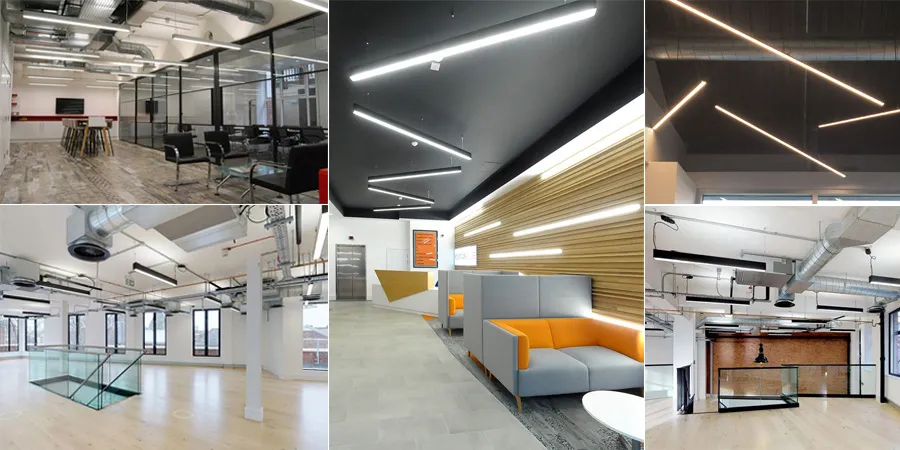

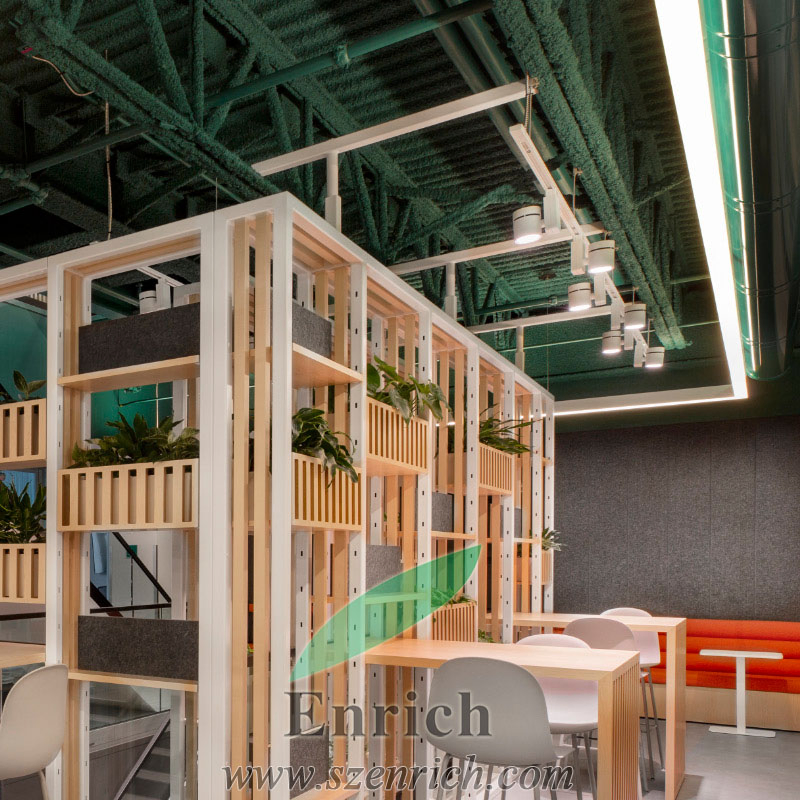

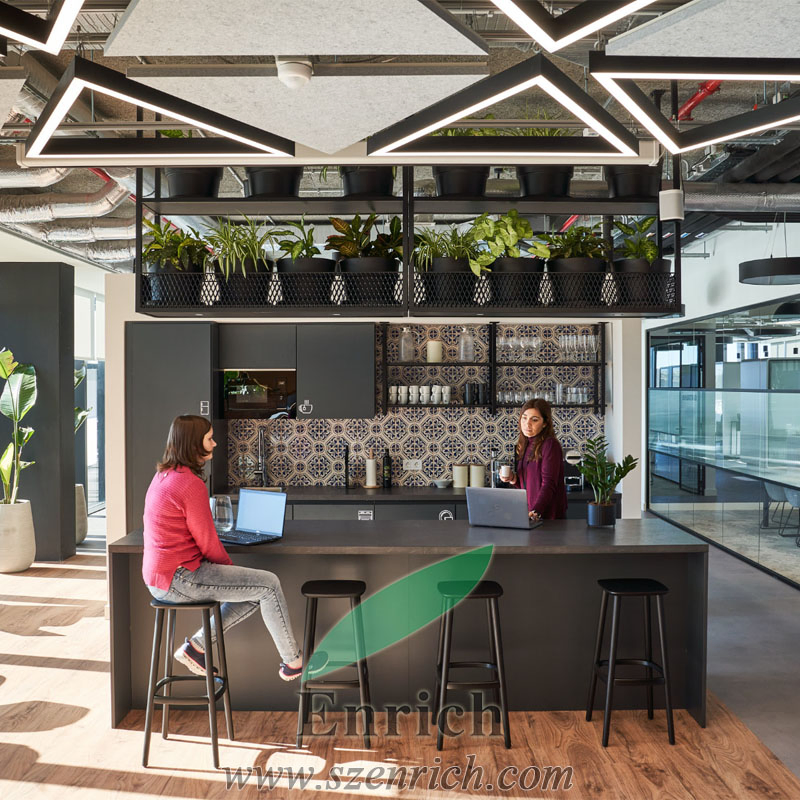

Continuous Running Single Installation Square Shape Zig Zag
Gallery

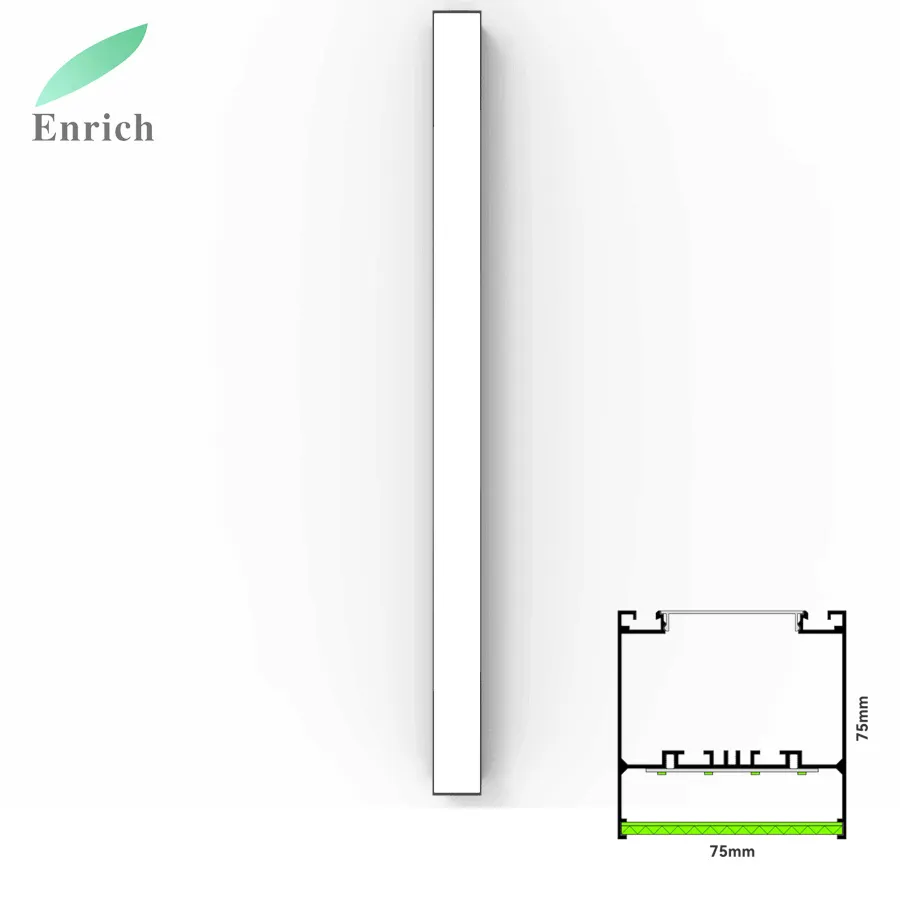

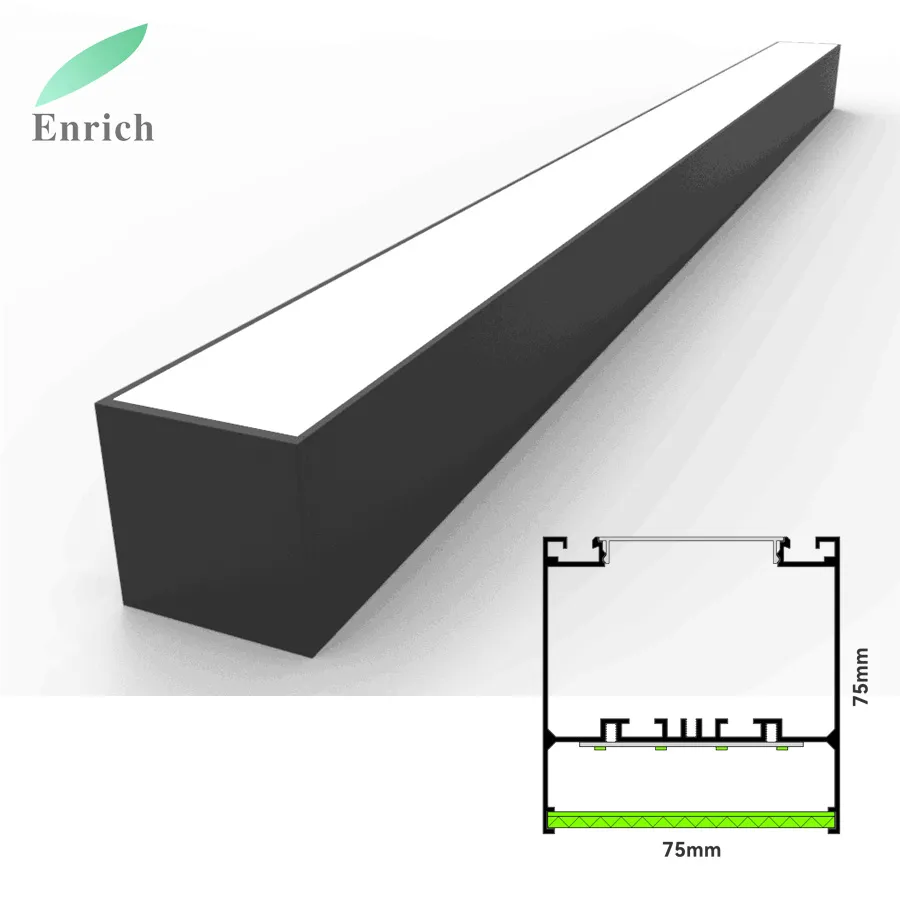

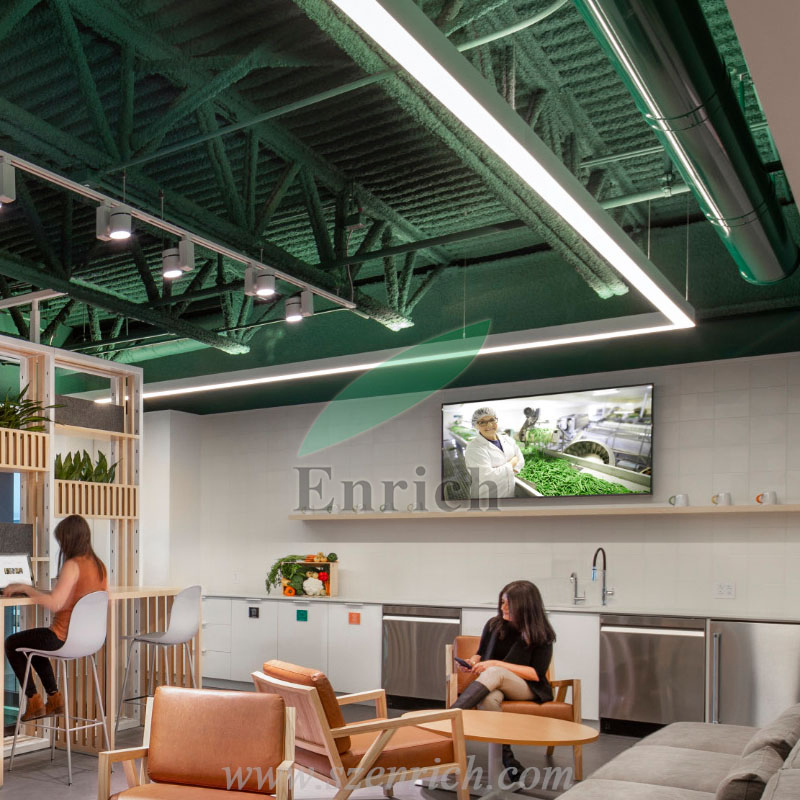

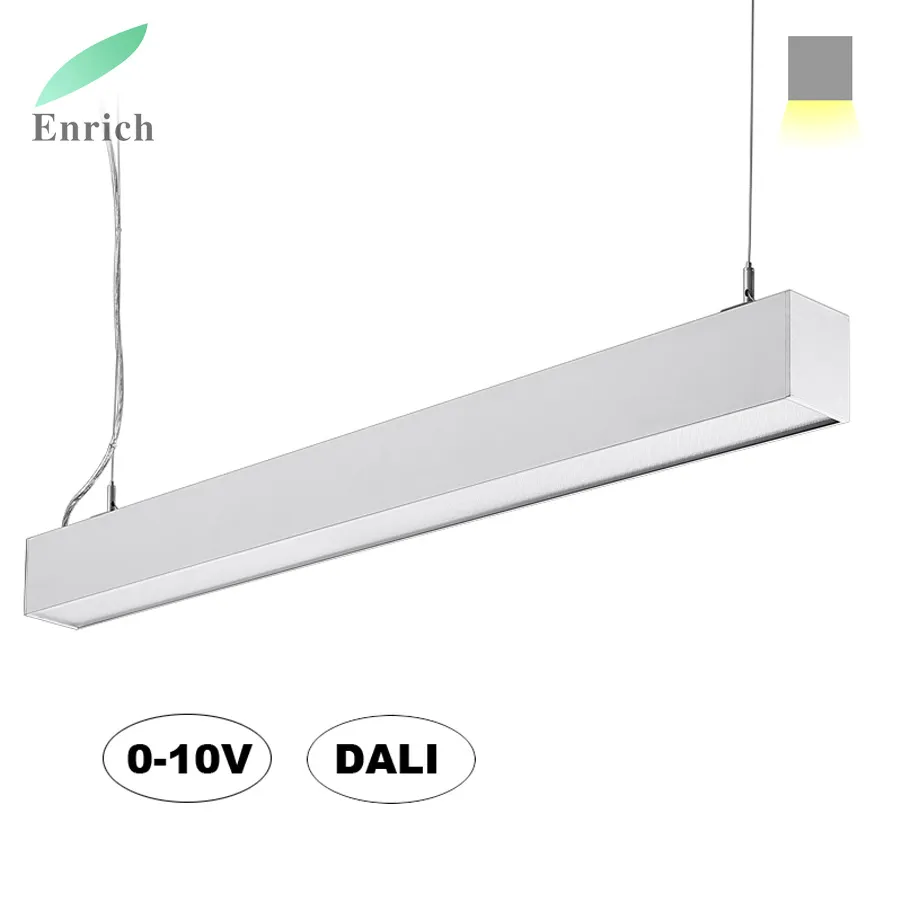

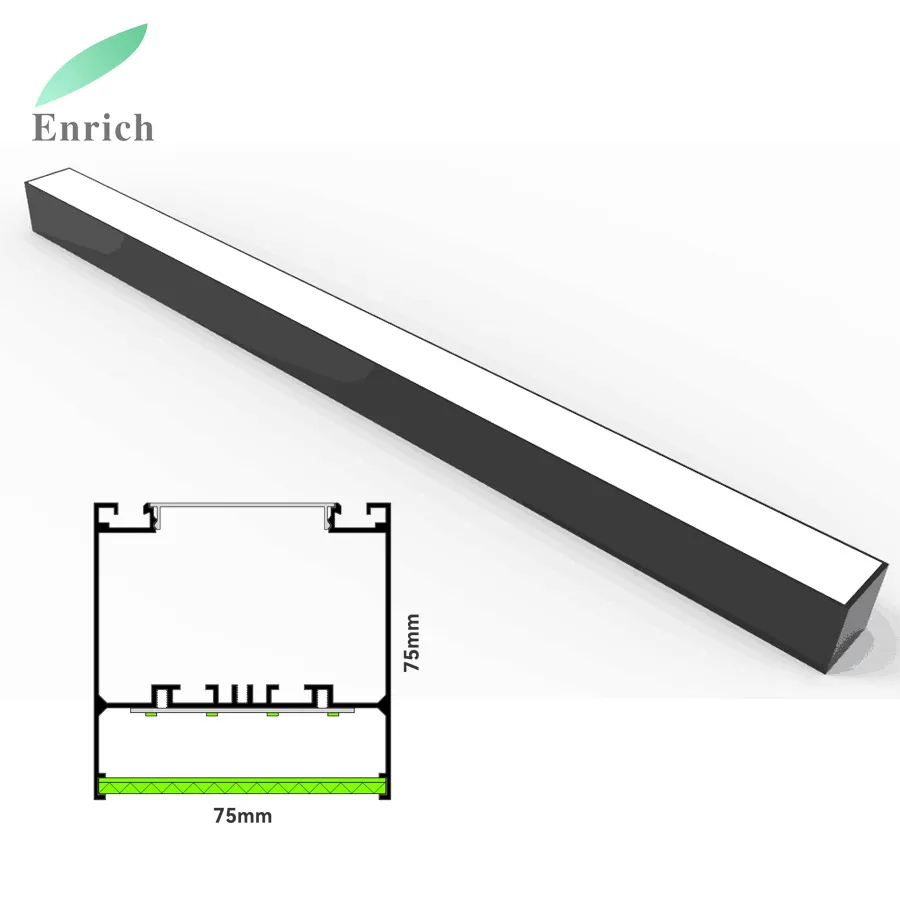

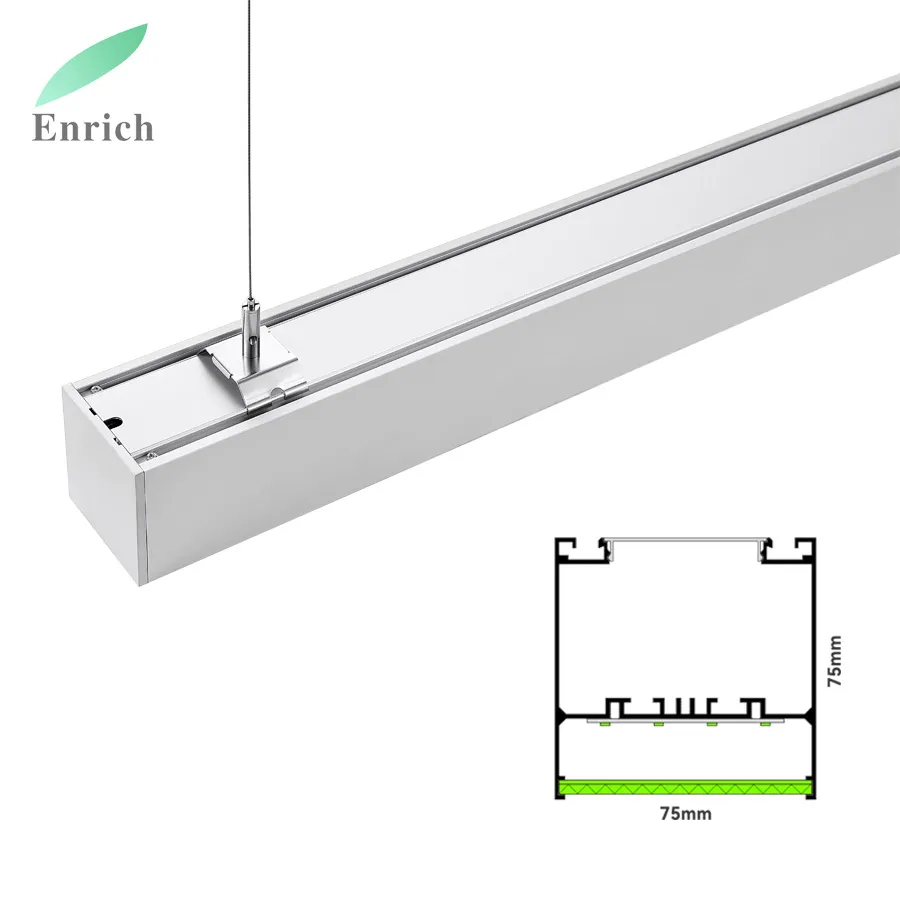

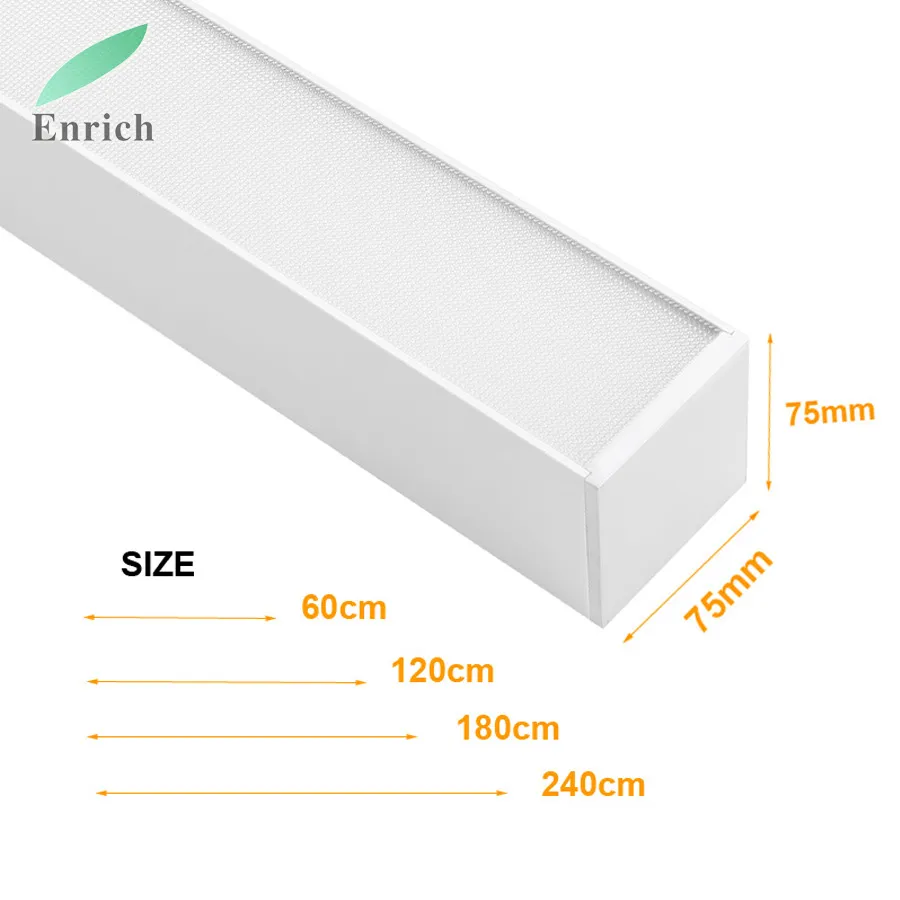

Linear Light 1 Linear Light 2 Linear Light 3 Linear Light 4 Linear Light 5 Linear Light 6 Linear Light 7
Frequently Asked Questions
1. Can these LED linear lights be connected for long distances?
Yes, they are designed for seamless connection with limitless pieces, ensuring no dark spaces or visible gaps between units.
2. What are the available installation options?
The lights offer flexible installation methods, including ceiling-mounted and suspended mounting to suit different architectural needs.
3. What is the warranty period for this product?
We provide a 5-year warranty for these LED hanging trunking lights, ensuring long-term reliability and performance.
4. Is the light comfortable for office environments?
Yes, the PC lens provides high diffusion, resulting in soft and comfortable light with an excellent anti-glare effect, making it ideal for offices.
5. What material is used for the lamp body?
The lamp body is constructed from high-quality 6063 aluminum alloy, which provides superior heat dissipation and features a wear-resistant anodized surface.
6. How energy-efficient are these linear lights?
These lights are highly energy-efficient, offering more than 65% energy savings compared to traditional lighting fixtures.
