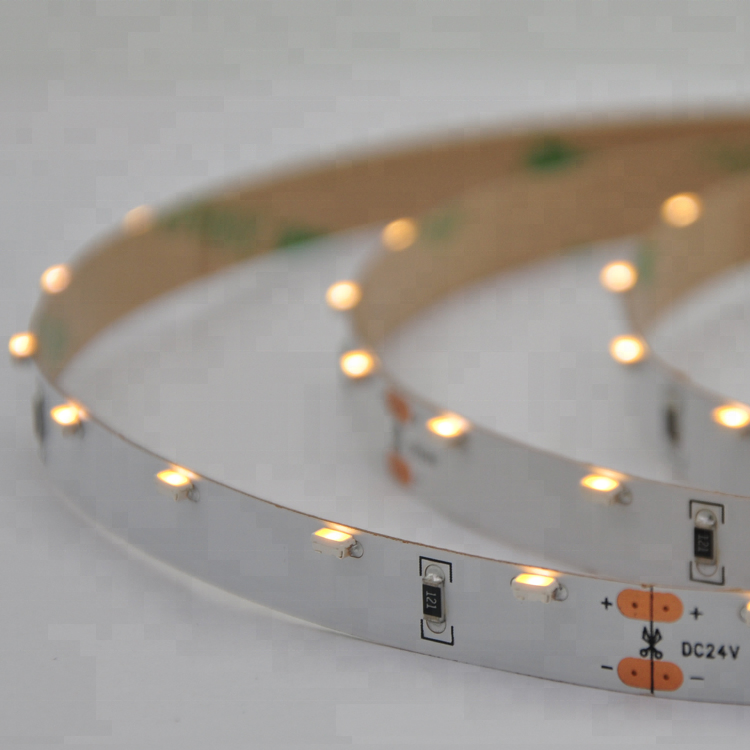

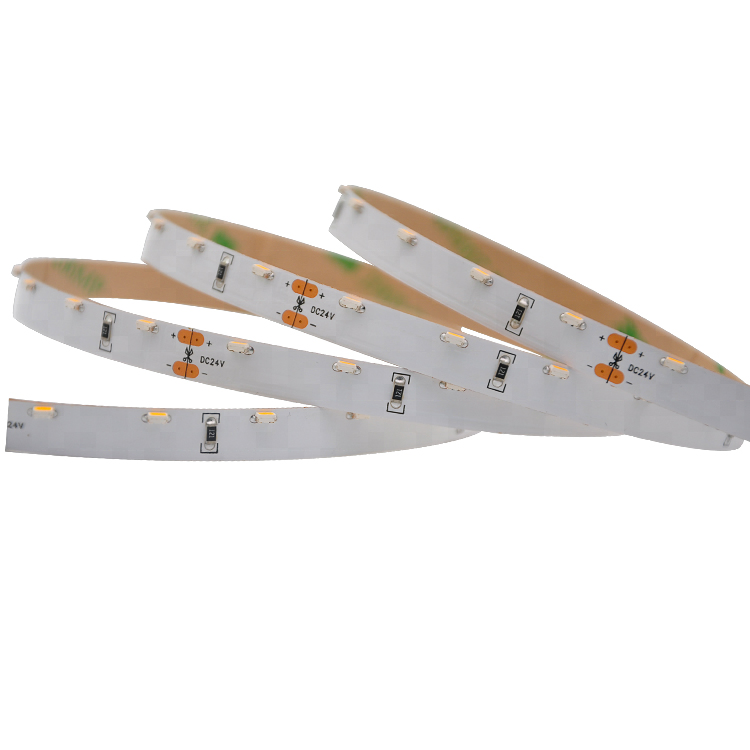

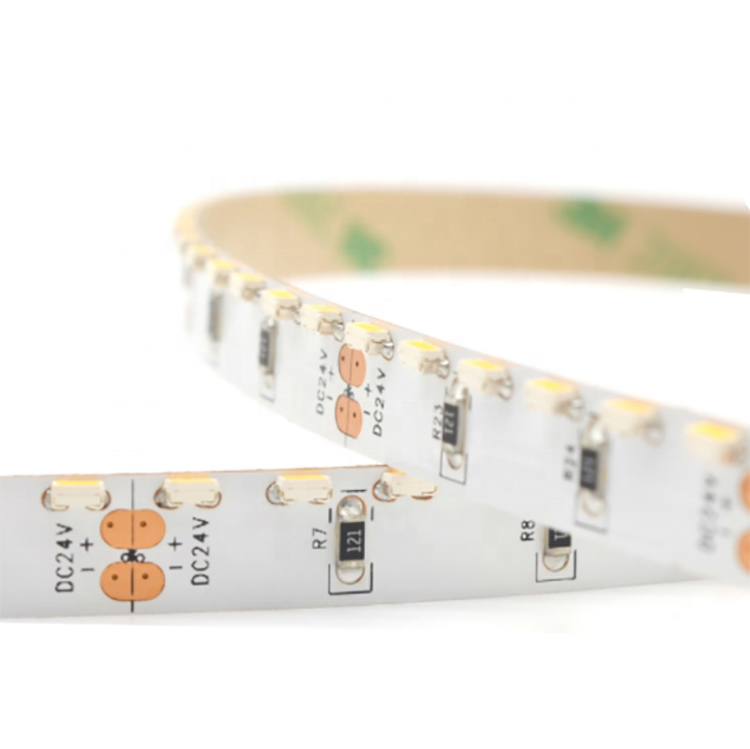

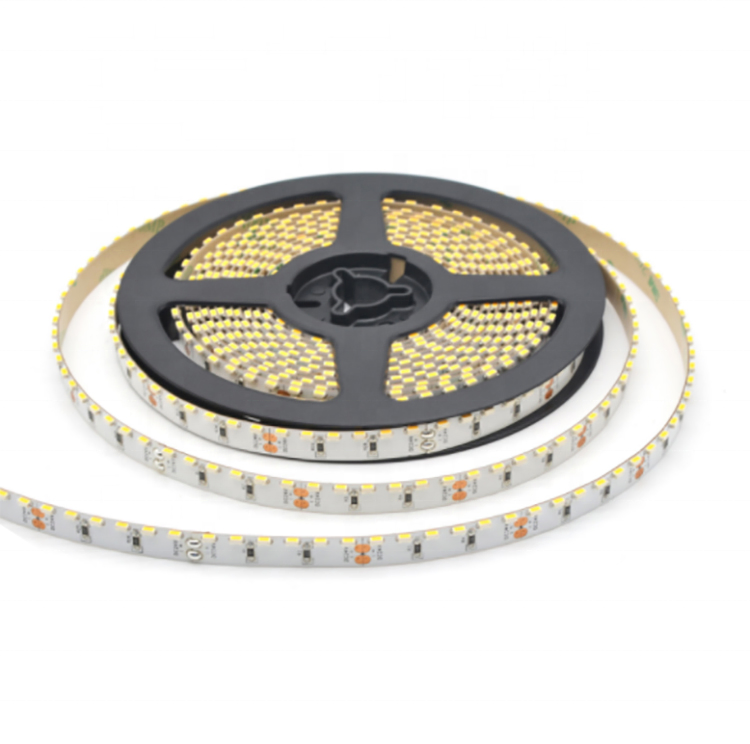

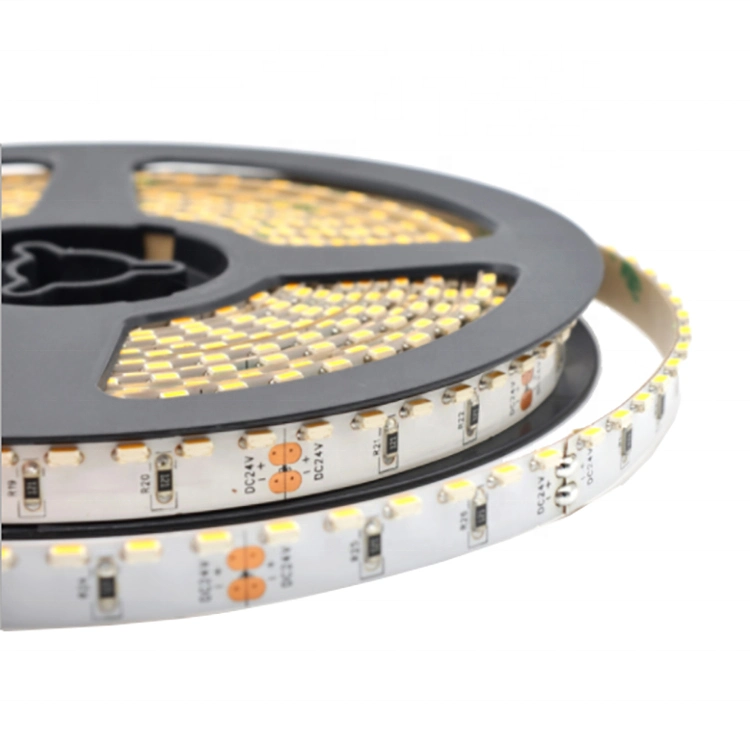

Side Emitting 3014 120LEDs/M High CRI LED Strip Light for Cove Lighting

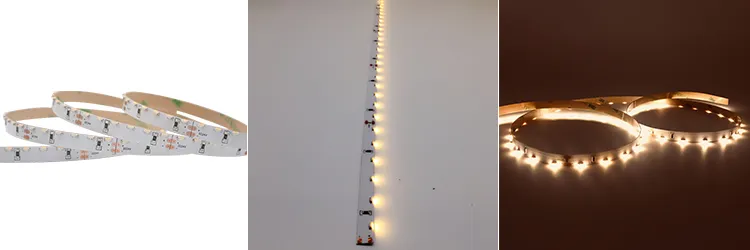

High Bright Side View SMD 60LEDs/m or 120LEDs/m 3014 Side Emitting LED Tape Strip

Key Features

• Rolled copper FPC for better thermal dissipation & bend-ability.
• Equipped with 20WAG or above cables.
• Each 3 LED per unit with a couple of soldering pads for secondary operation.

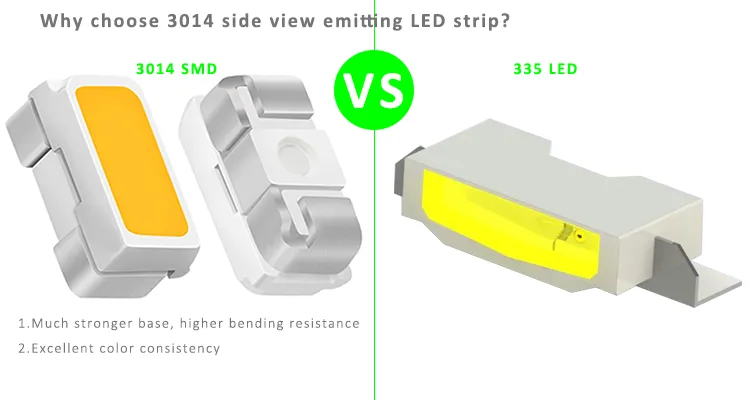

• Enhanced 3014 LED specifically designed for strip products.

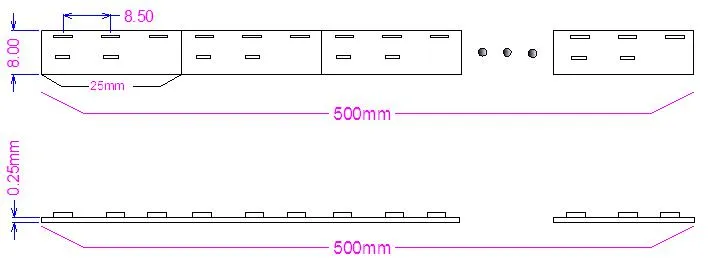

Dimensions

Environmental and Application Conditions

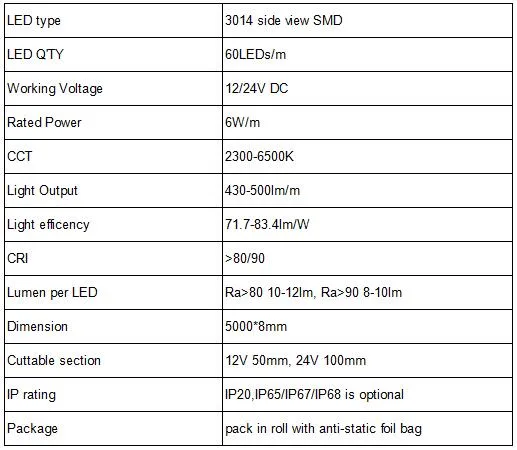

Electrical Parameters

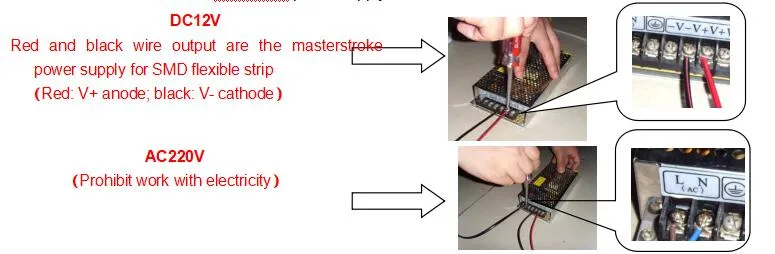

1. Power supply should have necessary short circuit and over-voltage protection. Do not use un-isobaric power supplies. Insulated handles are required during installation.

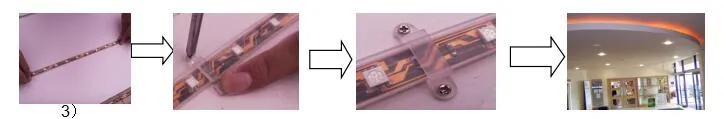

2. Fit the strips according to actual needs:

• Spread the strip flatly in the desired position.
• Use transparent clips (4 pcs per meter) between LEDs. Do not press on the LEDs.

3. Connect with the main line every 5 meters. With power supplies on both ends, it can connect up to 10 meters.

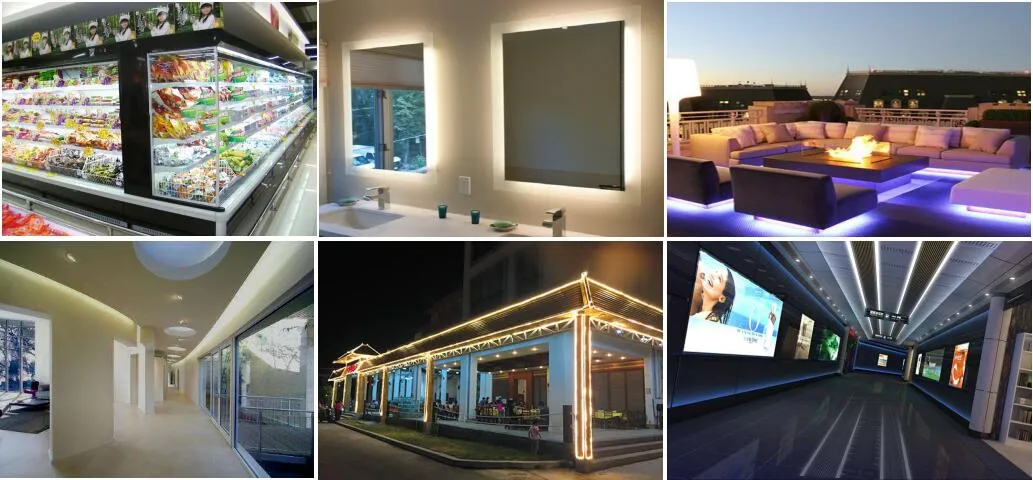

• Curve lighting
• Freeze lighting
• Light bar light source
• Special signage

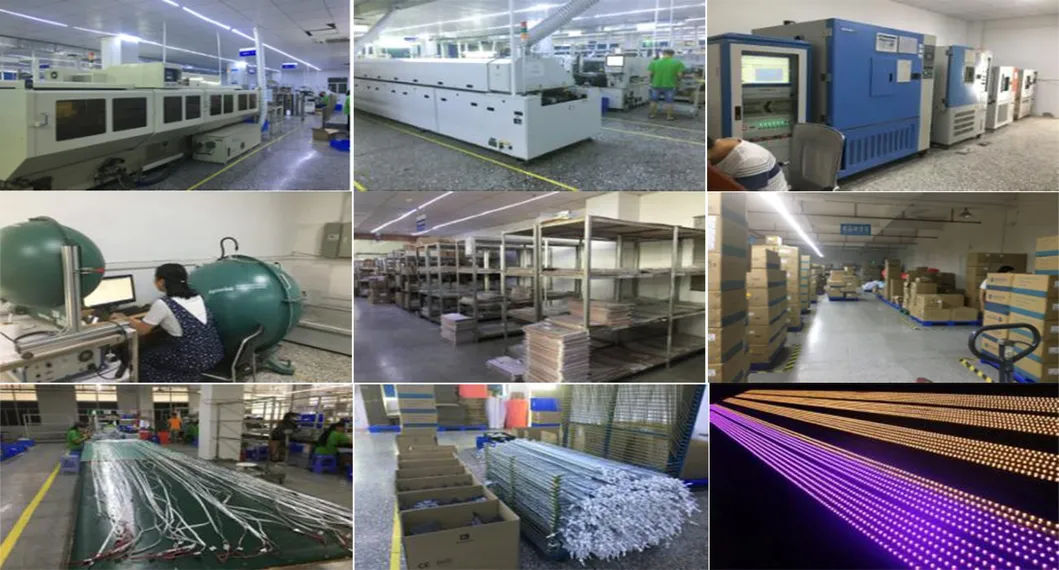

Established in 2011, the core team has been engaged in the LED industry since 2007. With nearly 10 years of experience, there is a strong focus on LED strip lights, sign modules, advertisement lighting products, and related accessories such as power supplies, dimmers, and controllers.

In addition to standard products, custom-made solutions are available to meet exact demands, including custom lengths, specific connectors, and indicated color temperatures or lumens. Expert teams offer suitable solutions for various projects and installation objectives.
