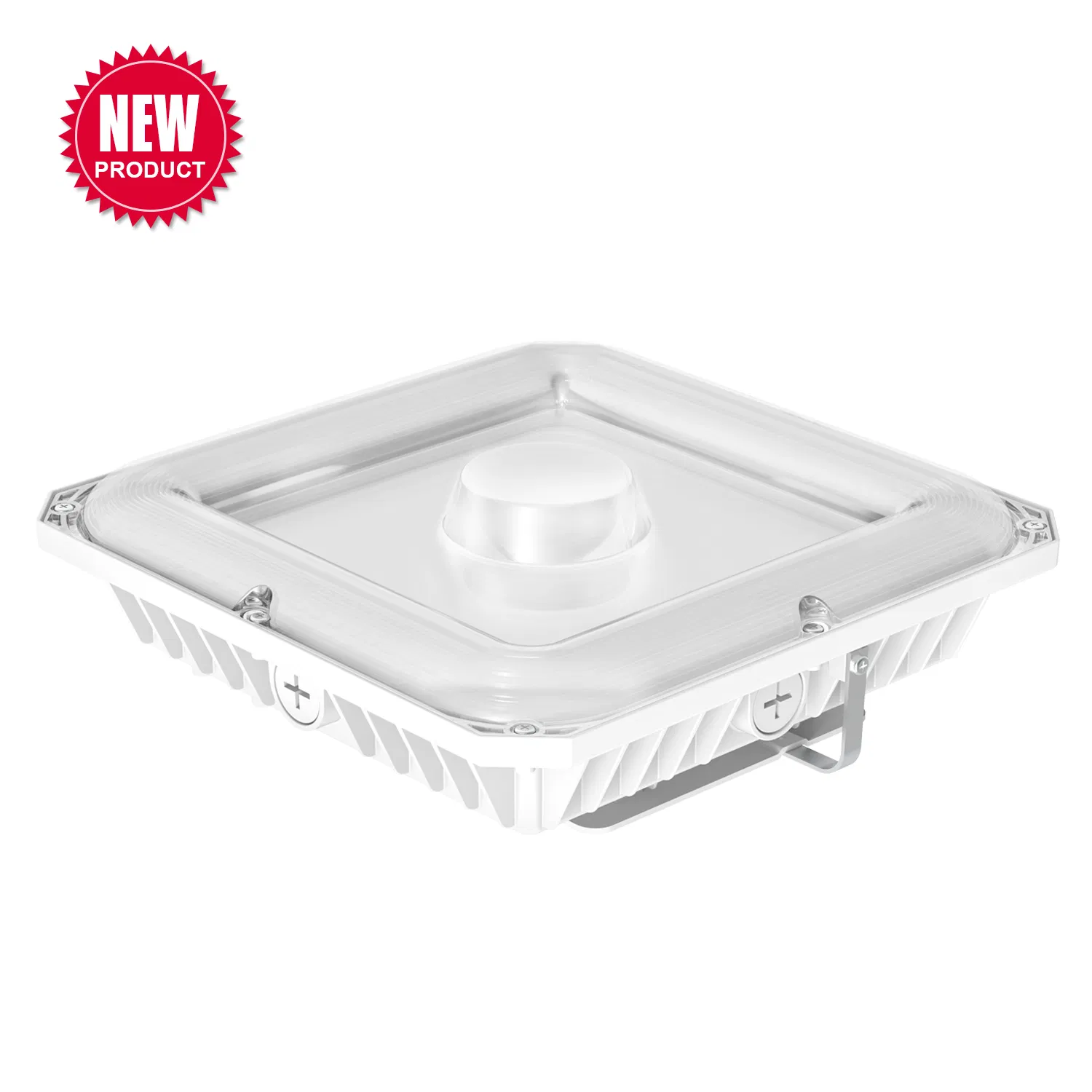

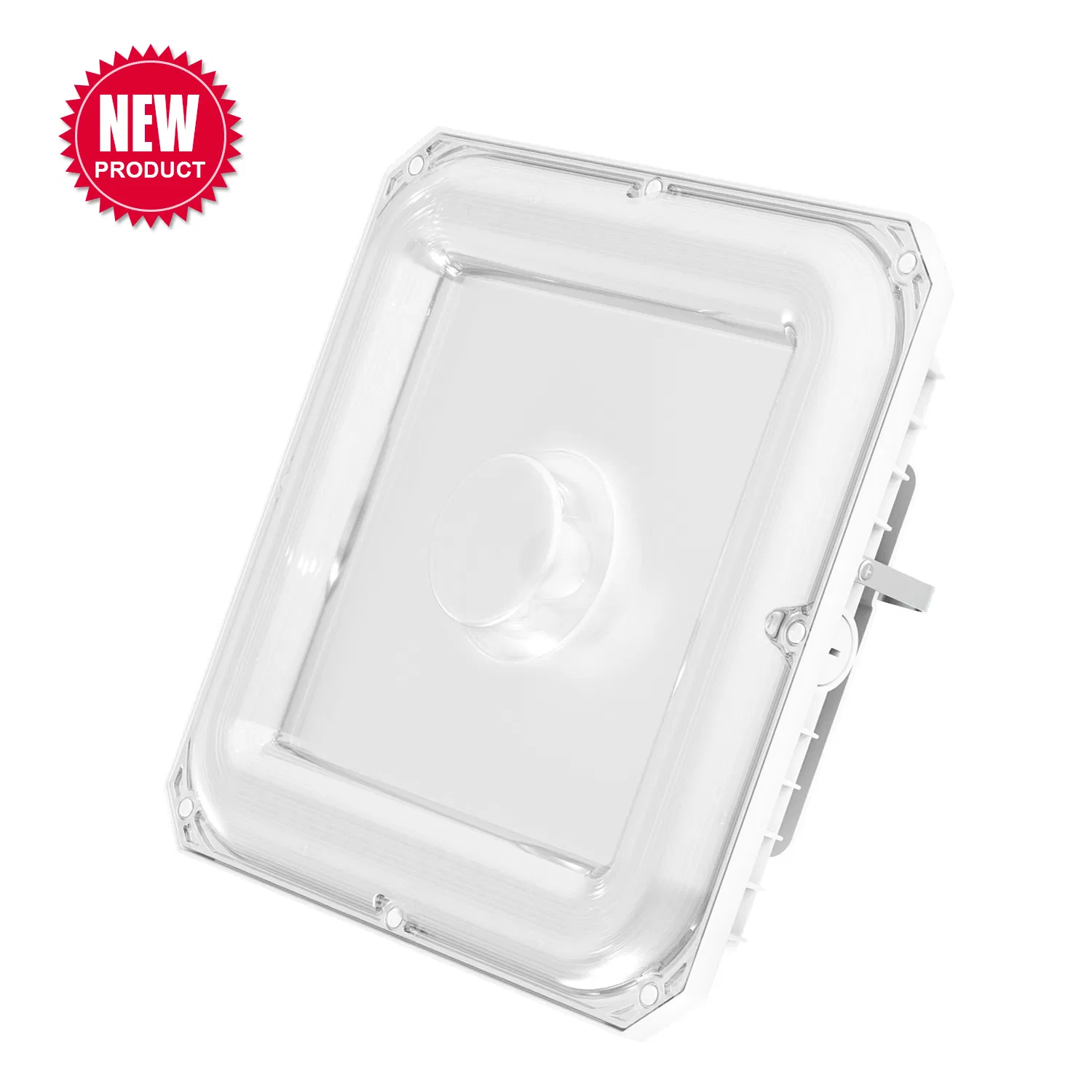

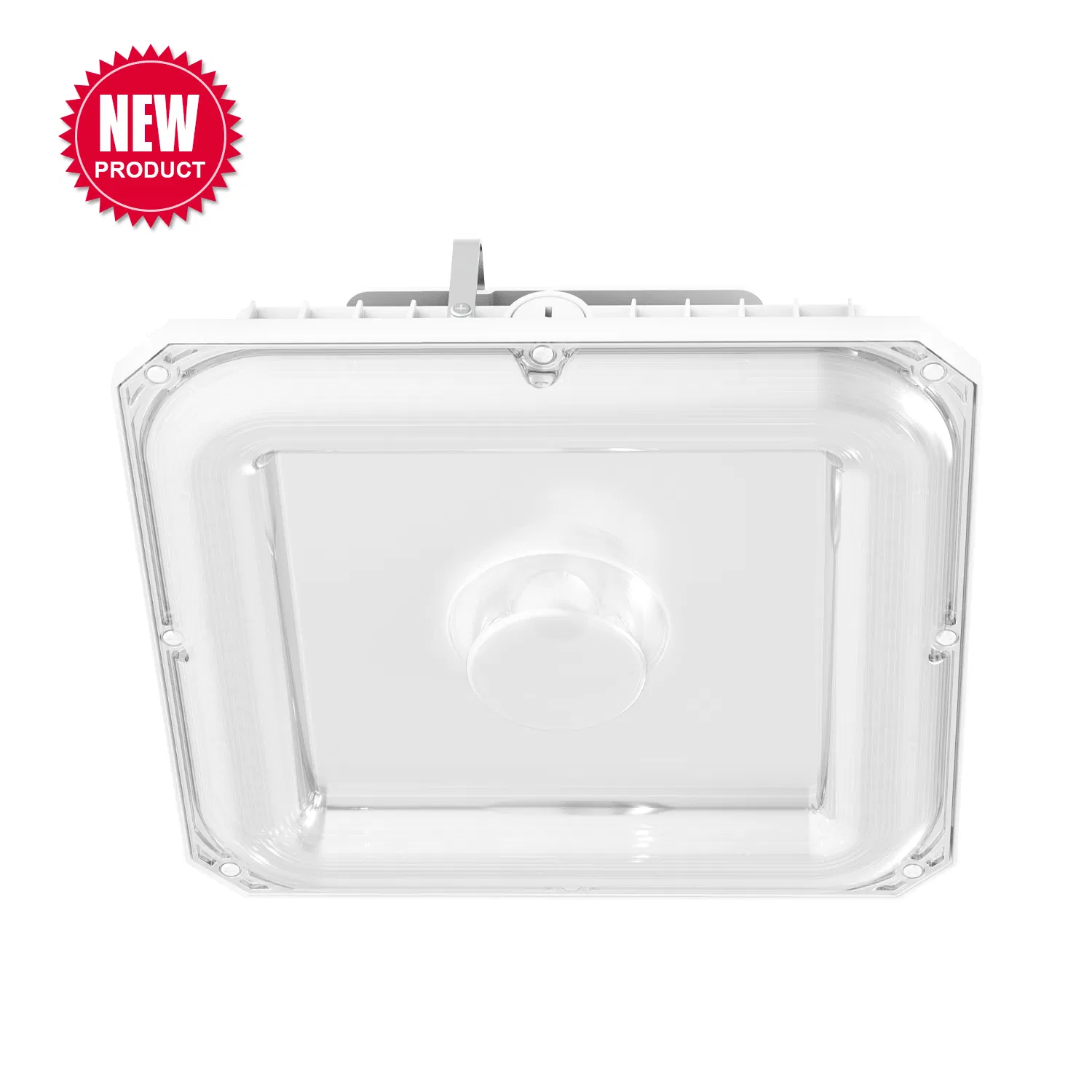

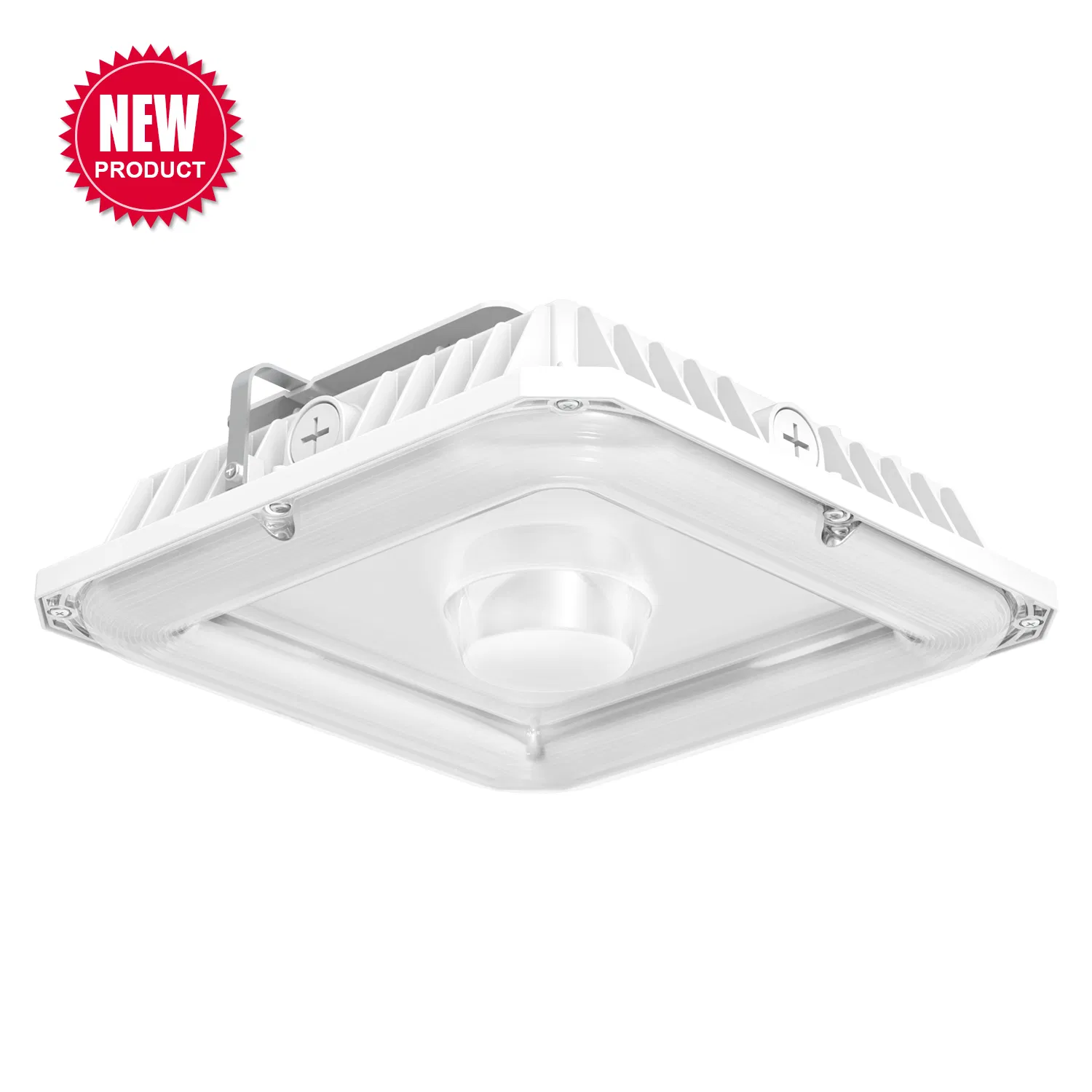

Robust 100W IP65 Waterproof LED Canopy Light for Gas Stations and Outdoor Garages Professional-Grade Outdoor Ceiling

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Information
Model NO.
MF-CPG-100W Square
Power
Tunable 60W 80W 100W
IP Rating
IP65
Certification
CE, RoHS, SAA
Luminous Flux
14000lm
Light Effi.
140lm/W
CCT
Tunable 4500K 5000K 5700K
Input Voltage
100~277V
CRI
≥80
Dimension
255*255*77mm
💡 Product Description

Outdoor Gas Station LED Garage Canopy Light

LED Canopy Light

The 100W LED Canopy Light delivers superior illumination with 13,500 lumens output, ideal for large commercial and industrial spaces. Featuring durable die-cast aluminum housing with IP65 waterproof rating, it withstands harsh weather conditions while resisting rust and corrosion.

The light offers adjustable color temperatures (4500K/5000K/5700K) and power settings (60%/80%/100%) for customized lighting solutions. Powered by high-efficiency SMD3030 chips (135LMW), it provides flicker-free, uniform light with a 120° beam angle.

Ideal for Various Locations:

  • IP65 Waterproof, perfect for any damp or wet locations.
  • Resists rust, corrosion, and electrical shocks.
  • Suitable for gas stations, stairwells, toll booths, and warehouses.

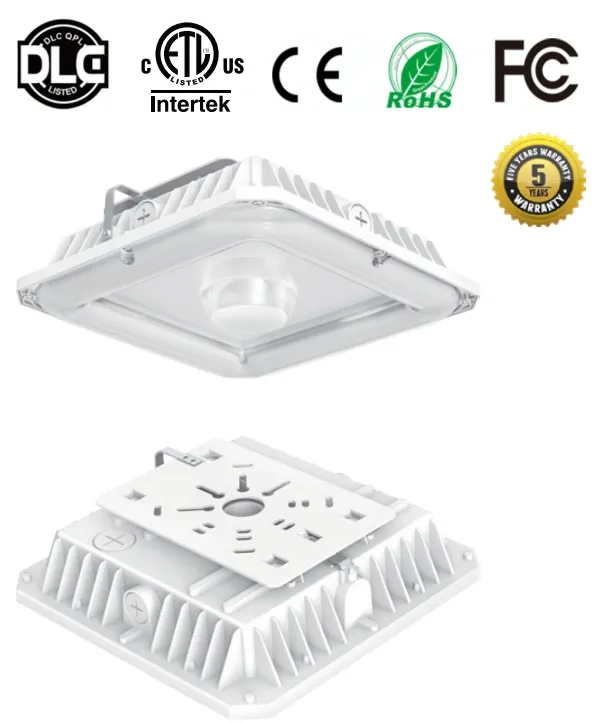

LED Canopy Light Details
Key Features
Photocell dusk to dawn operation
Reflective lens design for optimal efficiency
Die-cast aluminum thermal management
Recessed or surface mounted installation

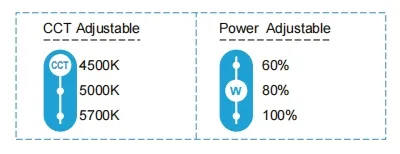

Adjustable CCT: 4500K/ 5000K/ 5700K
Adjustable power: 60%/ 80%/ 100%
Working temperature: -30° F to 130°F
High output 135LM/W SMD3030 chips
Feature Image 1
📊 Technical Specifications
ModelMF-CPG-100W Square
Lumen Output14000 Lm
Efficacy140 LM/W
Beam Angle120°
LED Type280PCS SMD3030
VoltageAC100-277V
CRI≥80
Power Factor>0.9
IP RatingIP65
📐 Dimensions & Installation

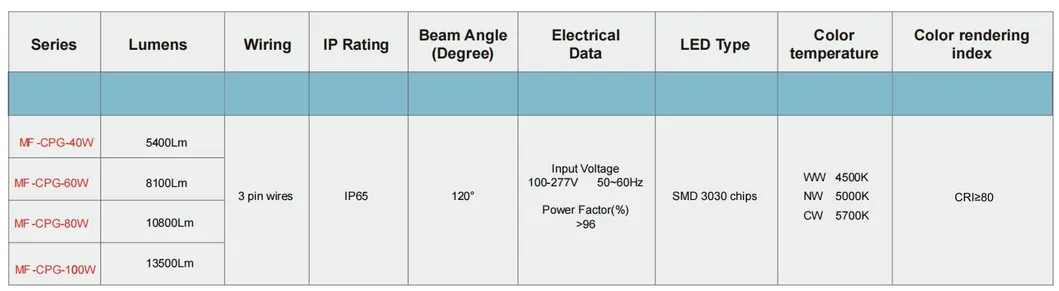

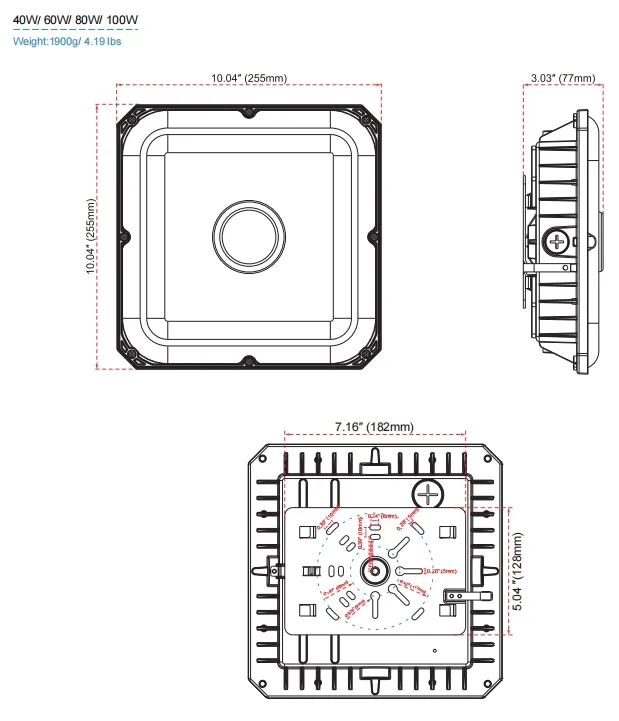

Dimension Diagram Dimension View

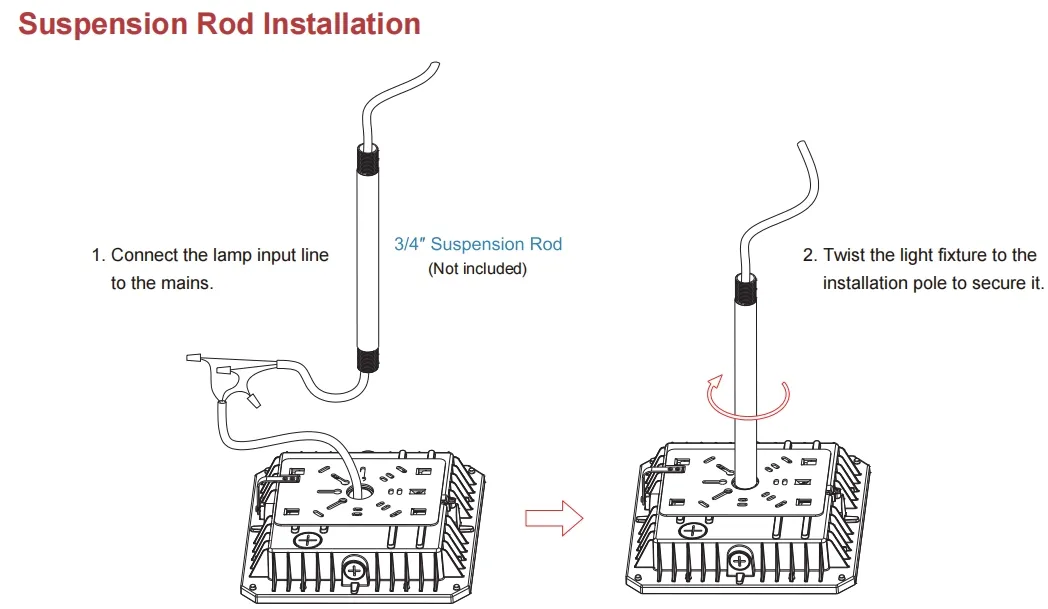

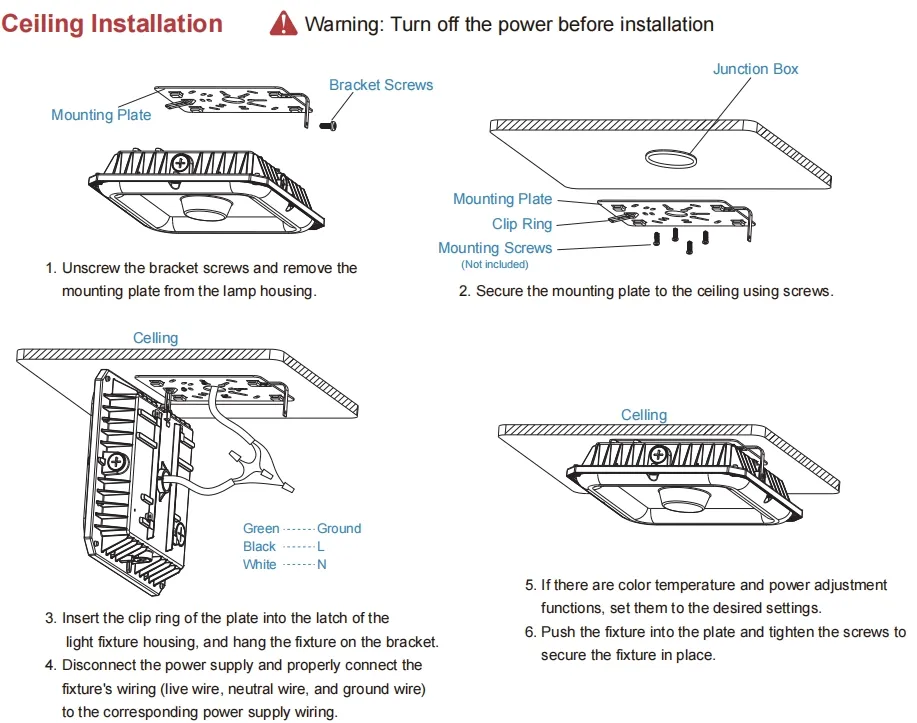

Installation 1 Installation 2

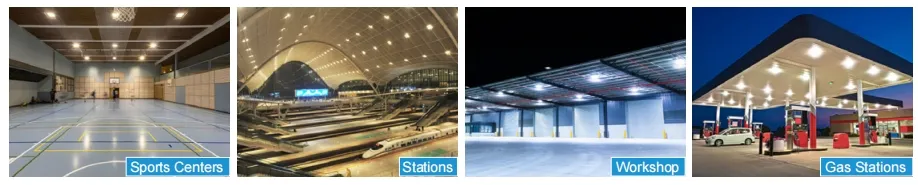

🏭 Applications
Application Banner

Industrial Warehouses: High-intensity illumination for large storage areas and loading docks.

Gas Station Canopies: Bright, shadow-free lighting resistant to fuel vapors and weather.

Parking Lots & Garages: Dusk-to-dawn photocell for optimal visibility and energy savings.

Retail Superstores: Enhances product displays with high CRI and tunable color temperatures.

📦 Test Data & Packaging

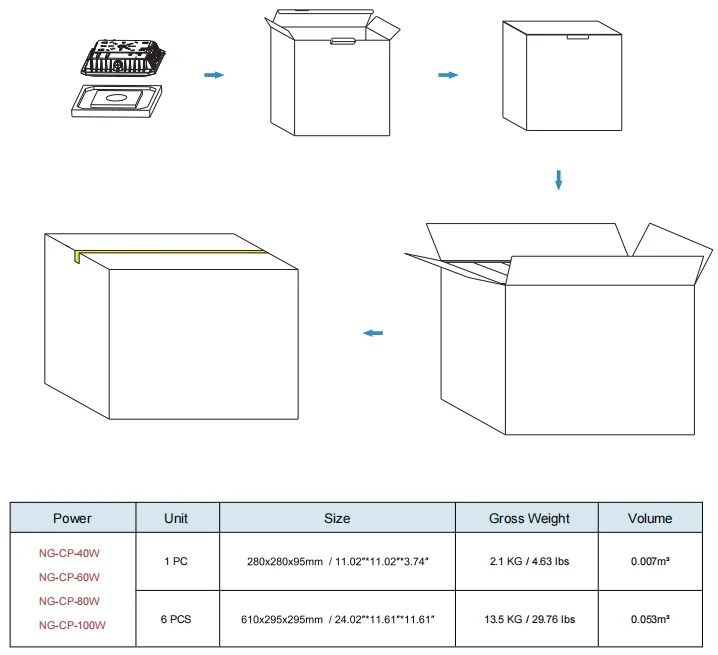

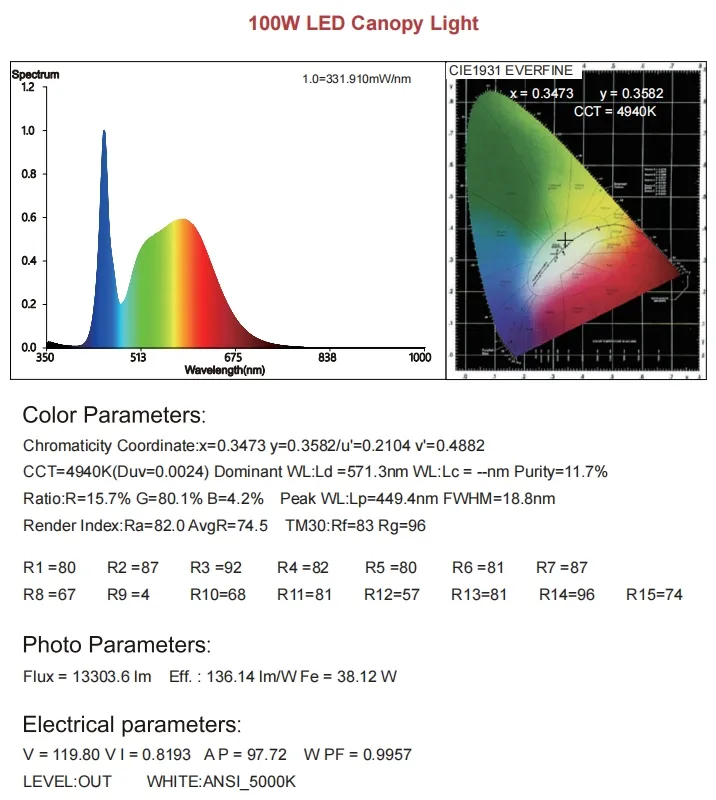

Test Data Packaging Details
📜 Certifications
Certificates
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a manufacturer with over 14 years of experience in research, development, and manufacturing, operating under strict quality management systems.
Can I order a sample of the LED Light?
Yes, we welcome sample orders to test and check product quality. Mixed samples are also acceptable.
What is the typical lead time?
Sample orders typically take 3-7 days, while mass production orders range from 15-25 days depending on the quantity.
How do you ship your products?
We offer flexible shipping options including sea freight, air freight, and express couriers like DHL, UPS, FedEx, or TNT.
Do you offer OEM services?
Yes, we provide OEM services including custom labels and color box packaging based on your specific requirements.
What is the warranty and how do you handle defects?
We offer a 5-year warranty. Our defect rate is less than 0.2%. If a defect occurs during the warranty period, we will ship replacement lights after verifying the issue through photos or videos.
