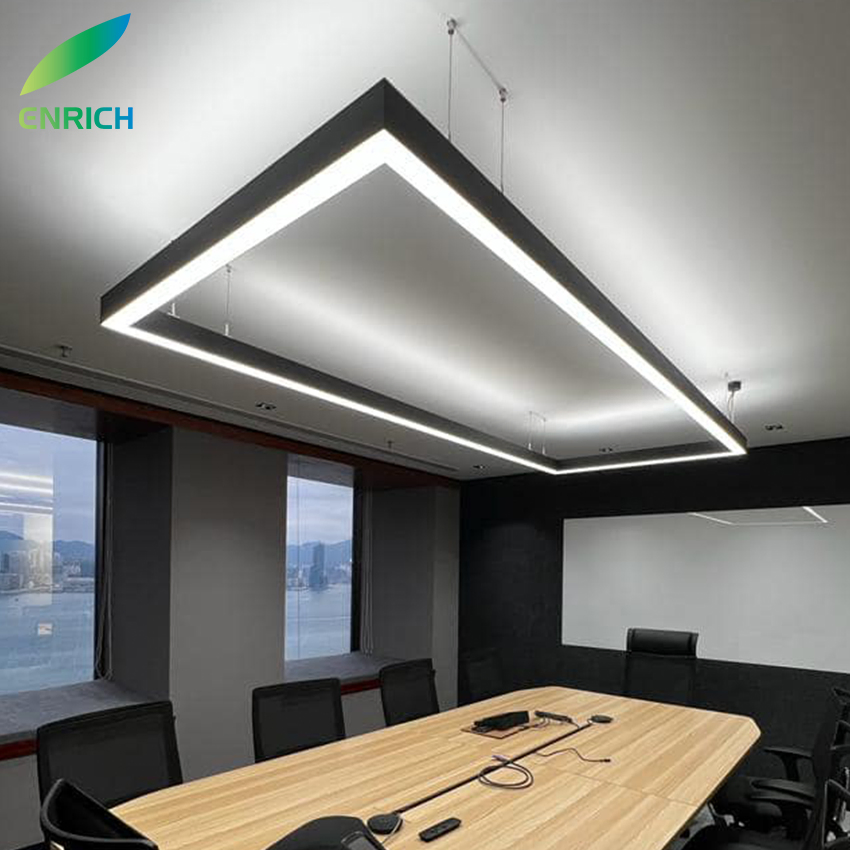

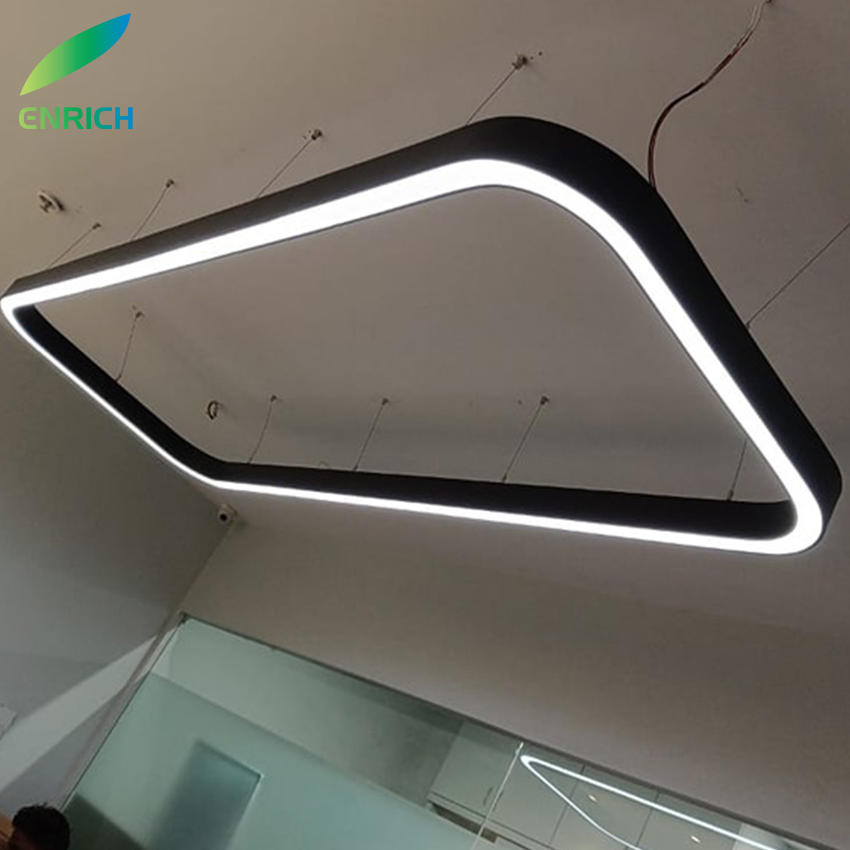

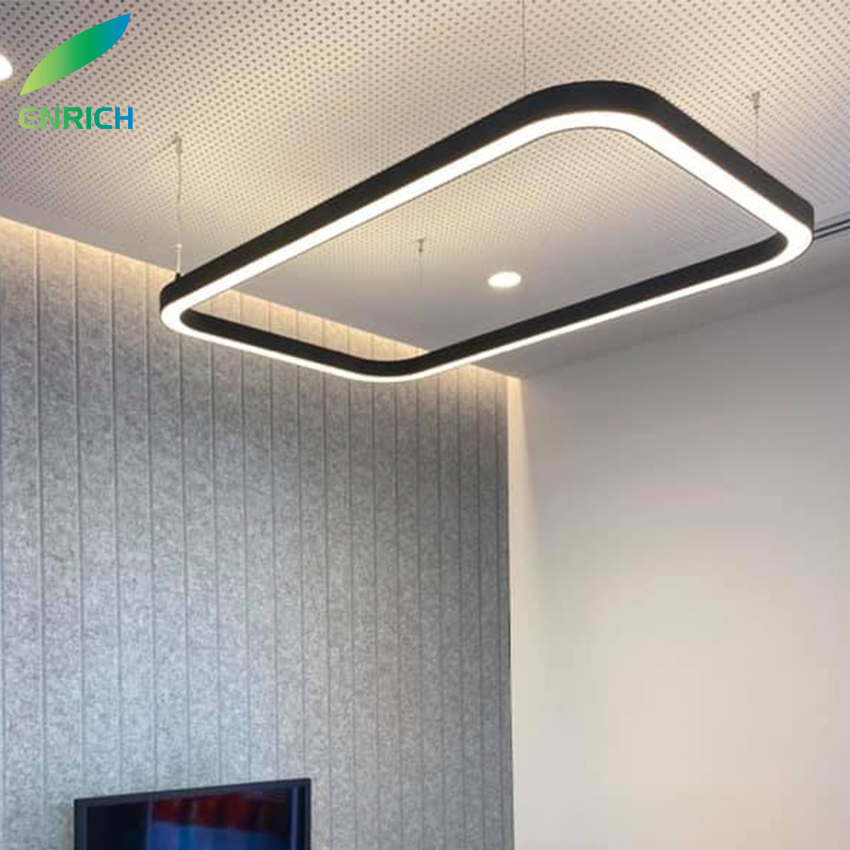

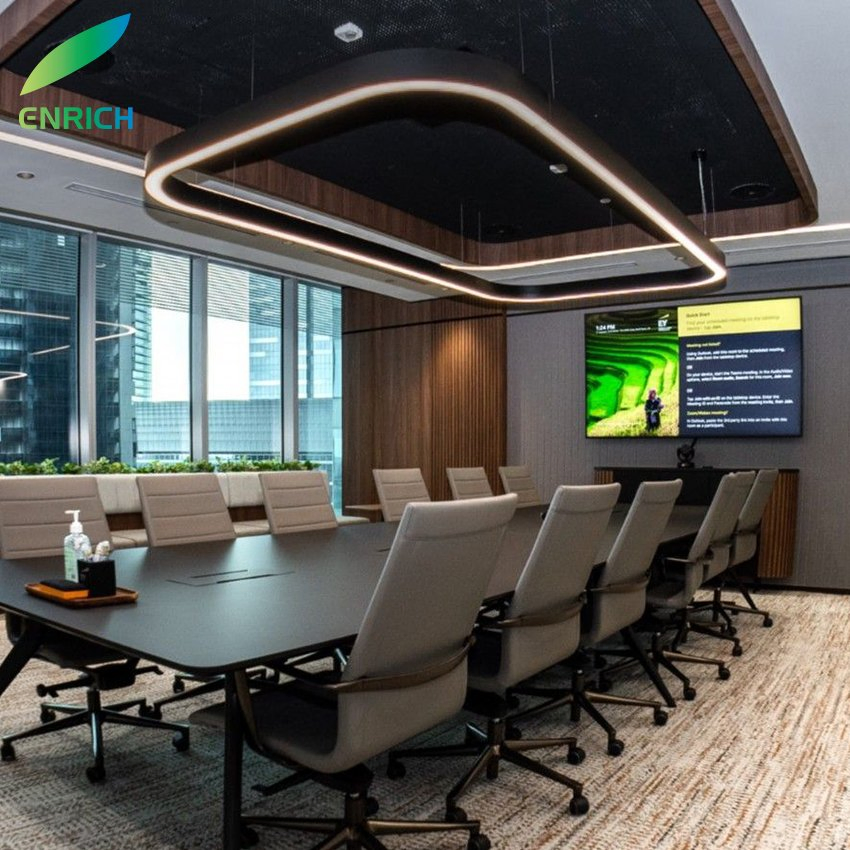

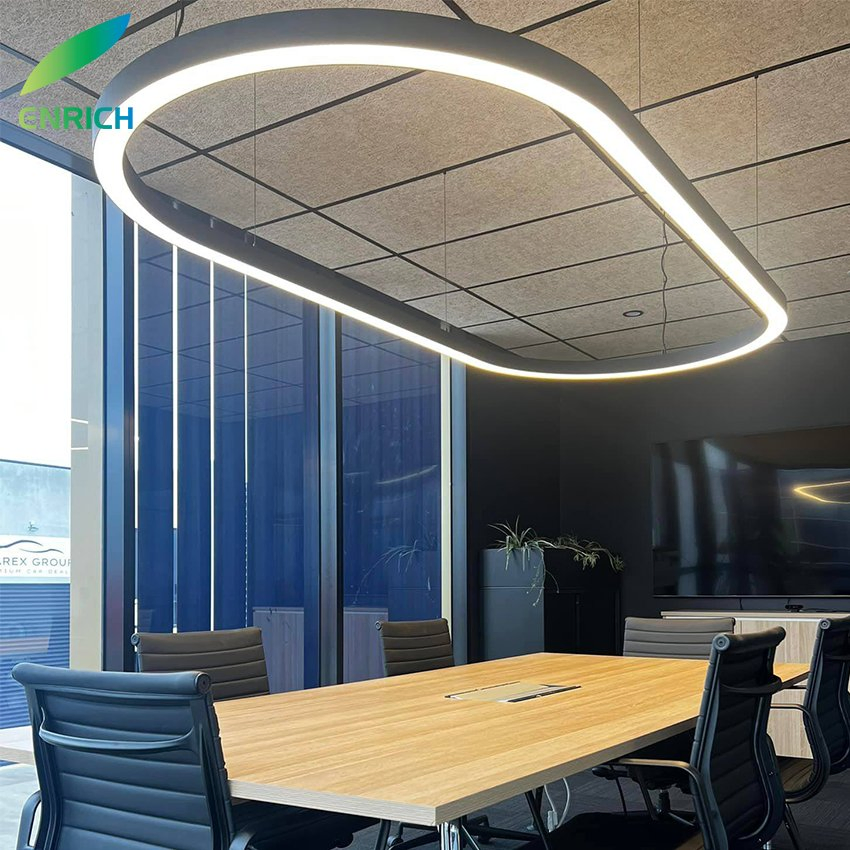

Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall
Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall
Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall
Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall
Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall
1 / 5
Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall
Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall
Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall
Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall
Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall

Rectangular LED Linear Light Round Corner LED Square Pendant Light for Studio Office Building Shopping Mall

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i
Basic Specifications
Model NO.
LC6060-F600/1000
Style
European
IP Rating
IP33
Certification
CE, EMC, RoHS, SAA
Voltage
AC85-265V
LED Chips
Epistar SMD 2835 - 504PCS
Wattage
20W/M
Luminous Eff.
100lm/W
CRI
>80/90
Shell Color
Black, White, Silver, Customized
Dimension
L1000*W600*W60*H60mm
Service Life
50,000 Hours

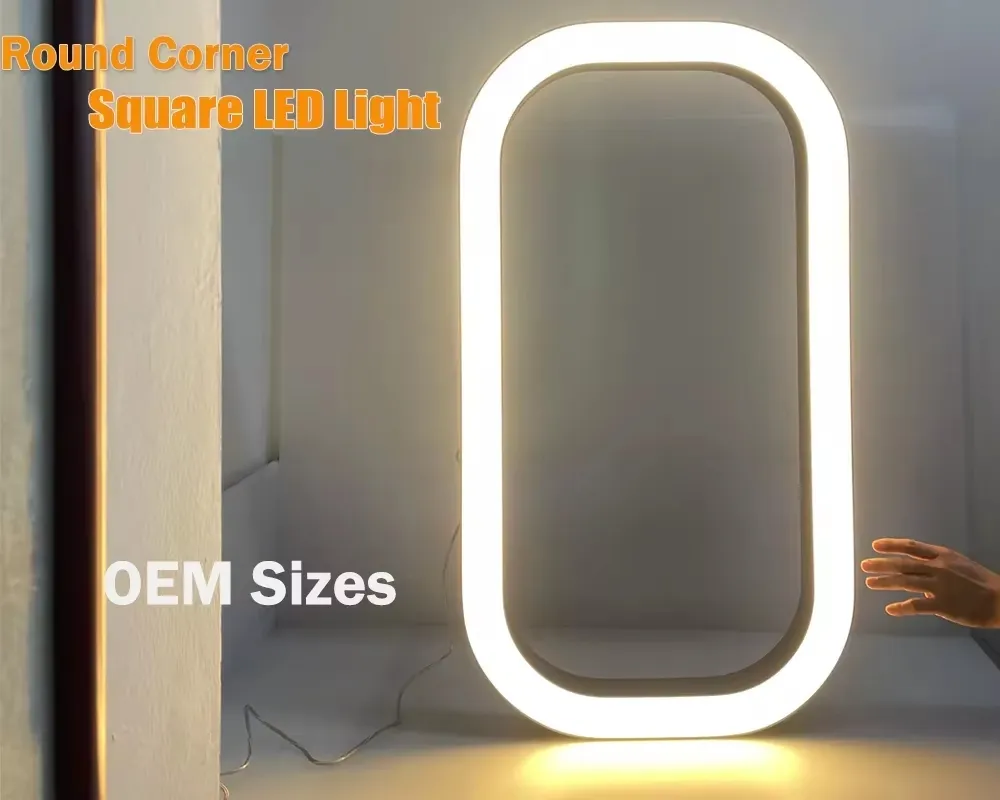

Rectangular LED Linear Light
★
Product Features
No dark area, uniform lighting, excellent heat dissipation.
High Efficacy: 100lm/w ±5%.
1.5mm thick extrusion aluminum profile housing & frosted PC cover.
High CRI: Ra>80 (standard), Ra>90 (available).
Certified flicker-free driver, power factor >0.9.
SMD2835 LED PCB board, L80B10 >50000hrs.
Multiple sizes: L900, L1032, L1200, L3000mm or customized.
Color Temperatures: 3000K, 4000K, 5000K, 6000K.
Mounting: Suspended, Ceiling surface, or Rimless recessed.
Warranty: 5 years.

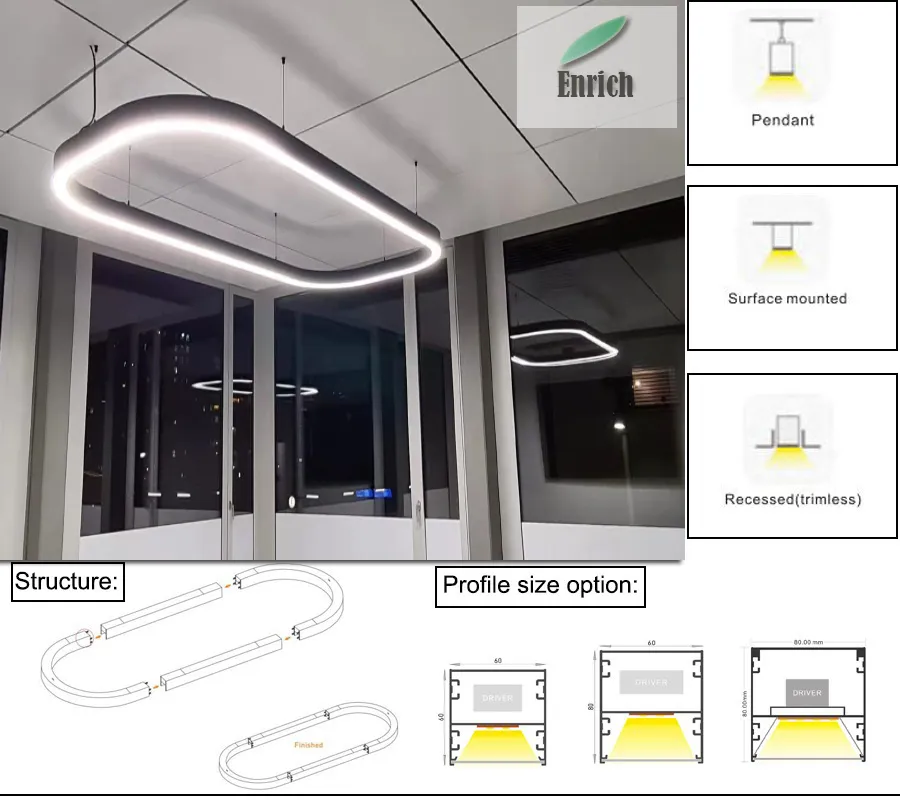

Specifications Diagram
📋
Detailed Parameters
Model Size (mm) Power Luminous Voltage
LC6060-B-900L900*W900*(W60*H60)50W100lm/wAC220-240V
LC6060-B-1032L1032*W1032*(W60*H60)60W100lm/wAC220-240V
LC6060-B-1200L1200*W1200*(W60*H60)70W100lm/wAC220-240V
LC6060-B-3000/600L3000*W600*(W60*H60)136W100lm/wAC220-240V
LC6060-B-3000/1200L3000*W1200*(W60*H60)160W100lm/wAC220-240V

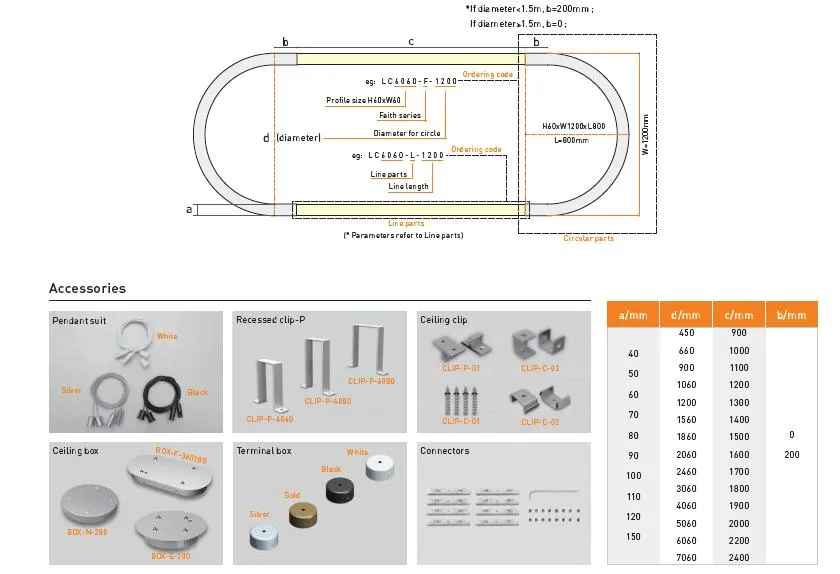

Structure Detail
📷
Applications & Scenarios

Perfect for modern office lighting, shopping malls, stores, gyms, schools, hotels, and residential bedrooms.

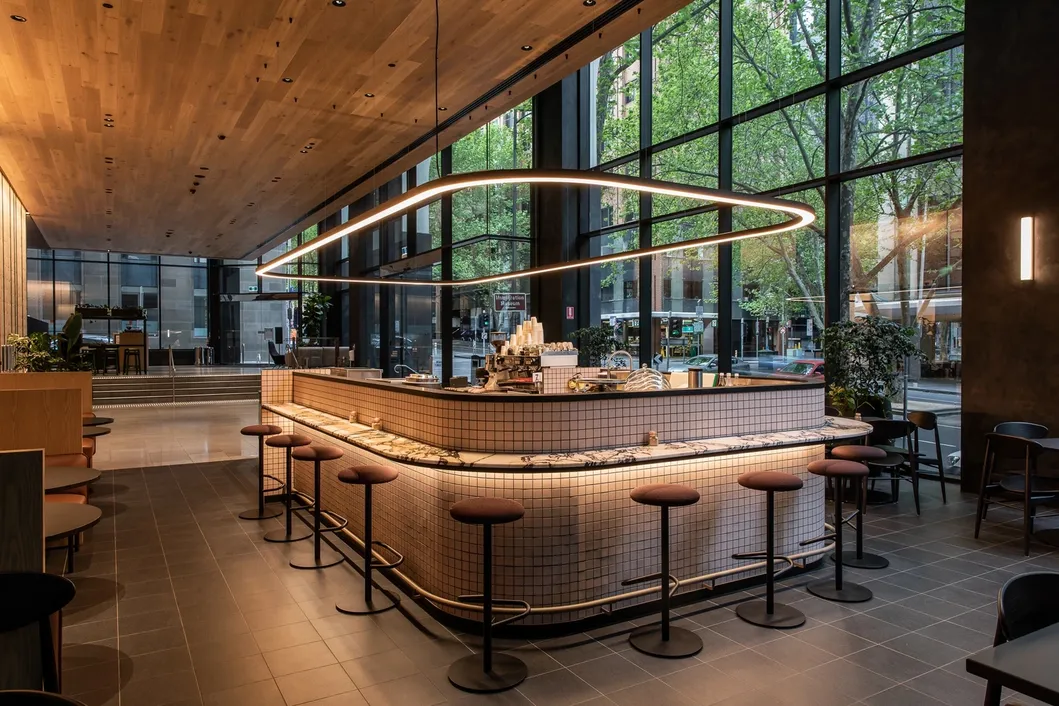

Office Application

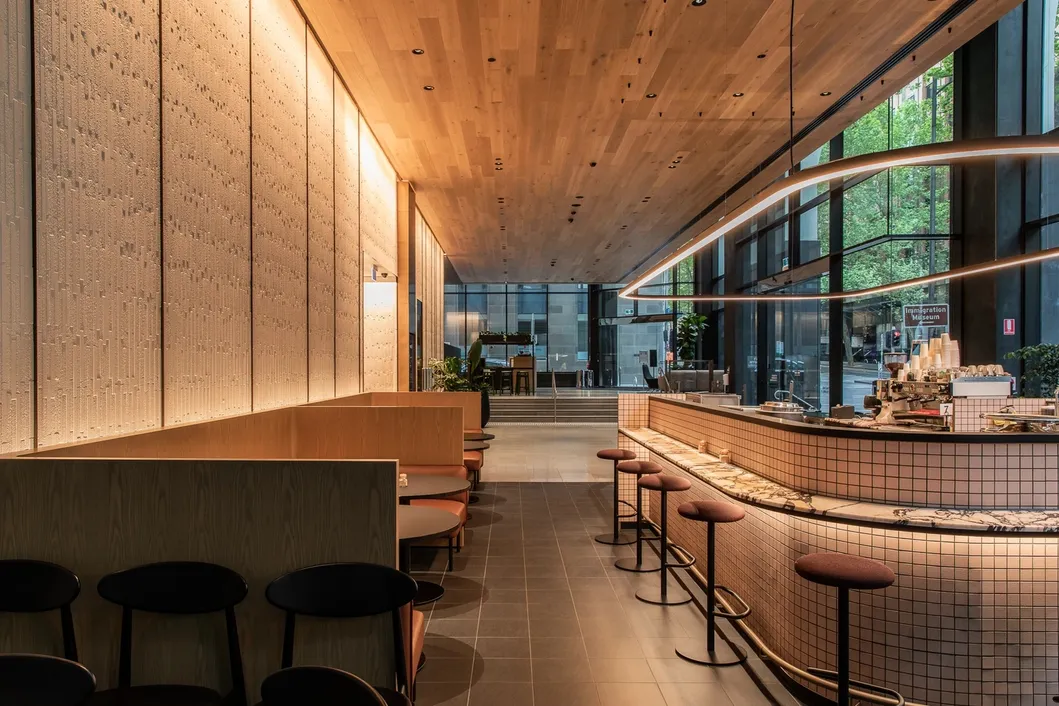

Shopping Mall Application

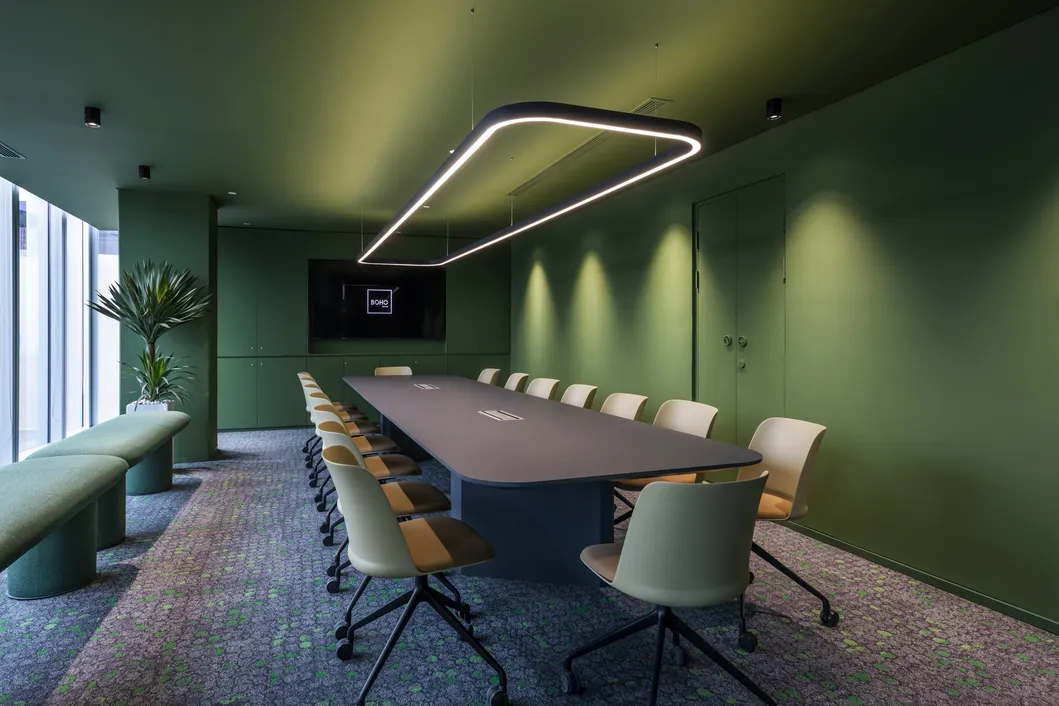

Studio Application

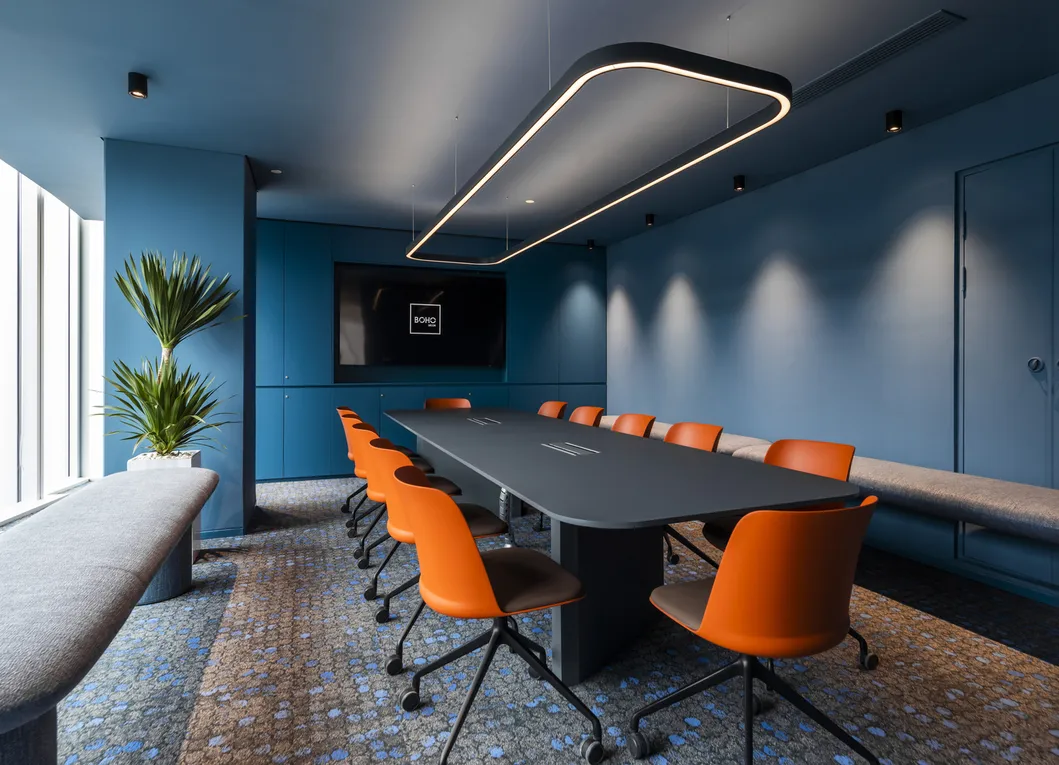

Modern Interior

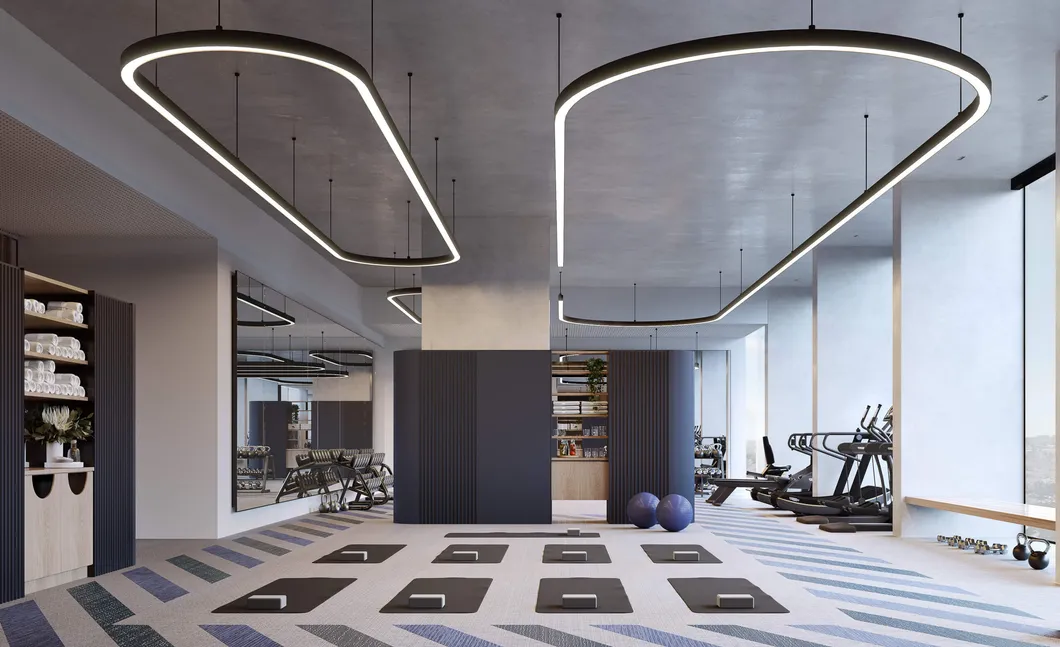

Reception Area

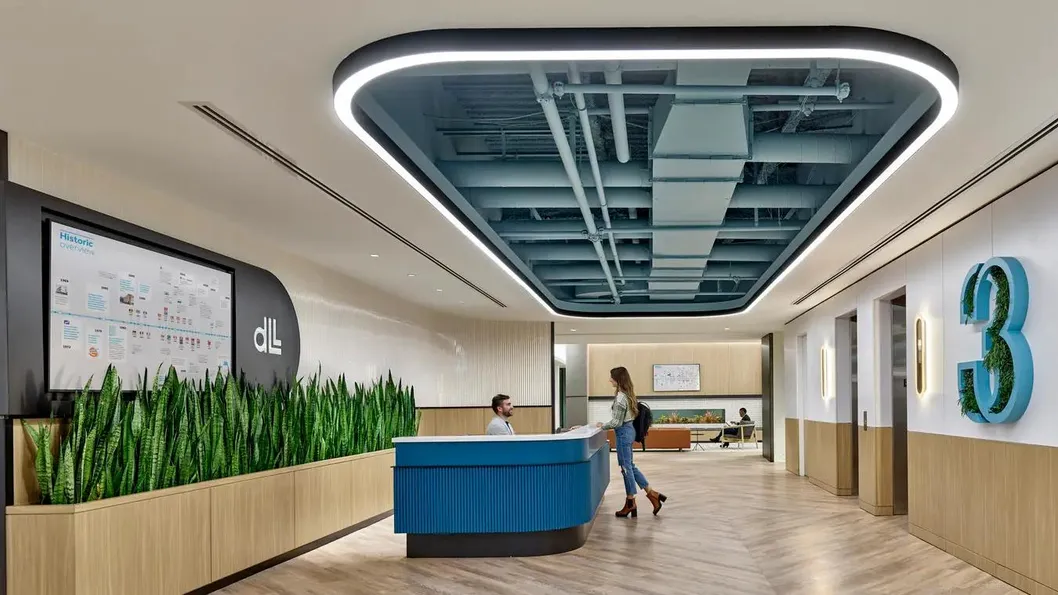

Conference Room
⚙
Production Line

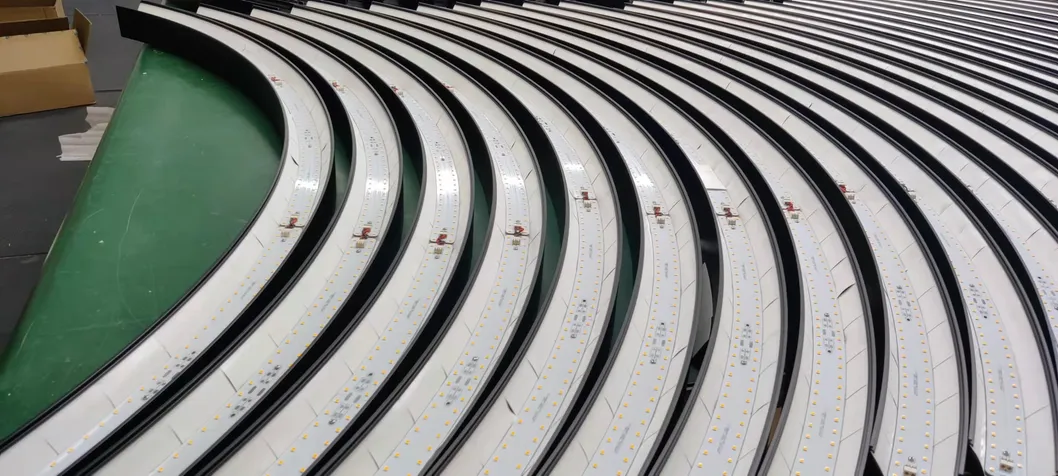

Production 1

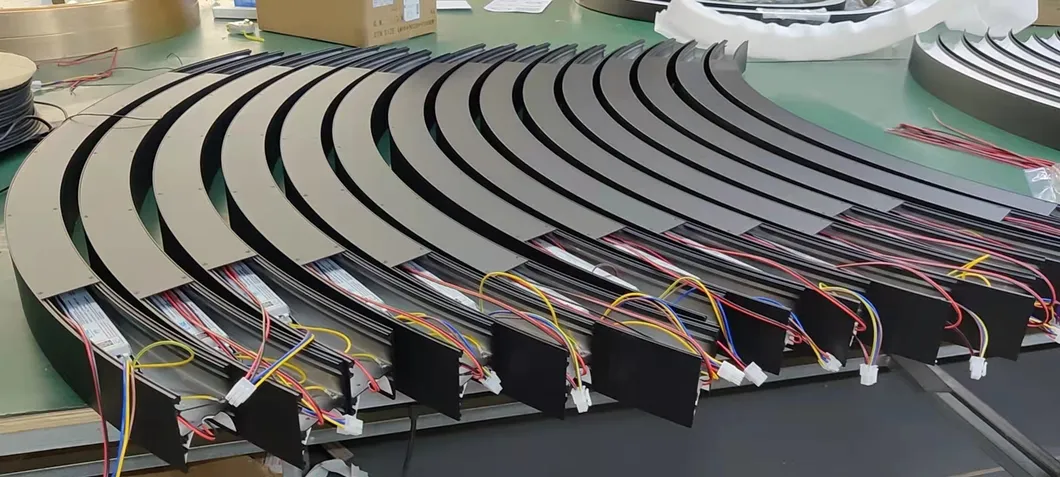

Production 2

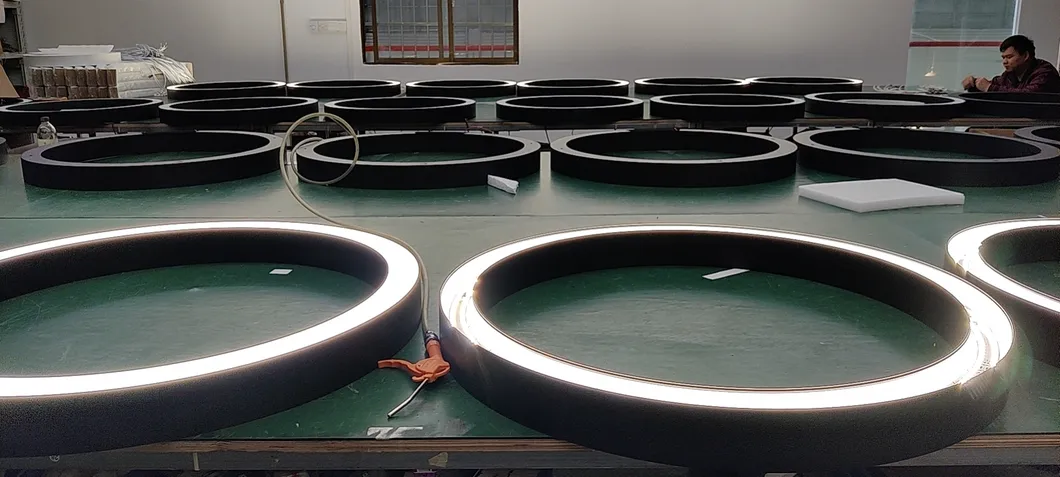

Production 3

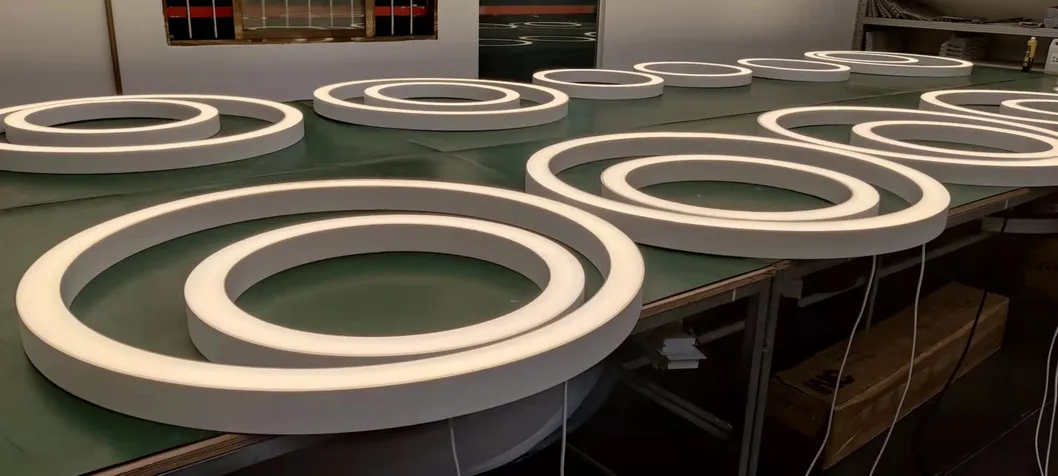

Production 4
?
Frequently Asked Questions
What is the warranty period for this linear light?
We provide a 5-year warranty for this product, ensuring long-term reliability and performance for your projects.
Can the size of the LED square pendant be customized?
Yes, we accept OEM designs and can customize the dimensions (length and width) according to your specific project requirements.
What installation methods are supported?
This light supports suspended mounting, ceiling surface mounting, and rimless recessed mounting.
What is the color rendering index (CRI) of the LEDs?
The standard CRI is Ra>80, but we also offer an upgrade option for Ra>90 for projects requiring higher color accuracy.
Are the drivers flicker-free?
Yes, we use certified flicker-free internal drivers with a power factor greater than 0.9, ensuring eye comfort and electrical efficiency.
What color temperatures are available?
Standard options include 3000K, 4000K, 5000K, and 6000K. We also support RGB, RGBW, and RGB+CCT options.
