Recessed LED Slim Panel (Downlight) 3CCT by DIP 3000K/4000K/6500K IP20/IP54

1 / 5

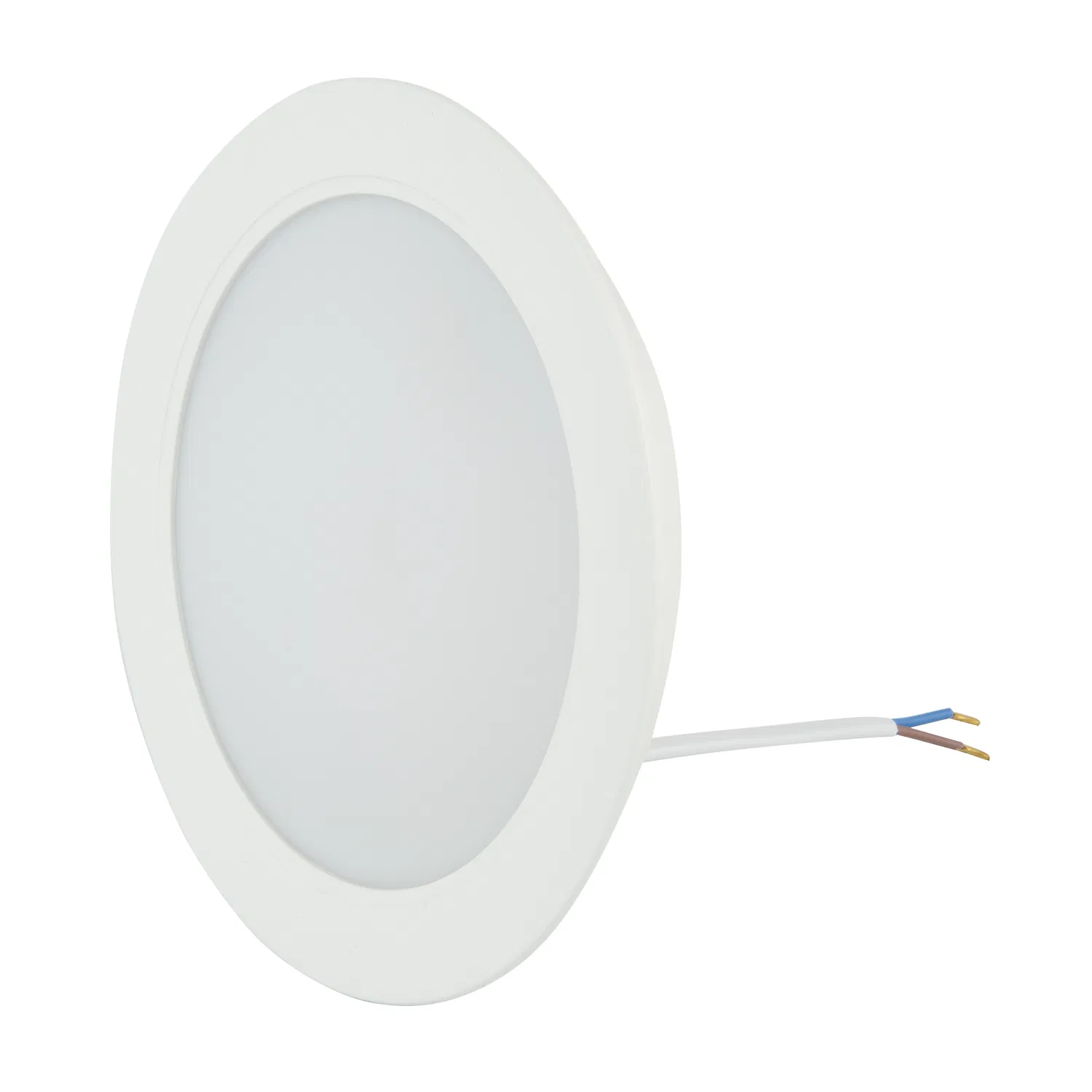

Recessed LED Slim Panel (Downlight) 3CCT by DIP 3000K/4000K/6500K IP20/IP54

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Recessed LED Slim Panel(Downlight)

Power

6-30W

Color Temperature

3000K/4000K/6500K

Lamp Body Material

LED Source

SMD 2835

Installation

Recessed

Warranty

2 Years

IP Rating

IP20/IP54

Certification

CE, GOST, RoHS, EMC, LVD, ERP2.0, CB

Production Capacity

2,000,000 PCS/Year

Product Highlights

✓ Side light or Backlit design options
✓ 3CCT by DIP switch or Single CCT
✓ Integrated Switch Box options
✓ High CRI (Ra ≥80) for natural lighting
✓ Wide Beam Angle: 120°±10°

Item No.	Watts	Voltage	Lumen	IP Rate	Energy Class	CCT(K)	Material	Ra	DF	Dimension (mm)

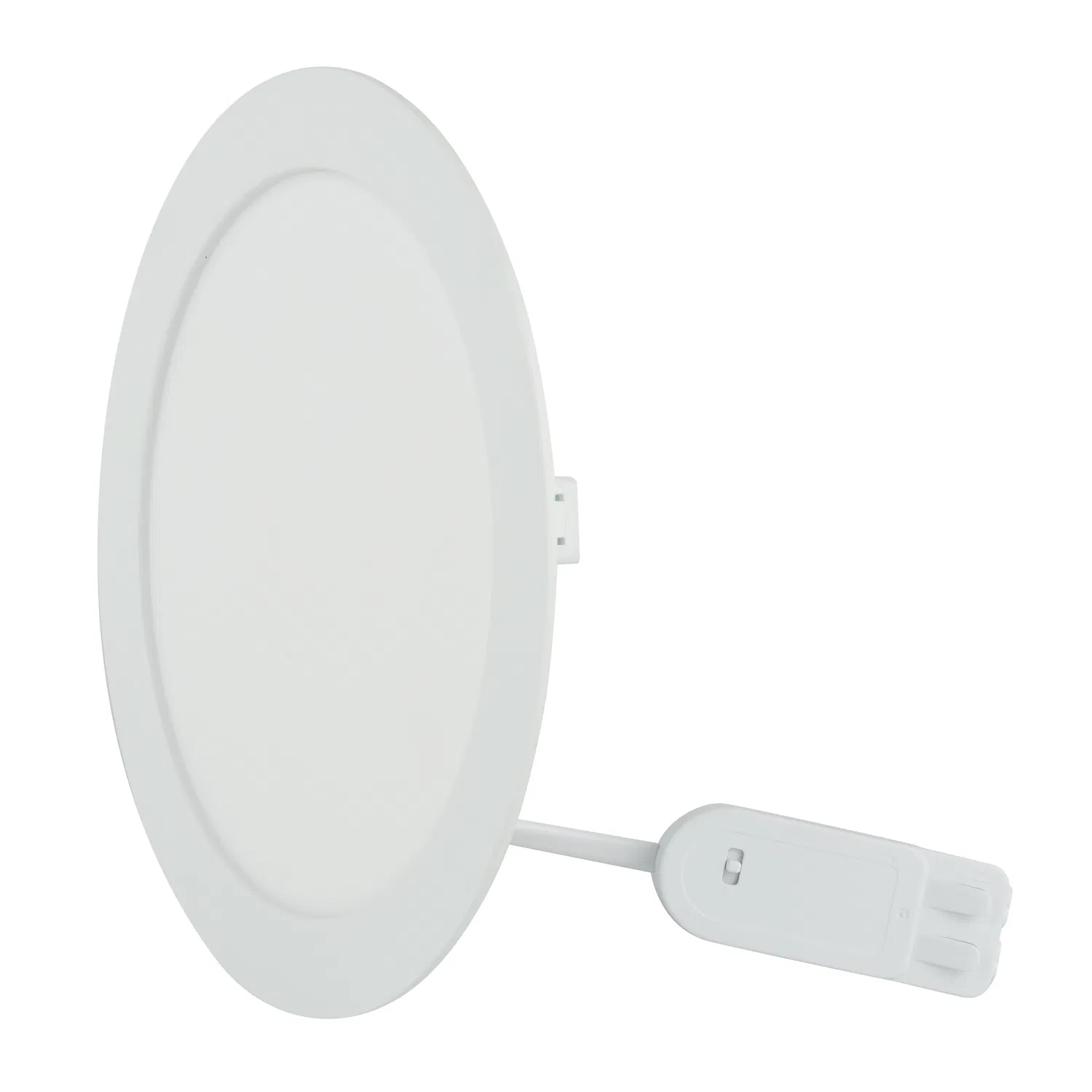

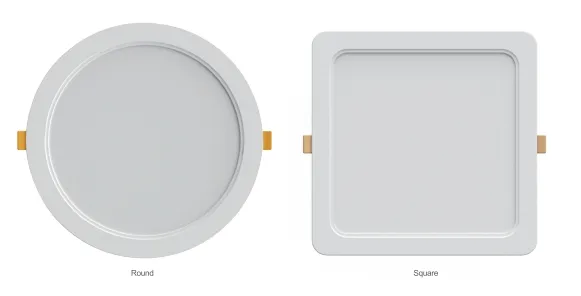

Recessed Round
SF-Slim Panel	6W	175-250V	85-100lm/w	IP20/IP54	F	3000K/4000K/6500K	PC	80	>0.5	φ128×H14.8
SF-Slim Panel	12W	175-250V	85-100lm/w	IP20/IP54	F	3000K/4000K/6500K	PC	80	>0.7	φ170×H15.8
SF-Slim Panel	18W	175-250V	85-100lm/w	IP20/IP54	F	3000K/4000K/6500K	PC	80	>0.7	φ225×H16.1
SF-Slim Panel	24W	175-250V	85-100lm/w	IP20/IP54	F	3000K/4000K/6500K	PC	80	>0.7	φ300×H16.3

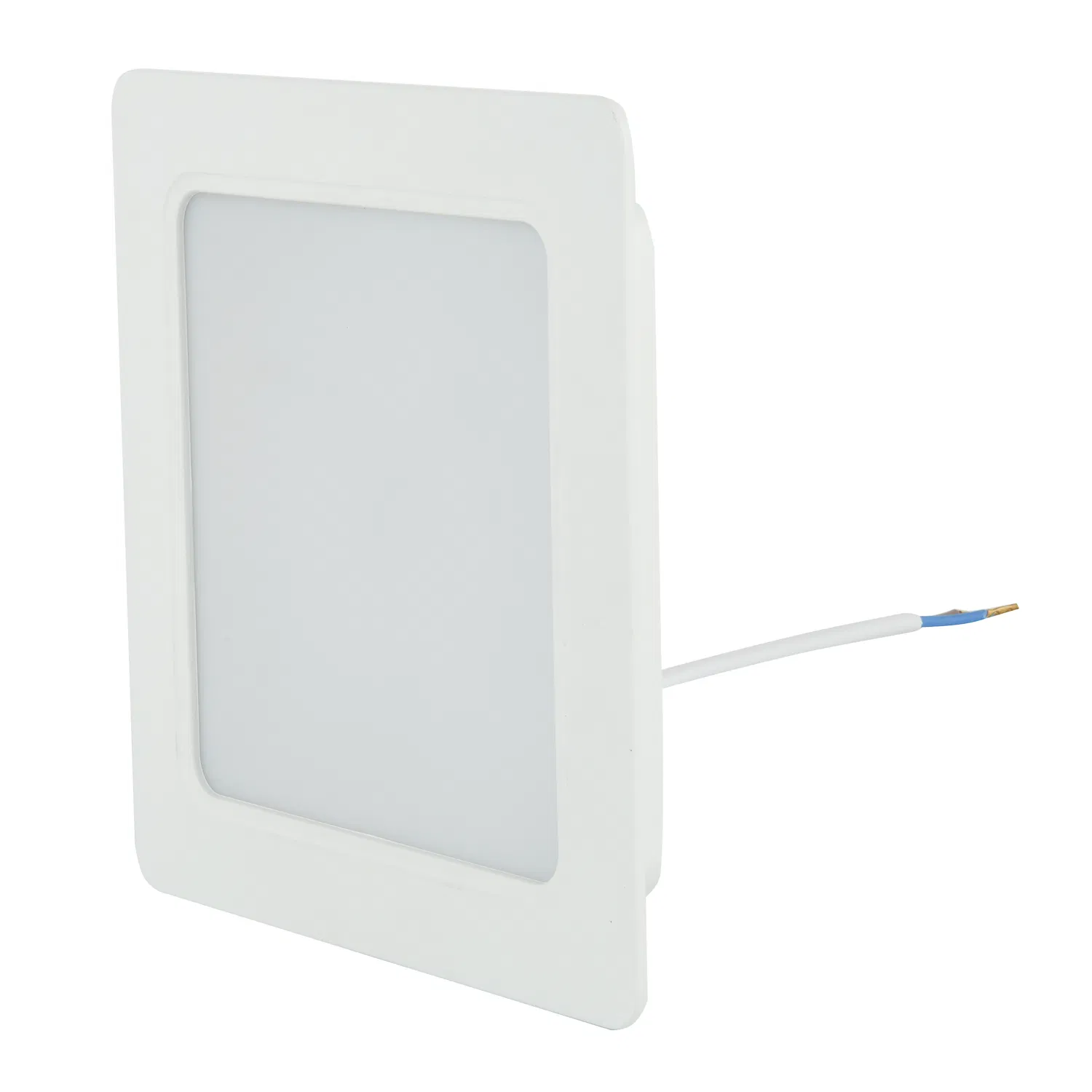

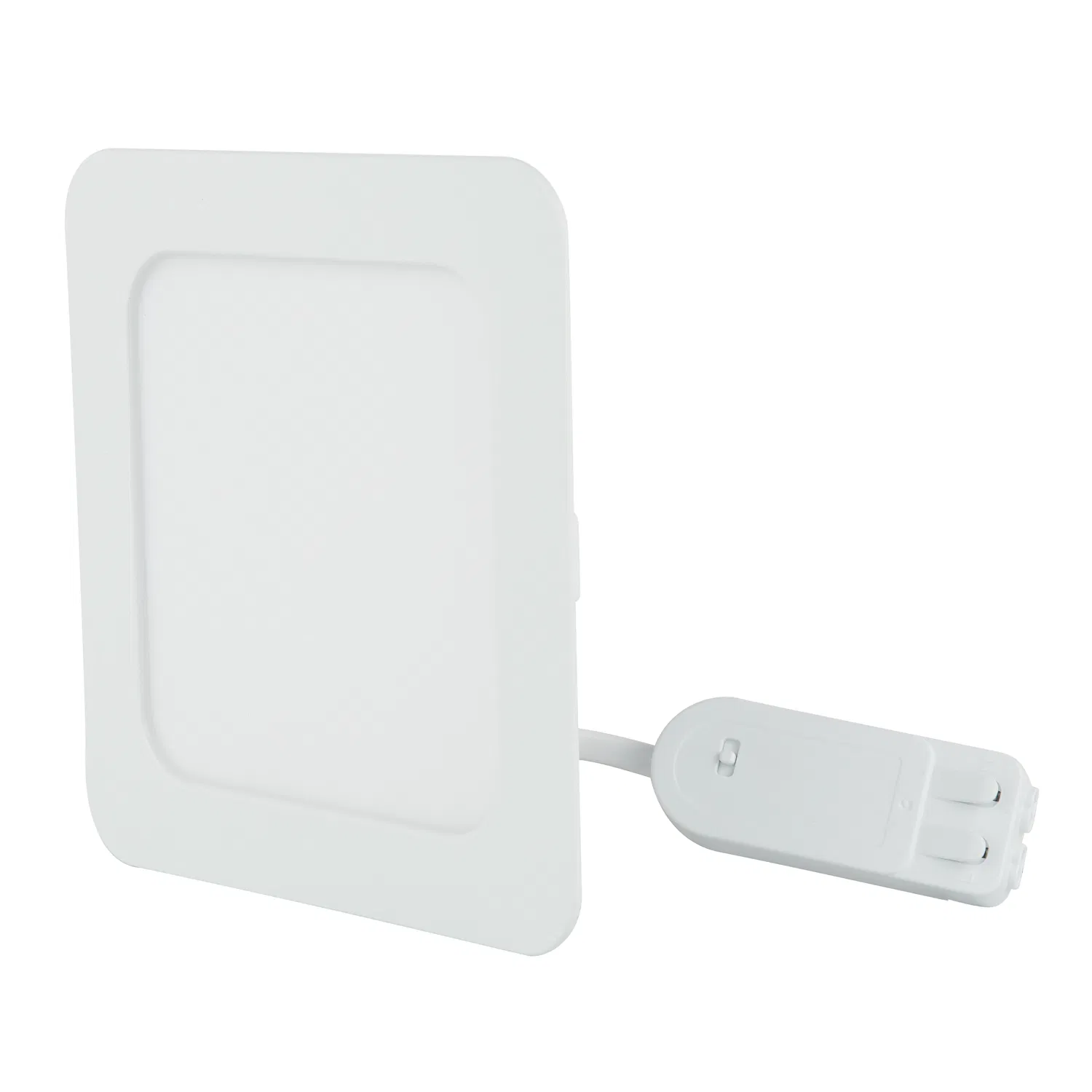

Recessed Square
SF-Slim Panel	6W	175-250V	85-100lm/w	IP20/IP54	F	3000K/4000K/6500K	PC	80	>0.5	120x120x14.8
SF-Slim Panel	18W	175-250V	85-100lm/w	IP20/IP54	F	3000K/4000K/6500K	PC	80	>0.7	225x225x16.1
SF-Slim Panel	24W	175-250V	85-100lm/w	IP20/IP54	F	3000K/4000K/6500K	PC	80	>0.7	300x300x16.3

Product Gallery

Frequently Asked Questions

What is the advantage of the 3CCT DIP switch feature?

The 3CCT DIP switch allows you to choose between three color temperatures (3000K, 4000K, and 6500K) using a single fixture, providing flexibility for different environment needs.

Is this LED panel suitable for humid environments?

Yes, we offer an IP54 rated version which provides protection against dust and splashing water, making it suitable for certain humid locations.

What materials are used for the lamp body?

The lamp body is constructed from high-quality PC material, ensuring durability and a lightweight design for recessed installation.

What is the warranty period for this product?

We provide a 2-year warranty for the Recessed LED Slim Panel, covering standard manufacturing defects.

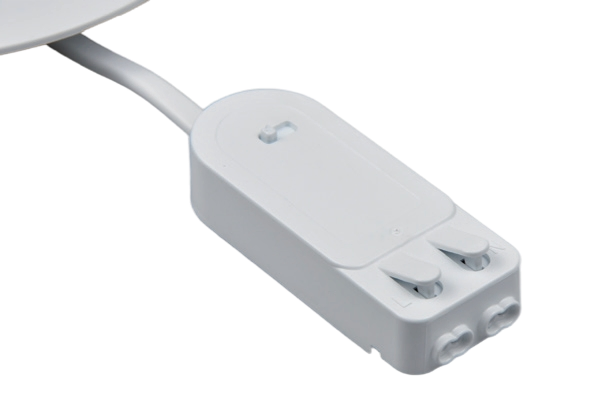

Does the product come with a switch box?

Customers can choose between versions with or without a switch box depending on their specific installation requirements.

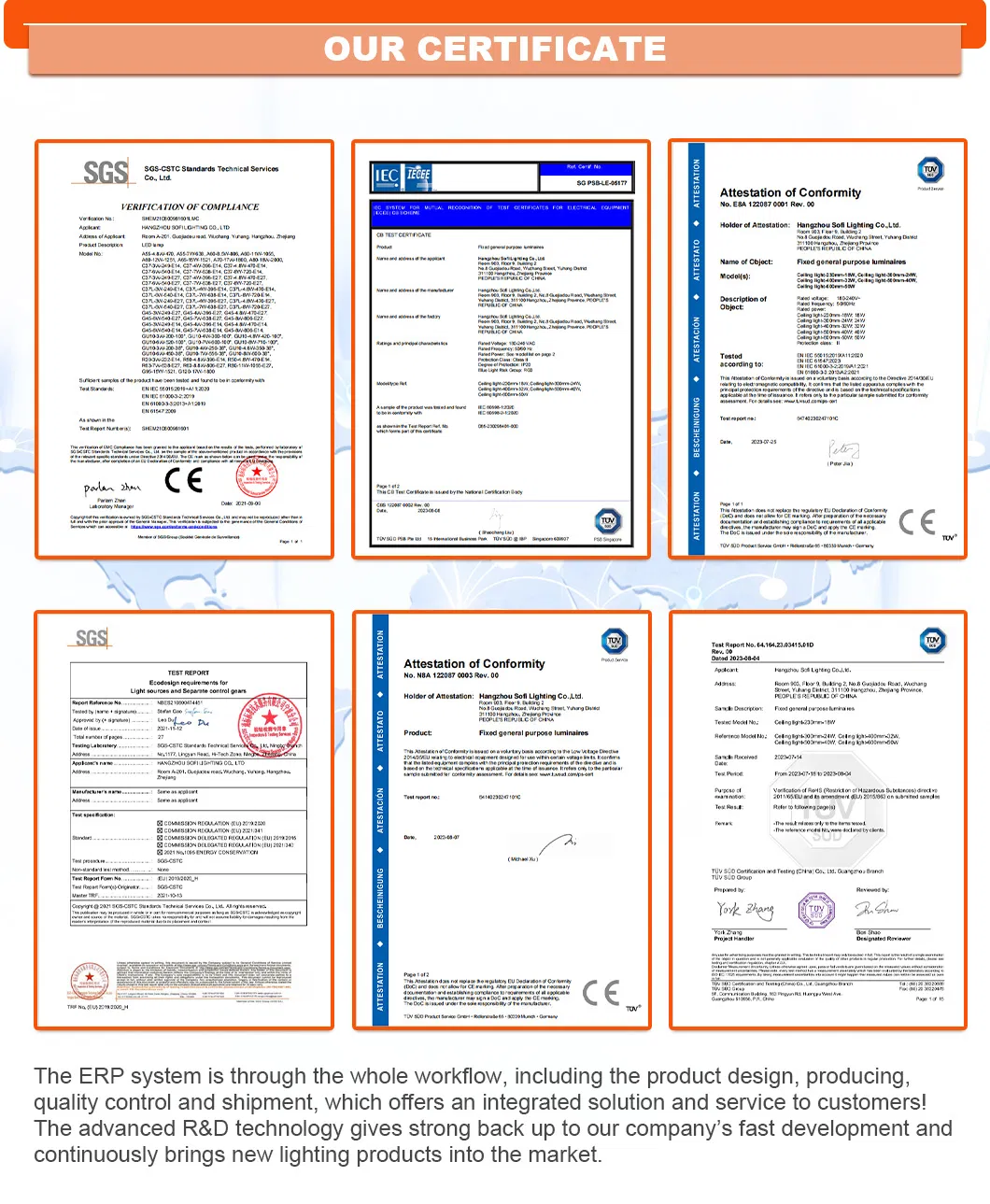

What certifications does this lighting fixture hold?

Our products are compliant with international standards including CE, EMC, LVD, ERP2.0, RoHS, and CB certifications.
