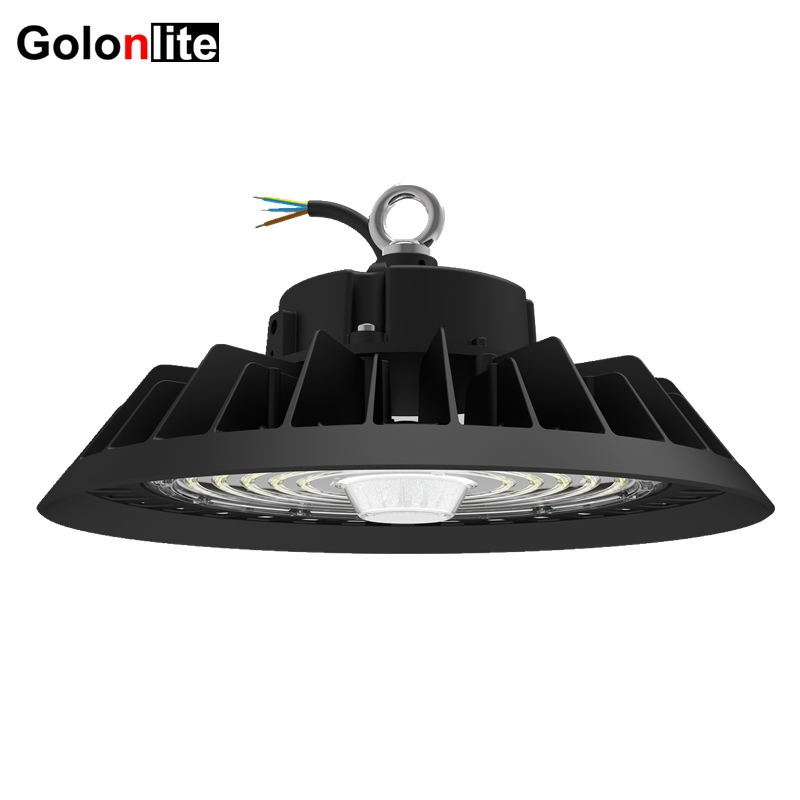

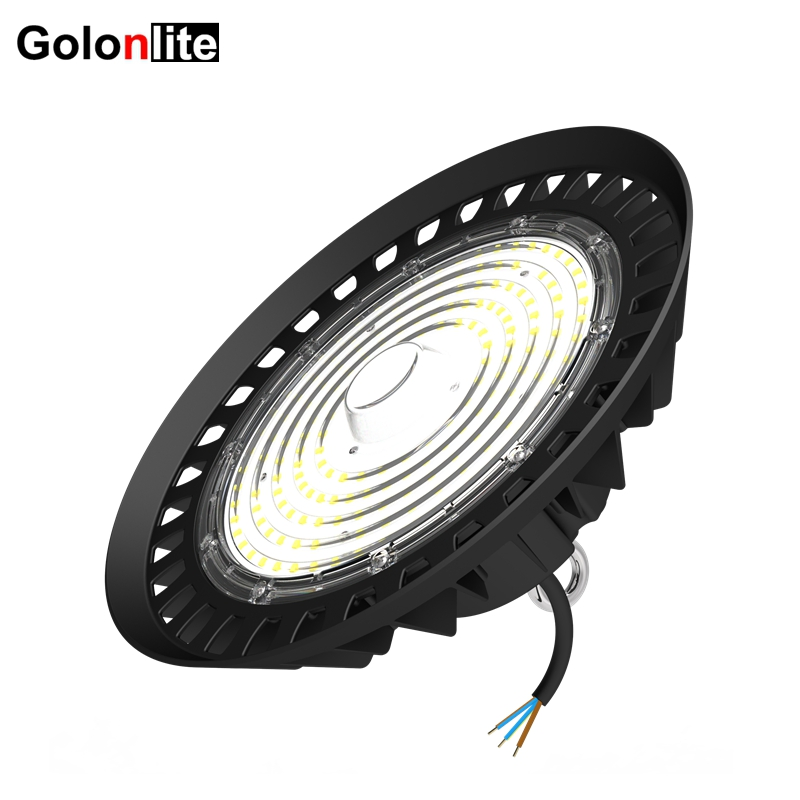

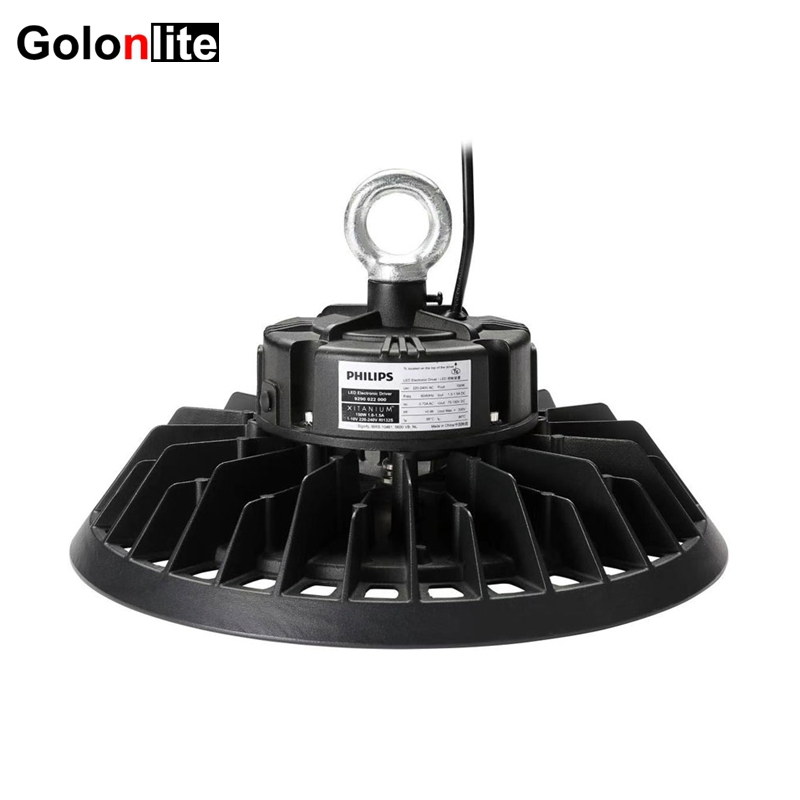

Low Price 5 Years Warranty 170lm/W Waterproof LED Low Bay Light
Low Price 5 Years Warranty 170lm/W Waterproof LED Low Bay Light
Low Price 5 Years Warranty 170lm/W Waterproof LED Low Bay Light
Low Price 5 Years Warranty 170lm/W Waterproof LED Low Bay Light
Low Price 5 Years Warranty 170lm/W Waterproof LED Low Bay Light
1 / 5
Low Price 5 Years Warranty 170lm/W Waterproof LED Low Bay Light
Low Price 5 Years Warranty 170lm/W Waterproof LED Low Bay Light
Low Price 5 Years Warranty 170lm/W Waterproof LED Low Bay Light
Low Price 5 Years Warranty 170lm/W Waterproof LED Low Bay Light
Low Price 5 Years Warranty 170lm/W Waterproof LED Low Bay Light

Low Price 5 Years Warranty 170lm/W Waterproof LED Low Bay Light

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.:
GL-UHB-02
Power:
600W 500W 400W 300W
Lifespan:
≥50000H
IP Rating:
IP65
Certification:
CE, EMC, LVD, RoHS
Beam Angle:
30/60/90/120°
Lumen Efficiency:
200lm/W
Material:
Die Casting Aluminum Body
★

High Efficiency LED Low Bay Light

Technical Parameter Details
Light Source LED Type SMD2835
Luminous Efficiency 150Lm/W; 170Lm/W; 200Lm/W
CCT(K) 3000K / 4000K / 5000K / 5700K / 6500K
CRI > Ra80/70
Electrical Input Voltage 100-277VAC / 347VAC / 480VAC 50/60Hz
Dimming 0-10V, PWM, Resistance, Dali dimmable

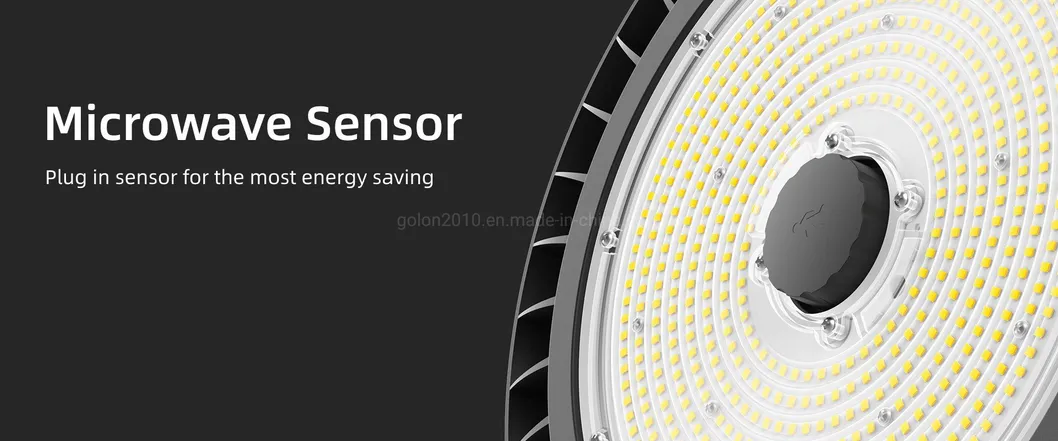

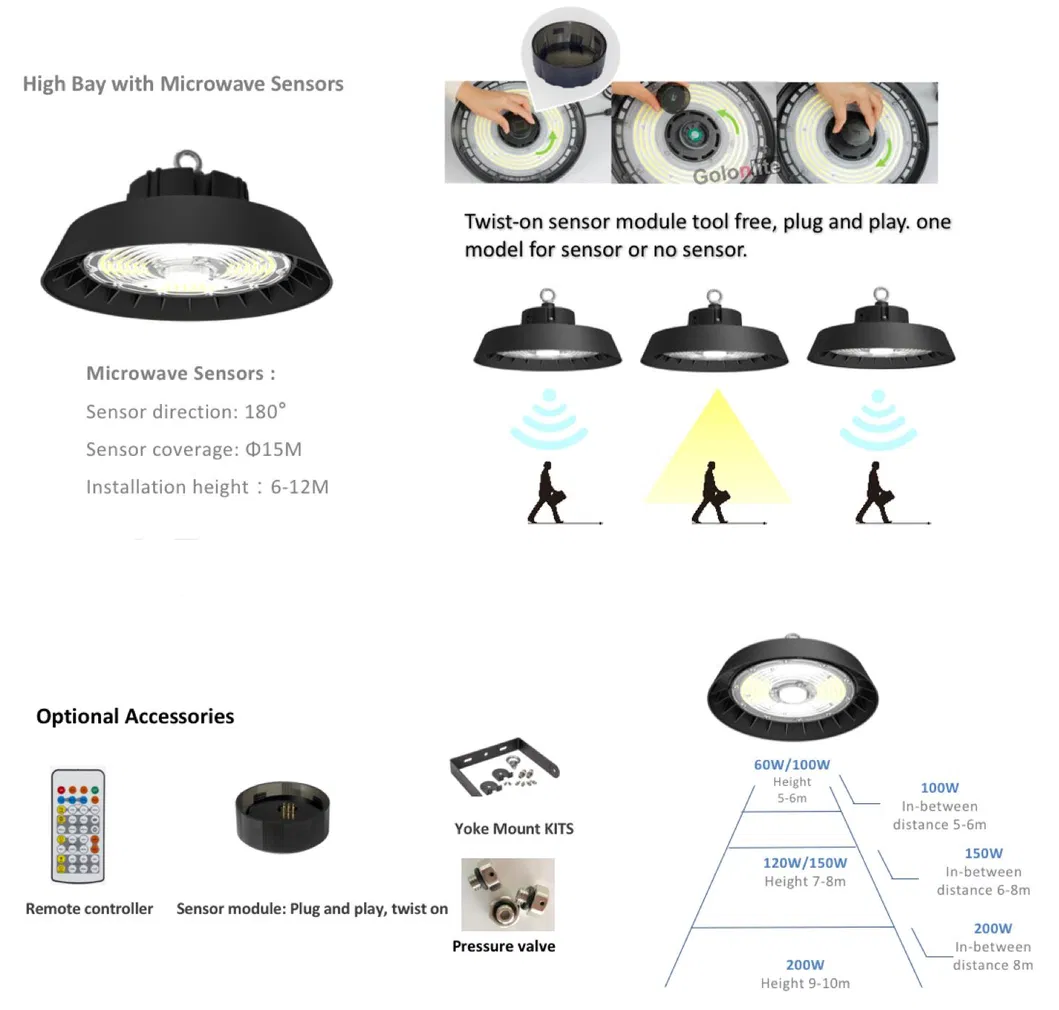

Sensor Option Microwave / Photocell sensor
Structure Protection IP65 Waterproof
✔

Product Key Features

Advanced Dimming: Three-in-one dimming (0-10V, PWM, or resistance) and DALI support.

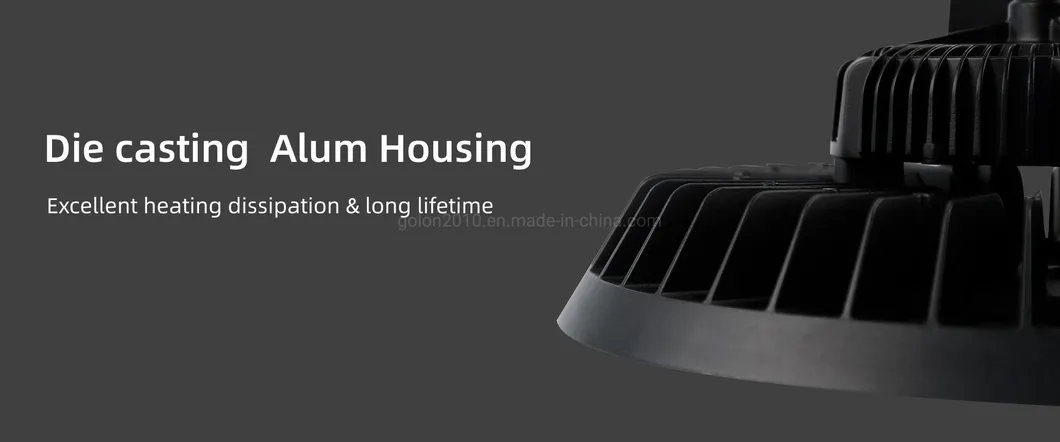

Thermal Management: Die-casting aluminum housing provides the best heat sink solution.
Energy Saving: Super bright 150Lm/W - 200Lm/W efficiency for maximum energy reduction.

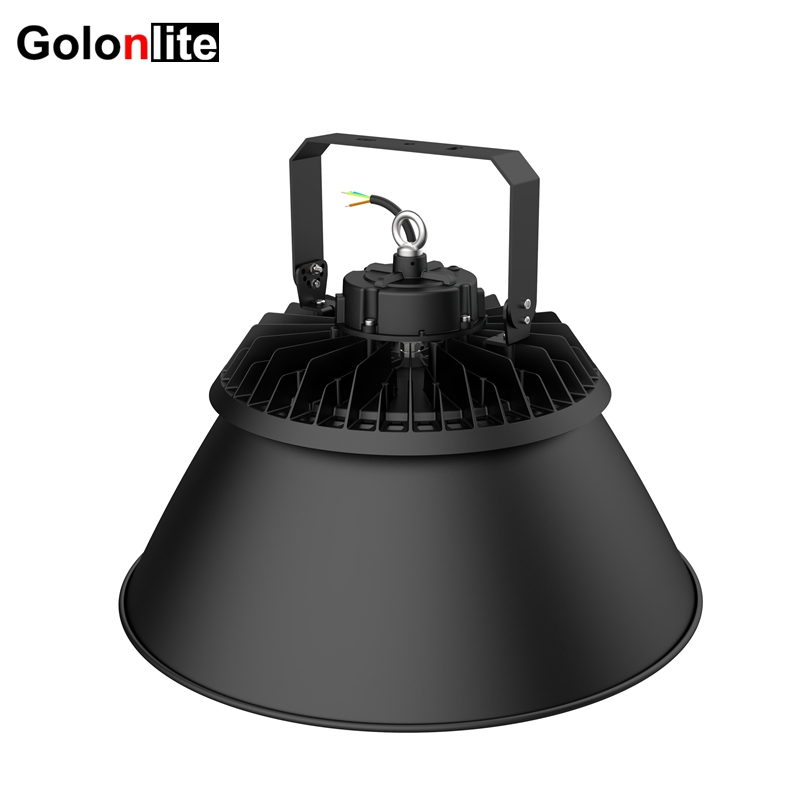

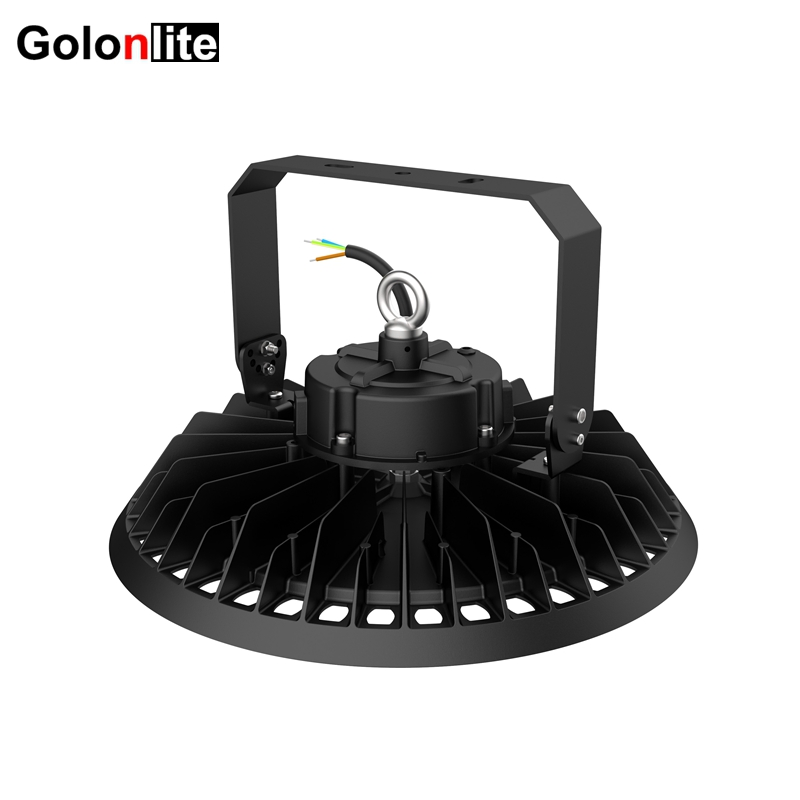

Versatile Mounting: Supports Ring/Hook hanging and Wall/Ceiling surface bracket mounting.

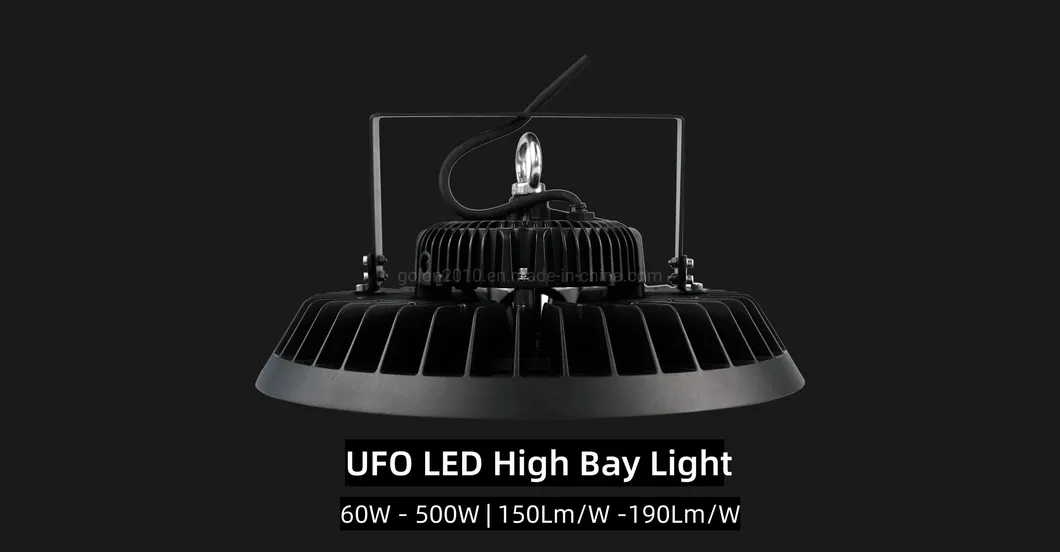

LED Low Bay Light Overview
Feature 1

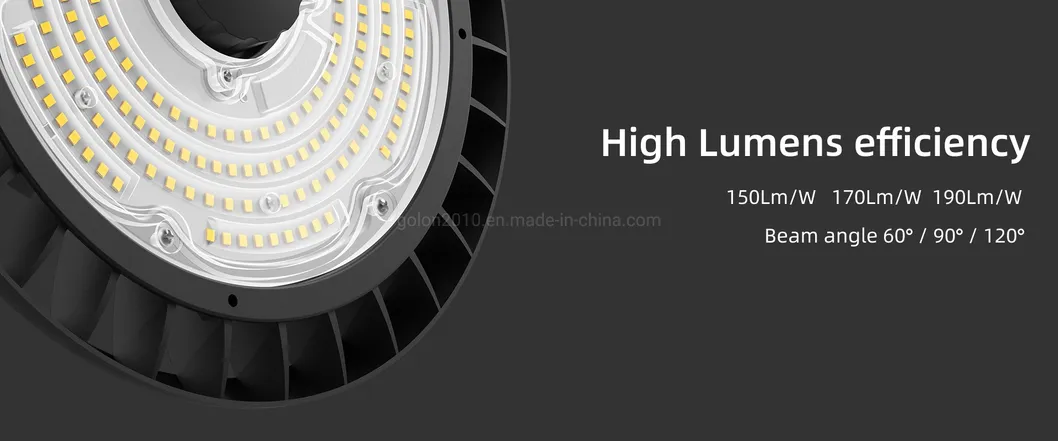

Feature 2
Feature 3

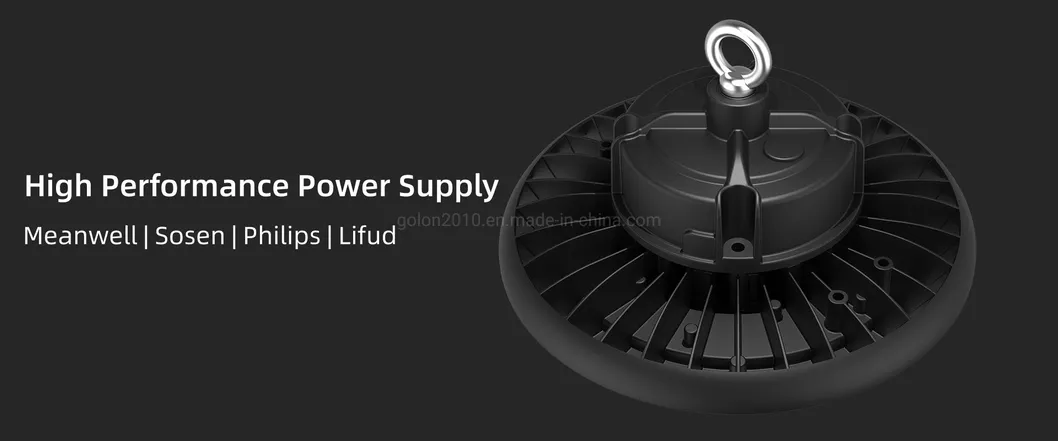

Feature 4

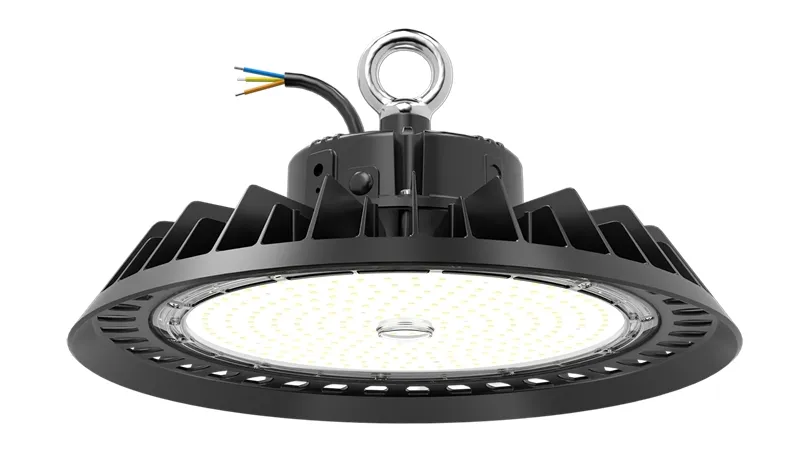

Application 1

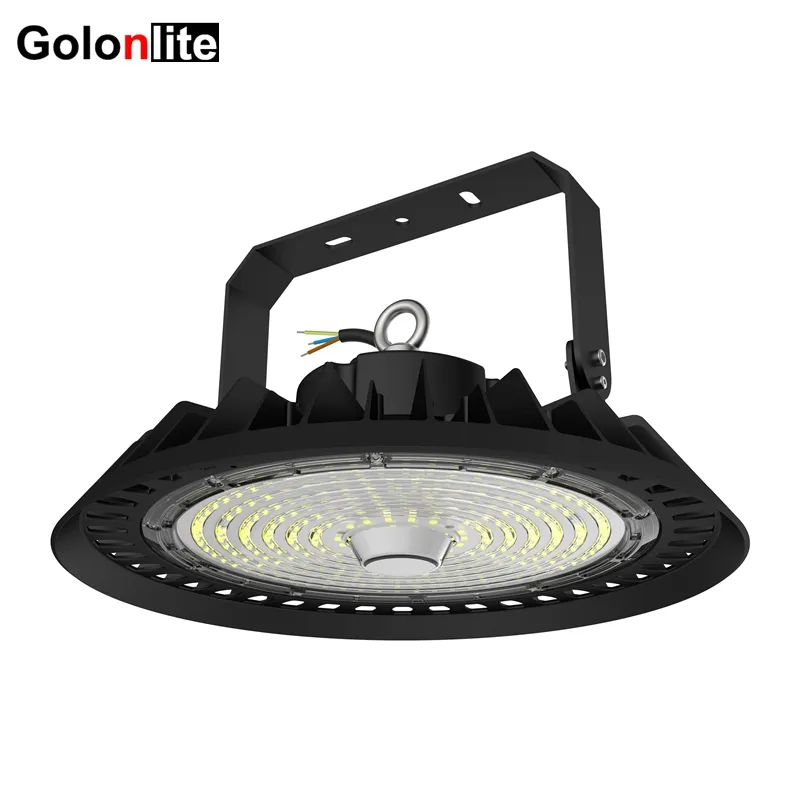

UFO Design 1
UFO Design 2

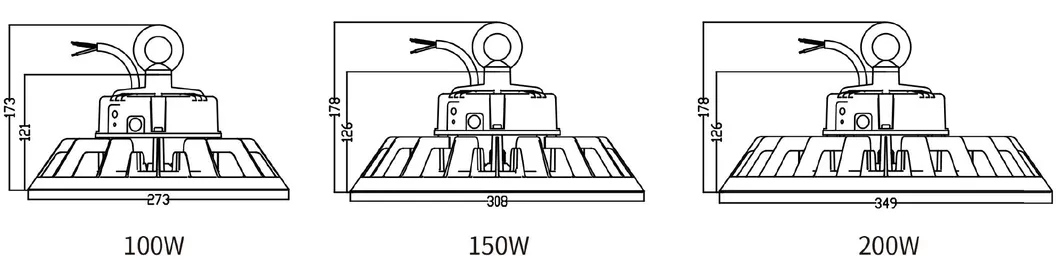

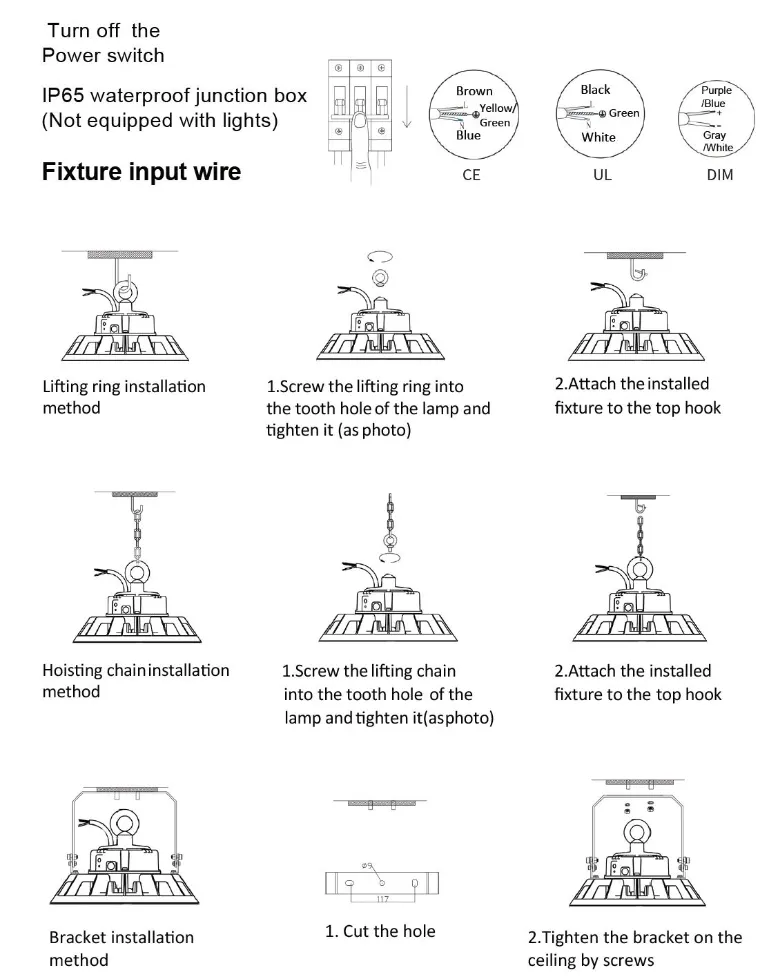

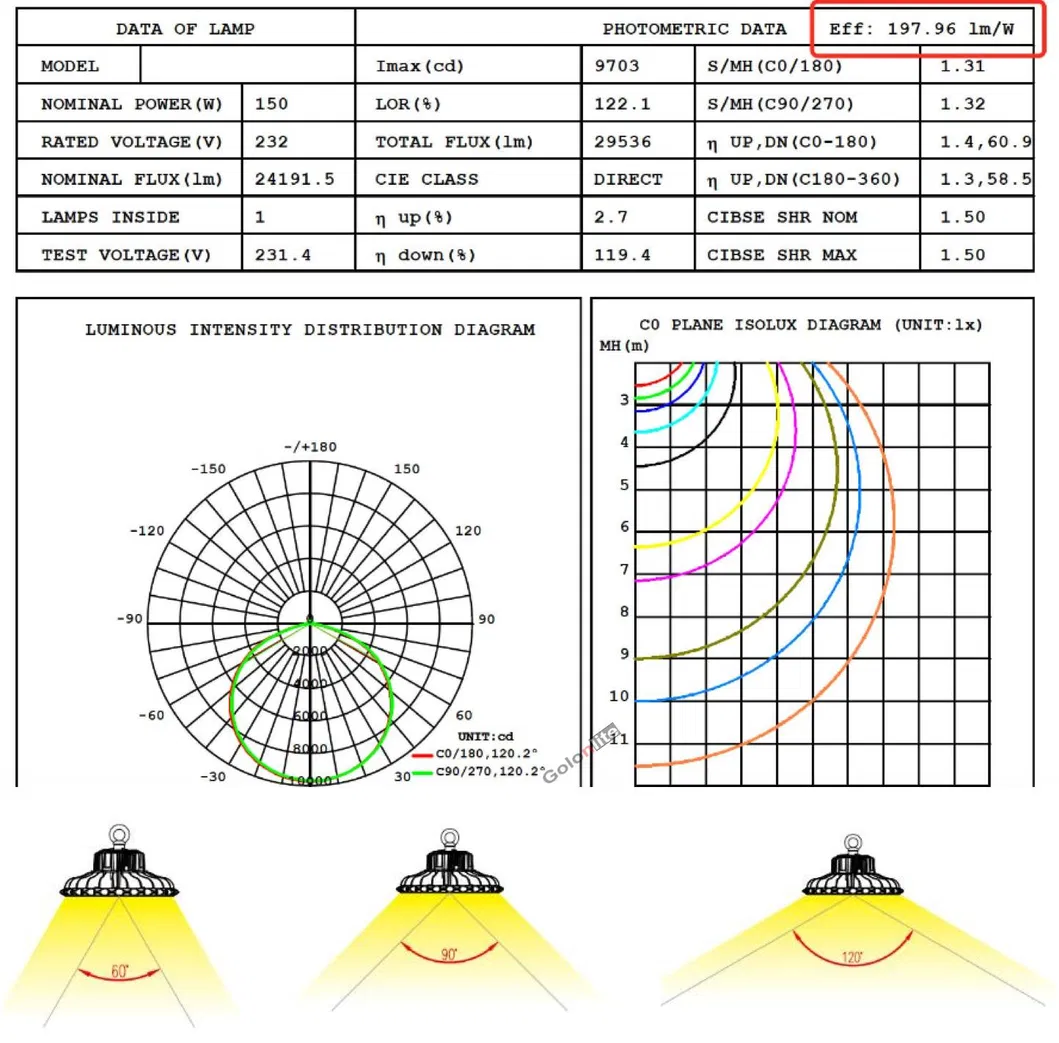

IES Testing Sensor Control Dimensions Installation Guide
☀

Wide Applications

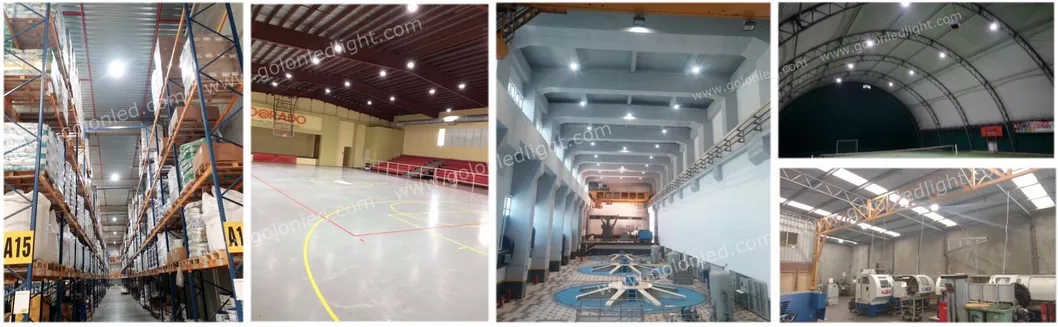

Widely used in shopping malls, exhibition halls, parking lots, playgrounds, gymnasiums, billboards, parks, sculptures, building facades, and public corridors. Suitable for both indoor and outdoor national green lighting projects.

Application Scenarios
⚙

Our Services

  • 🔹 24-hour rapid inquiry response.
  • 🔹 OEM & ODM solutions welcomed.
  • 🔹 5-year comprehensive warranty offered.
  • 🔹 Free Dialux lighting simulation and design services.
  • 🔹 Complete IES files available for professional lighting study.
?

Frequently Asked Questions

What is the lifespan of these LED low bay lights?
The lights are designed for a long lifespan of over 50,000 hours, ensuring years of maintenance-free operation.
Are these lights waterproof for outdoor use?
Yes, these fixtures have an IP65 waterproof rating, making them suitable for both indoor and outdoor industrial environments.
What dimming functions are supported?
We offer 3-in-1 dimming (0-10V, PWM, Resistance) and DALI dimming options to meet various control requirements.
Can I get a lighting simulation for my project?
Absolutely. We provide free Dialux lighting simulations and IES files to help you plan the most efficient lighting layout.
What is the maximum efficiency available?
Our high-efficiency models can reach up to 200Lm/W, providing significant energy savings compared to traditional metal halide lamps.
What mounting options are provided?
Standard options include Ring/Hook hanging for high ceilings and Wall/Ceiling surface brackets for targeted illumination.
