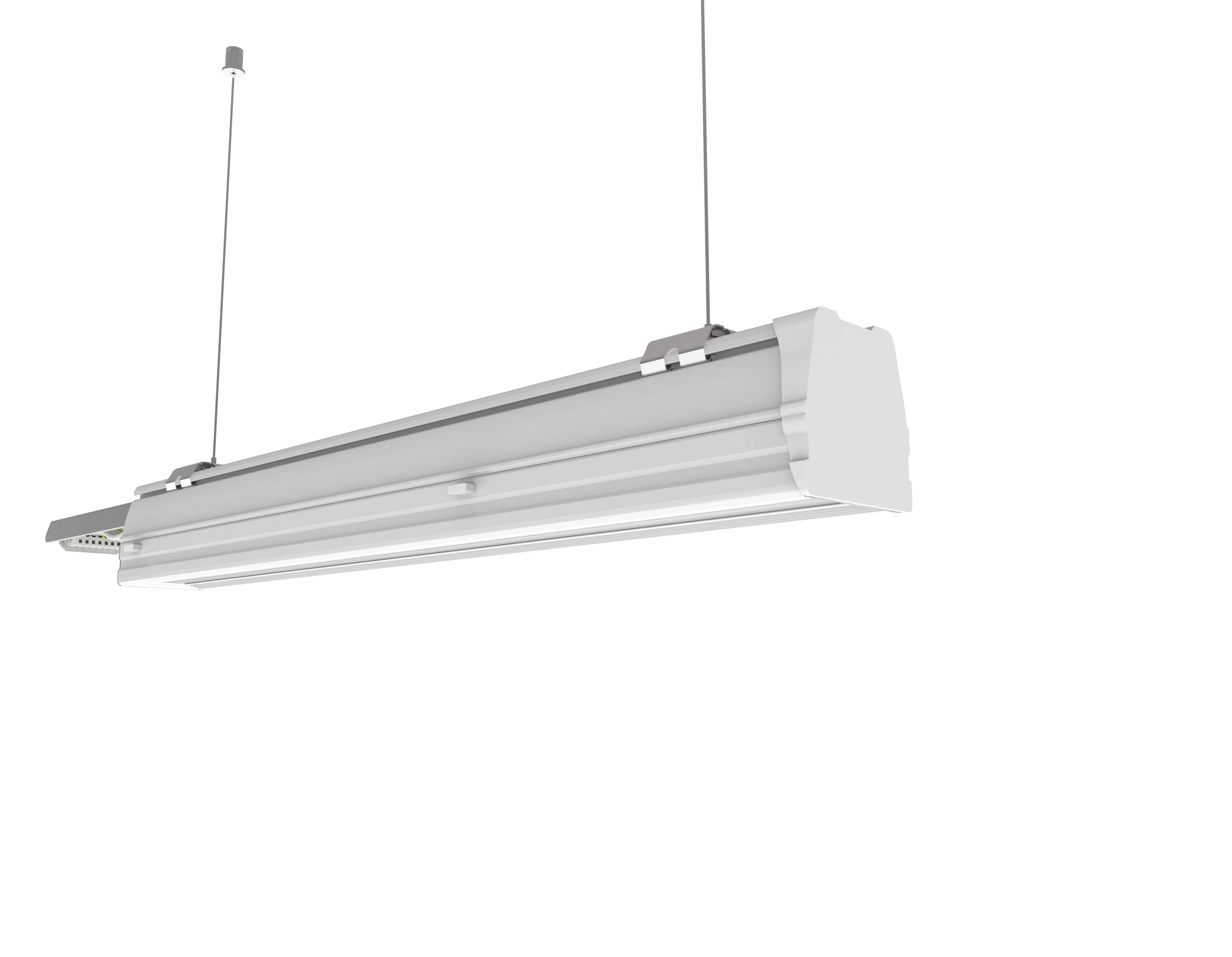

Dimmable Industrial Linkable LED Track Linear Lights

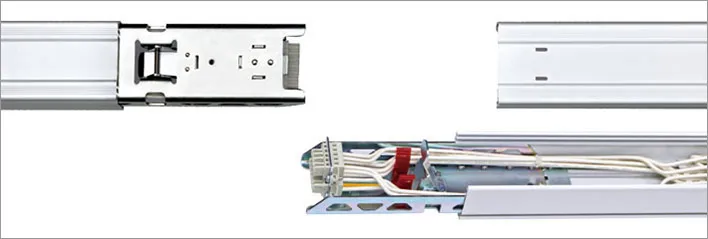

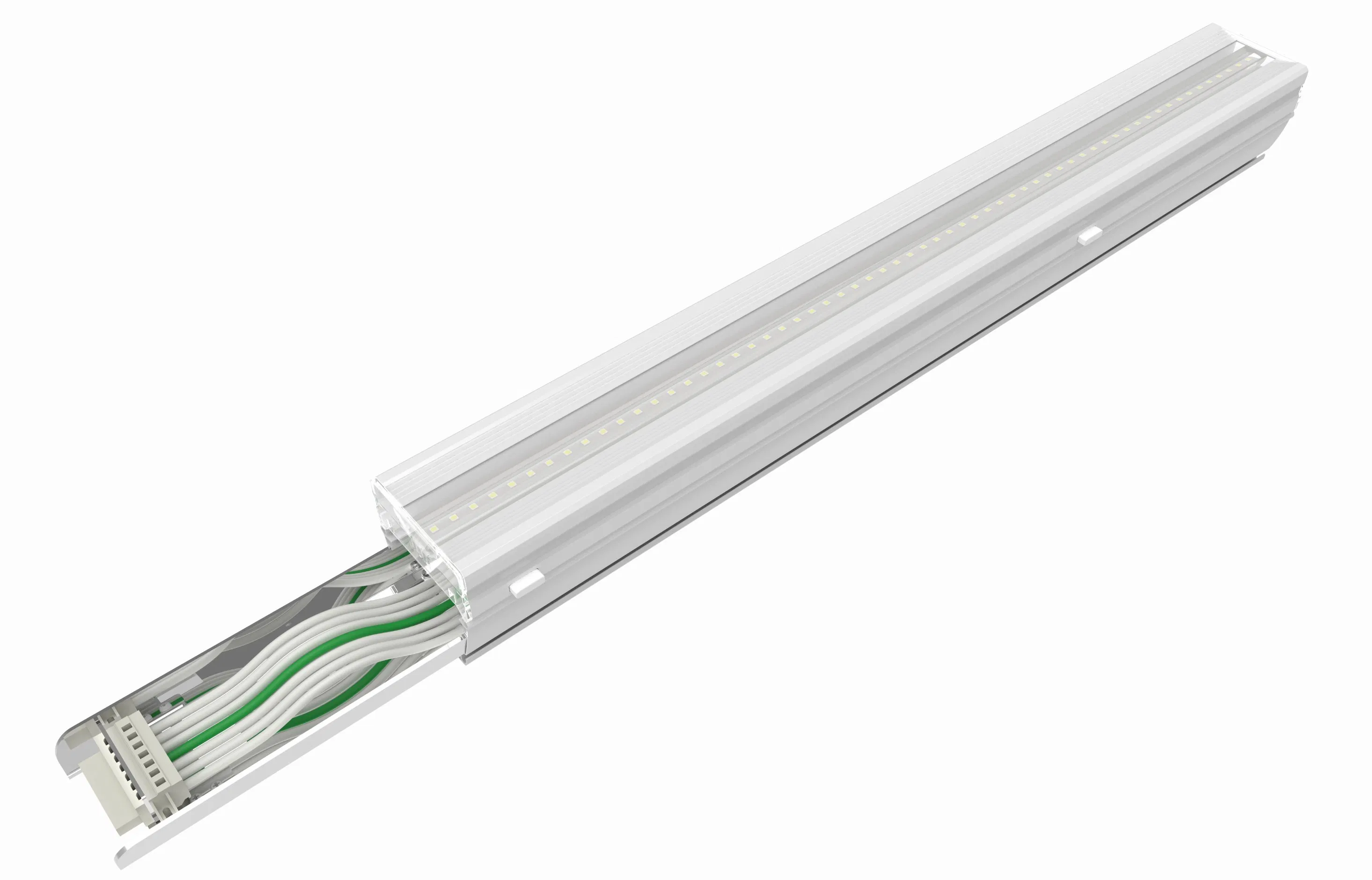

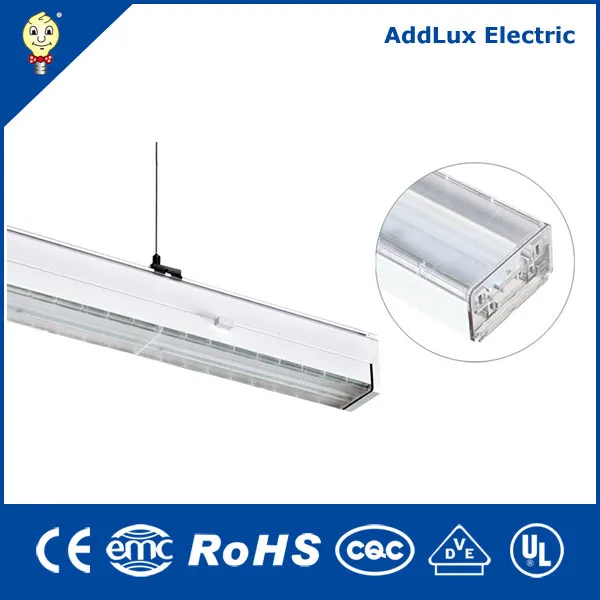

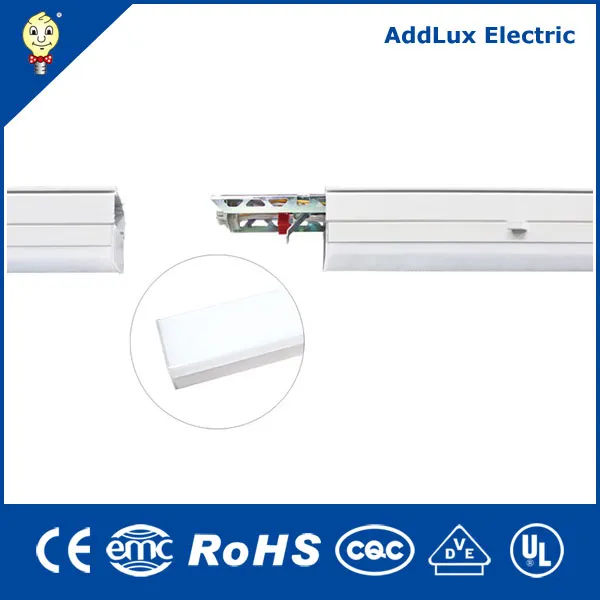

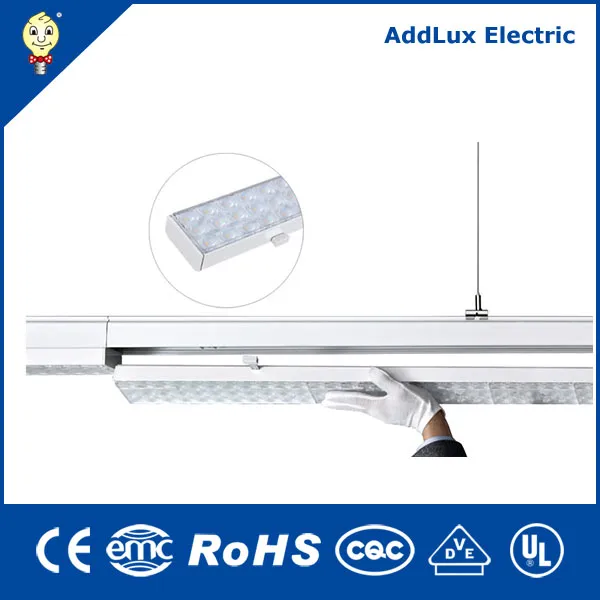

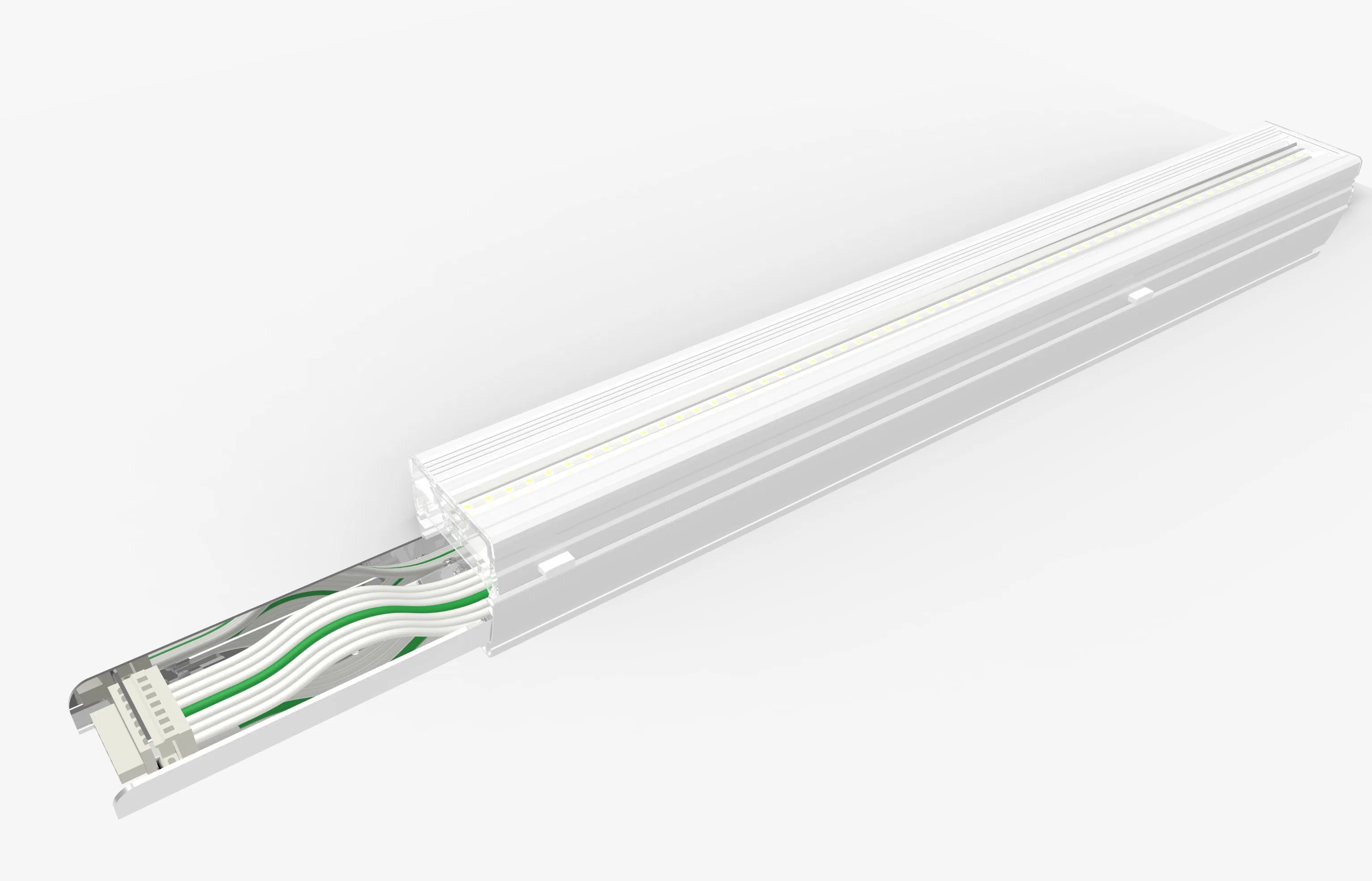

A continuous-row LED lighting system created by a trunking unit and a LED luminaire. It appears as a consistent continuous-row system, without any visual interruption or different reflectors. The luminaire and trunking are perfectly matched to each other as array dimmable linkable LED linear lights.
| Item No. | Length | Power | Lumen |
| YB01Z0632 | 577mm | 28W | 4160Lm |
| YB01Z1575 | 1432mm | 75W | 9750Lm |
| YB01Z30150 | 2861mm | 150W | 19500Lm |
| YB01Z45225 | 4297mm | 225W | 29250Lm |
The LED linear lighting system is an energy-efficient, low maintenance alternative to traditional linear fluorescent in a variety of industrial, commercial and light assembly applications. Due to its low installation cost, everything in one box and installation is tool-less.

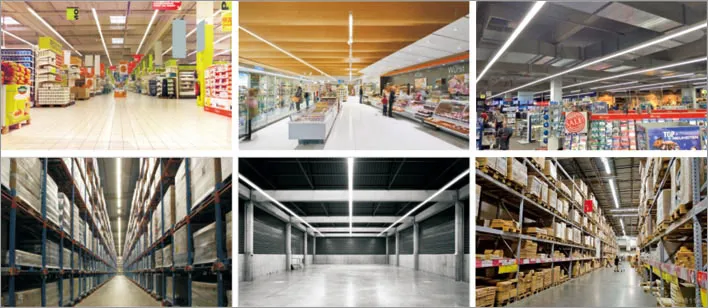

Wide application for business and home lighting:
Business Lighting:
Home Lighting:

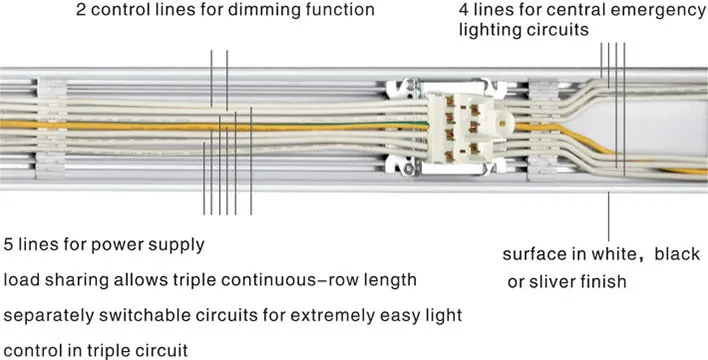

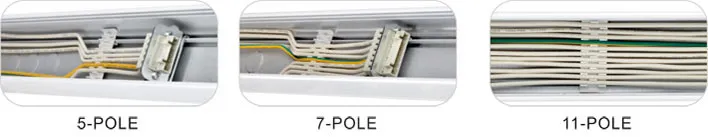

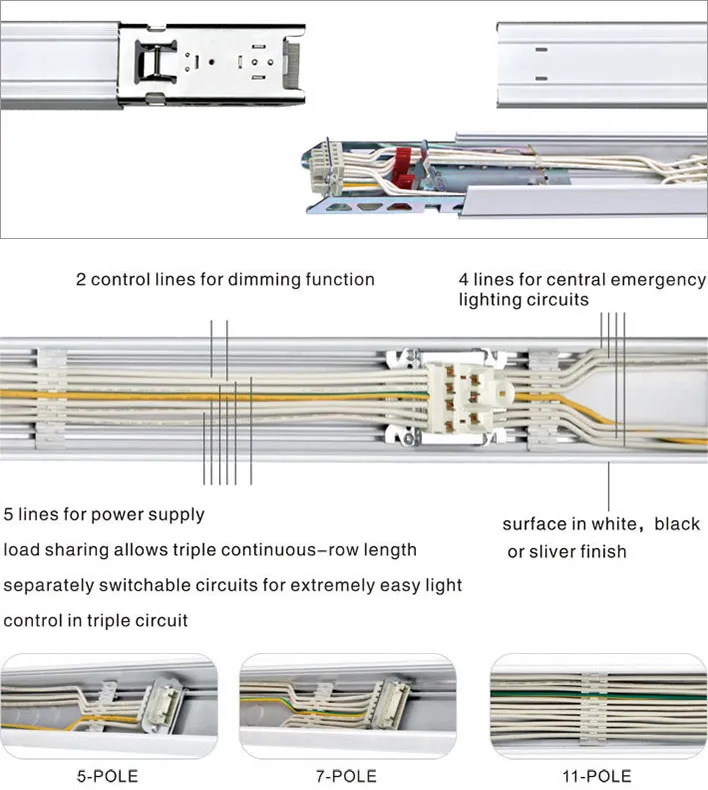

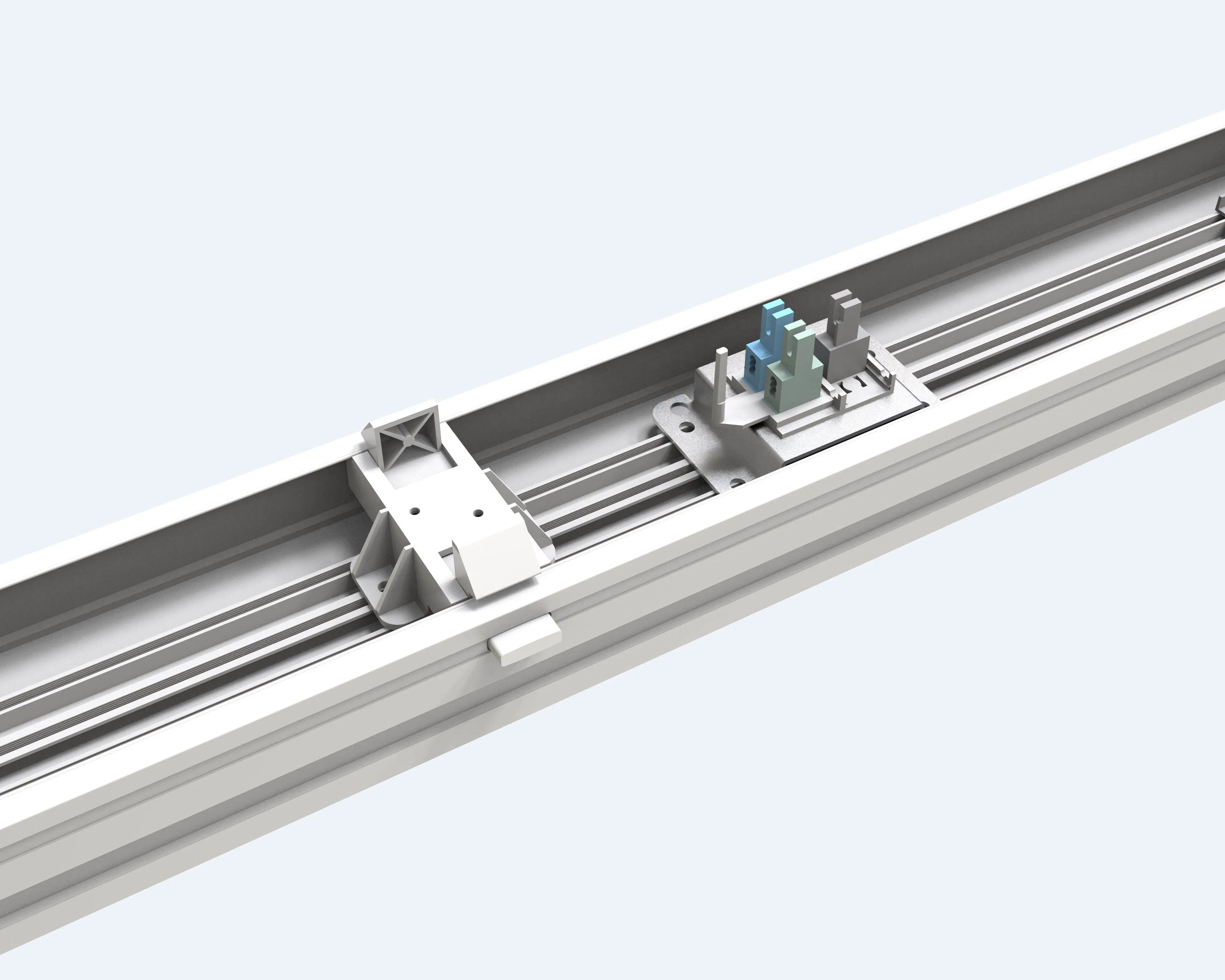

The flexible trunking system with 11-pole current conducting section. All functions such as power supply, lighting control, and emergency lighting are seamlessly integrated.

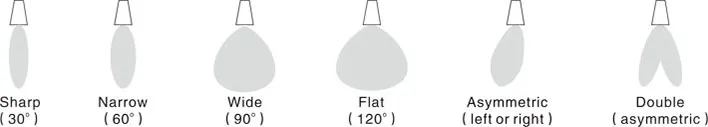

A wide range of optics from sharp to wide distribution:
Emergency Lighting: Combined general and emergency solutions with Ni-MH high-temperature resistant batteries. Modes available for 1.5 or 3 hours operation.
Multi-Sensor System: Integrates motion and daylight sensors for maximum energy savings.
Dimming: Supports DALI, 1-10V, and DIM switch systems.

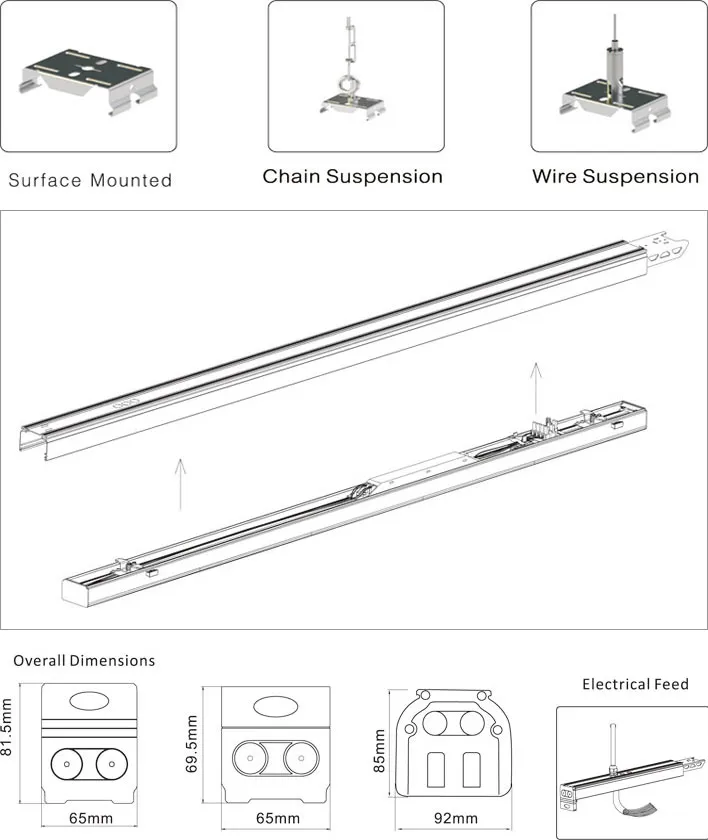

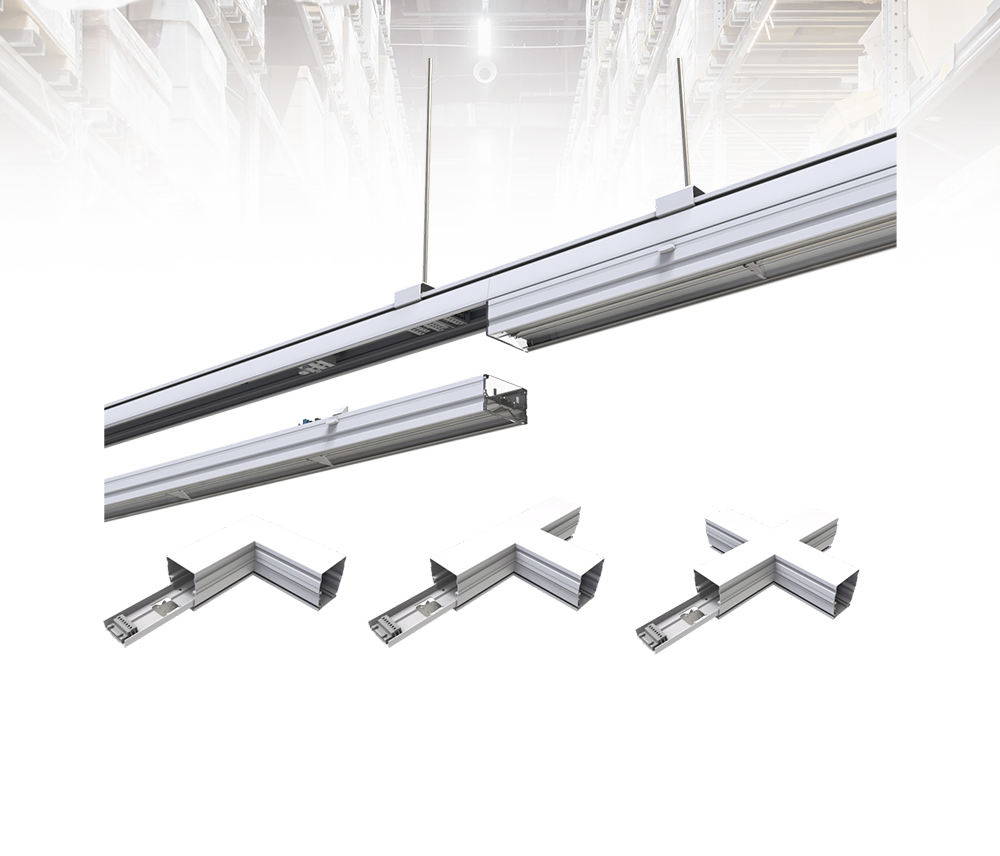

Maximum suspension span of 3m ensures quick installation with fewer points. Multiple mounting options available.
