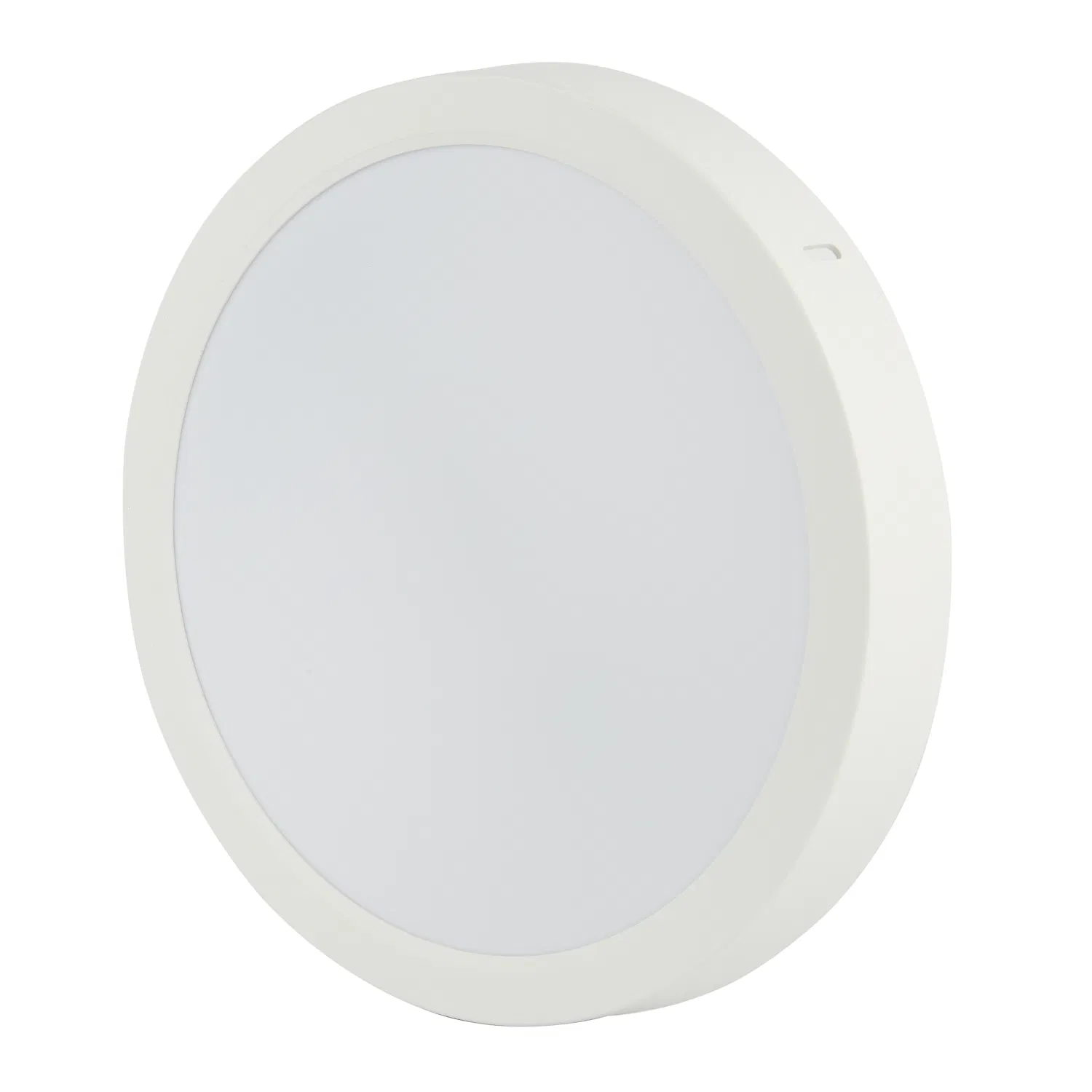

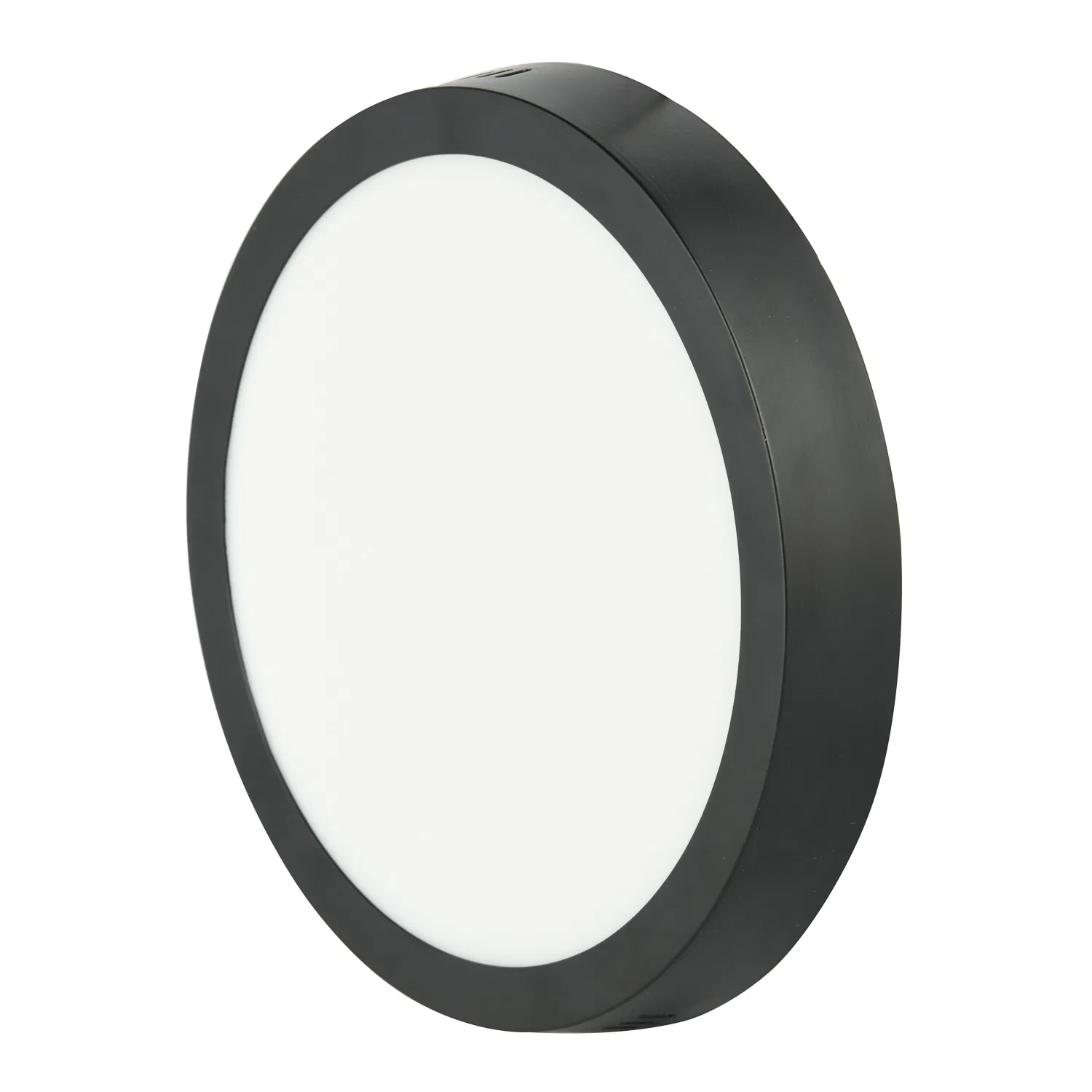

LED Slim Panel (Downlight) Plastic+Iron 3000K/4000K/6500K

1 / 5

LED Slim Panel (Downlight) Plastic+Iron 3000K/4000K/6500K

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

LED Slim Panel(Downlight)

Power

3W-36W

Color Temperature

3000K/4000K/6500K

Lamp Body Material

Plastic+Iron/Aluminum

Installation

Recessed/Surface

Warranty

2 Years

IP Rating

IP20

Certification

CE, GOST, RoHS

Origin

China

Production Capacity

2,000,000 PCS/Year

Product Description

Material Plastic+Iron

Voltage AC 120-250V

Driver Type DOB IC Driver

LED Chip 2835 SMD

CRI(Ra) ≥80

Life Time 15,000 Hours

Operating Temp -25°C~40°C

Packaging Color box + Carton

Item No.	Watts	Voltage	Lumen	CCT(K)	Ra	PF	Material	Hole size (mm)	Dimension (mm)

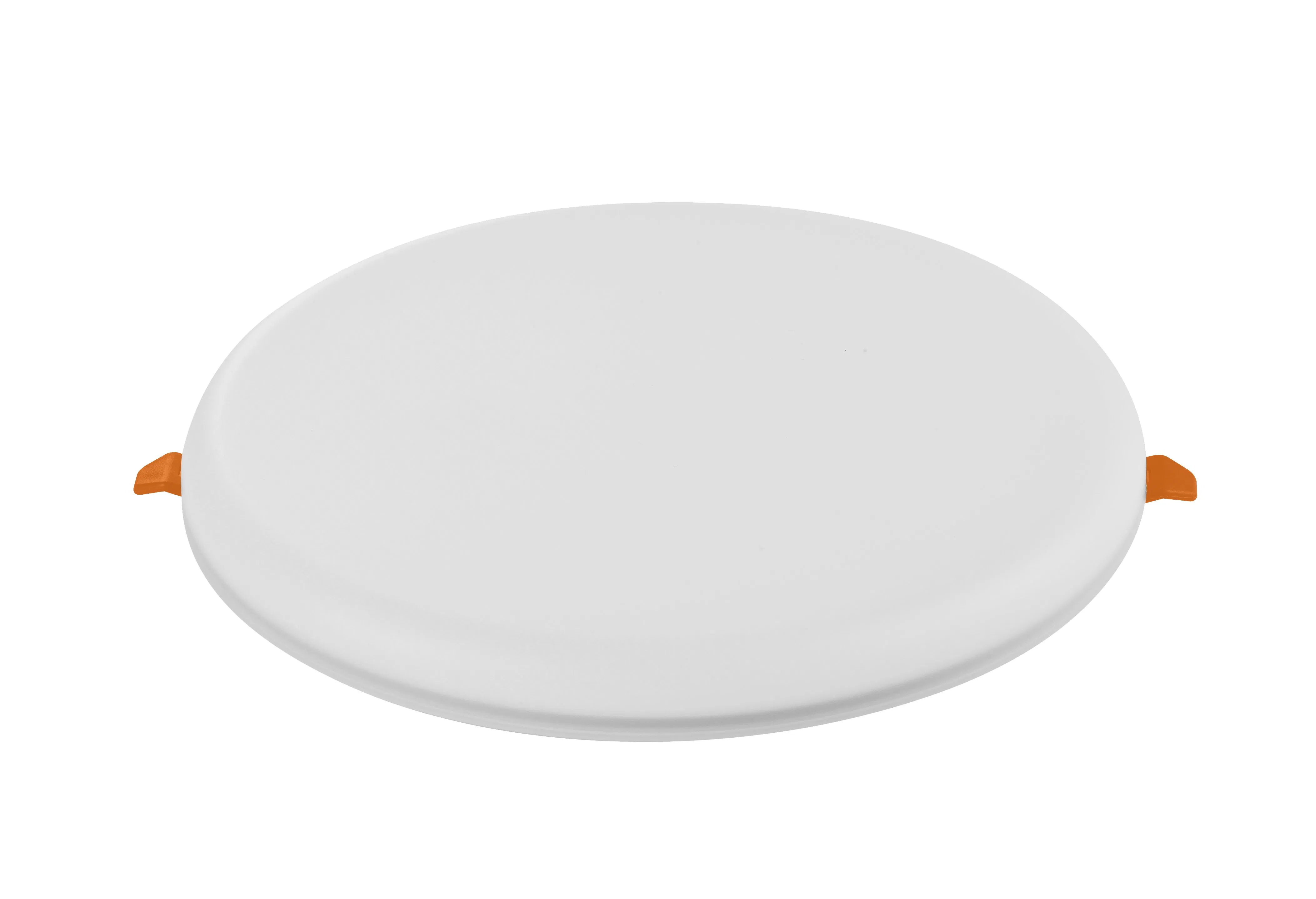

Recessed Round
SF-Slim Panel	12W	120-250V	790-950lm	3000K/4000K/6500K	80	>0.5	Plastic+Iron	φ150mm	φ165×H 25mm
SF-Slim Panel	18W	120-250V	1300-1500lm	3000K/4000K/6500K	80	>0.5	Plastic+Iron	φ200mm	φ217×H 25mm
SF-Slim Panel	24W	120-250V	1800-2000lm	3000K/4000K/6500K	80	>0.5	Plastic+Iron	φ275mm	φ295×H 25mm
Recessed Square
SF-Slim Panel	12W	120-250V	790-950lm	3000K/4000K/6500K	80	>0.5	Plastic+Iron	150x150	165x165x25
SF-Slim Panel	18W	120-250V	1300-1500lm	3000K/4000K/6500K	80	>0.5	Plastic+Iron	200x200	210x210x25
SF-Slim Panel	24W	120-250V	1800-2000lm	3000K/4000K/6500K	80	>0.5	Plastic+Iron	275x275	290x290x25
SF-Slim Panel	36W	120-250V	2500-2800lm	3000K/4000K/6500K	80	>0.5	Plastic+Iron	370x370	395x395x28
Surface Round
SF-Slim Panel	12W	120-250V	790-950lm	3000K/4000K/6500K	80	>0.5	Plastic+Iron	/	φ161×H 28mm
SF-Slim Panel	18W	120-250V	1300-1500lm	3000K/4000K/6500K	80	>0.5	Plastic+Iron	/	φ210×H 28mm

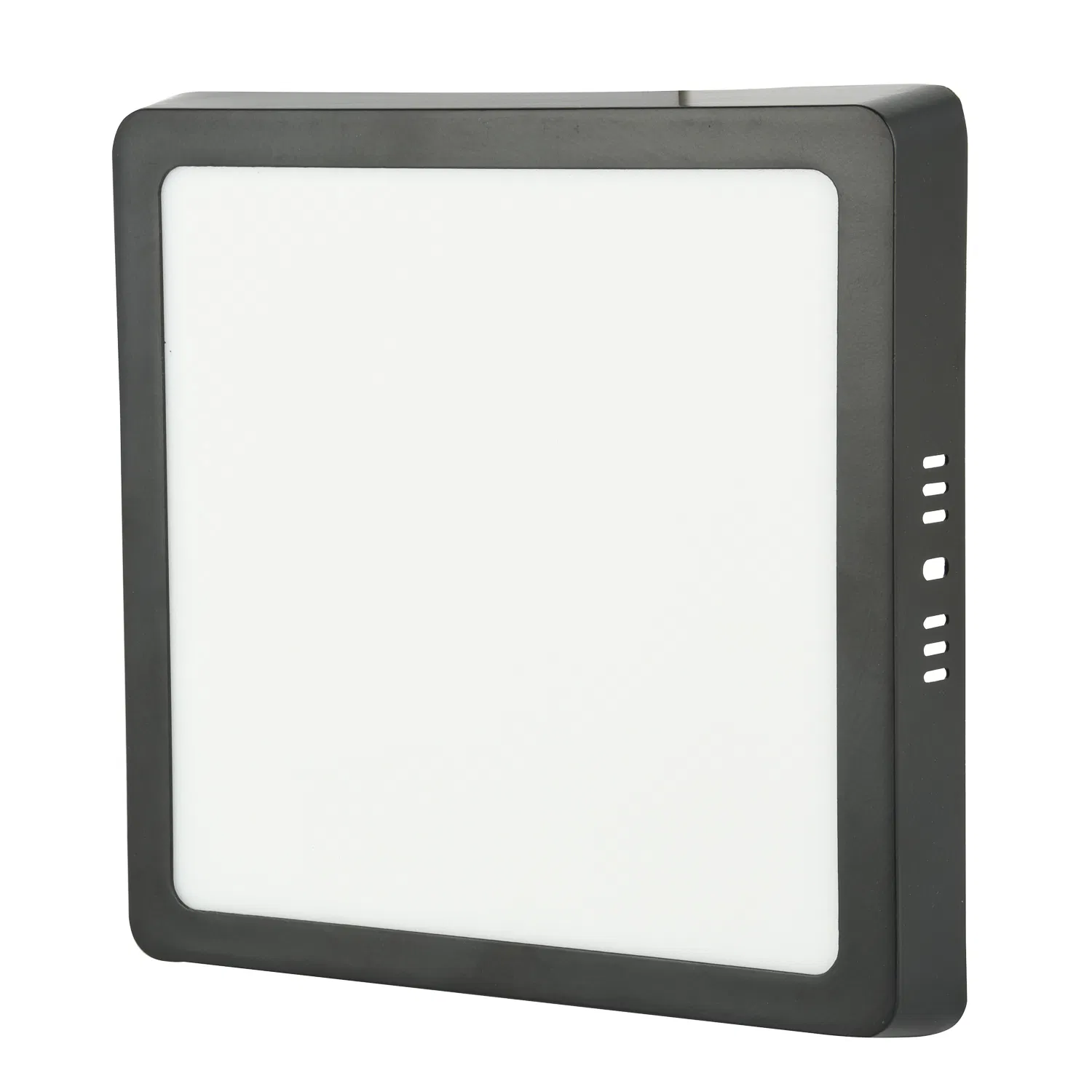

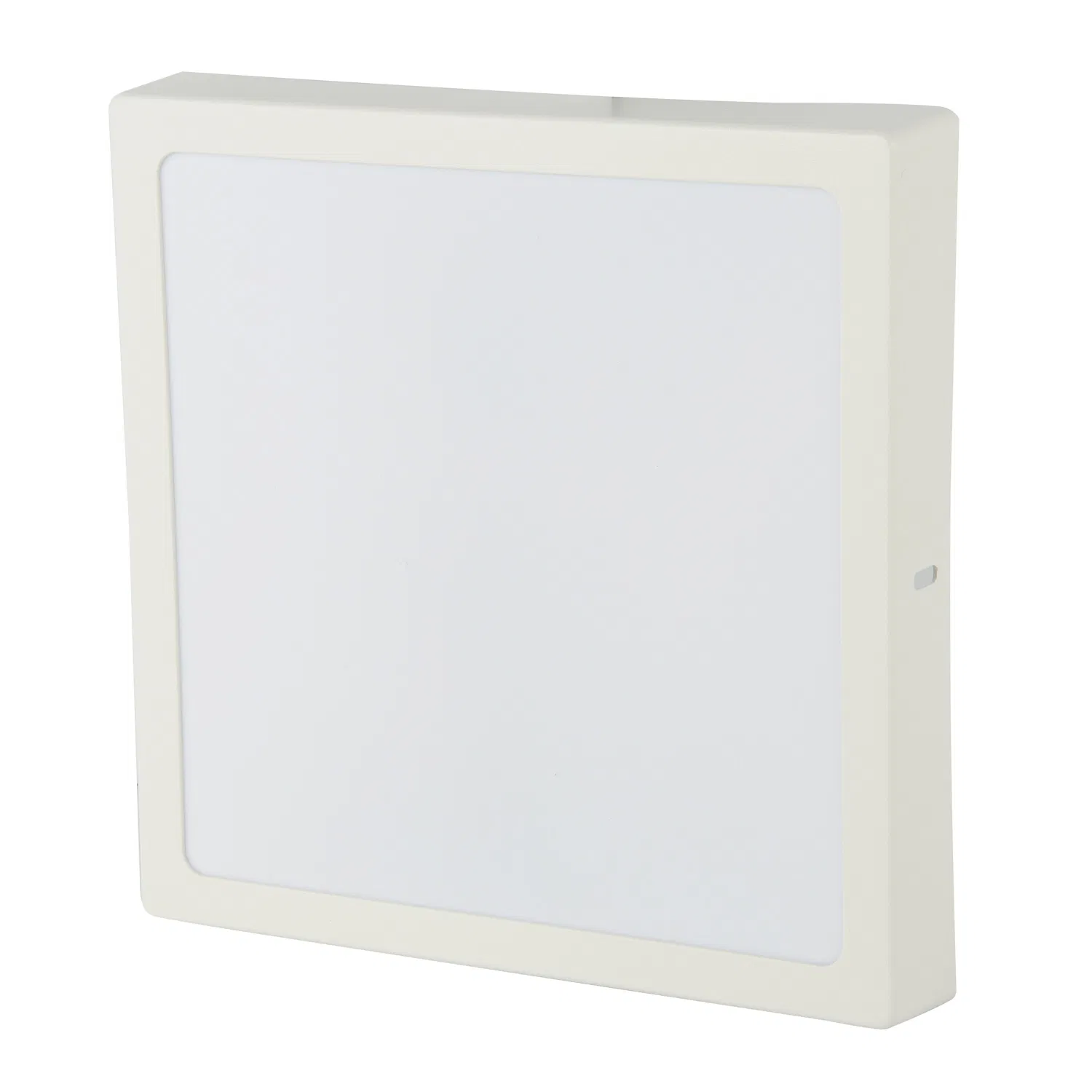

Surface Square
SF-Slim Panel	12W	120-250V	790-950lm	3000K/4000K/6500K	80	>0.5	Plastic+Iron	/	161x161x28
SF-Slim Panel	24W	120-250V	1800-2000lm	3000K/4000K/6500K	80	>0.5	Plastic+Iron	/	270x270x28

Product Gallery

Frequently Asked Questions

What is the input voltage range for this LED panel?

The LED Slim Panel supports a wide input voltage range from AC 120V to 250V, making it suitable for various regional power standards.

What installation options are available?

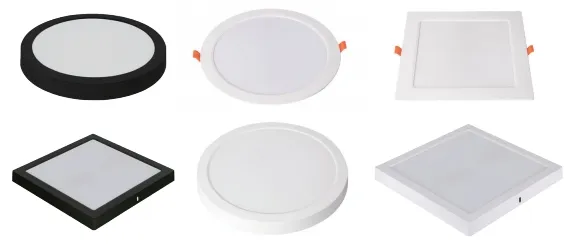

This lighting solution offers both Recessed and Surface mounting options in both Round and Square shapes to meet different architectural needs.

What is the expected lifespan and warranty?

The product features a lifetime of approximately 15,000 hours and comes with a 2-year warranty for peace of mind.

Are there different color temperature options?

Yes, the panels are available in three color temperatures: Warm White (3000K), Neutral White (4000K/4500K), and Cool White (6500K).

What certifications does the product hold?

The LED Slim Panel is certified by CE, GOST, and RoHS, ensuring compliance with international quality and safety standards.

What are the main materials used in the lamp body?

The lamp body is constructed using high-quality Plastic combined with Iron or Aluminum for durability and efficient heat dissipation.
