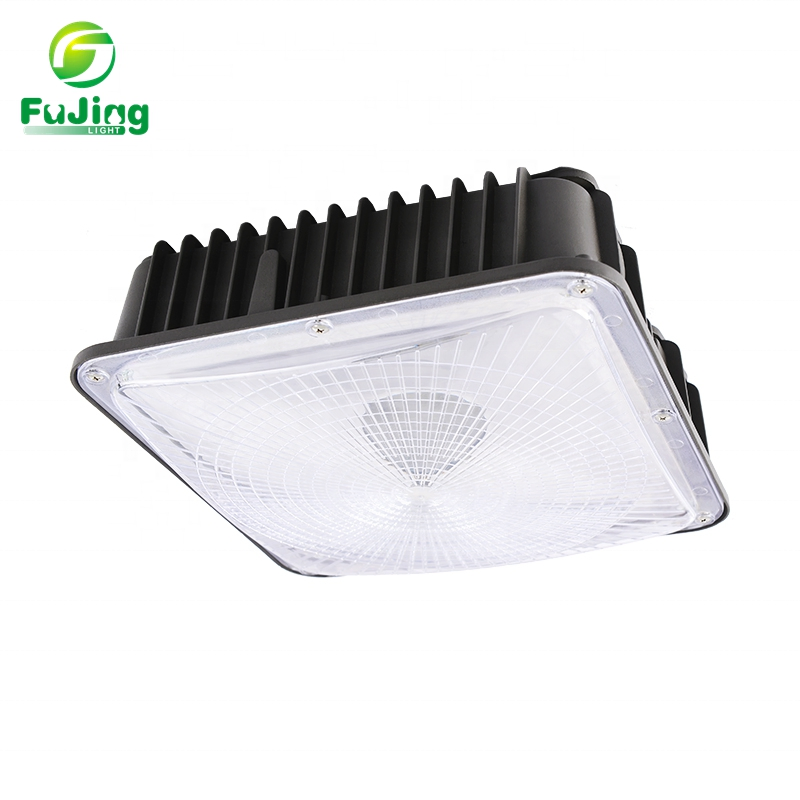

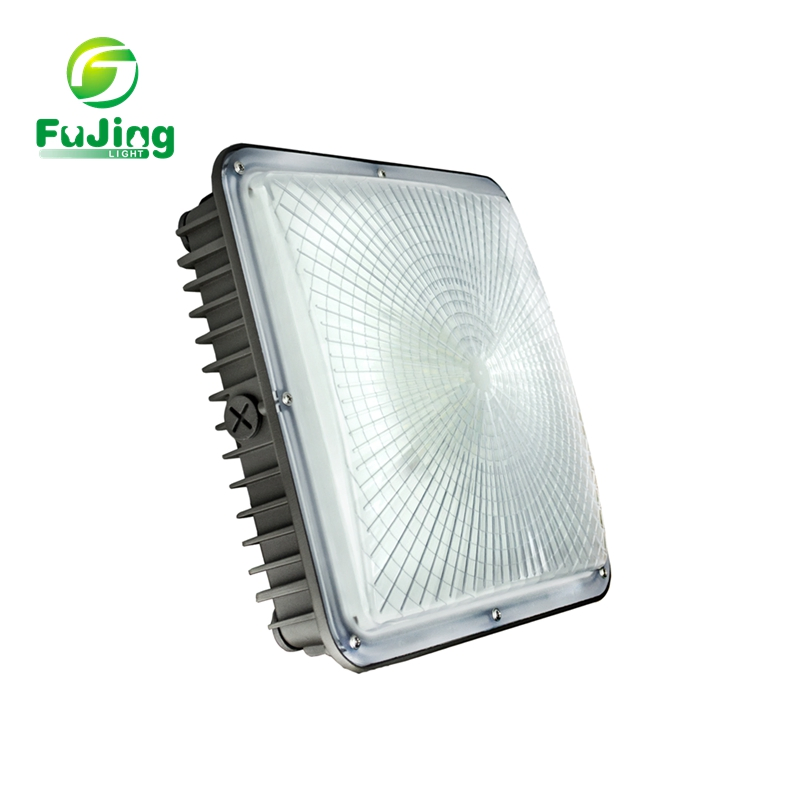

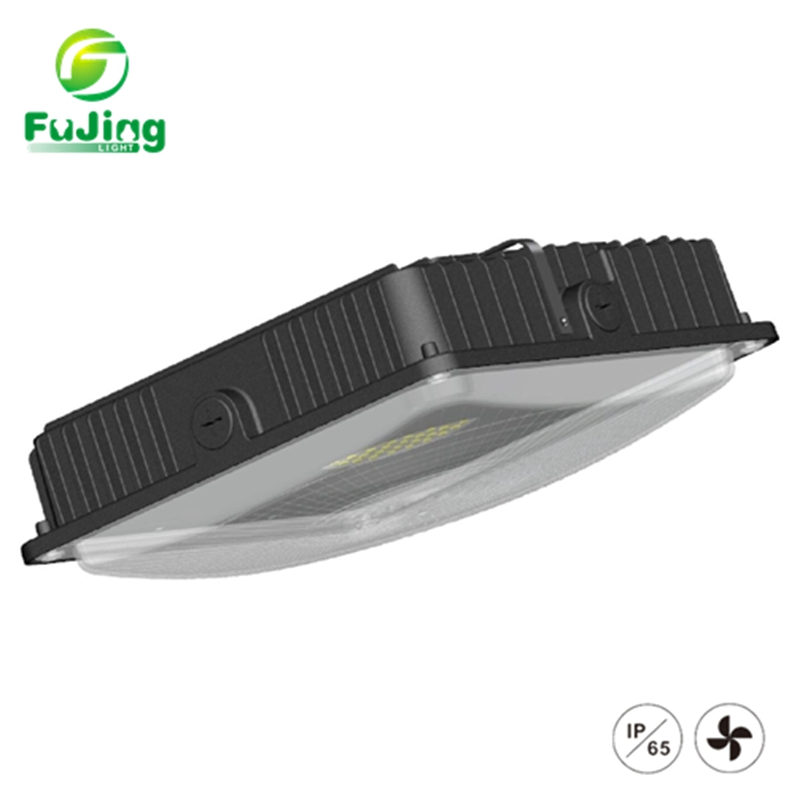

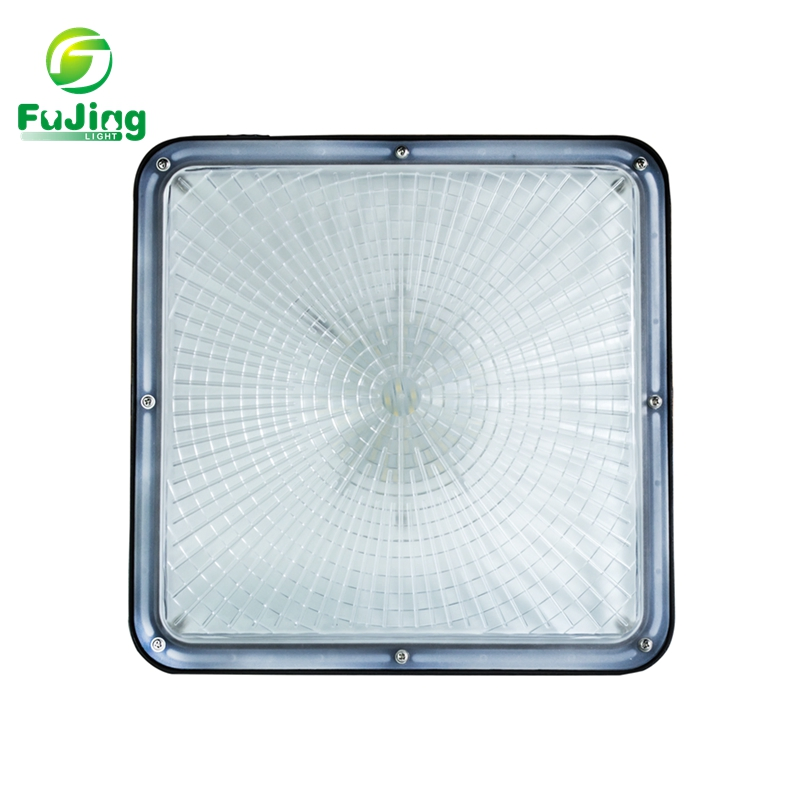

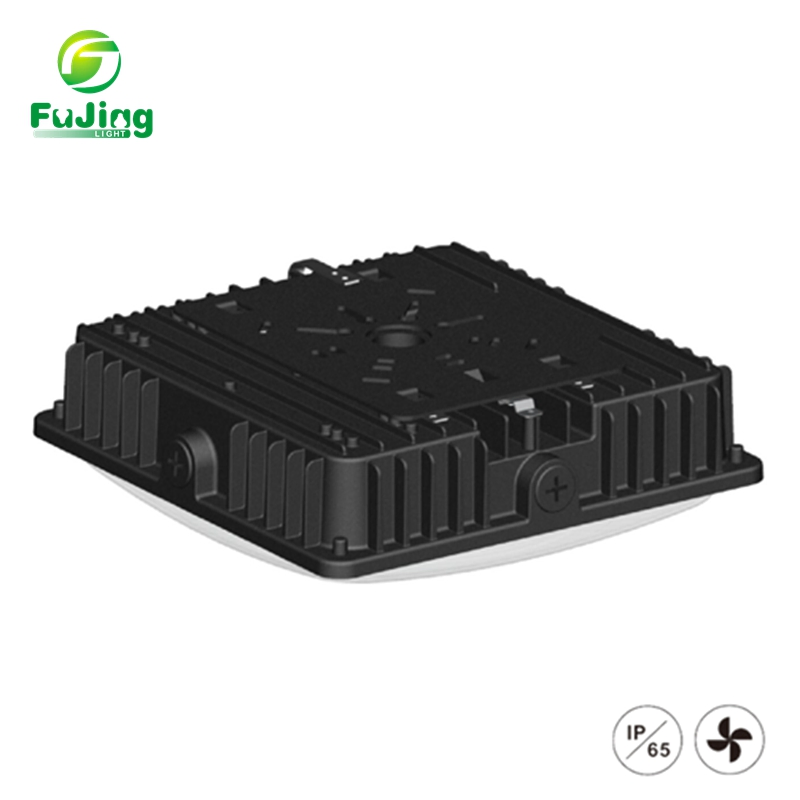

LED Low Bay Security Photo Cell Garage Canopy Light 120W
LED Low Bay Security Photo Cell Garage Canopy Light 120W
LED Low Bay Security Photo Cell Garage Canopy Light 120W
LED Low Bay Security Photo Cell Garage Canopy Light 120W
LED Low Bay Security Photo Cell Garage Canopy Light 120W
1 / 5
LED Low Bay Security Photo Cell Garage Canopy Light 120W
LED Low Bay Security Photo Cell Garage Canopy Light 120W
LED Low Bay Security Photo Cell Garage Canopy Light 120W
LED Low Bay Security Photo Cell Garage Canopy Light 120W
LED Low Bay Security Photo Cell Garage Canopy Light 120W

LED Low Bay Security Photo Cell Garage Canopy Light 120W

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
FJ-CL02-120W
Color Temp
2700-7000K
IP Rating
IP65
Housing Color
Grey
Materials
Aluminum Ad12
SPD
10kv/15kv/20kv/40kv
Warranty
5 Years
LED Driver
Meanwell/Osram/Inventronic/Sosen
Lumen
>130lm/W
Working Life
50000 Hours
Beam Angle
120°
Specification
315*315*95mm

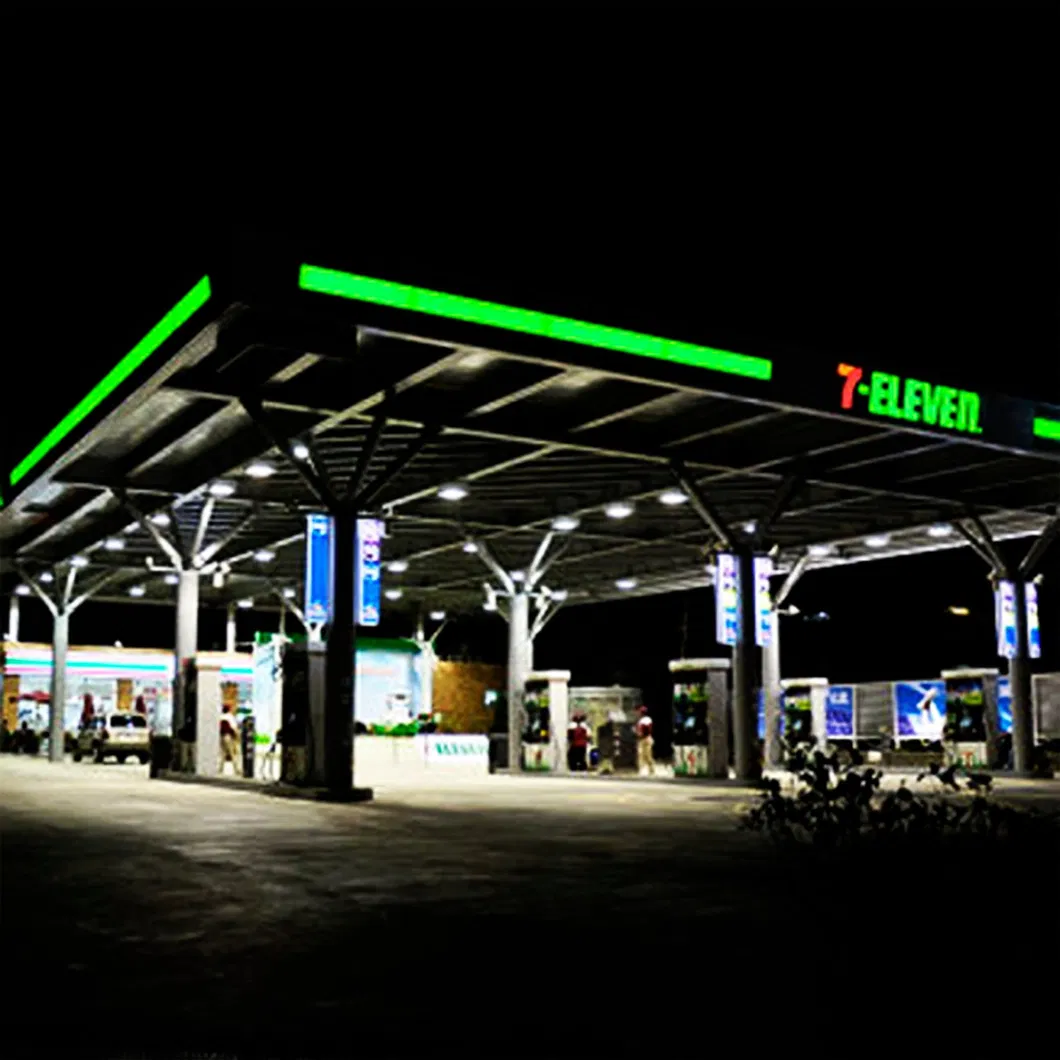

LED Canopy Light

Application & Features

Broad Utility: Widely used in construction site lighting, plant lighting, industrial lighting, sports centers, gas stations, parking lots, waiting rooms, railway stations, ports, terminals, and other large-scale energy-efficient lighting environments.

Microwave Motion Sensor Integration:

This LED canopy light can be equipped with a Microwave Motion Sensor (MC605V/D). It features an active HF system (5.8GHz) with 3-step dimming (100% → Low light → Off) or 2-step dimming (100% → Low light maintained). These settings for detection area, time delay, and daylight thresholds are easily adjustable via DIP switches, making it ideal for urban roads, industrial areas, and parking lots.

Safety Notes:

  • ■ Avoid dropping the unit to prevent structural damage.
  • ■ Always ensure power is off during installation and check wiring before powering on.
  • ■ Ensure stable installation to prevent short-circuits or fire hazards.
  • ■ Avoid staring directly at the light for extended periods to protect eyesight.

Technical Parameters

Part No. FJ-CL02-30W FJ-CL02-50W FJ-CL02-60W FJ-CL02-80W FJ-CL02-100W FJ-CL02-120W
Rated Power 30W50W60W80W100W120W
Luminous Flux 3900lm6500lm7800lm10400lm13000lm15600lm
Input Voltage 90-305VAC, 277-528VAC, DC24V, DC14V, 50-60Hz
LED Type CREE / LUMI LEDS 3030 chip
IP Grade IP66
Life Span 50,000 Hours
Material Aluminum + Glass

Product Gallery

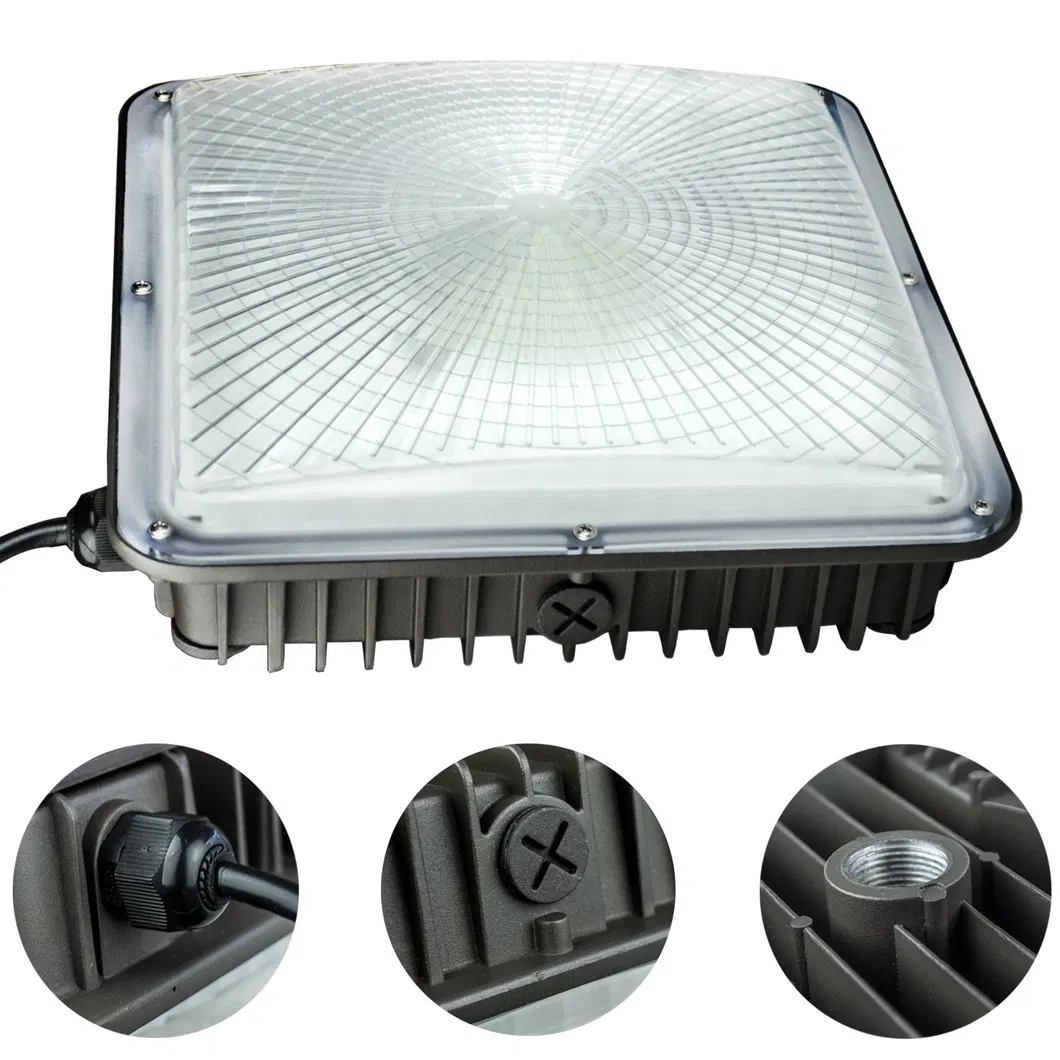

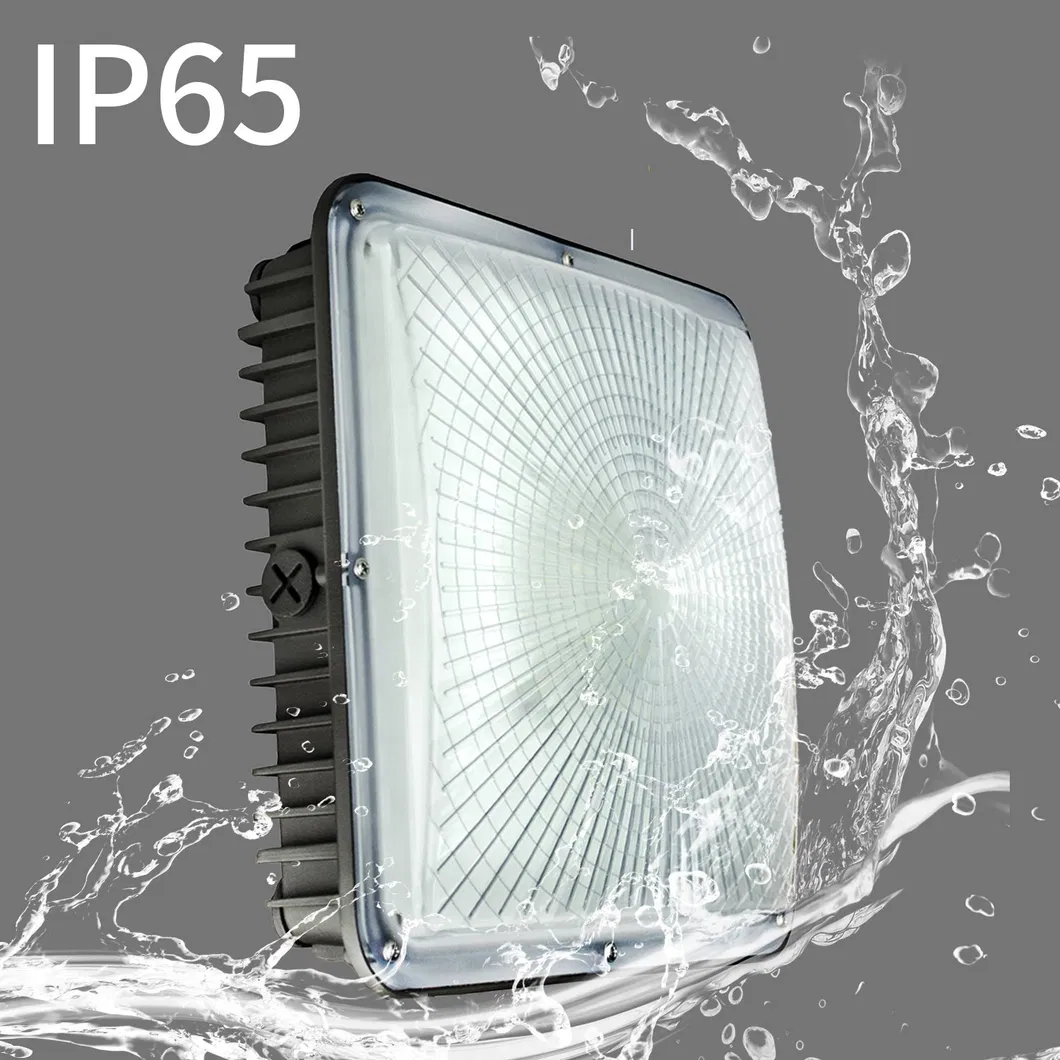

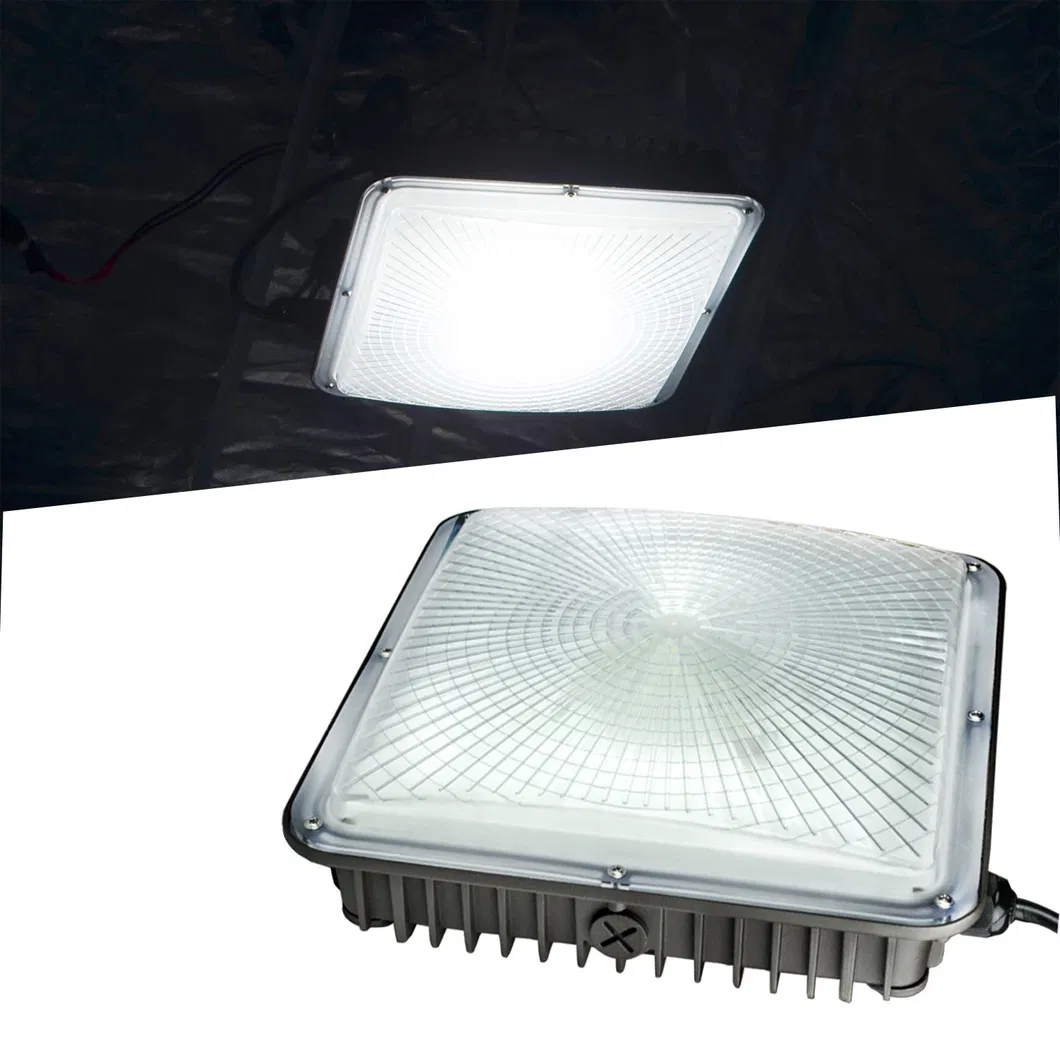

Detail 1 Detail 2 Detail 3

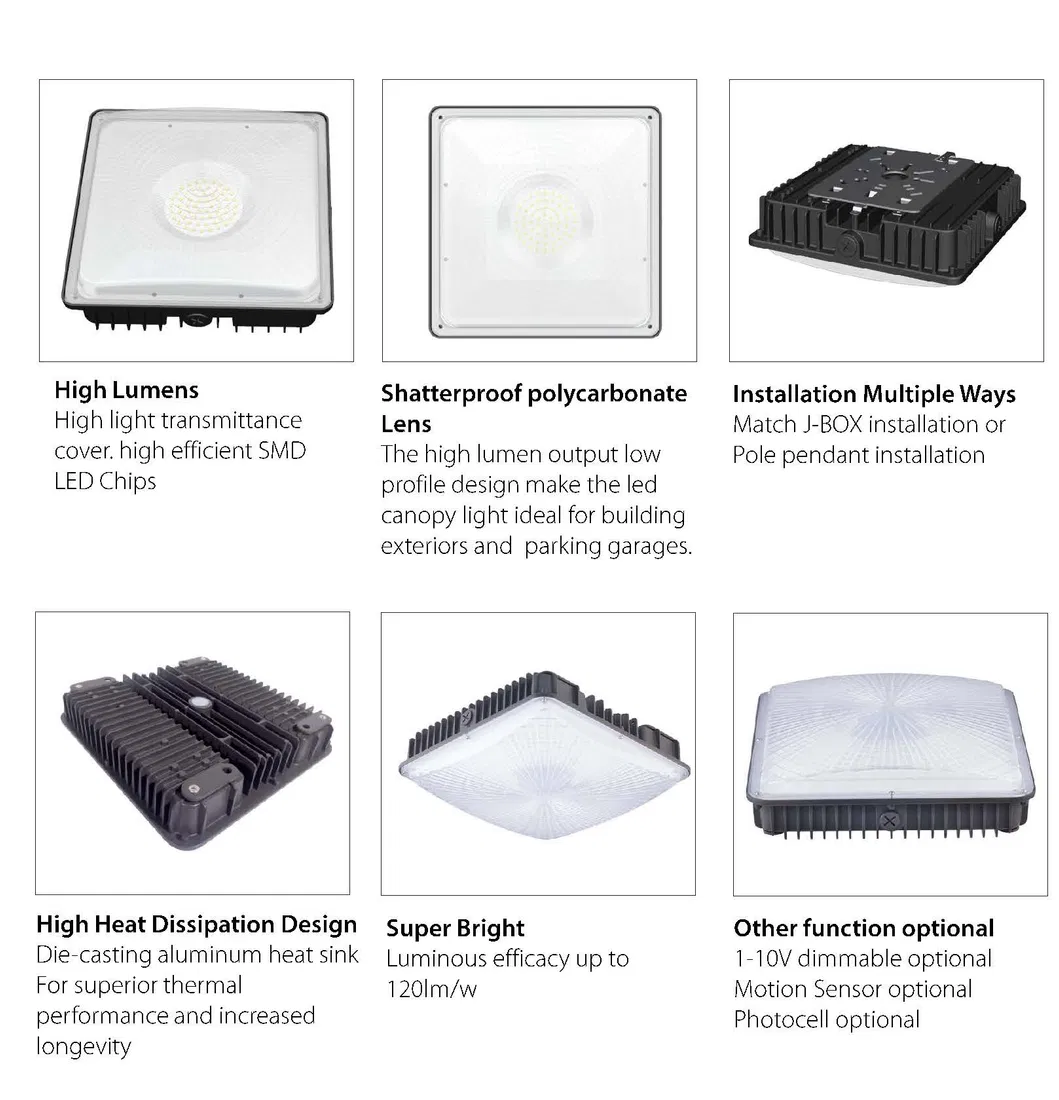

Component View

Installation & Dimensions

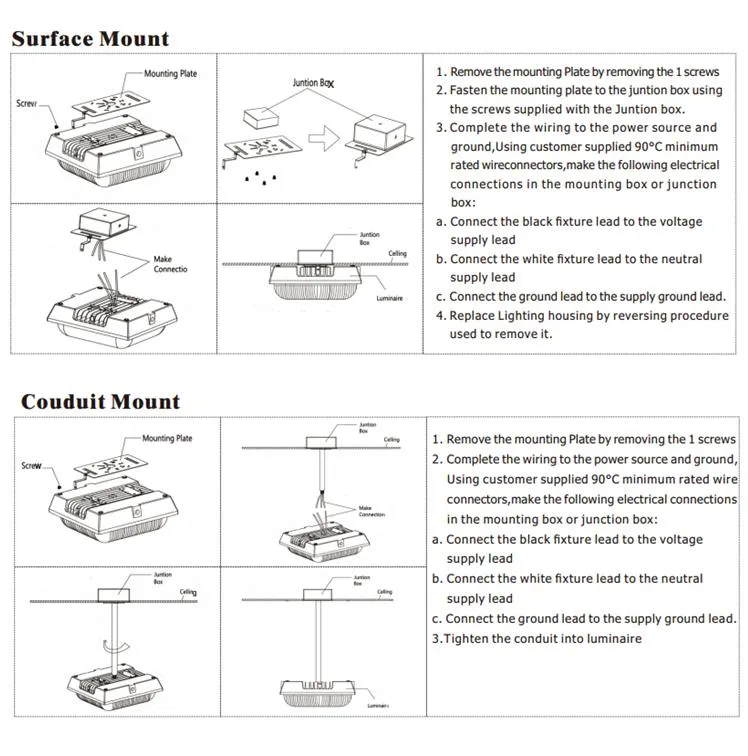

Installation Guide

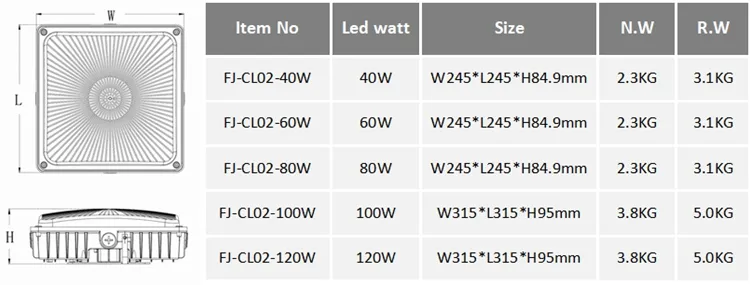

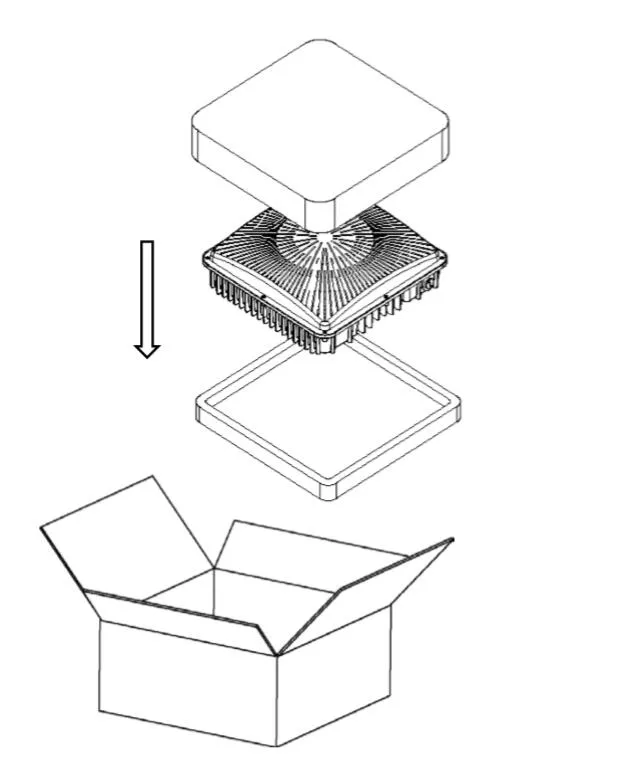

Dimensions Packing

Professional Services

Pre-Sale Support

  • ✓ Detailed product test reports & specifications.
  • ✓ Photoelectric color technology support.
  • ✓ Inquiry response within 12 hours.

After-Sale Warranty

  • ✓ 5-year limited warranty from date of purchase.
  • ✓ Free replacement for valid workmanship defects.
  • ✓ Dedicated after-service department.

Frequently Asked Questions

Are OEM/ODM services and custom logos available?
Yes, we welcome OEM and ODM projects. We can print your custom logo on the products based on your requirements.
What is the typical delivery timeframe for orders?
Standard samples are ready within 7 days, while bulk orders typically take 15 to 20 days for production.
What are the accepted payment terms?
Our standard terms are 30% T/T in advance as a deposit, with the remaining balance due before shipment.
How is product quality controlled during production?
We utilize a professional QC team that monitors quality throughout mass production and performs a 100% inspection of finished goods before shipping.
Can you assist with shipping if I don't have a forwarder?
Absolutely. We can recommend reliable shipping lines to ensure your goods are delivered timely and cost-effectively.
Is it possible to receive a sample for quality evaluation?
Yes, samples can be sent for quality checks. While there is a sample fee initially, it is fully refundable once a bulk order is placed.
