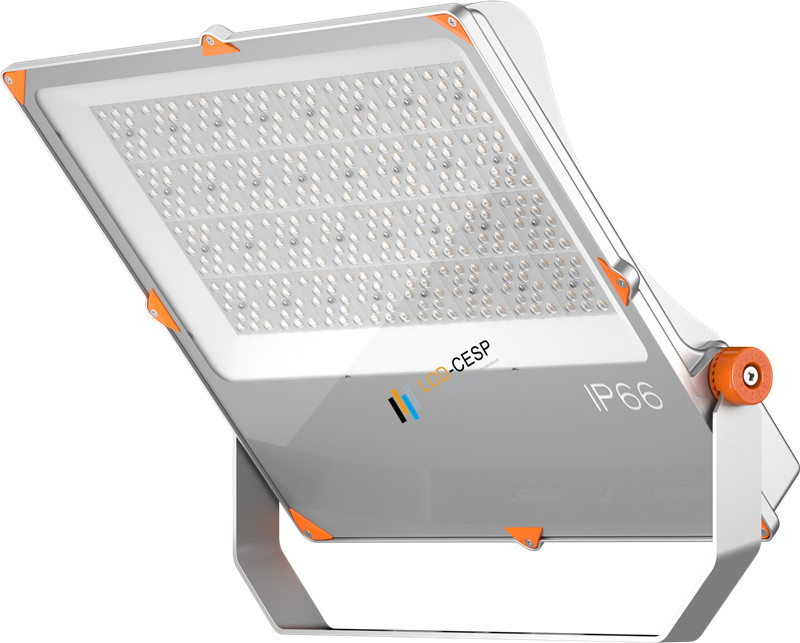

IP66 Waterproof Outdoor Marine Lights 100W LED Deck Flood Light Cove Lighting Lamp

1 / 5

IP66 Waterproof Outdoor Marine Lights 100W LED Deck Flood Light Cove Lighting Lamp

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Product Information

Model NO.LCD-FA100W

Power60-99W

Projection Distance12-18m

ApplicationPark, Square, Factory, Garden, Railway

IP RatingIP66 / IP65

CertificationCE, ROHS, EMC, LVD, CCC, FCC, SAA, TUV

Operating Voltage110-130V / 220V

LED Chips BrandCREE / SMD 3030

Housing MaterialDie-cast Aluminum / Extruded Aluminum

Warranty5 Years

Product Description & Highlights

AC 220V 60Hz 6500K IP65 IK07 240W Exterior Led Flood Lights

High-power LED flood lights featuring adjustable mounting brackets, allowing you to focus light output with precision. These fixtures significantly outperform traditional halogen fixtures and are built to stand up against harsh elements.

Energy Saving & High Efficiency
High Lumen Maintenance (Up to 170lm/W)

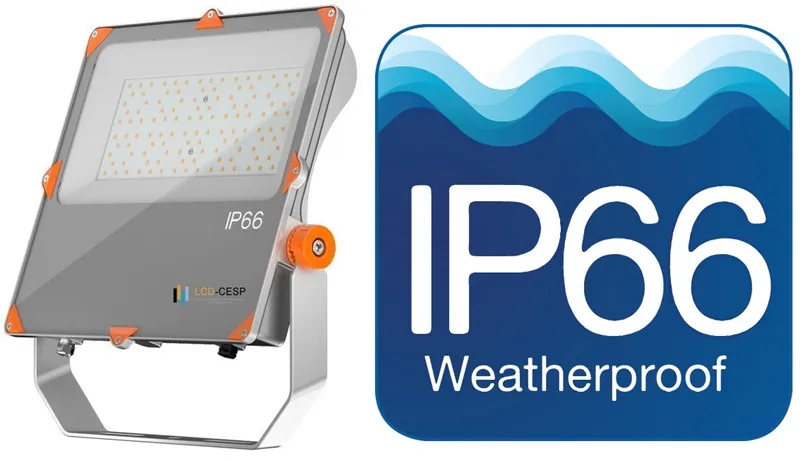

Weather Proof (IP66 Rated)
Efficient Heat Sink (230w/m.k)
Dimmable: 1-10V Support
Impact Resistance: IK07/IK08/IK10

Technical Specifications

Wattage	100W	150W	200W	240W
Lamp Luminous Flux(lm)	13000	19500	26000	31200
Luminous Efficiency	110 - 130 lm/w (Up to 170 lm/w for high-spec models)
Color Temperature	3000K, 4000K, 6500K, 7500K
Input Voltage	AC85-240V / 100-277VAC 50-60HZ
Housing	Aluminum 1060 Extruded / Die-cast Aluminum

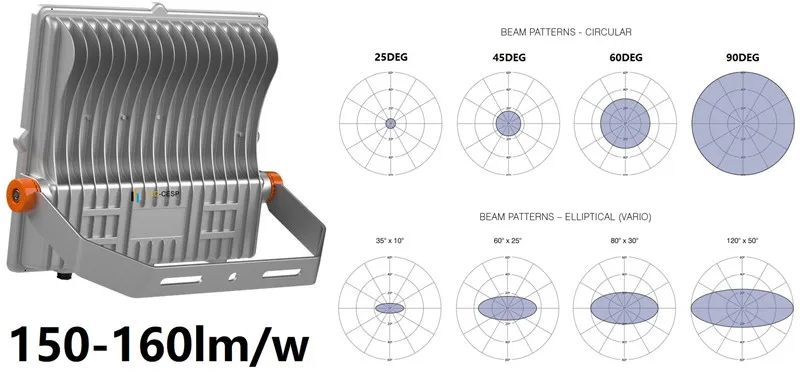

Beam Angle	120° (Optional: 7°, 15°, 30°, 60°, 90°)
Protection	IP66 / IK07-IK10

Detailed Model Series Data

LCD-FLY / LCD-FKJ / LCD-FA Series Comparisons:

Model No. Power(W) Lumens(lm) Dimensions (mm) LCD-FLY-013 10W 1300 179x145x32 LCD-FLY-053 50W 6500 350x265x69 LCD-FLY-103 100W 13000 397x308x68 LCD-FLY-203 200W 26000 500x385x68 ------------------------------------------------------- LCD-FKJ-103 100W 12000-15000 365*310*60 LCD-FKJ-303 300W 36000-50000 590*387*63 ------------------------------------------------------- LCD-FA-103 100W 14000 200x200x147 LCD-FA-323 320W 44800 400x400x169

Industrial Applications

Designed for installations where moisture, dirt, dust, corrosion, and vibration are present. Ideal for:

Marine & Shipyards
Mining & Heavy Industrial Sites
Parking Lots & Area Lighting
Sports Arenas & Stadiums
Airport Aprons & Terminals
Wastewater Treatment Plants

Frequently Asked Questions (FAQ)

What is the warranty period for these LED flood lights?

The product comes with a comprehensive 5-year warranty, ensuring long-term reliability and performance for industrial applications.

Are these fixtures suitable for marine environments?

Yes, with an IP66 rating, marine coating options, and high resistance to corrosion (A360 aluminum alloy), they are ideal for shipyards, docks, and piers.

What input voltage ranges are supported?

Standard models support AC 100~277V (50/60Hz). Specialty high-voltage versions for 347~480V are also available. DC power is available upon special request.

Can these lights be dimmed?

Yes, several series support 1-10V dimming, Triac dimming, and can be integrated with motion sensors or infrared induction.

What is the heat dissipation technology used?

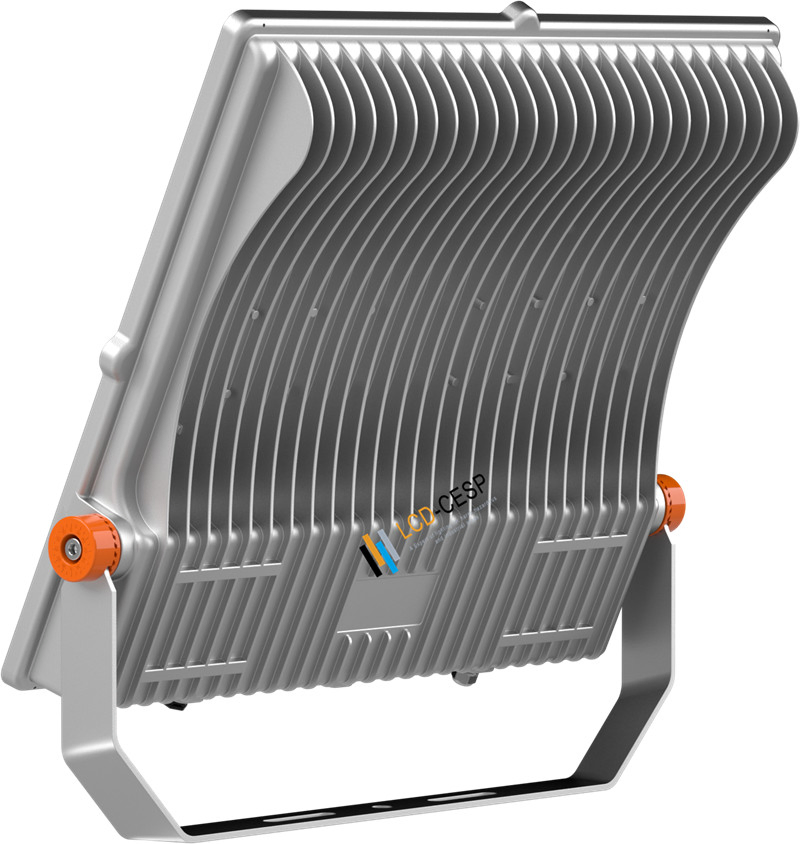

We use extruded aluminum heatsinks with thermal conductivity of about 230w/(m.k), which is 2.5 times more efficient than standard aluminum alloys.

What are the impact and ingress protection ratings?

The fixtures are rated at IP65 or IP66 for waterproof and dust protection, and between IK07 to IK10 for impact resistance, making them vandal-protected.
