Industrial UFO LED Low Bay Light 100W 200W 250W with Dali Dimming

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Specifications

Model NO.
Rb-Hb-100wu1
Power
100W
Lifespan
≥50000H
IP Rating
IP65
Certification
CE, EMC, LVD, RoHS, VDE
Beam Angle
120°
LED Chips
SMD3030
Luminous Flux
17000lm
Input Voltage
AC 100-277V
Power Factor
>0.98
L

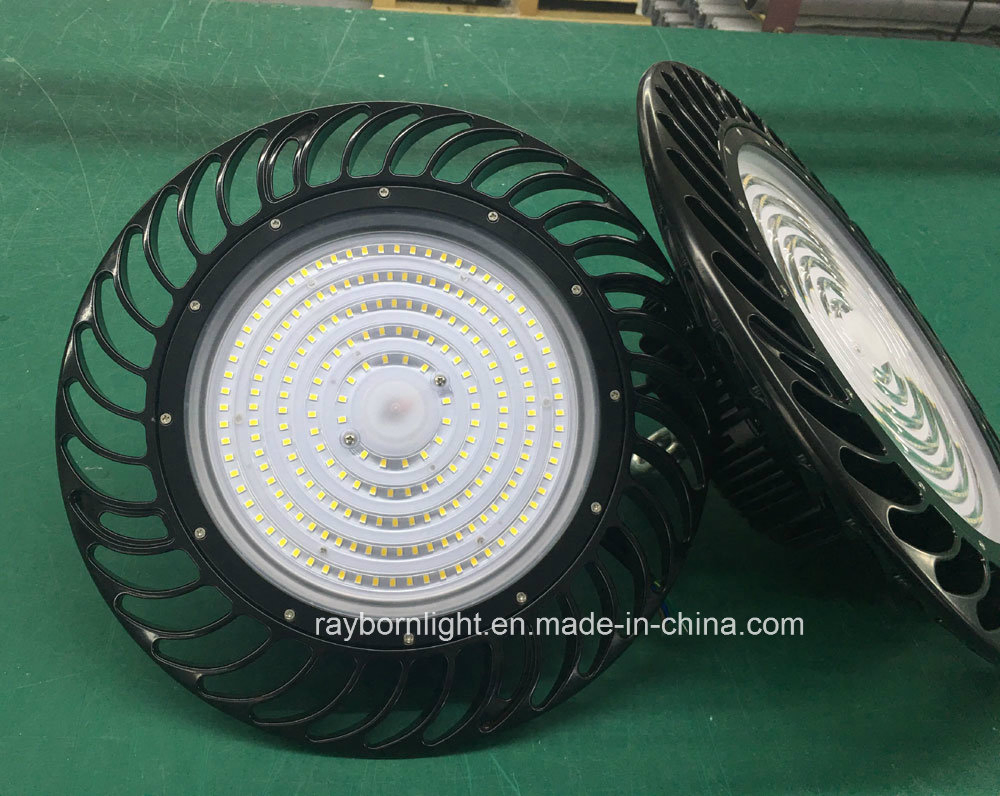

Industrial UFO LED Low Bay Light

High-performance 100W 200W 250W lighting solutions with Dali dimming capabilities, specifically designed for demanding industrial environments.

100W UFO LED HIGH BAY TECHNICAL DATA
Input VoltageAC 100-277VFrequency Range50Hz~60Hz
LED ChipSMD3030 ChipPower DriverMeanwell HBG
Luminous Efficiency170LM/WPower Factor>0.98
LED Quantity196pcs 3030SMDSystem Consumption103W
Viewing Angle120/90/60 degreeIP GradeIP65
Color TemperatureWarm White (3000K-3500K) / Pure White (4000K-5500K) / Cool White (6000K-6500K)
Working Temp-40ºC~50ºCNet Weight3.4KG
Industrial UFO LED High Bay Light
F

Key Features

  • Newly designed LED High Bay light available in 100W/150W/200W/250W.

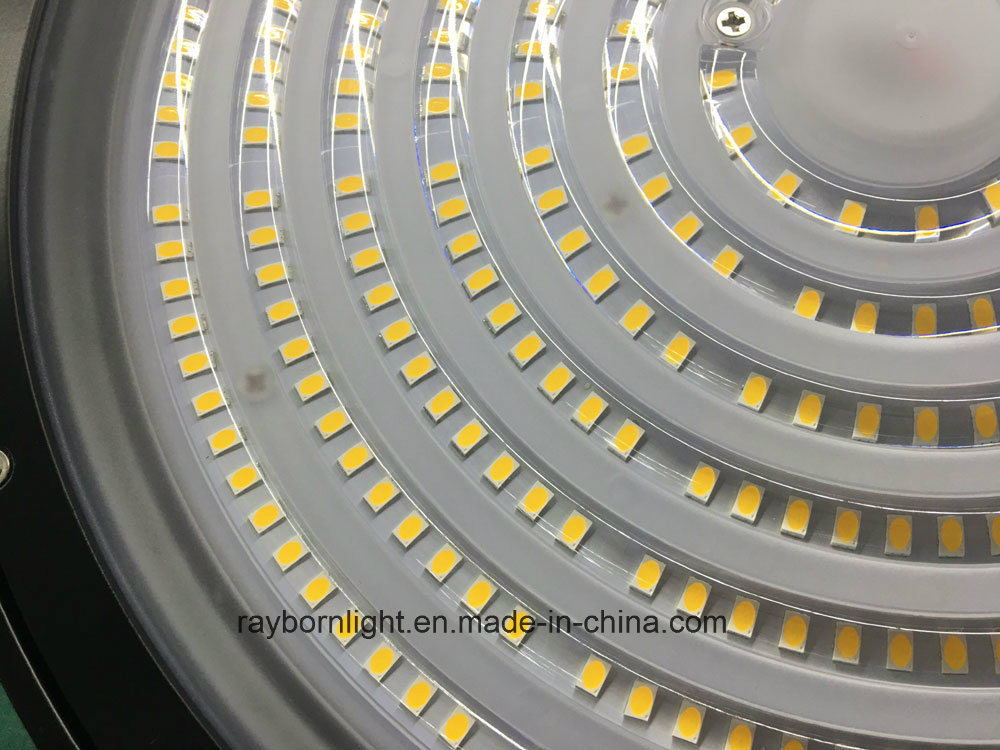

  • Premium LED chips (Samsung, Lumileds, OSRAM, Epistar) with Meanwell HBG drivers.
  • High luminous efficacy reaching up to 170LM/W.

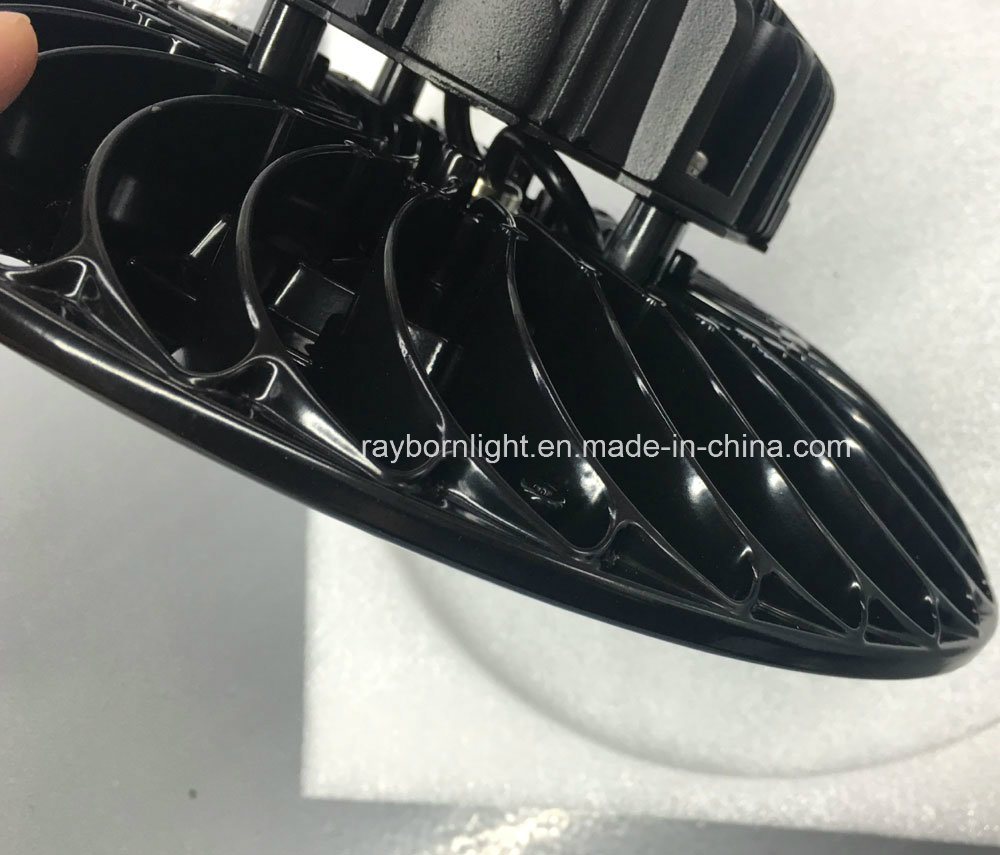

  • Pure aluminum heat sink with copper cylinder heat conduction.
  • Multiple beam angle options: 60°, 90°, and 120°.
  • Tri-Angle design for enhanced safety and stability.
  • High reflective rate (>90%) and CRI >80 for comfortable lighting.
  • 304 Stainless steel components for durability and rust prevention.
  • Excellent heat dissipation: LED chip welding spot remains ≤70ºC.
  • Waterproof IP65 design suitable for indoor and outdoor industrial use.
D

Product Details

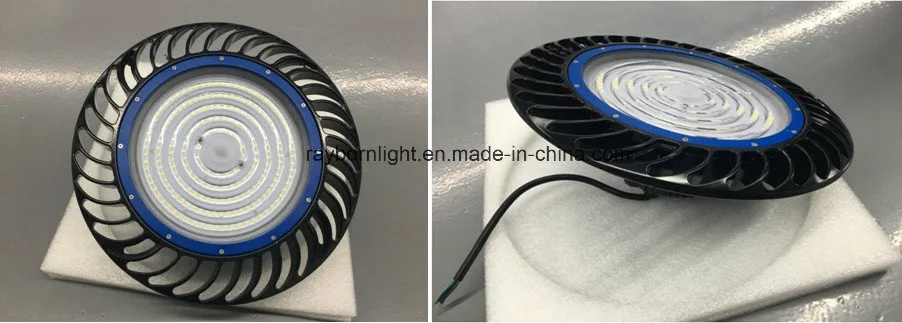

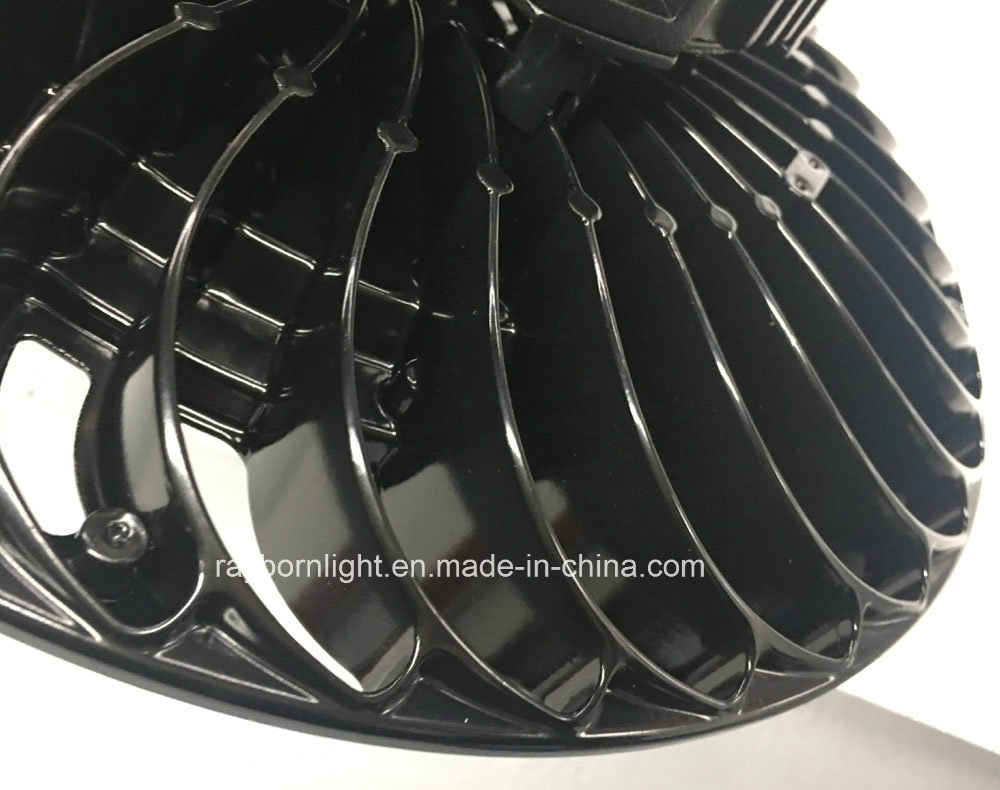

UFO LED Detail 1

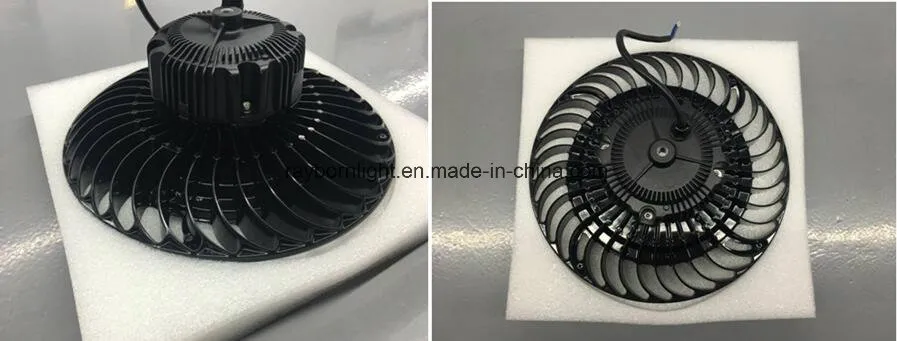

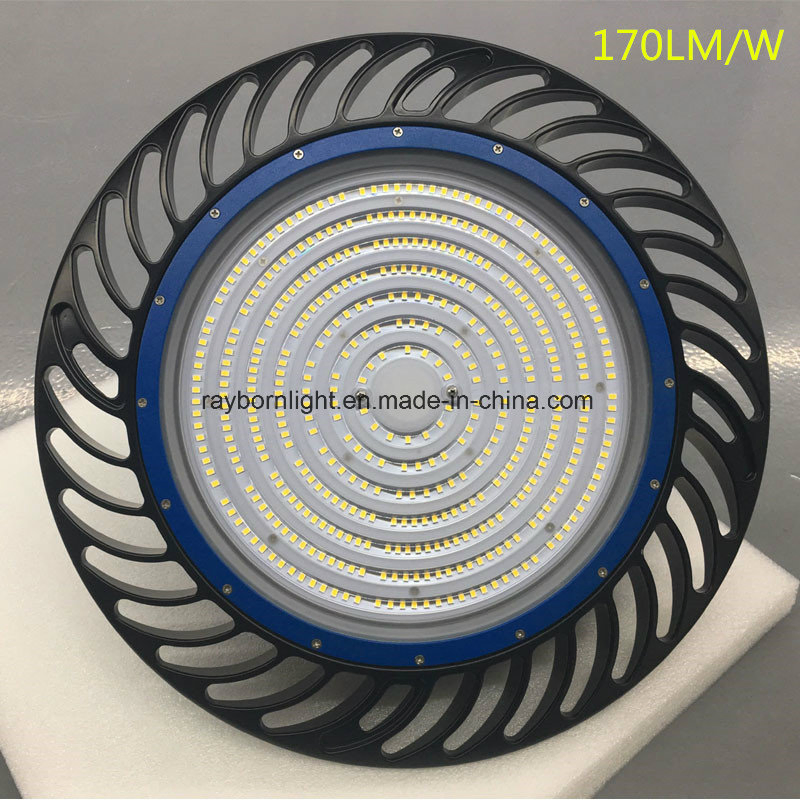

UFO LED Detail 2
A

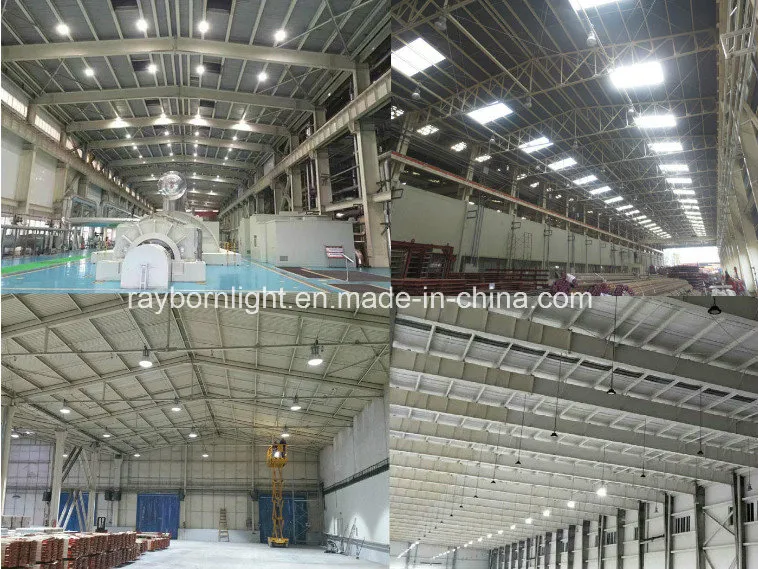

Applications & Installation

Perfectly suited for versatile industrial and commercial spaces:

  • Workshops and Factory floors
  • Warehouses and Logistics centers
  • Shopping Malls and Exhibition halls
  • Gymnasiums and Sports stadiums
  • Gas Stations and Toll booths
Application 1

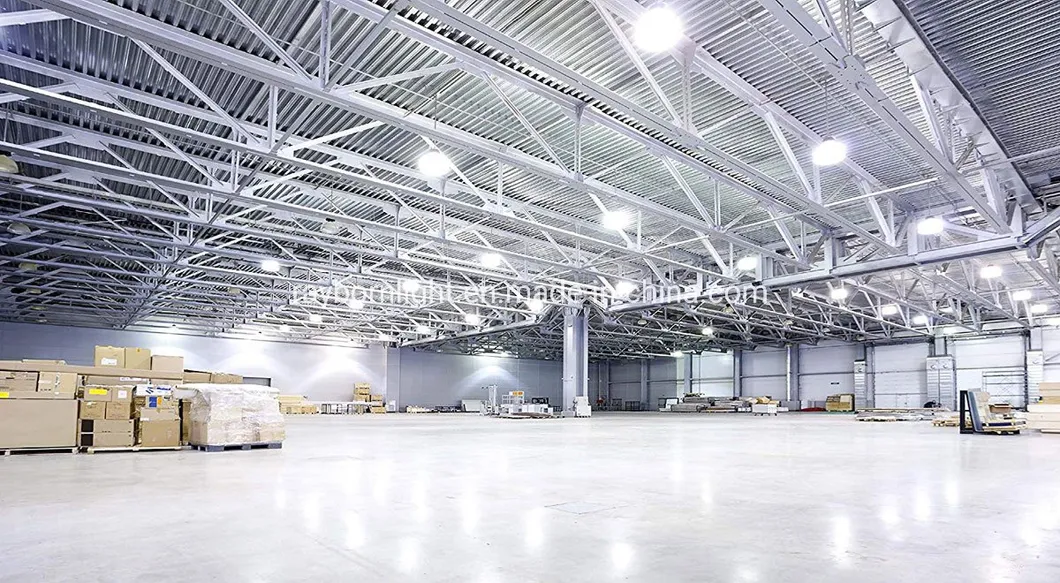

Application 2
Q

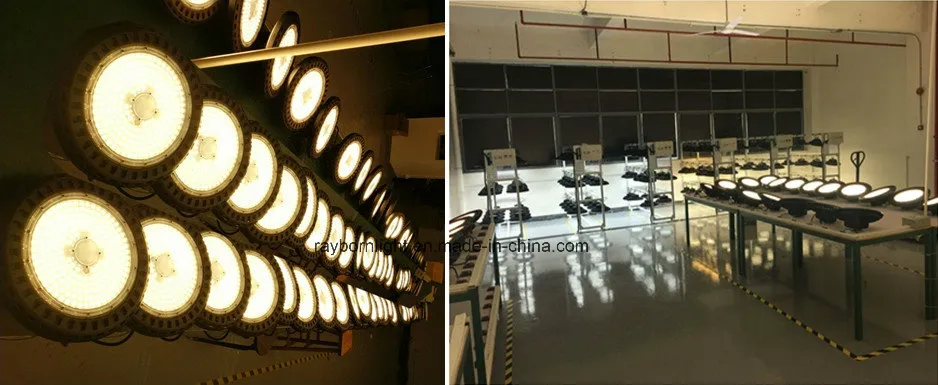

Quality Control & Aging Test

All units undergo a rigorous 24-hour aging test. Our 100% inspection process includes light-up tests, power wattage verification, high-voltage testing, and waterproof grading. Defective rates are strictly maintained below 0.1%.

Aging Test Process
P

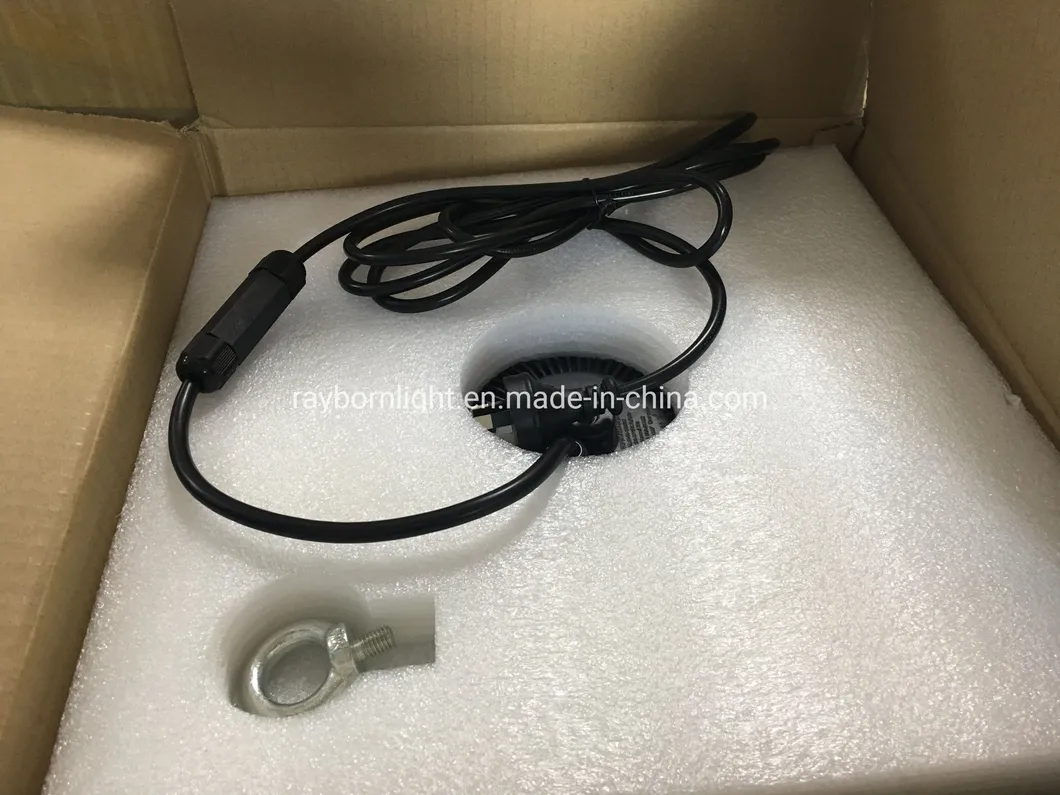

Packaging & Shipment

  • Standard individual carton packaging for maximum protection.
  • Detailed labeling for easy identification.
  • Customized color packaging and branding available upon request.
Packaging details
?

Frequently Asked Questions

What is the warranty period for these lights?
We offer a 5-year warranty. If any quality issues occur during this period, we provide free replacements, covering the freight costs for urgent needs.
Can you provide lighting design assistance?
Yes, we provide professional solutions and IES files for your design team to determine the exact number of fixtures required for your space.
What are the available payment terms?
For sample orders, we accept 100% advance via T/T, PayPal, or Western Union. For bulk orders, a 30% deposit is required, with the remaining 70% balance due before shipping.
How are the products shipped and how long does it take?
We typically ship via DHL, UPS, FedEx, or TNT, with delivery taking 3-5 days. Air and sea freight options are also available for larger orders.
How do you handle faulty products?
Our products are manufactured under a strict quality control system with a defect rate below 0.2%. For any verified faults during the guarantee period, we will send new replacements immediately.
Is there a Minimum Order Quantity (MOQ)?
We offer a low MOQ; even 1 piece is available for sample checking and quality evaluation.
