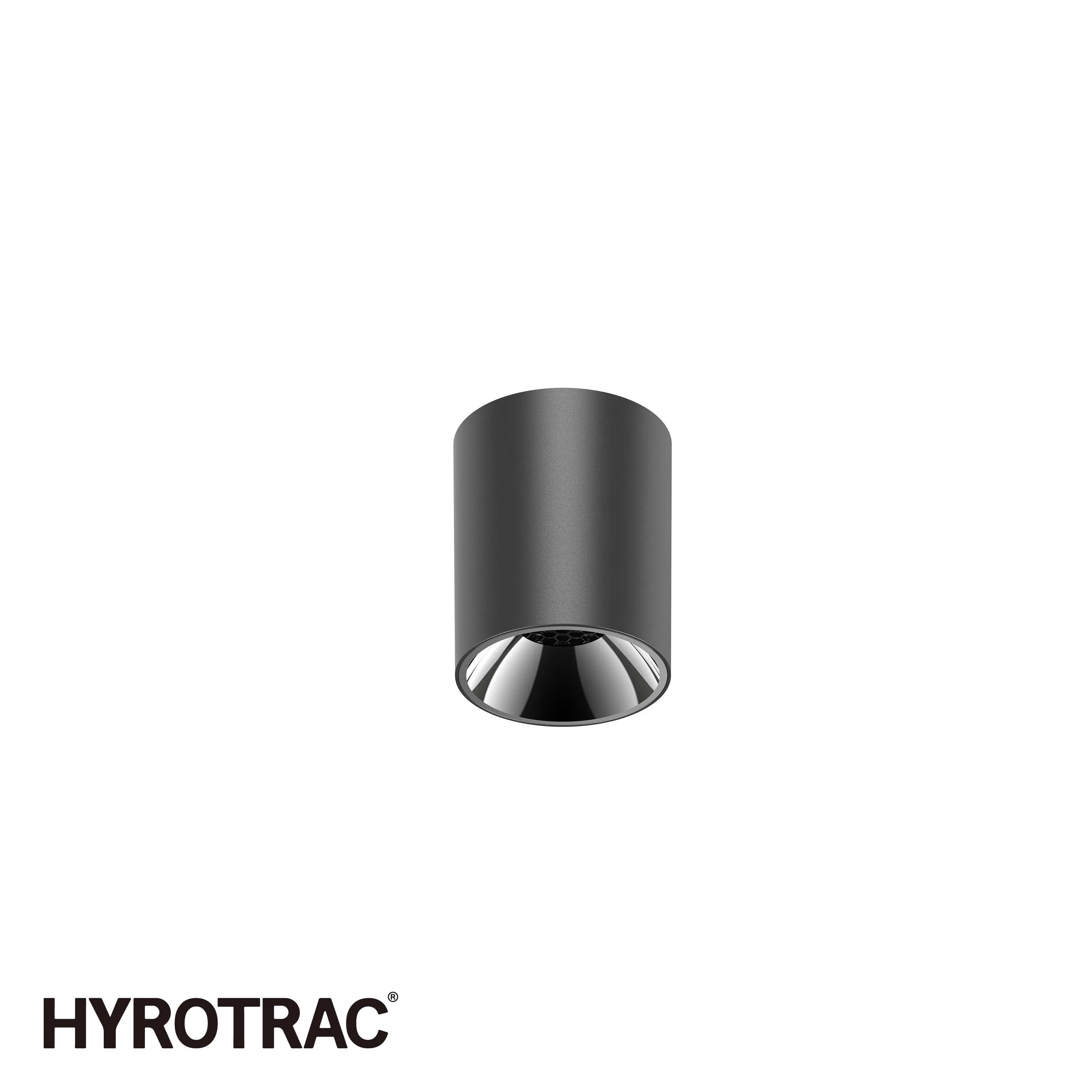

Indoor Commercial Residential Lighting Surface Mounted LED Downlight 10W 15W 25W 30W

1 / 5

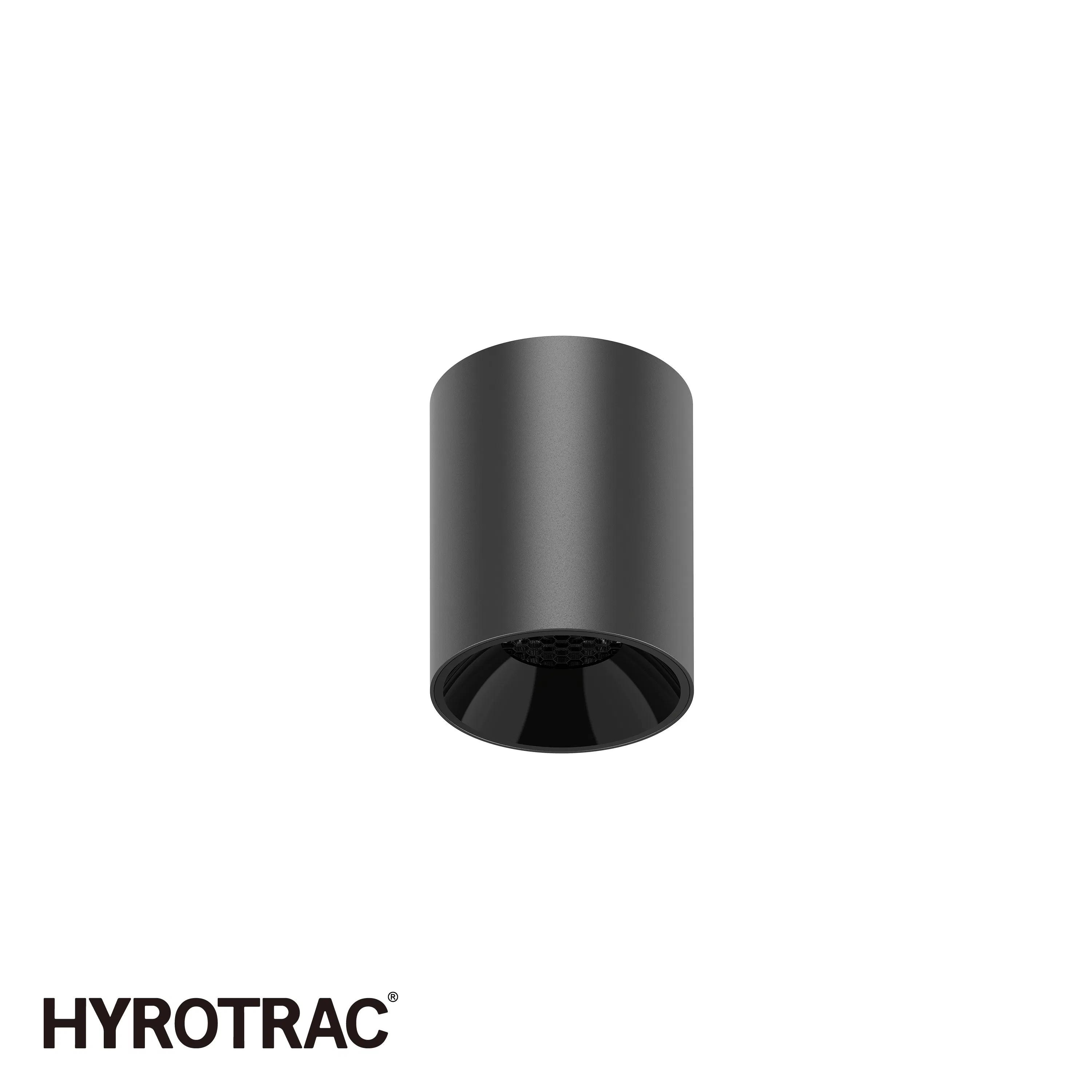

Indoor Commercial Residential Lighting Surface Mounted LED Downlight 10W 15W 25W 30W

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.:HYR-DL03075A (ONF)

Power:10W/15W/25W/30W

Color Temperature:2700K/3000K/3500K/4000K/5000K

Material:Aluminum

Installation:Surface Mounted

Warranty:5 Years

IP Rating:IP20

Certification:CE, RoHS

LED Driver:Lifud/Vs/Tridonic

LED Chip:CREE/Vs/Citizen/Bridgelux

Luminous Flux:100-110lm/W

Lifespan:>50,000hrs

CRI:Ra90+

UGR:<19

Origin:China

Application:Engineering, Home, Commercial

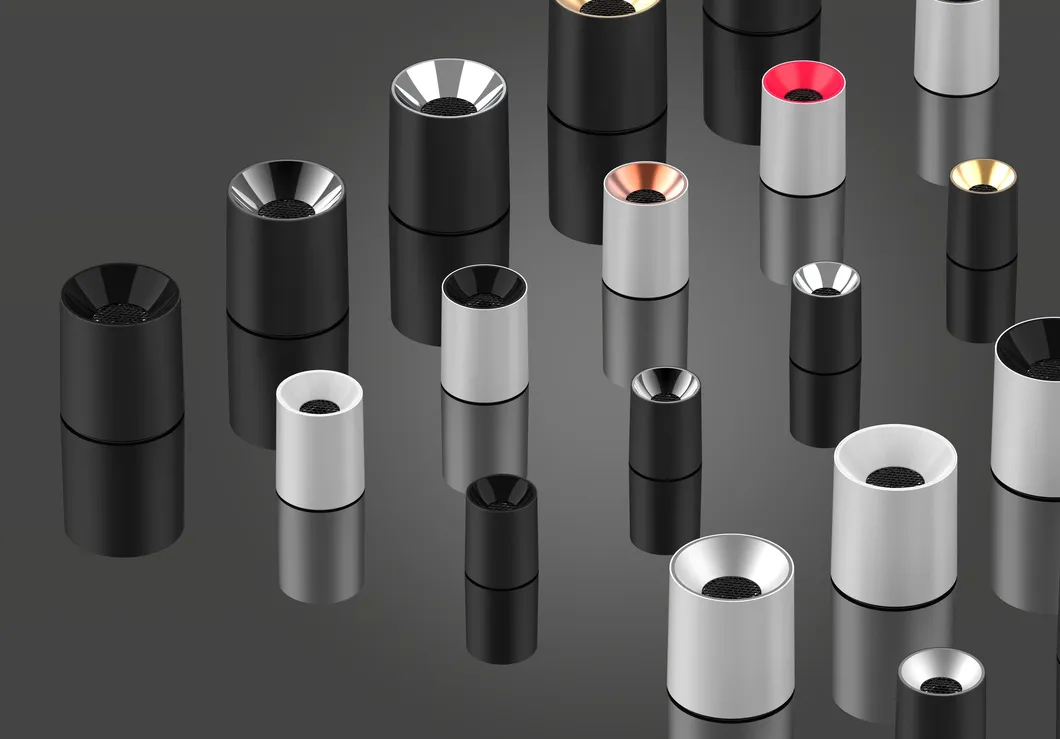

Product Features

Indoor Commercial Residential Lighting Surface Mounted LED Downlight 10W 15W 25W 30W

High luminous efficacy with stable output
Direct replacement for compact fluorescent lamp downlights
Energy savings up to 60% compared to CFL luminaires
Very homogenous light distribution
Functional design with easy installation and fast connection
5 years guarantee for long-term reliability
Aluminum diamond spotlight cup: Accurate light control angle

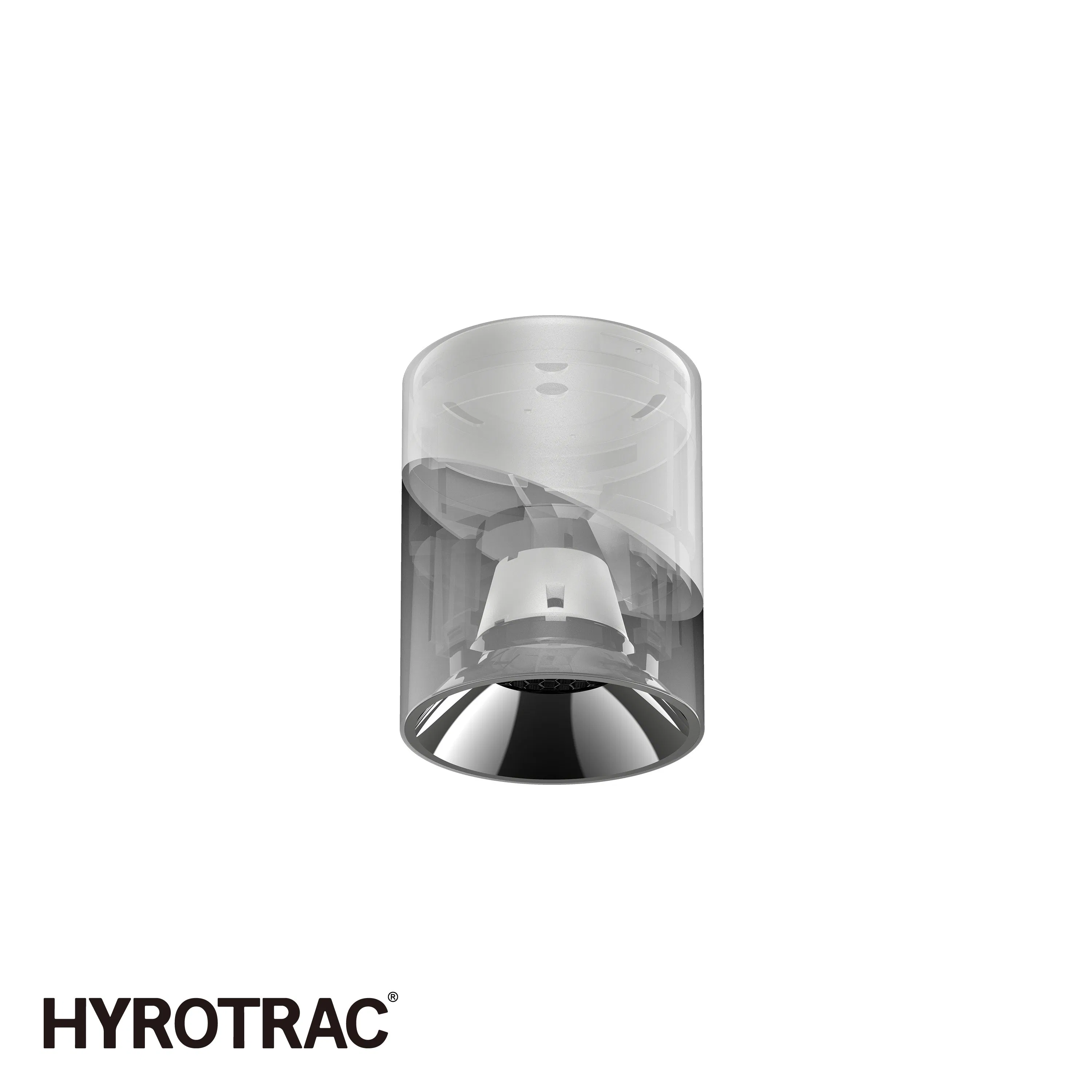

Aerospace aluminum body: High-temperature baking process, no fading

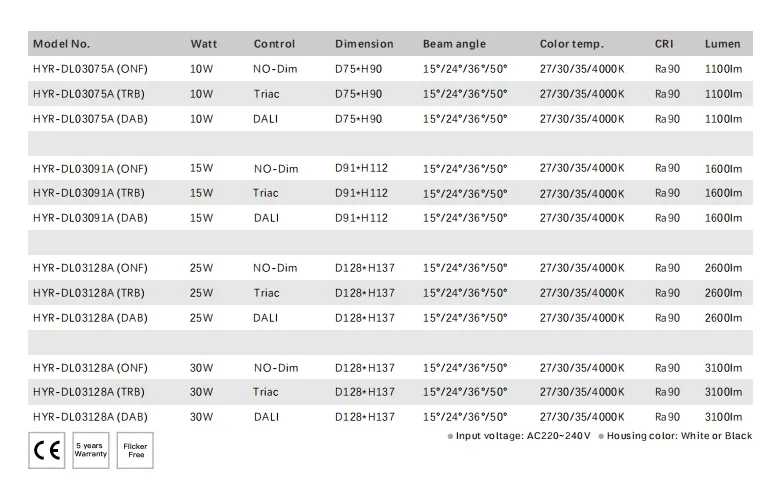

Technical Parameters

Parameter	Details
Input voltage	200-240Vac, 50hz/60hz
Power(watt)	10W/15W/25W/30W
Color temperature	2700K/3000K / 4000K / 5000K
LED Chip / Driver	CREE/VS/CITIZEN \| LIFUD/VS/TRIDONIC
PF / CRI	>0.95 / Ra90+
Luminous Flux	100-110LM/W
Beam Angle	15°/ 24° /36° / 50°
Dimmable Options	No-dim/Triac/DALI/CASAMBI
UGR	<19

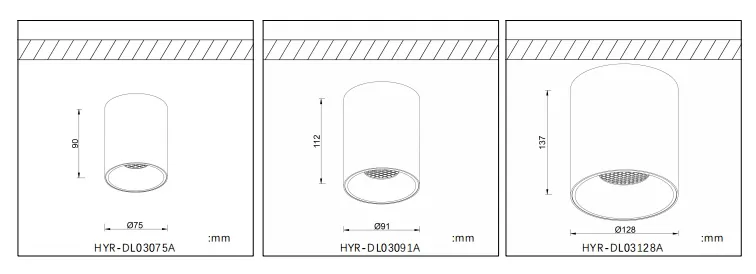

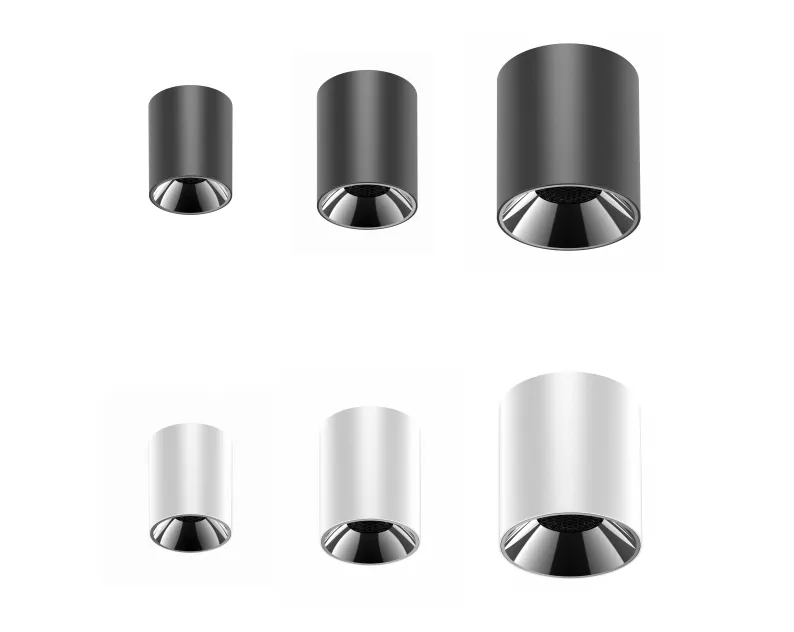

Dimension & Visuals

Packing & Logistics

Power	Carton Size(cm)	G.W(KG)	PCS/CTN
10W	42.53831.5CM	15.5kg	36PCS
15W	42.53831.5CM	20.6kg	36PCS
25W	47.531.543CM	20.6kg	18PCS
30W	544043CM	20.6kg	18PCS

Frequently Asked Questions

What is the warranty period for this LED downlight?

This product comes with a 5-year warranty, ensuring long-term performance and reliability for commercial and residential applications.

Is this downlight dimmable?

Yes, we offer multiple dimming options including Triac, DALI, and Casambi, in addition to the standard non-dimmable version.

What kind of LED chips and drivers are used?

We use high-quality components from industry-leading brands such as CREE, Citizen, and Bridgelux for chips, and Lifud, Tridonic, or VS for drivers.

Does this light produce glare?

No, this model is designed for high visual comfort with a UGR (Unified Glare Rating) of less than 19, making it ideal for offices and workstations.

How much energy can I save by switching to this LED downlight?

You can achieve energy savings of up to 60% when compared to traditional luminaires that use compact fluorescent lamps (CFL).

What is the expected lifespan of the product?

The product features an aerospace aluminum body for excellent heat dissipation, providing a lifespan of over 50,000 hours.
