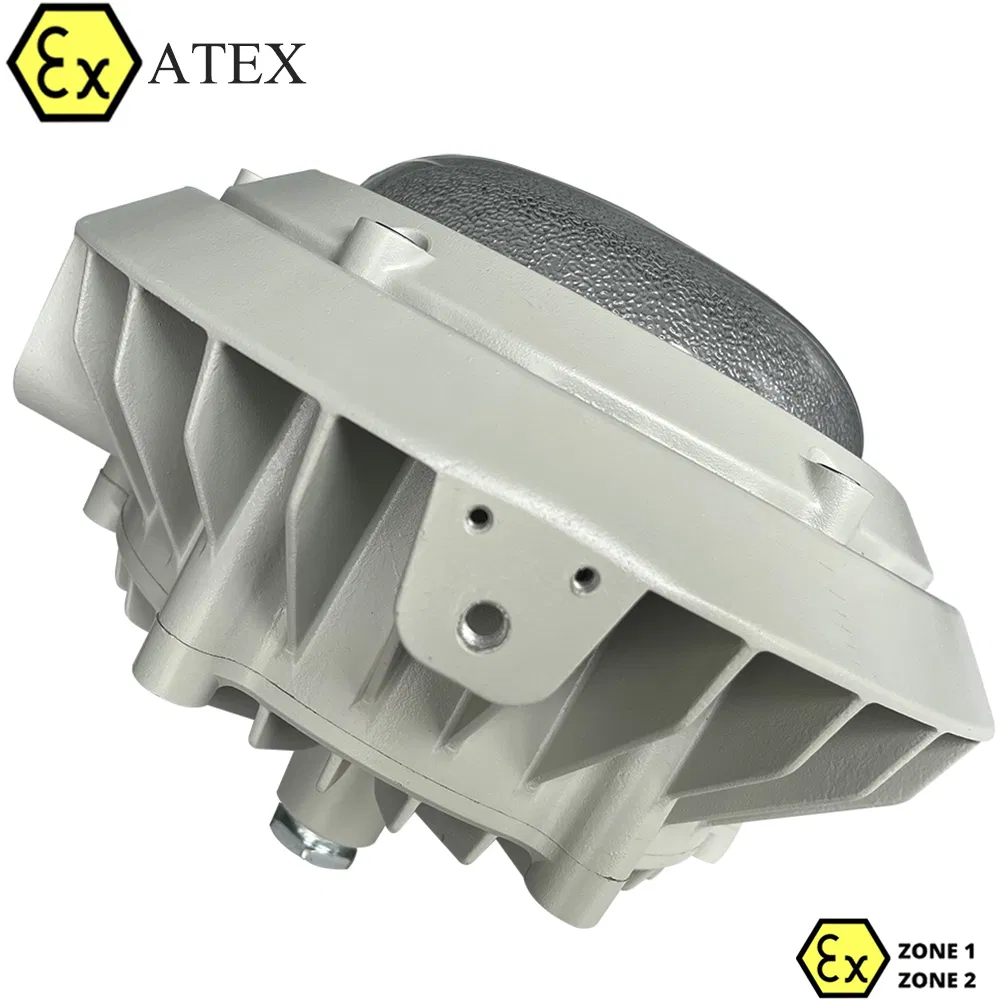

Huading Brand LED Anti Explosion Industrial Lights for Oil and Gas Industry Low Bay Platform Luminaires IP66 Waterproof Grade

Basic Info

Model NO.

BHD8630

Base Type

Bracket

Irradiated Area

≥30m²

Input Voltage

90-305VAC

Power

50W-100W

Color Temp

2700K-6500K

LED Chips

Osram

Certification

ATEX, IECEx, CE, RoHS, SAA

Function

Explosion Proof, Flood, Low Bay

Zone

Zone 1, 2; Zone 21, 22

Light Efficient

>130lm/W

Working Life

50000h

Warranty

5 Years

HS Code

9405409000

Product Description

LED explosion proof high bay light for oil and gas, chemical and petroleum industry zone1 with ATEX and IECEx certification by TUV

APPLICATIONS	Hazardous location LED explosion proof lighting fixture: Class I Division 2, Groups A,B,C and D; Group II, Zone 1 & Zone 2; Zone 21 & 22.
CERTIFICATIONS	ATEX, IECEx certificate issued by TUV, CE, ROHs

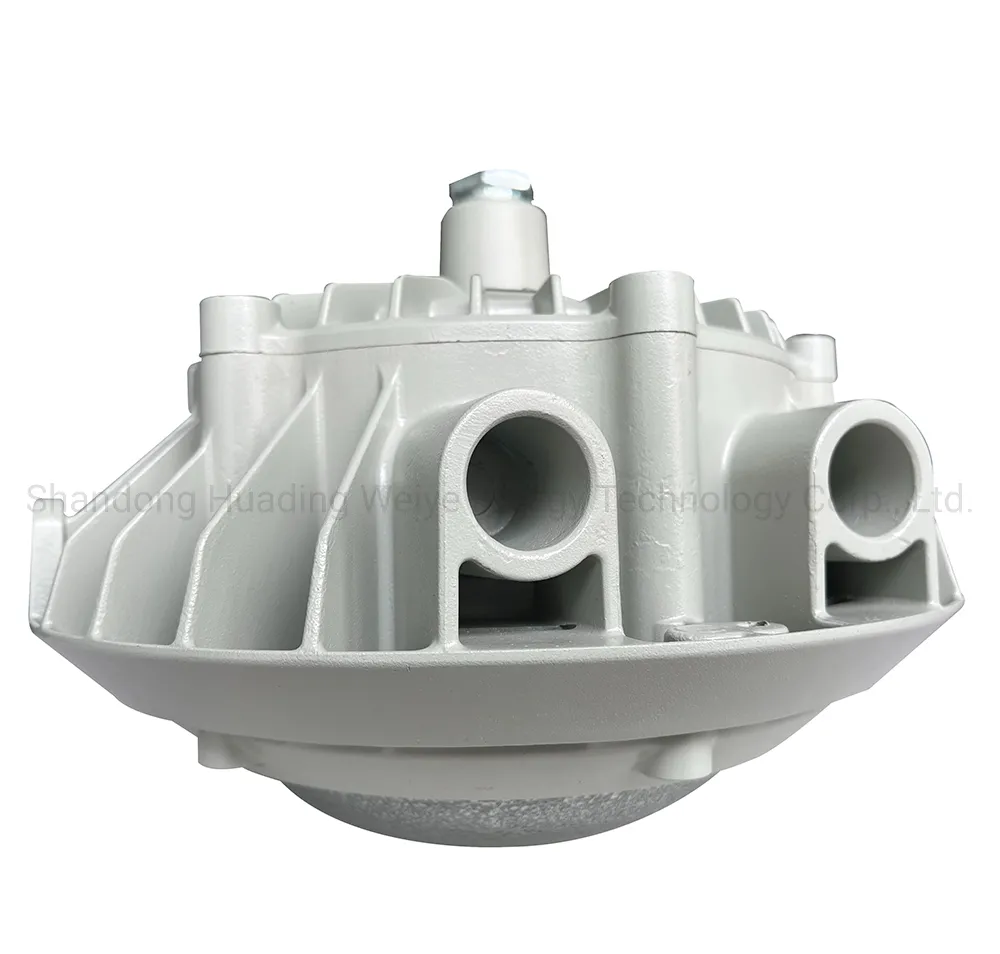

HOUSING BODY	Aluminum alloy ADC12, WF2 grade
LENS	4mm thick tempered glass & PC reflector 120º, +95% light transmission. Shock and vibrations resistant.

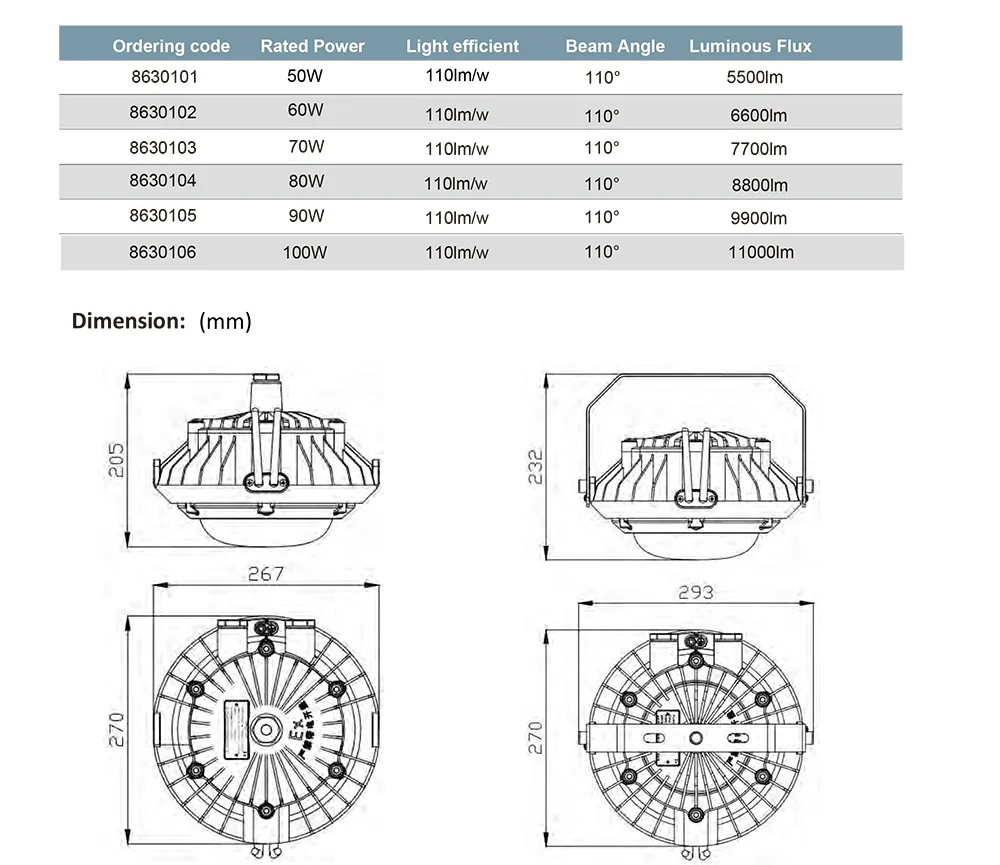

PERFORMANCE	Up to 110 lm/w. From 50W up to 100W. L70 (hrs) rated > 65,000.
IP RATING	IP66 & IP67 Rated. Dust tight and waterproof. 1-10V, DALI dimming standard.

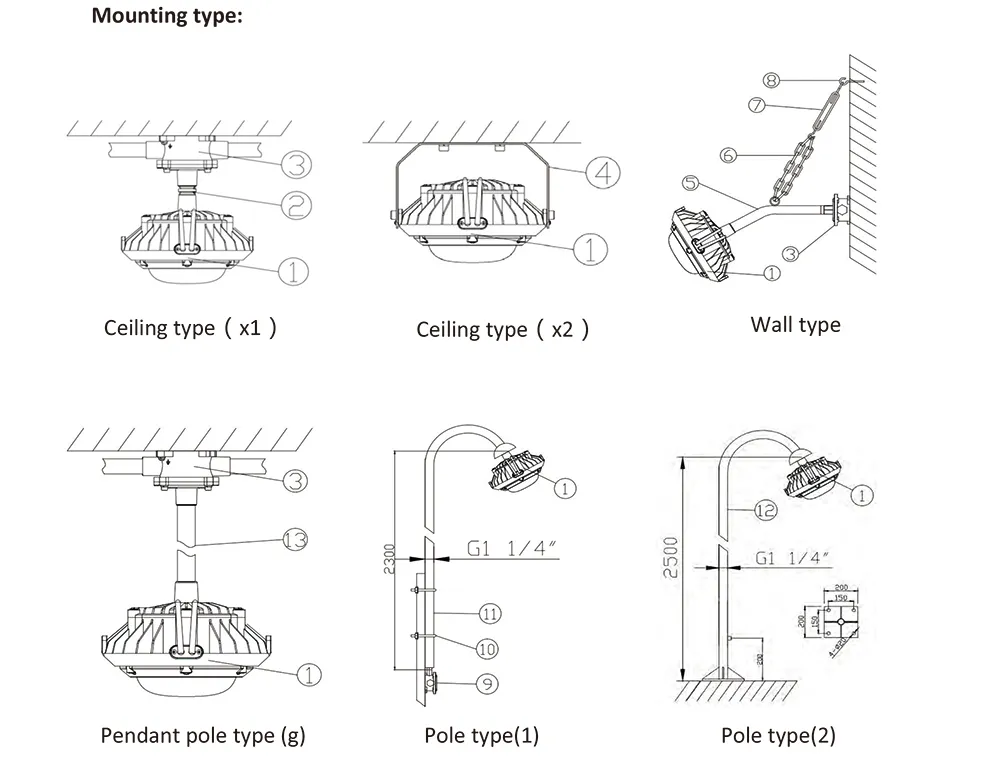

MOUNTING	Surface/wall mount standard (bracket included). Pendant kit optional.
TEMPERATURE	From -40°F up to 122°F (-40°C to 50°C).

Key Features

🛡️

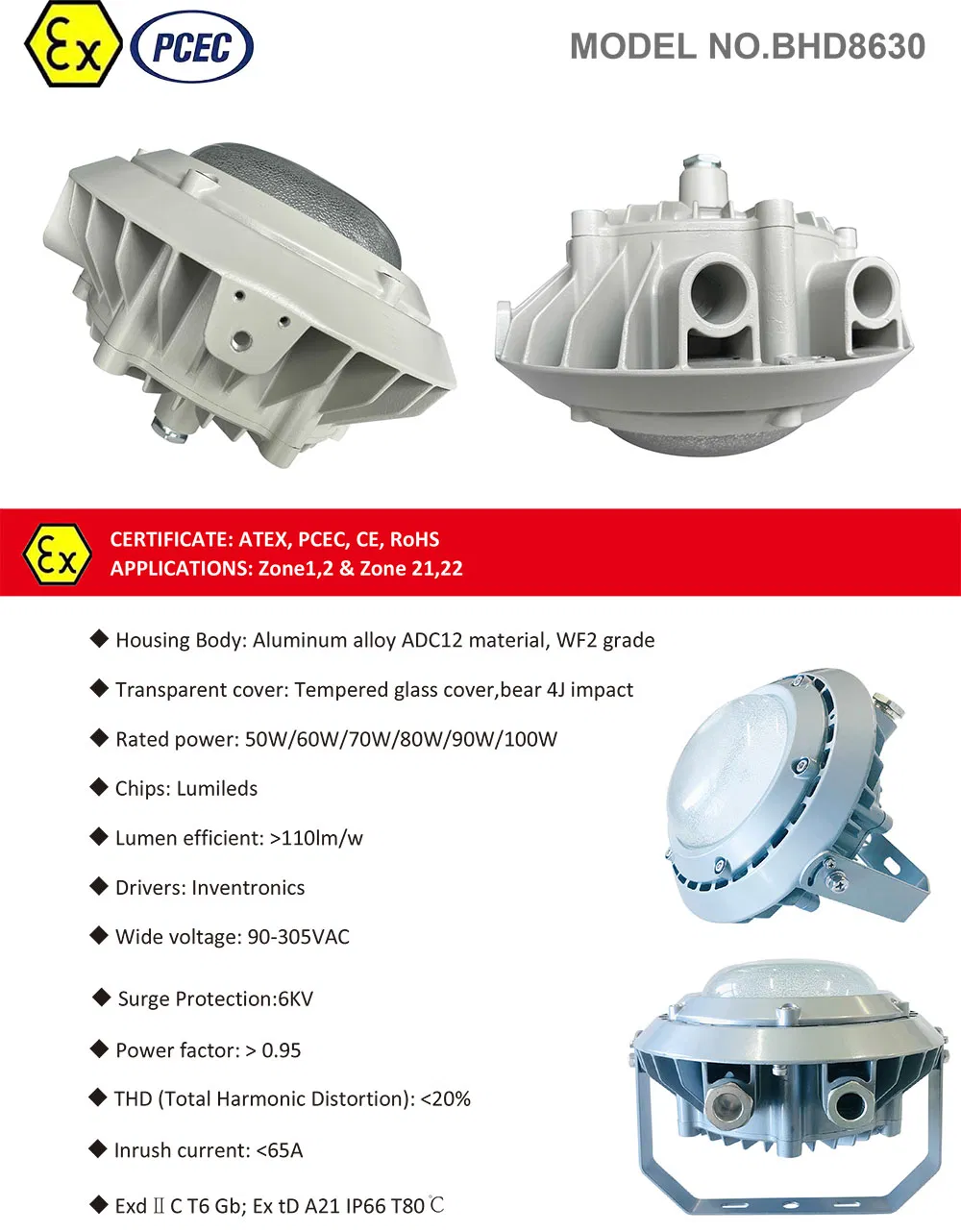

Certified Safety: ATEX and IECEx approved for Zone 1, 2 and Zone 21, 22 applications, rated for T6 environments.

💡

High Efficiency: High efficiency drivers and LEDs (>130lm/w) provide low cost operation in harsh industrial applications.

🏗️

Robust Build: Aluminum alloy ADC12 housing, WF2 anti-corrosion grade, with tempered glass bearing 4J impact.

🌡️

Thermal Management: Isolated LED compartment reduces temperature within driver housing for longer life.

The light is designed specifically for harsh & hazardous environments which require high performance, high reliability, safety and durable illumination. It is ideal for applications where space is restricted with its compact, low profile design.

Frequently Asked Questions

Q1: What is your MOQ?

MOQ is 1 pc.

Q2: Are you a trade company or factory?

We are a factory with a dedicated LED lighting engineering R&D center, providing services from design to production.

Q3: What are your main products?

Our business includes explosion-proof industry lighting, nuclear power lighting, municipal lighting, tunnel lighting, and intelligent lighting control systems.

Q4: How can I get a quotation?

We can offer a product list for you. For an exact price, please provide the quantity, power, and required Luminous Flux.

Q5: Do you have certification?

Yes, CE, ROHS, ATEX, IECEx, and PCEC certificates are available.

Q6: Can you do OEM or ODM?

Sure, we are a professional manufacturer and can provide both OEM and ODM services.
