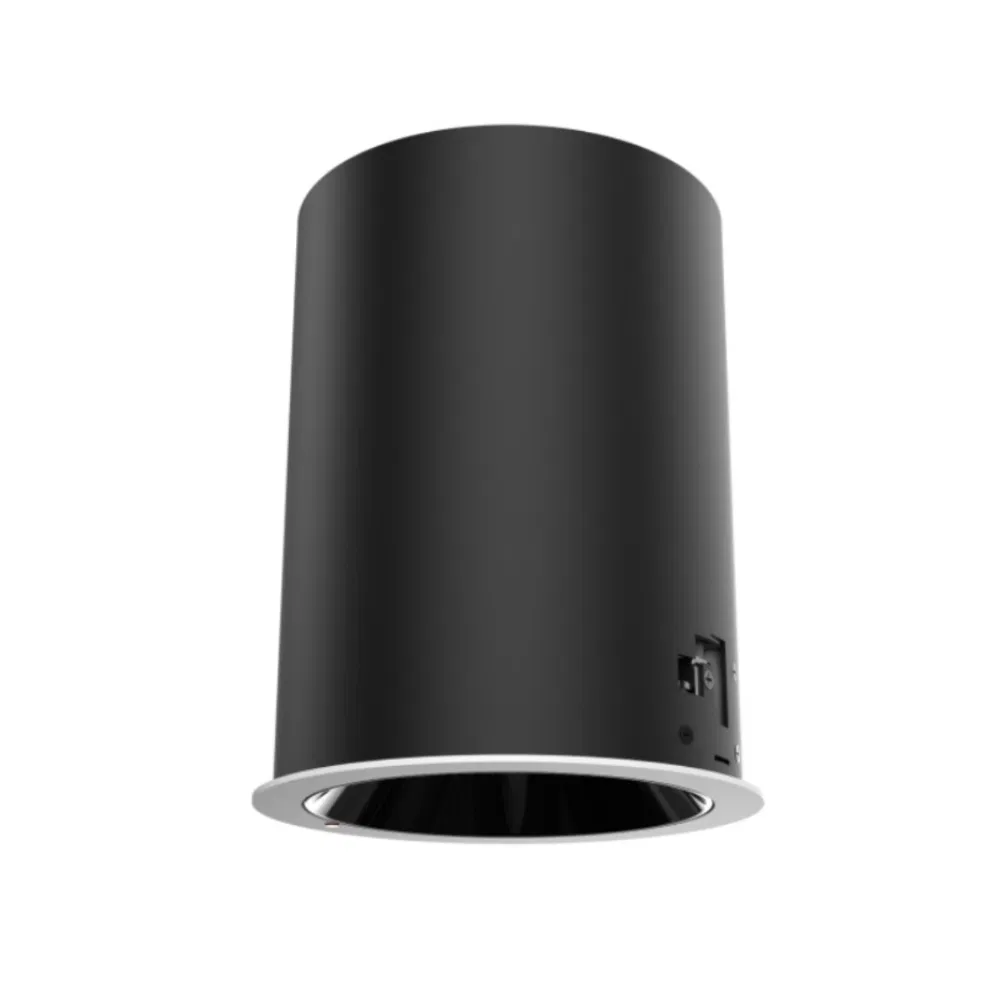

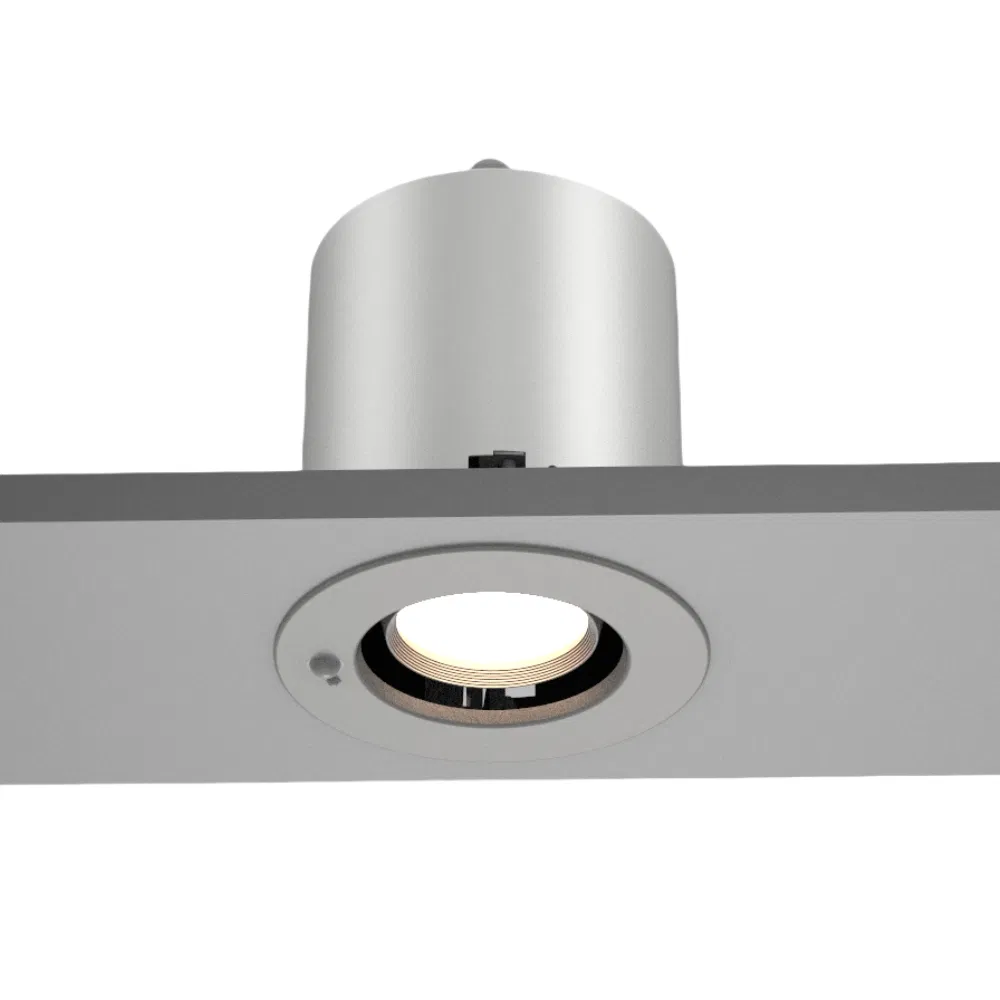

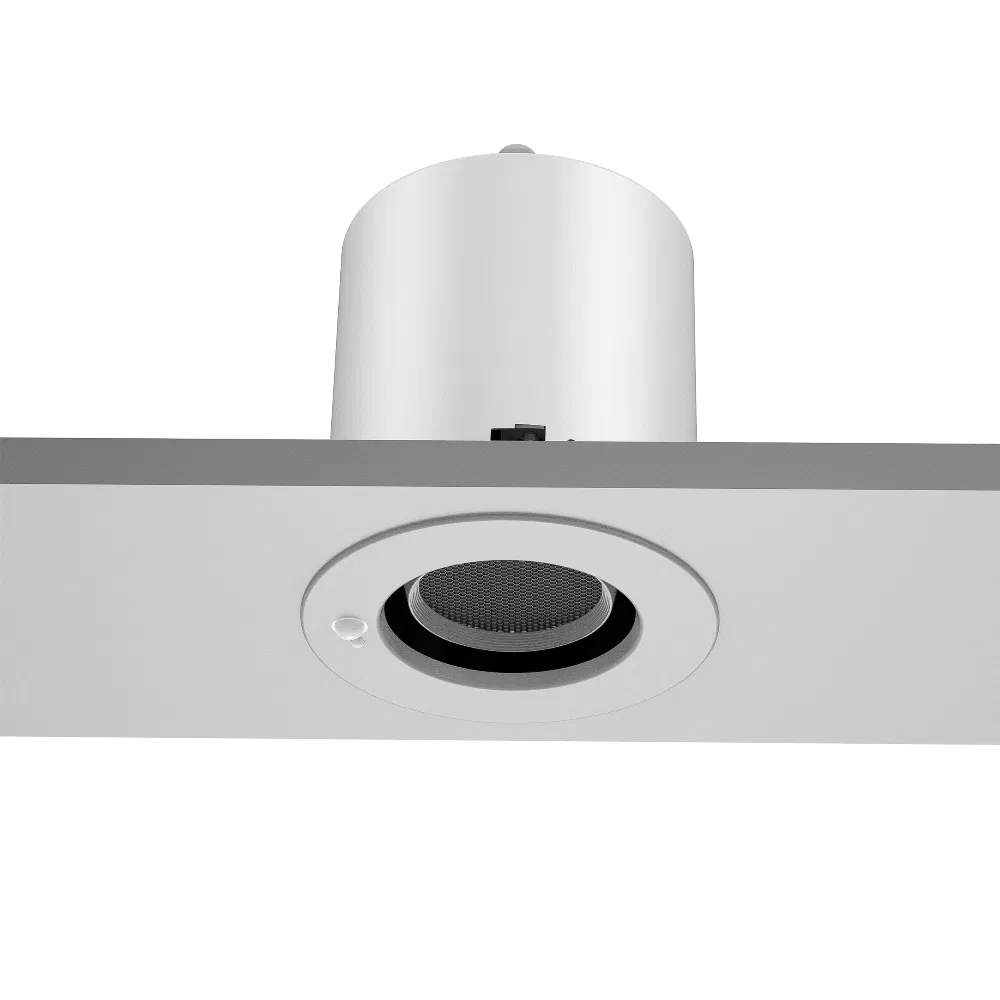

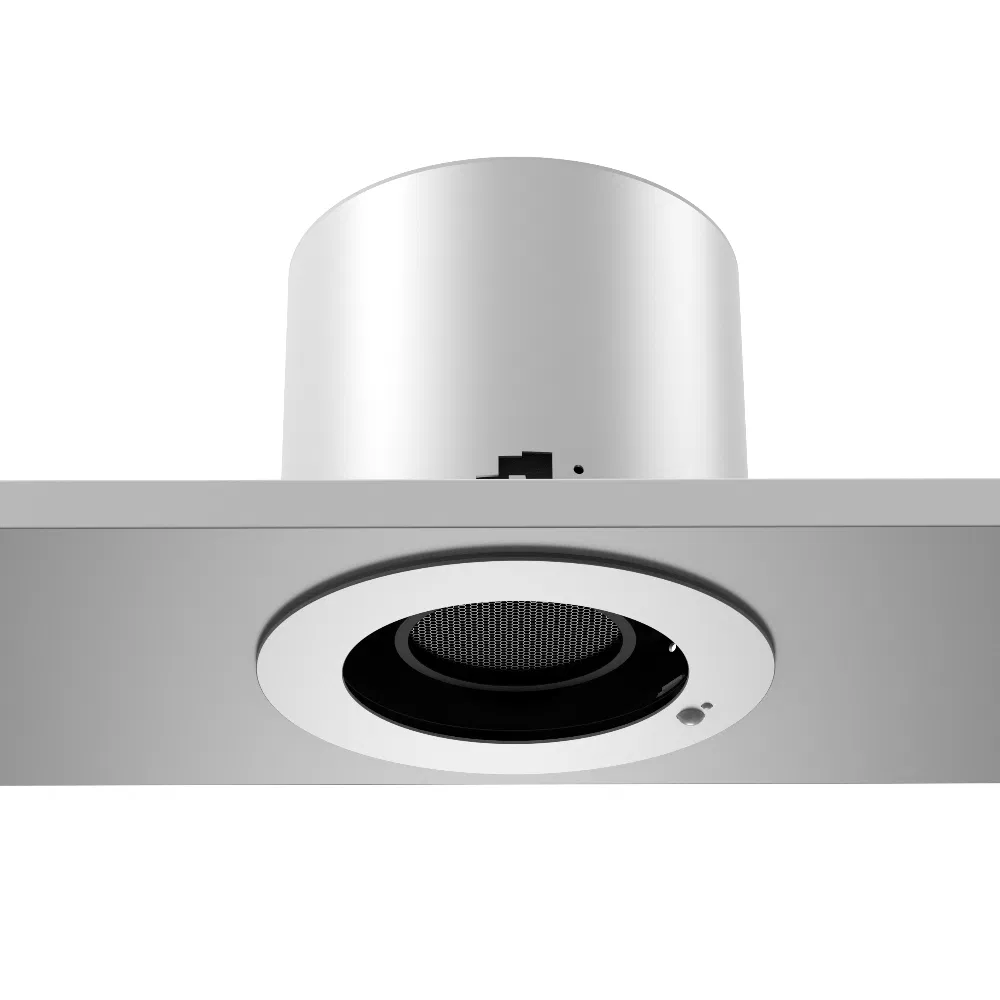

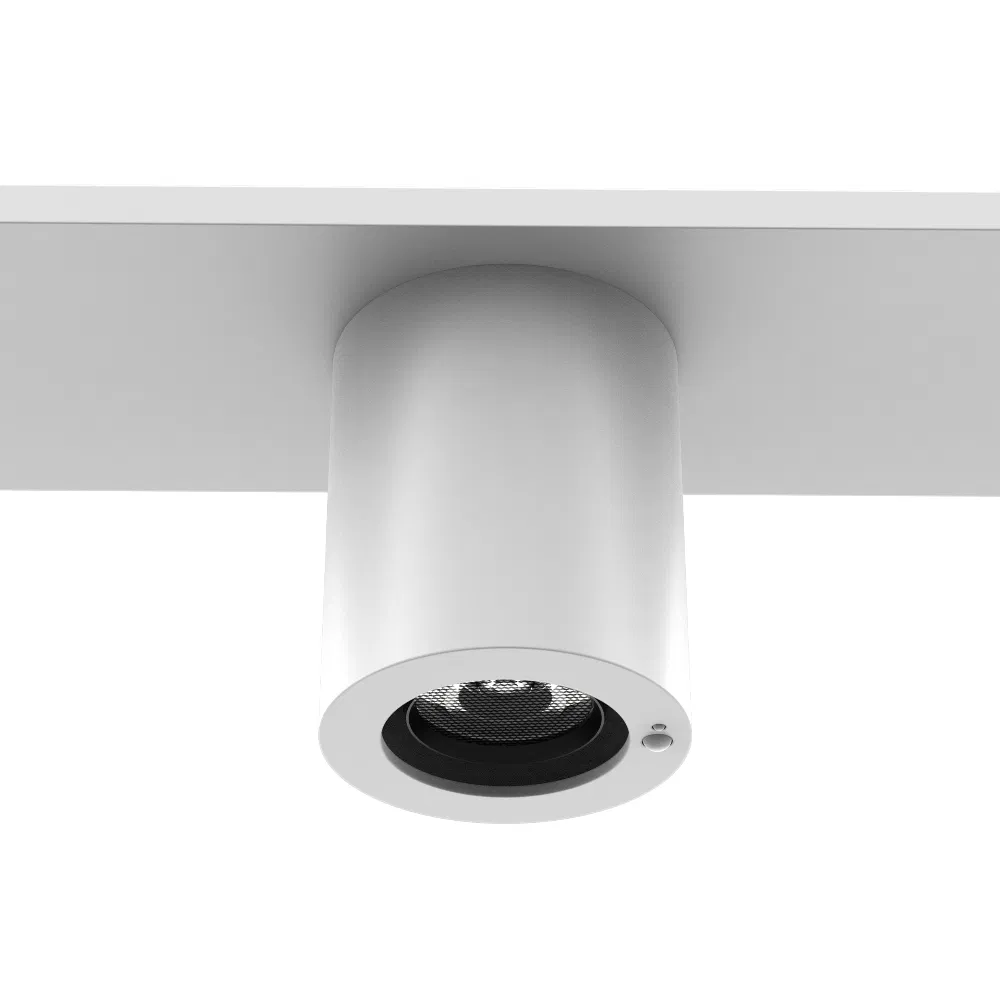

Hotel Project 30W 50W Dimmable COB LED Surface Mounted Ceiling Motorized Remote Controlled Downlight Spotlight

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info Overview
Power
30W
Color Temperature
Warm White
Material
Metal / Cast Aluminium
Installation
Recessed / Plug Lamp
Control
Intelligent Remote Control
Warranty
5 Years
IP Rating
IP44
CRI (Ra)
>97
Light Source
COB
CCT Range
2700-6000K
Certification
CCC, CE, EMC, FCC, LVD, RoHS, SAA
Product Features & Description

Motorized round recessed luminaire: Equipped with an intelligent remote control, this fixture allows for seamless adjustment of light color temperature, brightness, and scene modes without the need for complex wiring. It is designed to meet the versatile lighting requirements of high-end engineering and residential projects.

  • Precision Movement: Two DC motors drive the fixture's movement, allowing it to tilt vertically up to 40° in all directions on a dual-axis gimbal.
  • Beam Shaping: A third specialized motor controls the lens, enabling users to adjust the light beam range dynamically between 15° and 60°.
  • Smart Control: Support for 4-phase dimming, horizontal and vertical adjustment, and stepless CCT/brightness tuning via 2.4G RF remote.

The fixture body is constructed from high-quality cast aluminium with a mild steel mounting ring, supporting ceiling thicknesses up to 25 mm. The stylish design integrates perfectly into various architectural styles, offering a comfortable and customizable light environment.

Model NO.ZF-DD09 Power50W
Base MaterialAluminum Light SourceCOB
Life Span50,000h Beam Angle15-60°
CRI95/97 PF>0.9
CCT3000K-5000K Input Voltage85-240V
LED ChipsCITIZEN/CREE Housing ColorWhite/Black
DimmingDALI / TRIAC / 0-10V / 2.4G RF
Product Showcase
Motorized Spotlight Display 1
Motorized Spotlight Display 2
Application Scene 1

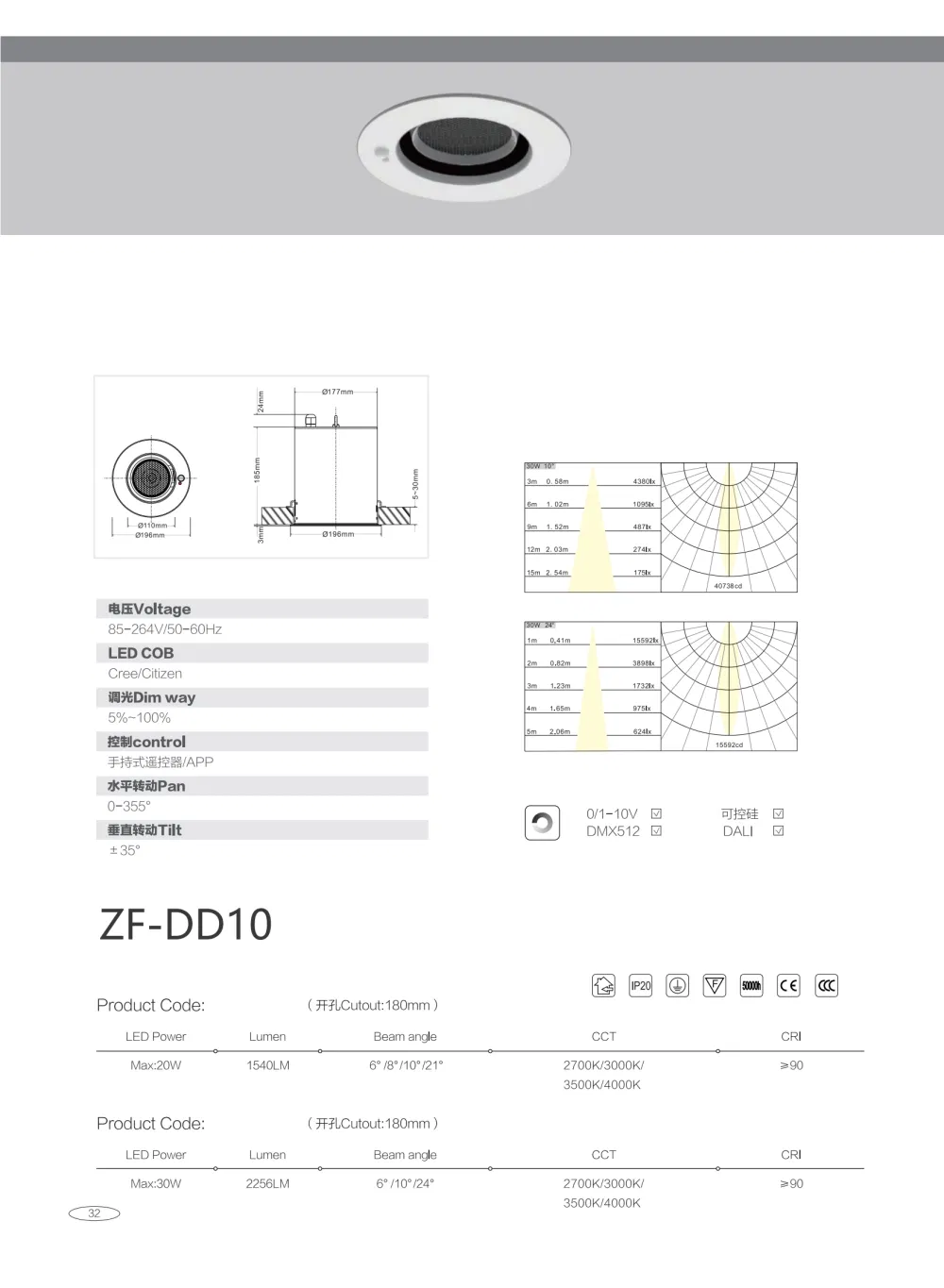

Application Scene 2

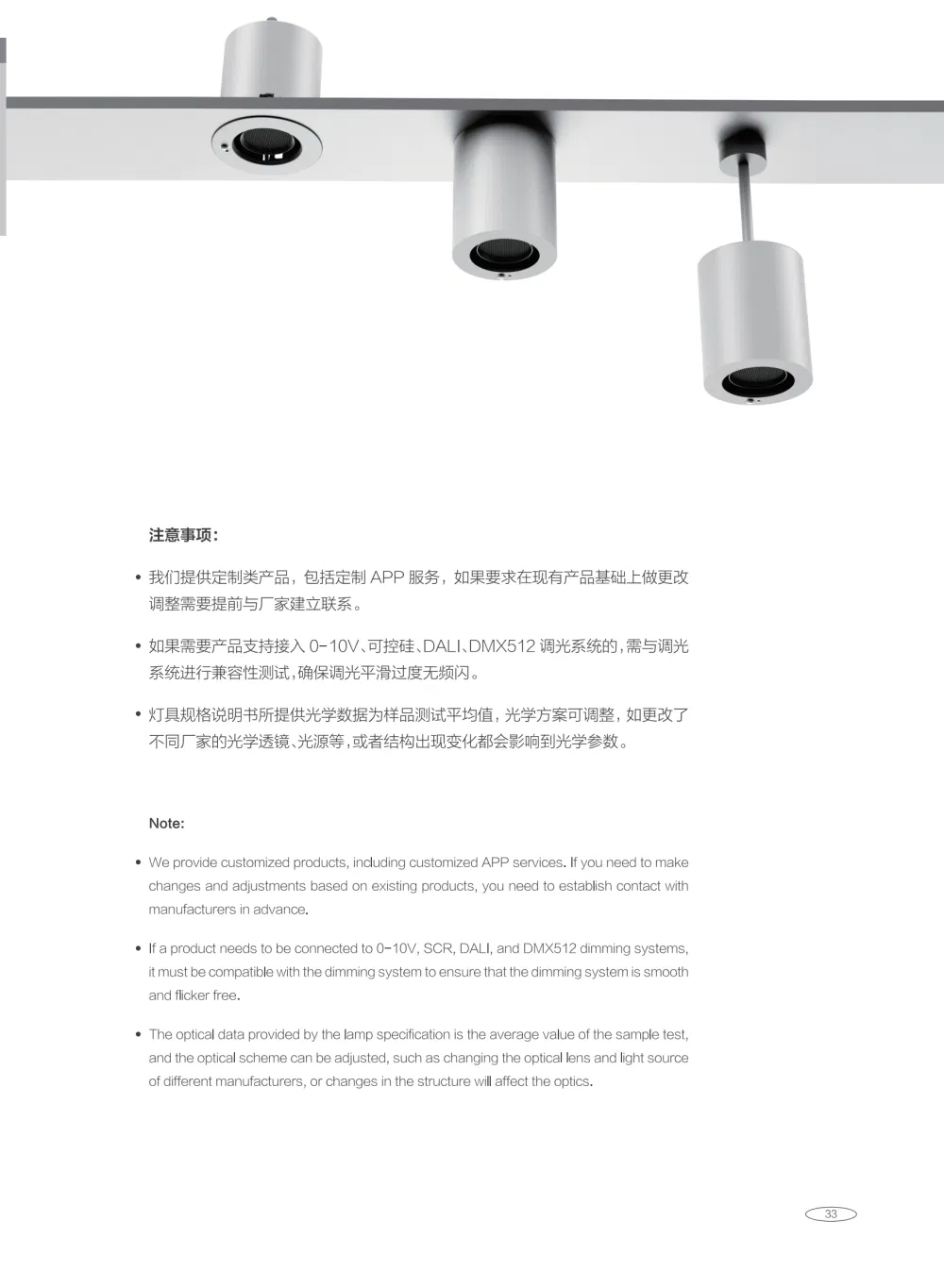

Application Scene 3

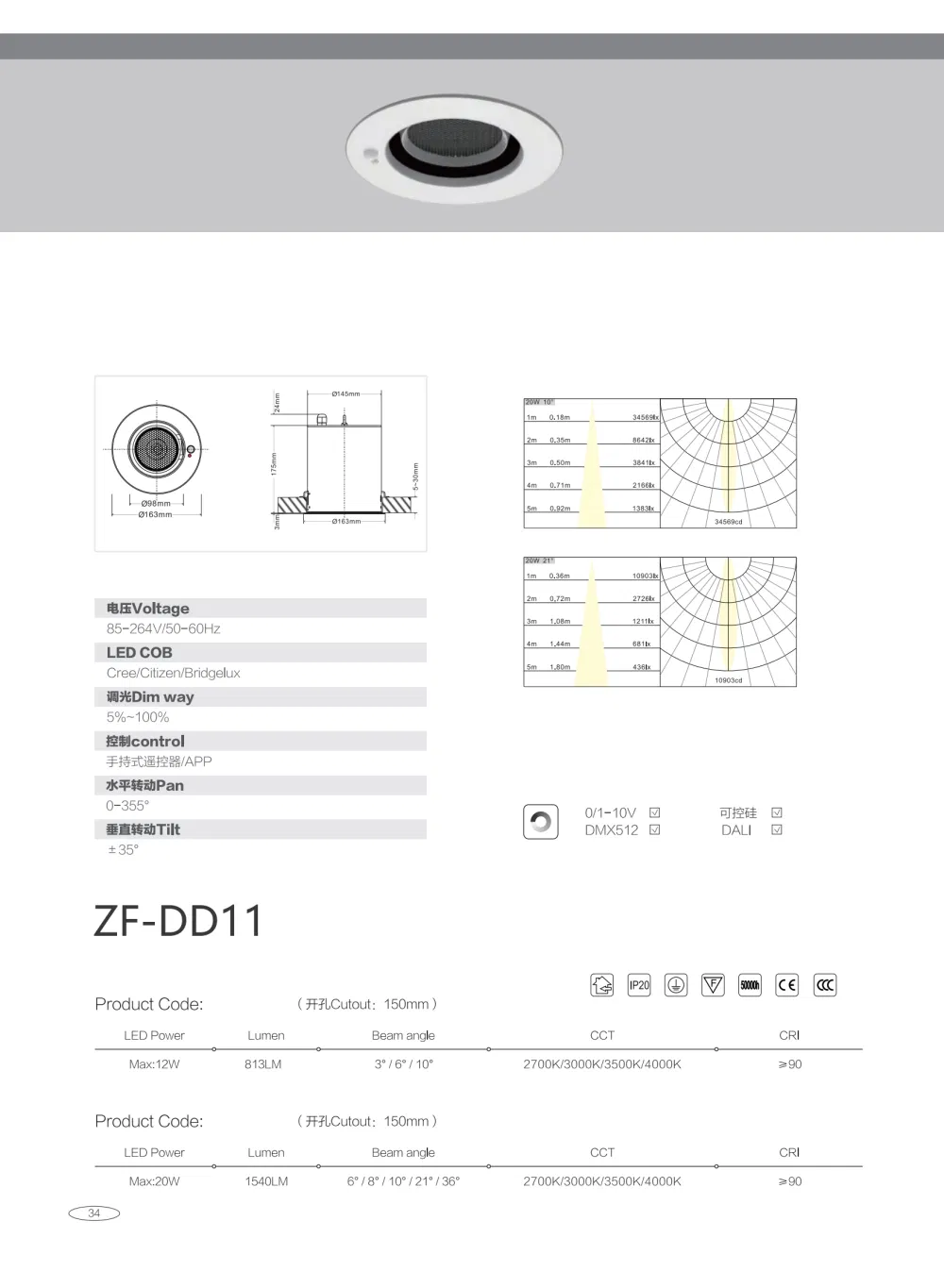

Detail View 1

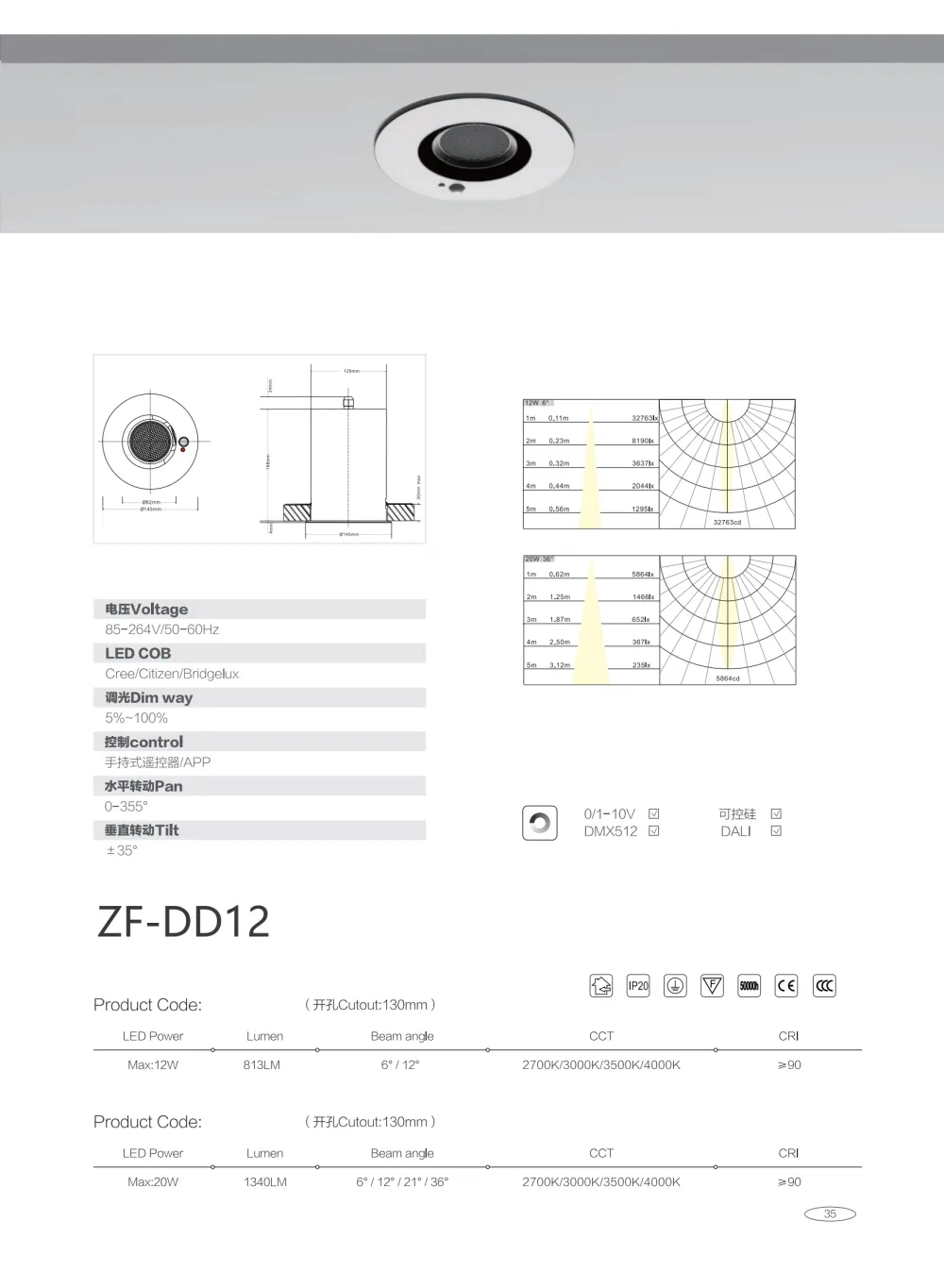

Detail View 2

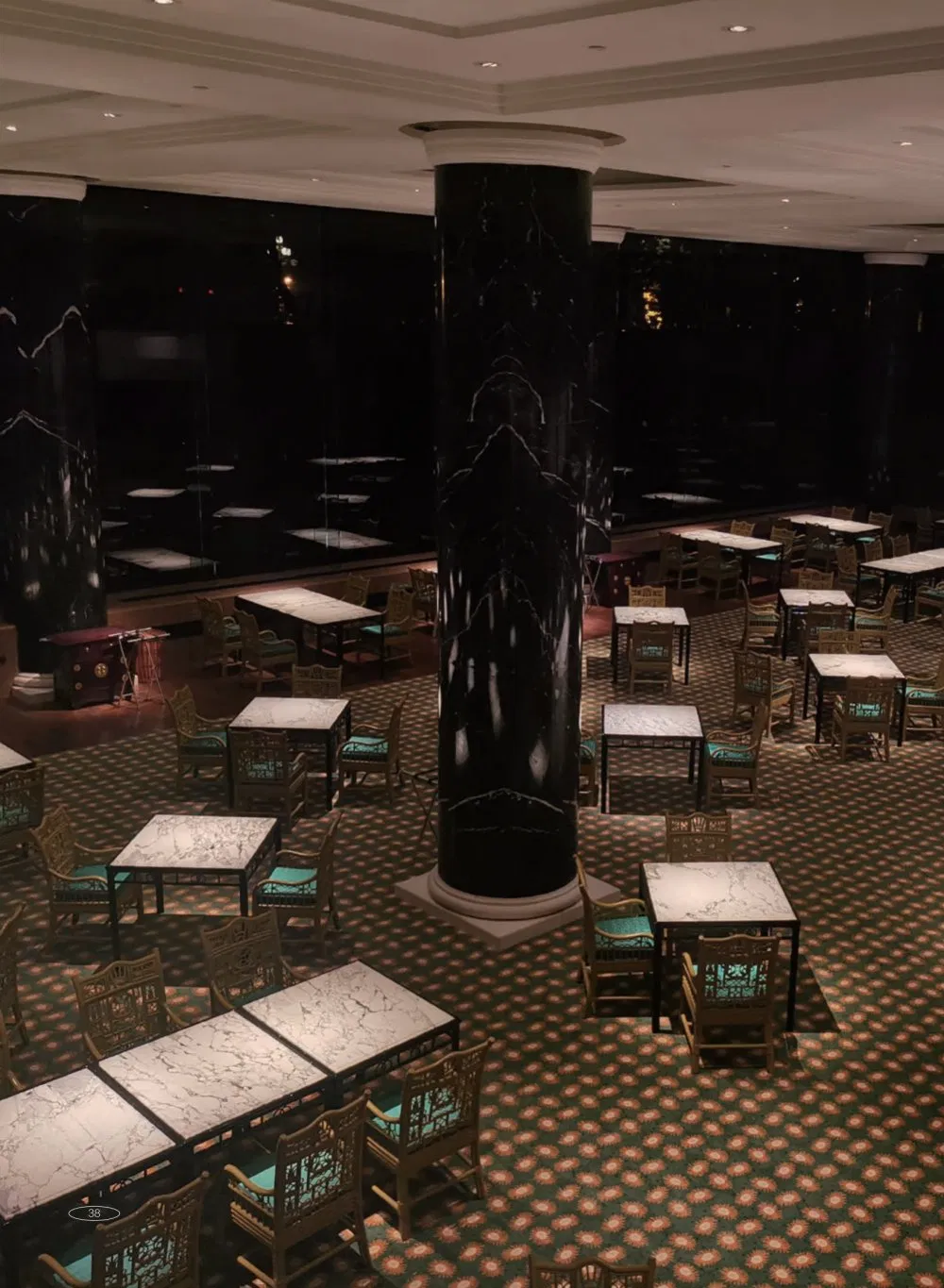

Detail View 3
Technical Specifications & Dimensions
Technical Drawing

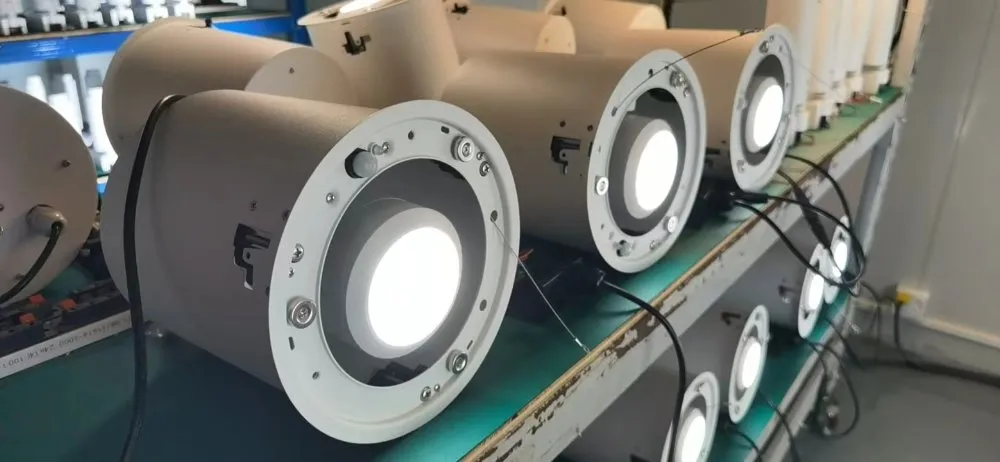

Internal Components
Project Capabilities

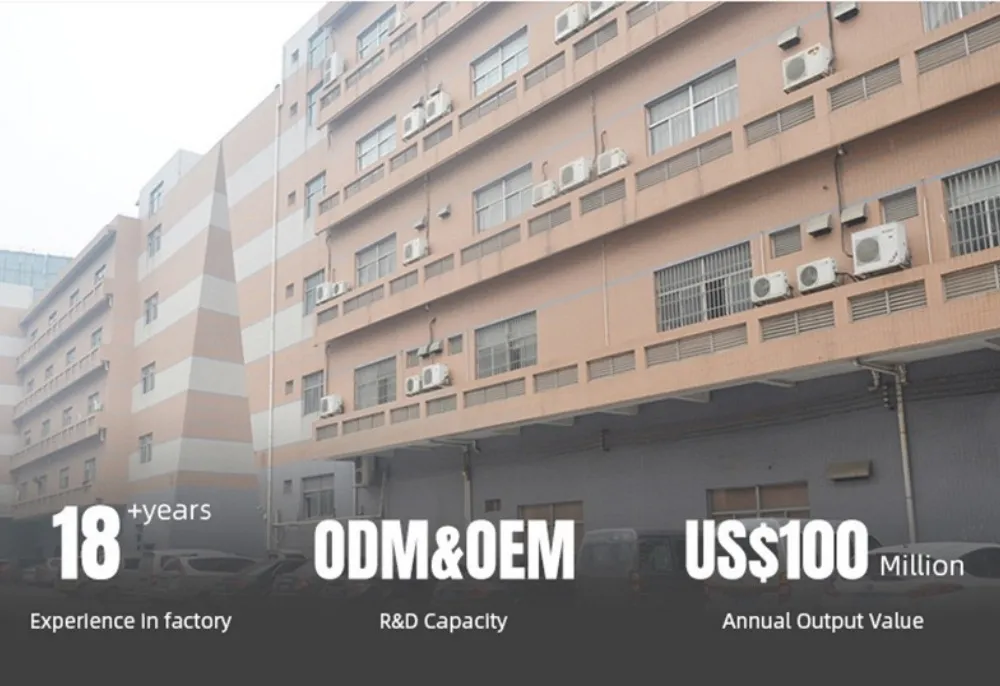

Factory Overview

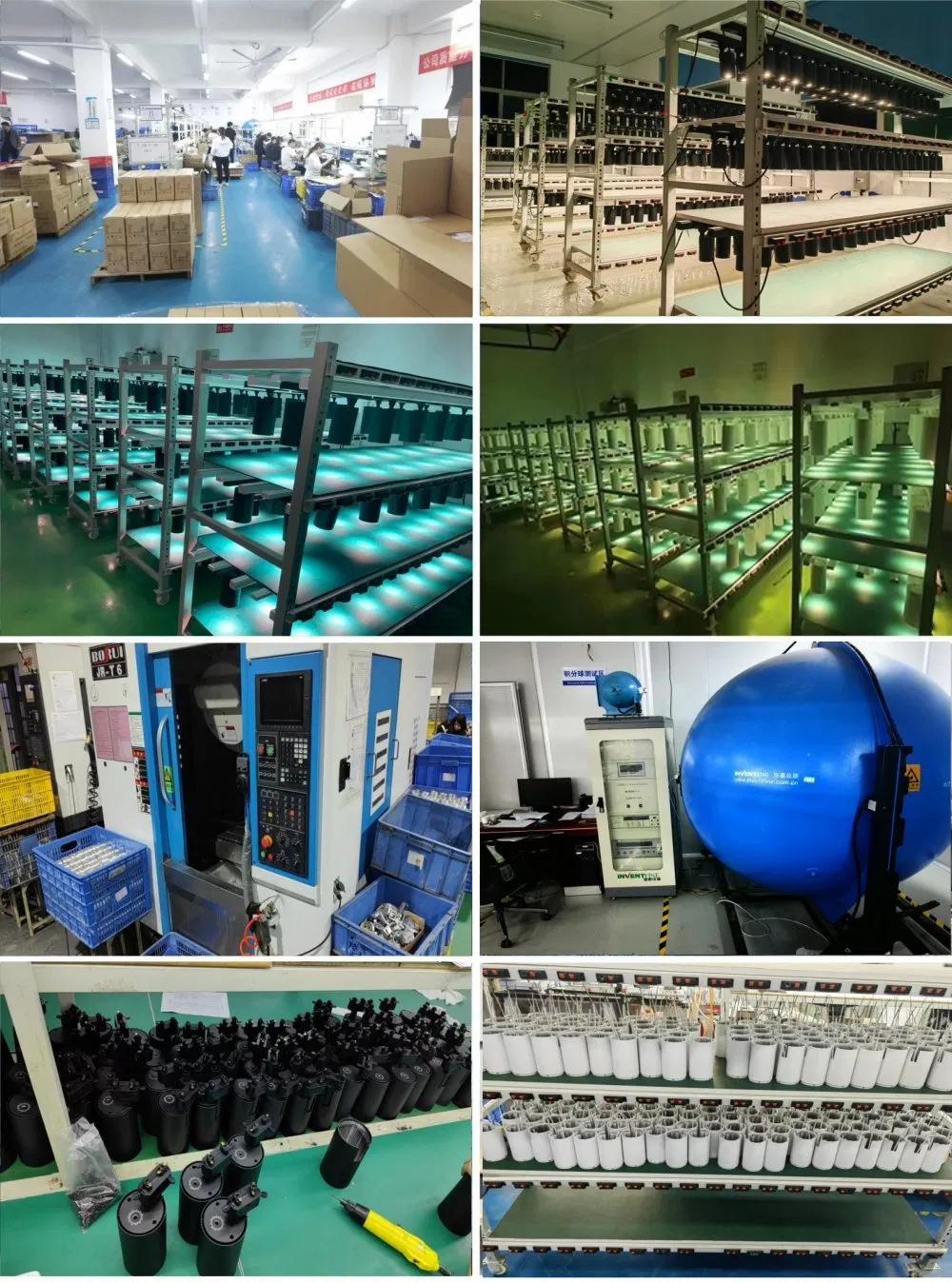

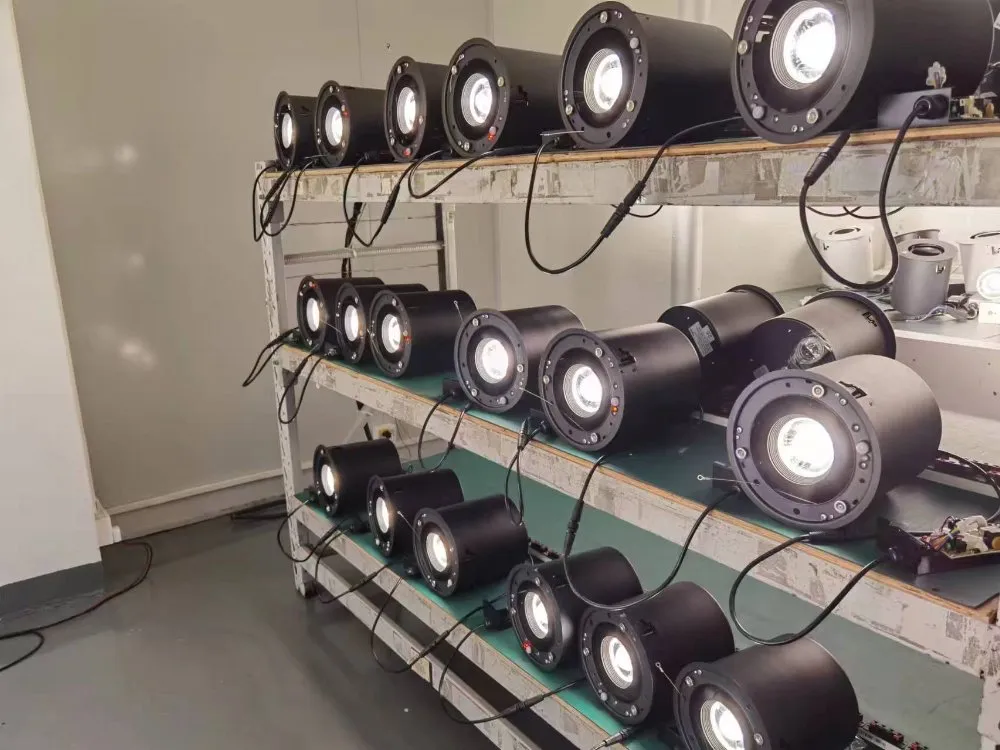

Testing Facility
Frequently Asked Questions
1. How is the motorized luminaire controlled? The fixture is controlled via an intelligent 2.4G RF remote control, which allows for adjustments to tilt, beam angle, brightness, and color temperature without additional wiring.
2. What is the adjustable range for the beam angle? The luminaire features a motorized lens that allows for stepless zoom adjustment between 15° and 60°.
3. Can I adjust the tilt of the light remotely? Yes, the fixture uses two DC motors to provide a vertical tilt of up to 40° in all directions on a dual-axis gimbal.
4. What dimming protocols are supported? It supports multiple dimming options including DALI, TRIAC, 0-10V, and 2.4G RF remote dimming.
5. What is the CRI and why does it matter? The fixture offers a high CRI of >95 or >97, ensuring that colors appear vibrant and true to life, which is essential for hotel and engineering projects.
6. Is this fixture suitable for high ceilings? With power options up to 50W and remote-controllable zoom and tilt, it is an ideal solution for high-ceiling applications where manual adjustment is difficult.
