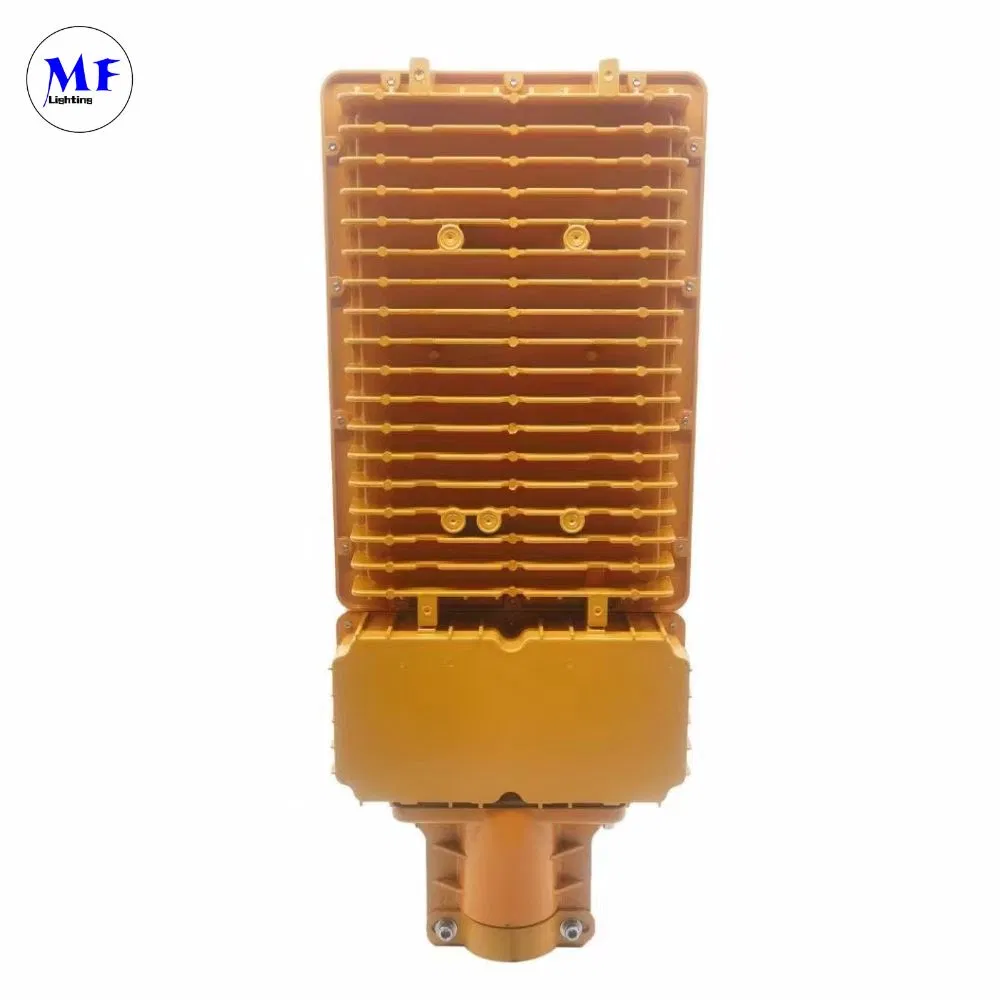

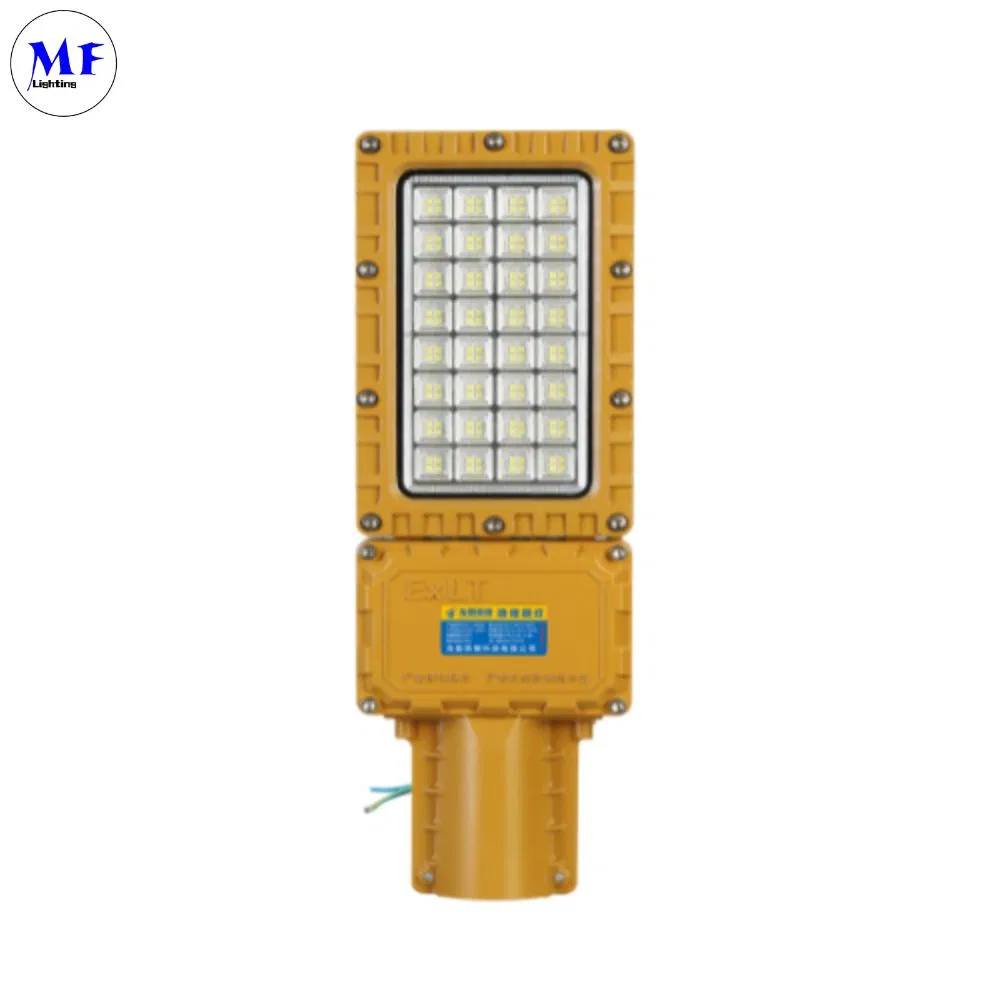

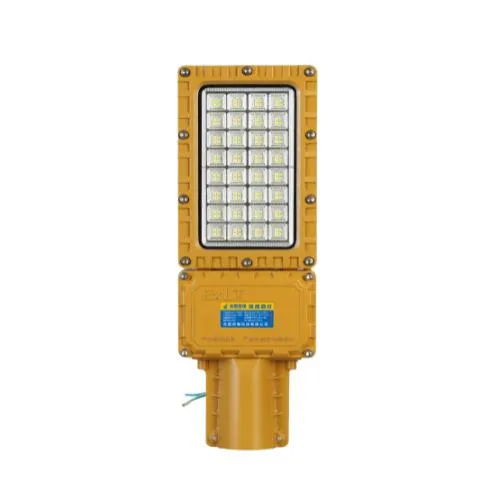

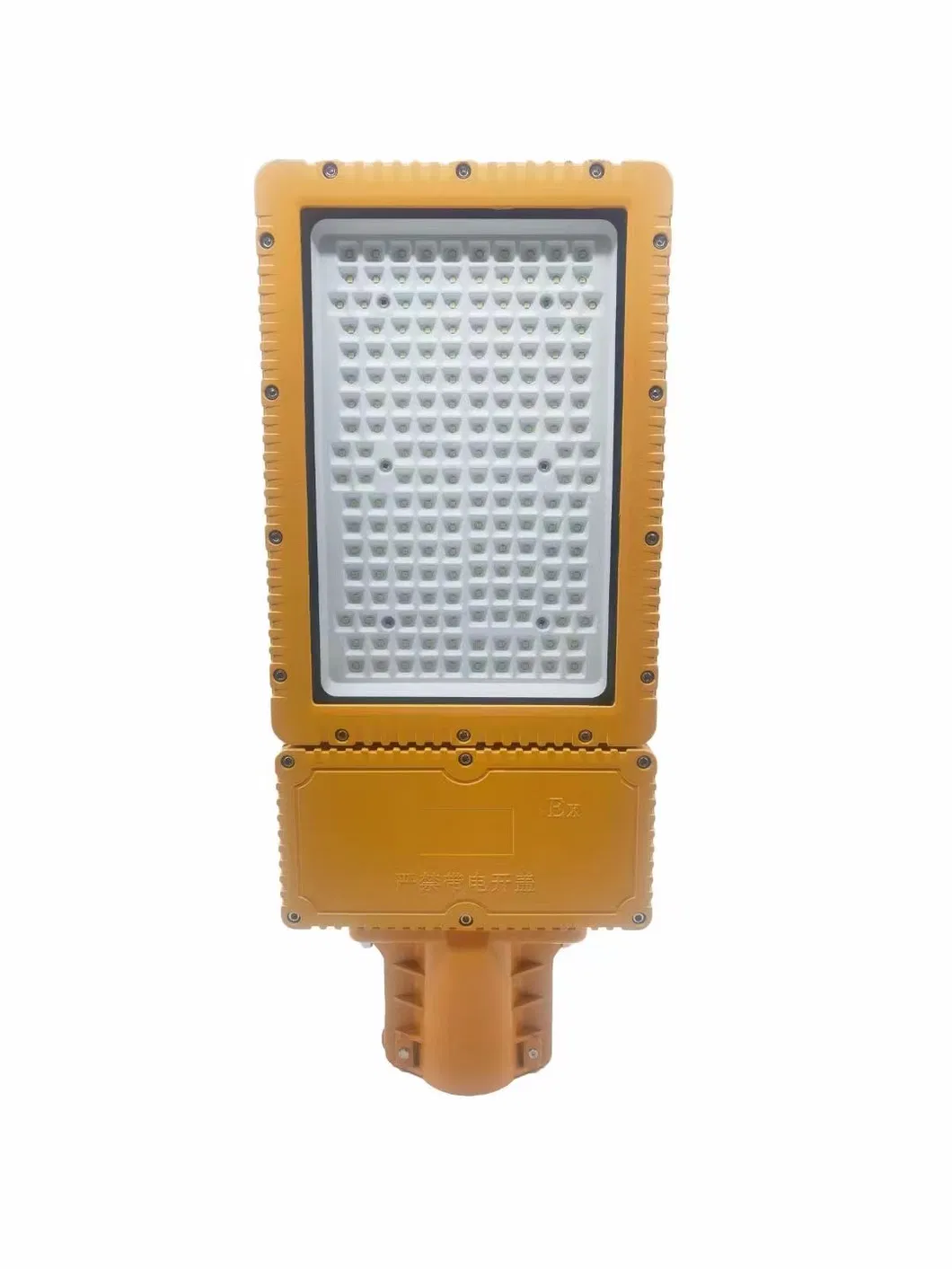

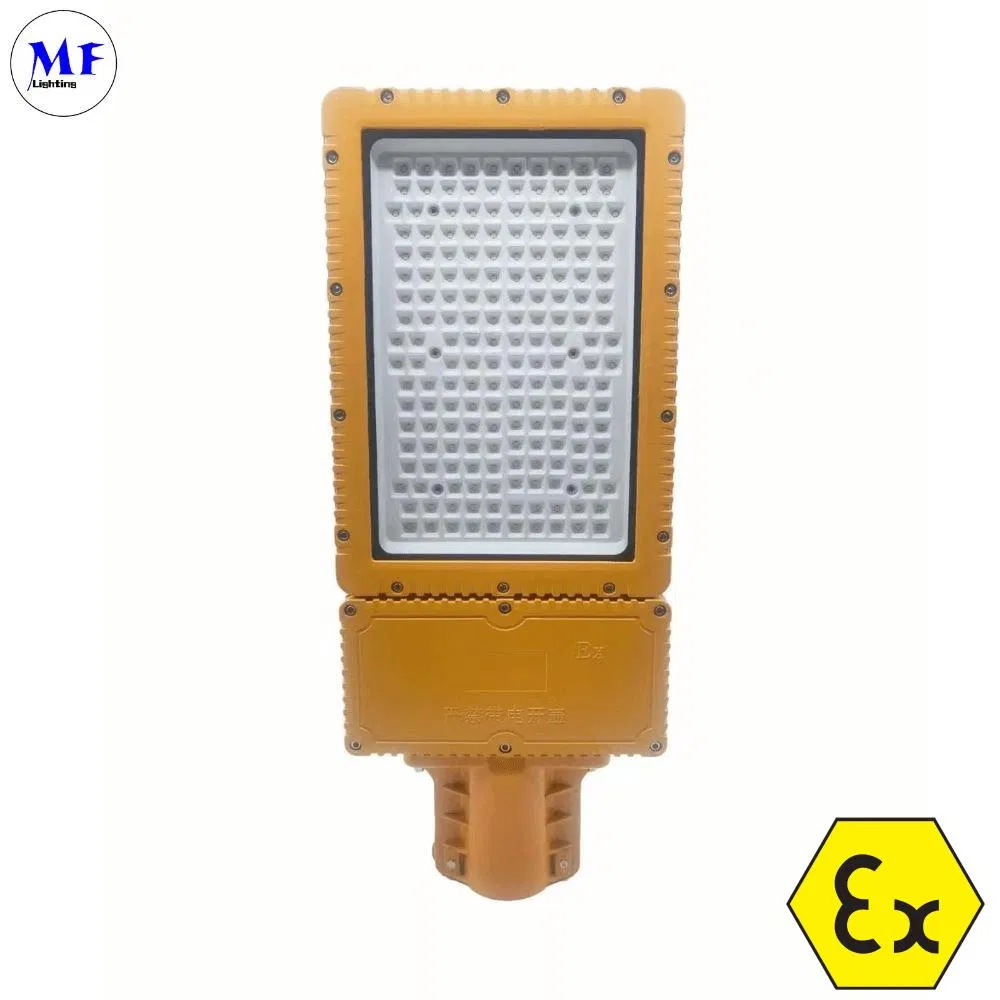

Manufacturer Factory High Power 140lm/W Aluminum Waterproof SMD 120W Chemical Industrial LED Flood Canopy Explosion Proof Fixture Lamp Street Light

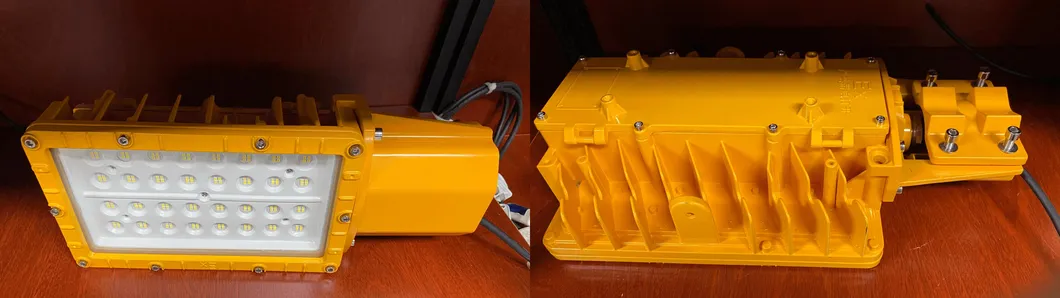

The ST1/STA2 Series LED fixture is the ideal choice for marine and hazardous applications. They can be used in locations where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected.
ATEX & IECEx Standard (Zone 1 & 2):
| Specification | EX-xxxW ST 1YZD | EX-xxxW STA2YZD |
|---|---|---|
| Rated Power | Max 240W | Max 150W |
| Input Voltage | AC120-277V (50/60Hz) | |
| Lumen Output | Max 28000lm | Max 21000lm |
| Lumens Per Watt | 120-140lm/W | |
| CCT | 2700K-7000K | |
| Housing Material | ADC12 aluminum & Tempered glass | |

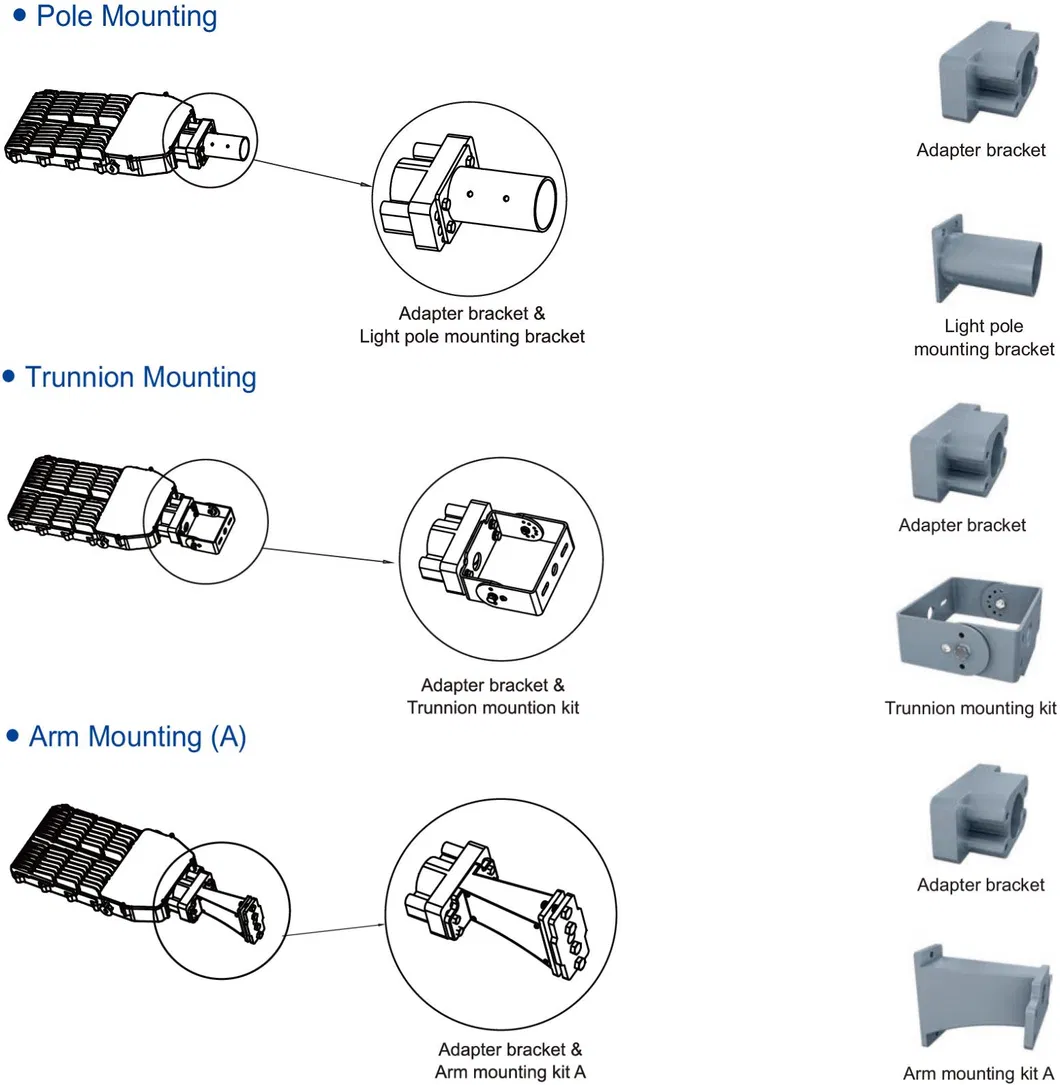

| Mounting | Pole, Trunnion, Arm, Slip fitter, Bracket | |

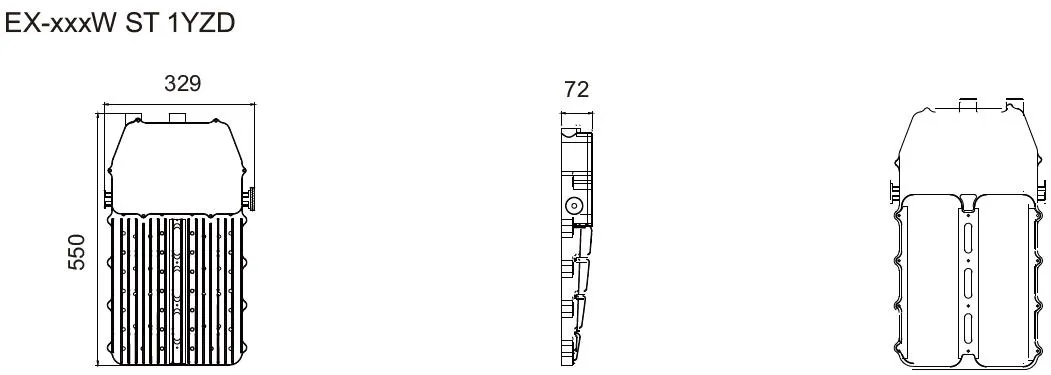

550x329x72mm / 21.65x12.95x2.83inch

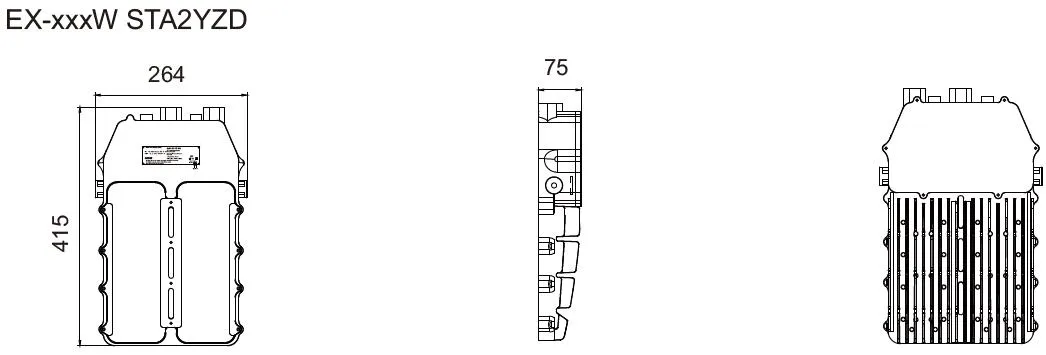

415x264x75mm / 16.34x10.39x2.95inch
| Item | Qty/CTN | Packing Size | N.W (KG) | G.W (KG) |
|---|---|---|---|---|
| EX-xxxW ST 1YZD | 1 | 855x375x226mm | 9.5kg | 10.5kg |
| EX-xXXW STA2YZD | 1 | 560x320x127mm | 6.5kg | 7.5kg |
Sea transportation / Air transportation / Rail transportation / International express

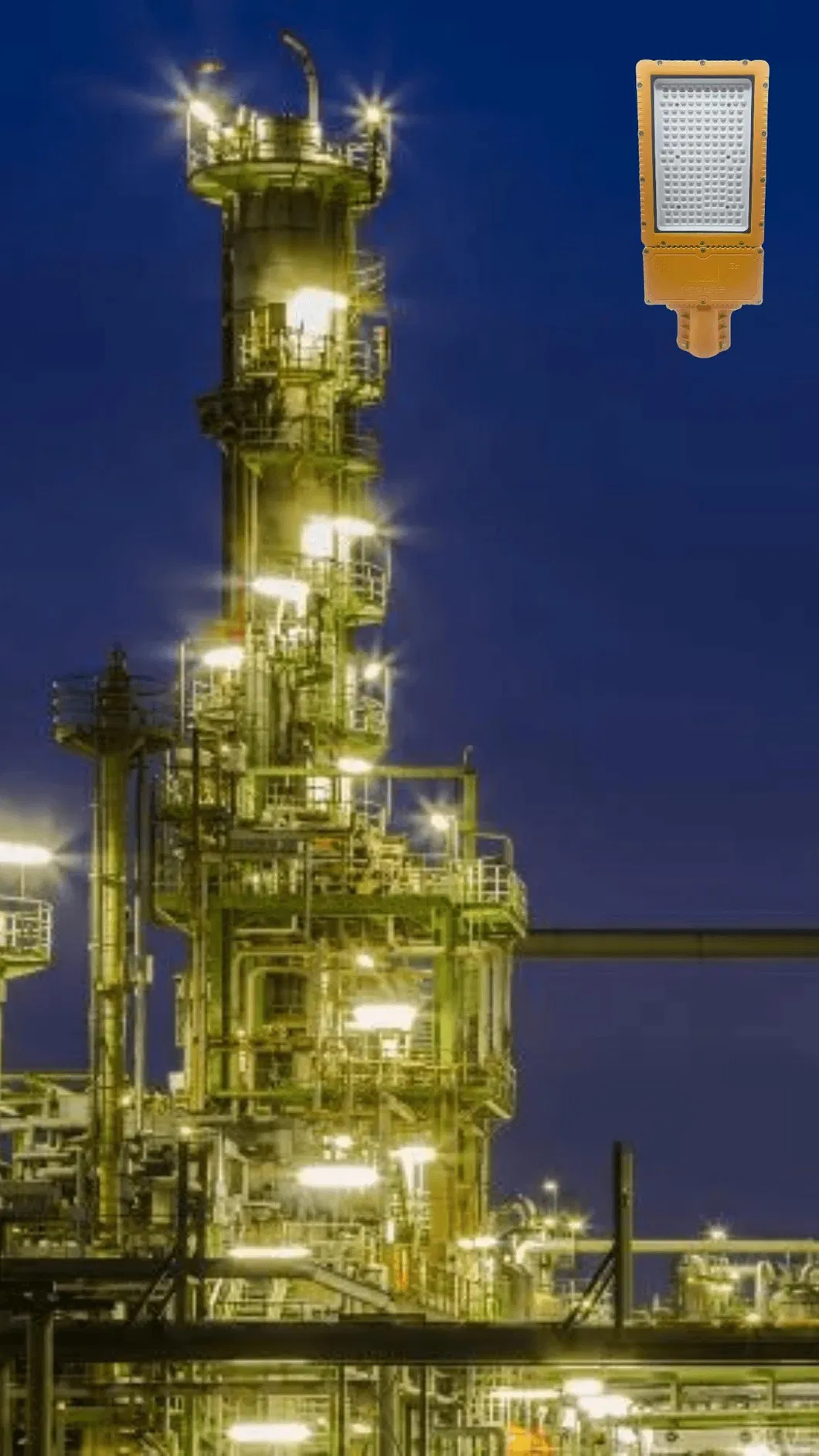

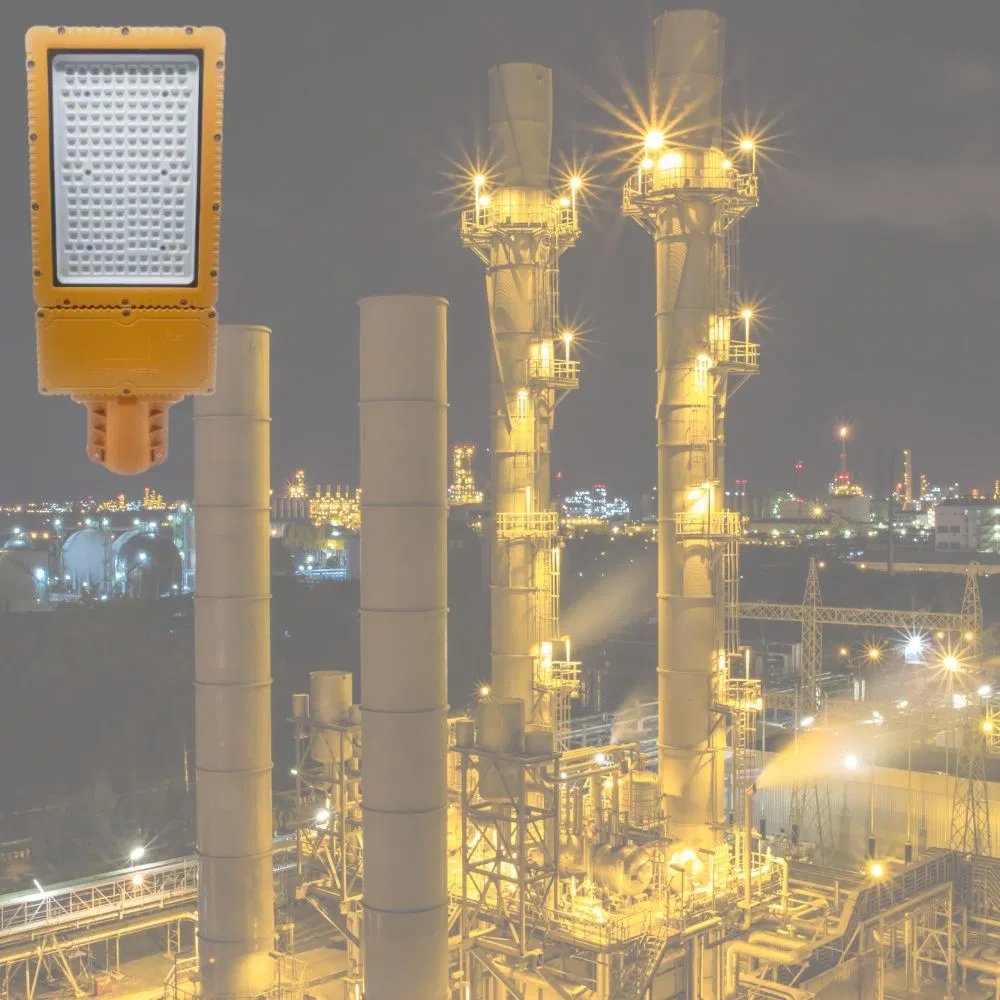

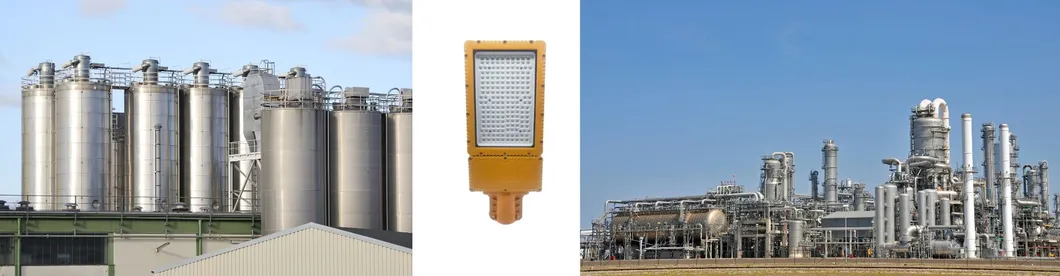

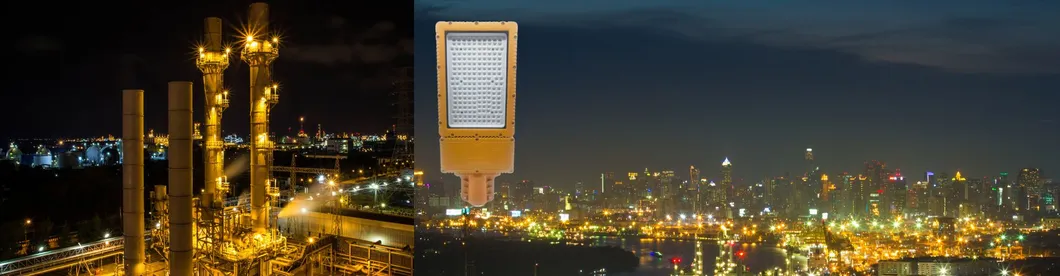

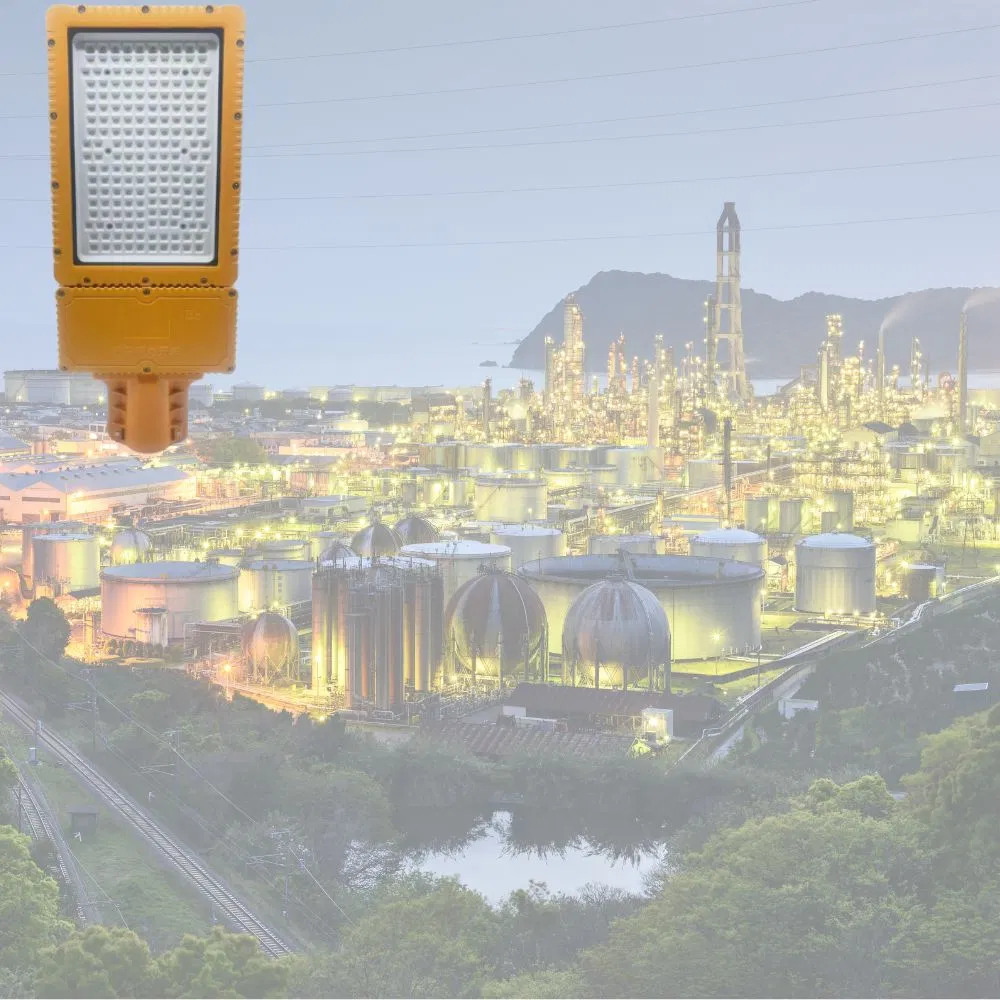

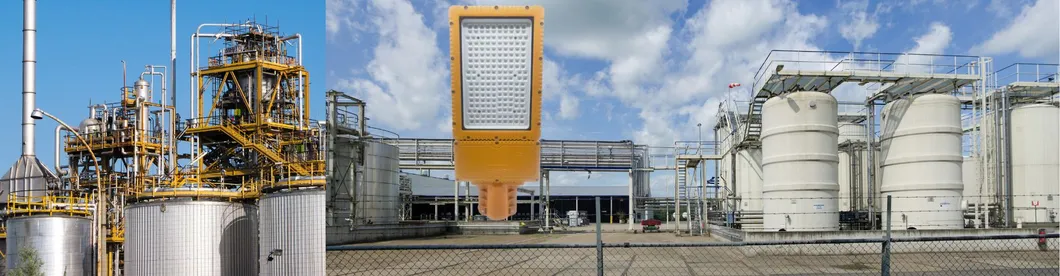

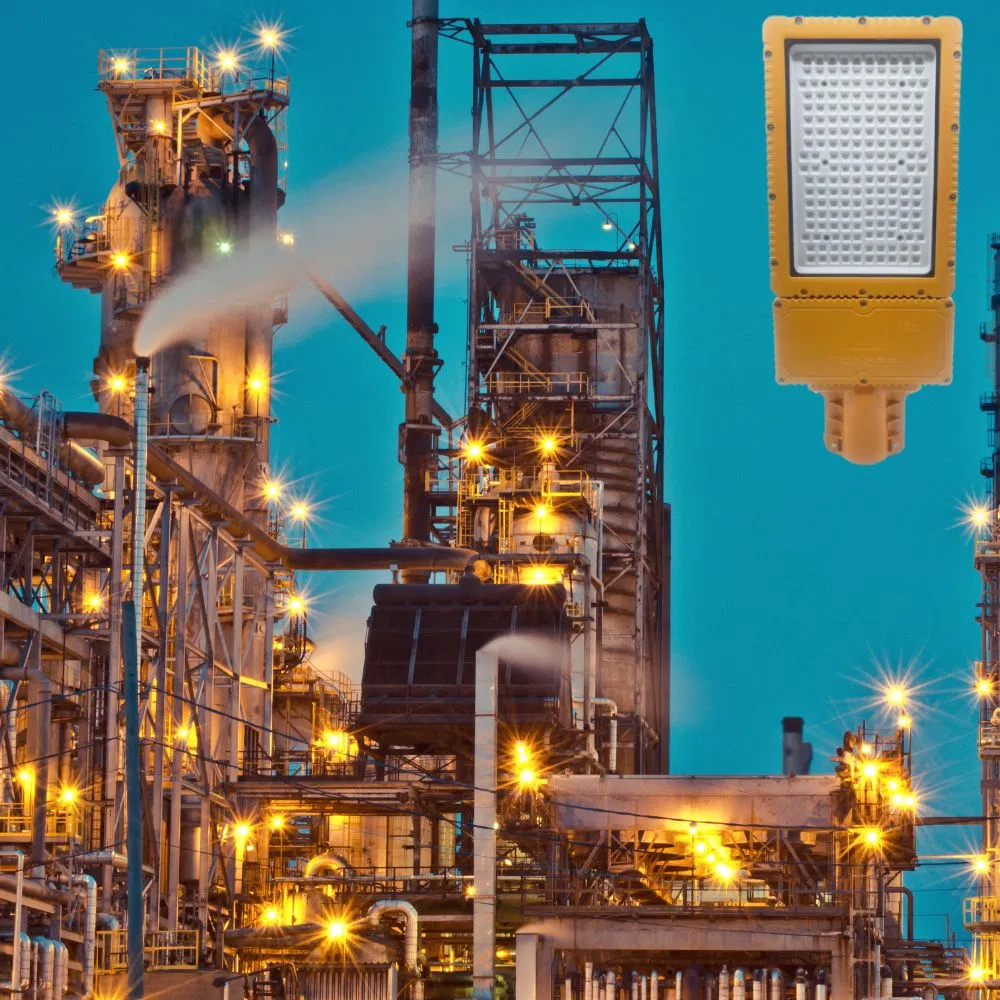

Oil and Gas Industry: Petroleum production, refining, loading, transportation, storage, and LNG industry.
Chemical Industry: All types of paint facilities, chemical production, and storage.
Marine & Aerospace: Ocean platforms, clean rooms, and vessel operations.
Metal Treatment: Steel/aluminum factories, smelting, and foundry operations.
Food & Alcohol: Flour production, distilling facilities, and high-humidity environments.
Function of Explosion-Proof Lights: These fixtures are specifically designed to prevent internal electric arcs, sparks, or high temperatures from igniting flammable gases or dust in the surrounding environment.
