High Level Gas Station Ceiling Mounted Installation LED Canopy Light
High Level Gas Station Ceiling Mounted Installation LED Canopy Light
High Level Gas Station Ceiling Mounted Installation LED Canopy Light
High Level Gas Station Ceiling Mounted Installation LED Canopy Light
High Level Gas Station Ceiling Mounted Installation LED Canopy Light
1 / 5
High Level Gas Station Ceiling Mounted Installation LED Canopy Light
High Level Gas Station Ceiling Mounted Installation LED Canopy Light
High Level Gas Station Ceiling Mounted Installation LED Canopy Light
High Level Gas Station Ceiling Mounted Installation LED Canopy Light
High Level Gas Station Ceiling Mounted Installation LED Canopy Light

High Level Gas Station Ceiling Mounted Installation LED Canopy Light

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
RB-CPX100W-C
Power
100W
IP Rating
IP65
Lifespan
≥50000H
LED Chips
Epistar
Input Voltage
AC 100~277V
Luminous Flux
140-150lm/W
Certification
CE, EMC, LVD, RoHS
Material
Aluminum ADC12+PC
Housing Color
Black
Product Description
High Level Gas Station Ceiling Mounted LED Canopy Light

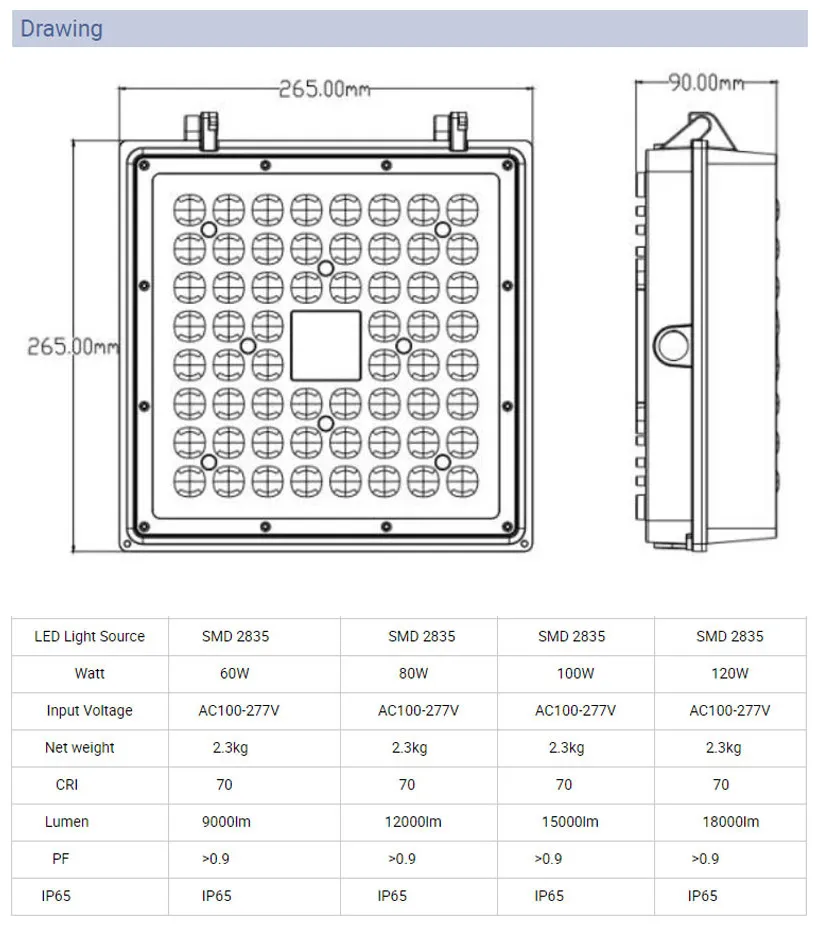

Technical Parameters (100W)
Item No.RB-CPX100W-CInput VoltageAC 100~277V
Frequency50Hz~60HzPower Factor>0.98
LED Power100WSystem Consumption97W
Luminous Efficiency140-150lm/WWorking Lifespan50000 H
Viewing Angle150 DegreeColor Rendering IndexRa>75
Working Temperature-35ºC~50ºCIP GradeIP65
MaterialAluminum ADC12+PCProduct SizeL265xW265xH90mm
LED Canopy Light Overview
💡 High Brightness Provides 12,000 to 15,000 lumens of output at 5000K, delivering high-quality illumination for safety and security.
🛠️ Easy Installation Supports two installation methods: pendant mounting or direct surface mounting.
🔋 Energy Saving Replaces 300W-600W metal halide fixtures, cutting electricity bills by up to 75%.
Installation and Efficiency Design Features
Core Features & Reliability
  • ✅ Quality Driver: Isolated high-quality current driver with over-current and over-voltage protection.
  • ✅ Durability: Advanced heat dissipation technology ensures a 50,000-hour lifespan.
  • ✅ Visual Comfort: No flickering or glaring; high CRI and shock-resistant design.
  • ✅ Wide Application: Ideal for gas stations, indoor parking, stairwells, and toll booths.
Strict Quality Testing

Before shipping, all LED Canopy lights undergo over 12 hours of aging tests. Our inspection department conducts 100% testing, including light-up, power wattage, high-voltage, waterproof, and ground connection tests. The defective rate is controlled below 0.1%.

Testing Procedures Packaging Details
Logistics & Service

Shipping Options: By sea, air, or express (DHL, FedEx, UPS, TNT). Samples are advised via express, while large quantities are recommended for sea shipment.

Packaging: Each unit is individually boxed. Standard labels are included, and customized packaging is available upon request.

Service and Support
Frequently Asked Questions
Q1: What is the warranty for these LED Canopy lights?
We offer a 3 to 5-year guarantee for our LED Canopy lights, depending on your specific requirements.
Q2: What color temperatures are available?
We offer Warm White (3000K-3500K), Natural White (4000K-4500K), Pure White (5000K-5500K), and Cool White (6000K-7000K).
Q3: Can these lamps be used in different countries?
Yes, our LED Canopy lamps feature a wide input voltage range of AC 100-277V (customizable up to AC 85-265V) to suit international standards.
Q4: How do you optimize shipping costs?
We provide the best logistical solutions based on your order quantity to ensure cost-efficiency. Freight quotations can be provided quickly upon inquiry.
Q5: What are the primary installation methods?
The fixtures support both pendant mounting and direct surface mounting for maximum flexibility in various environments.
Q6: Are the lights waterproof for outdoor use?
Yes, they are IP65 rated, making them suitable for both indoor and half-outdoor environments like gas stations and passageways.
