Home > LED Canopy Light > Gas Station with Motion Sensor IP66 60W LED Ceiling Recessed Canopy Light

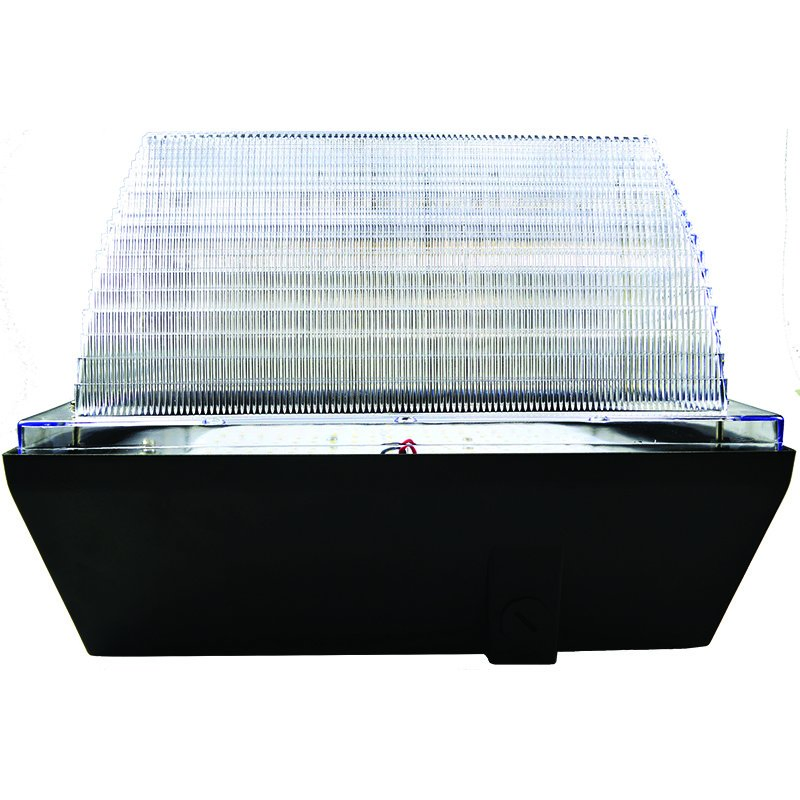

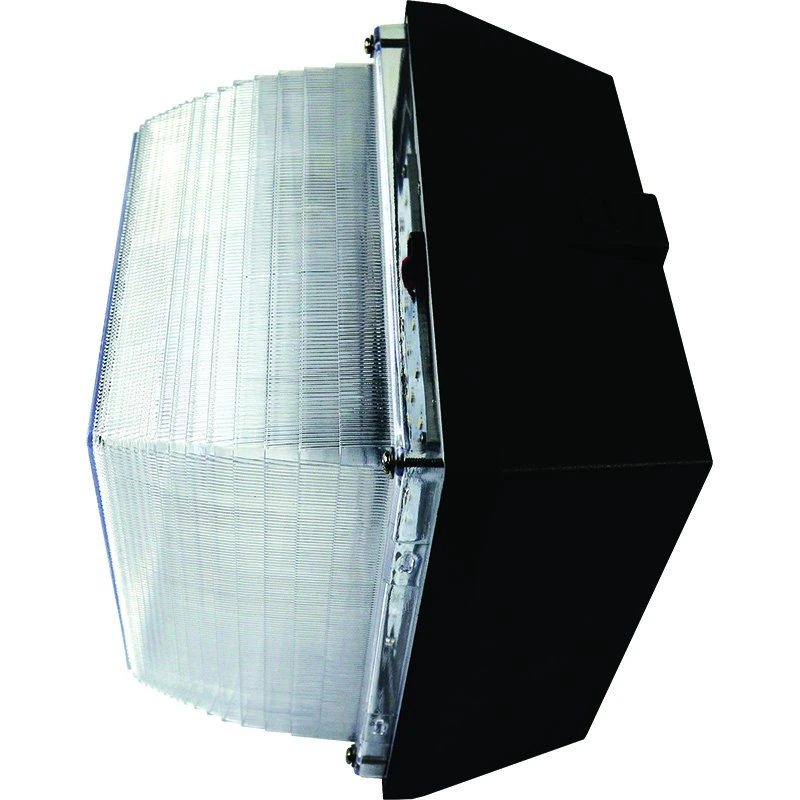

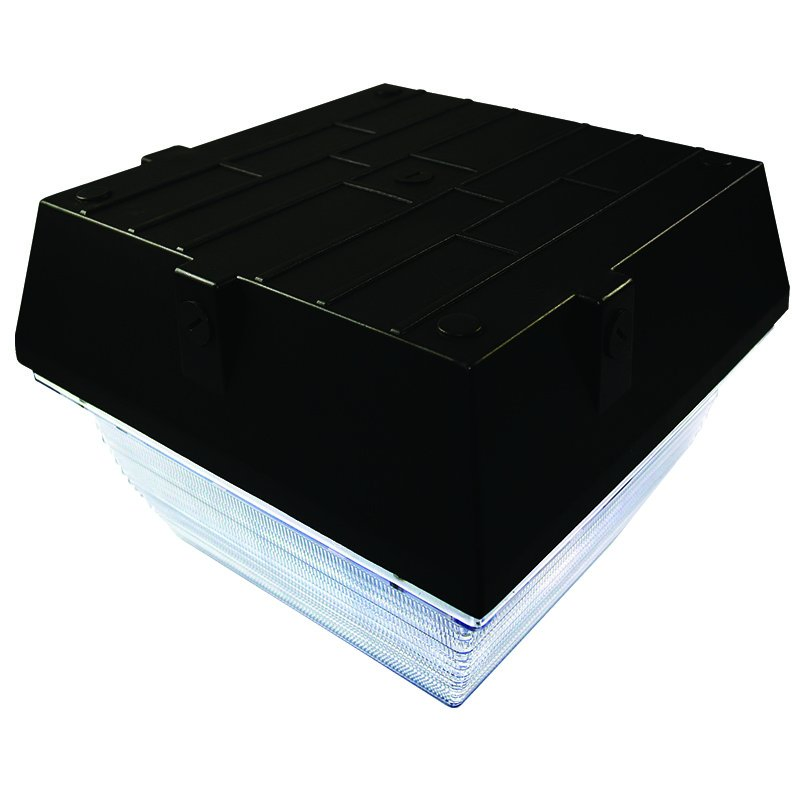

Gas Station with Motion Sensor IP66 60W LED Ceiling Recessed Canopy Light
Gas Station with Motion Sensor IP66 60W LED Ceiling Recessed Canopy Light
Gas Station with Motion Sensor IP66 60W LED Ceiling Recessed Canopy Light
Gas Station with Motion Sensor IP66 60W LED Ceiling Recessed Canopy Light
Gas Station with Motion Sensor IP66 60W LED Ceiling Recessed Canopy Light
1 / 5
Gas Station with Motion Sensor IP66 60W LED Ceiling Recessed Canopy Light
Gas Station with Motion Sensor IP66 60W LED Ceiling Recessed Canopy Light
Gas Station with Motion Sensor IP66 60W LED Ceiling Recessed Canopy Light
Gas Station with Motion Sensor IP66 60W LED Ceiling Recessed Canopy Light
Gas Station with Motion Sensor IP66 60W LED Ceiling Recessed Canopy Light

Gas Station with Motion Sensor IP66 60W LED Ceiling Recessed Canopy Light

Customization: Available
Lamp Body Material: Aluminum
IP Rating: IP66
Send Inquiry

Product Description

Technical Specifications
Model NO.
TP-KLCPSM60-L
Base Type
FESTOON
Irradiated Area
15-30m²
Input Voltage
220v
Power
60-100w
Color Temperature
Cool White
Emitting Color
White
LED Chips Brand
Nichia
Certification
CE, CQC, EMC, Energy Star, ETL, FCC, RoHS, SAA, VDE
Specification
315*315*136mm
Origin
China
HS Code
9405409000
Product Overview
The CPSM Series surface mount LED canopy is a utility ceiling-mount fixture for general lighting applications in parking garages, designed for easy installation and maintenance. The CPSM Series LED canopy delivers high lumens, accepts 100-277VAC/347-480VAC, consumes 40/60/90 watts and produces luminous intensity equivalent to 175W/250W/400W metal halide. Available in motion sensor option, the CPSM LED canopy will further save energy during application.
LED Canopy Light 1
LED Canopy Light 2
LED Canopy Light 3
LED Canopy Light 4

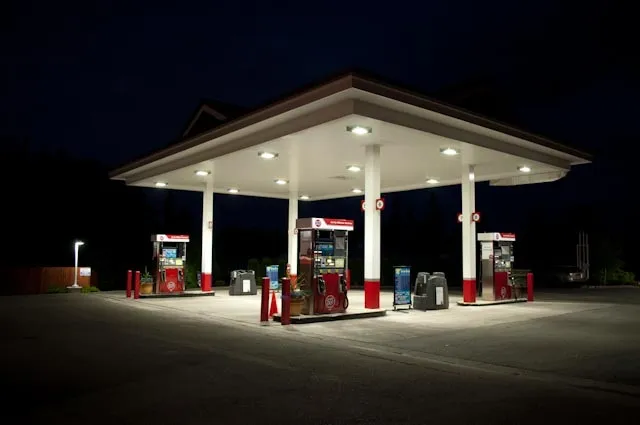

LED Canopy Light Application
Construction & Materials
Housing: One-piece die-cast aluminum housing with polyester powder-coated finish, rust and corrosion proof.
Protection: One-piece silicone perimeter lens gasket and closed-cell neoprene housing gasket seal out moisture and contaminants.
Thermal Management: Integral secondary heat sink to optimize thermal transfer and maximize LED performance.
Detailed Performance Matrix
ITEM SPECIFICATION KLCPSM40-L KLCPSM60-L KLCPSM90-L KLCPSM40-H KLCPSM60-H KLCPSM90-H
PERFORMANCE Power Consumption 40W 60W 90W 40W 60W 90W
Lumens Delivered 4600lm 6900lm 10000lm 4500lm 6600lm 9800lm
Efficacy (lm/W) 119lm/W 114lm/W 113lm/W 112lm/W 110lm/W 108lm/W
Lifespan (L70) More than 50,000 hours
ELECTRICAL Input Voltage 100-277VAC / 347-480VAC, 50/60Hz
PHYSICAL Operating Temp -30ºC Up to 50ºC (-22ºF up to 122ºF)
CERTIFICATION Warranty 5 Years
Frequently Asked Questions
What are the primary applications for the CPSM Series LED canopy?
The CPSM Series is primarily designed for utility ceiling-mount applications in parking garages, gas stations, and general outdoor/indoor lighting where high durability and easy maintenance are required.
Is this fixture suitable for wet or outdoor locations?
Yes, the fixture is ETL/cETL listed for outdoor locations and suitable for damp or wet environments, featuring a silicone perimeter gasket to seal out moisture.
What voltage options are available for this LED light?
It supports universal input voltages, including a low-voltage range of 100-277VAC and a high-voltage range of 347-480VAC.
Does the CPSM LED canopy support motion sensing or dimming?
Yes, the fixture offers options for 0-10V dimming, photocell sensors, and motion sensors to further maximize energy savings.
What is the estimated lifespan and warranty for this product?
The LEDs are rated for more than 50,000 hours (L70), and the entire fixture comes with a 5-year warranty for peace of mind.
What materials are used in its construction?
It is built with a one-piece die-cast aluminum housing and a high-quality shock-proof polycarbonate lens with UV inhibitors for long-term durability.
