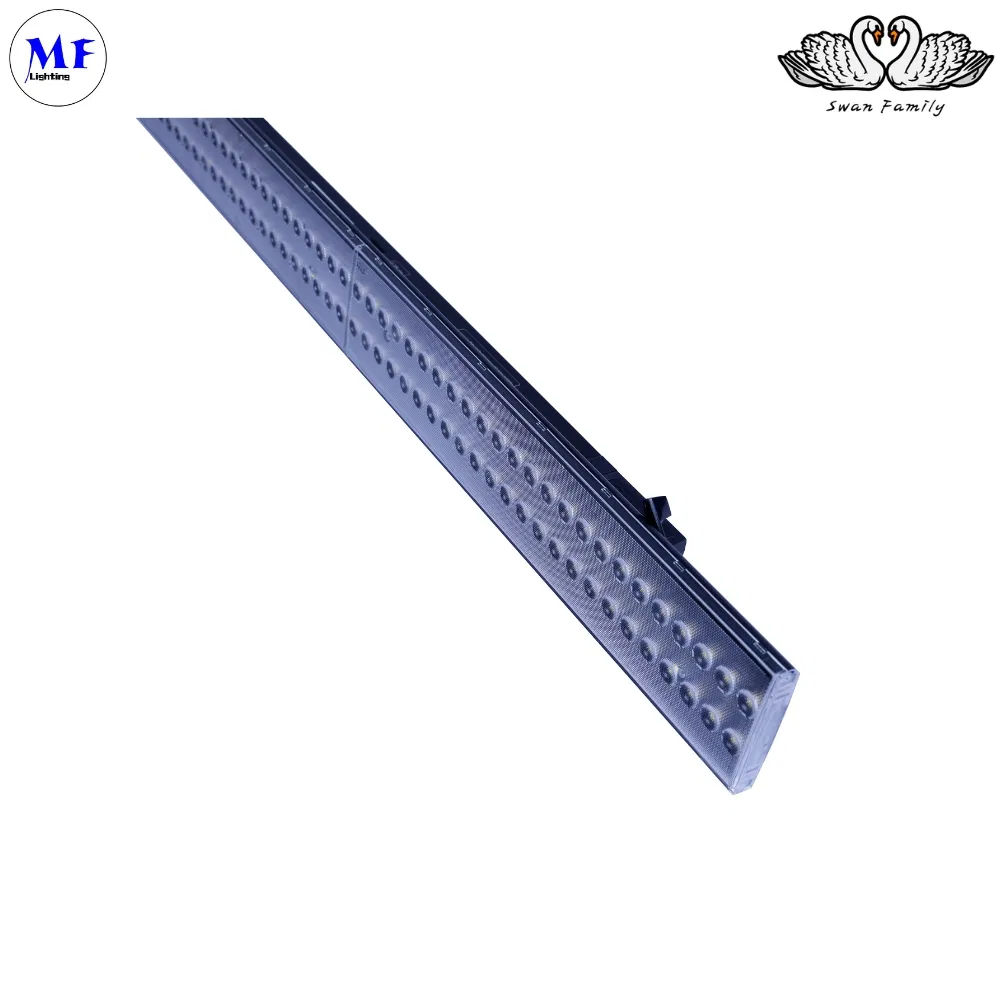

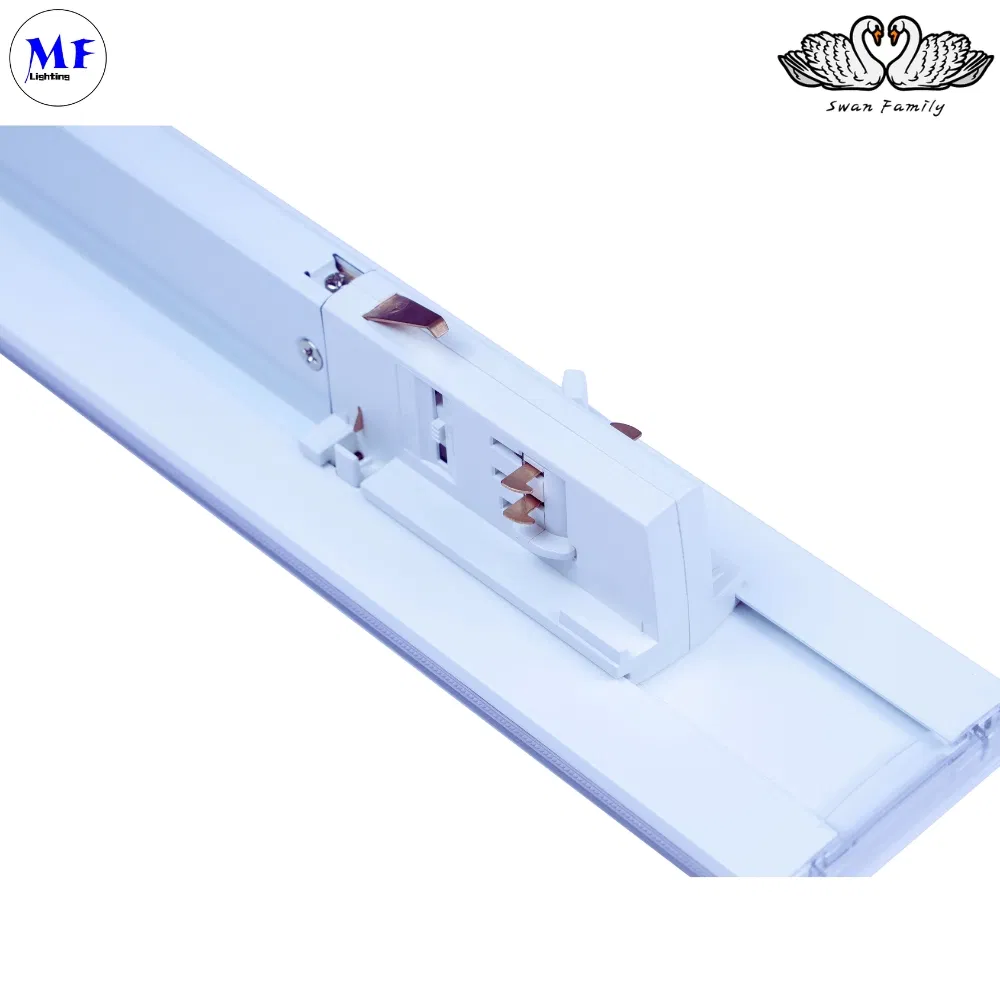

Factory Price Ra 90+ Plastic Retail Industrial IP40 Supermarket Warehouse Workshop Shopping Office cloth Shop LED Track Linear Light

Still deciding? Get samples of $ !
Request Sample

Product Description

Product Overview

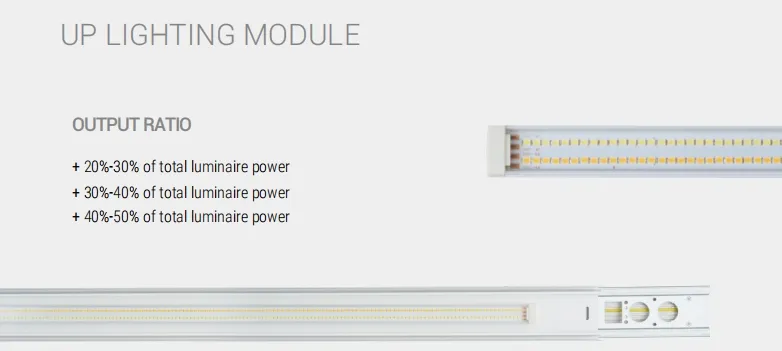

LED Track Linear Light Overview
Basic Specifications
Model NO.
MFL-1560-40WD-04WH
Power
50W
IP Rating
IP40
Certification
CCC, CE, C-tick, GS, RoHS, SAA, TUV
Input Voltage
220-240V AC
CRI (Ra)
90+
Lifespan
50,000 Hours / 5 Years
Beam Angle
30°/60°/90°/120°
Application
Industrial & Retail Spaces
Material
AL (Aluminium) + Plastic
Product Description
Feature Technical Parameters
Model No.MF-TM007-200W
Frequency Range50Hz--60Hz
Light QualityBright, Intensity Efficiency
Working Temperature-25°C ~ 40°C
Color TemperatureCool White (CW): 3000-6500K
DimensionT Line 1500mm
Flicker PercentBelow 5%

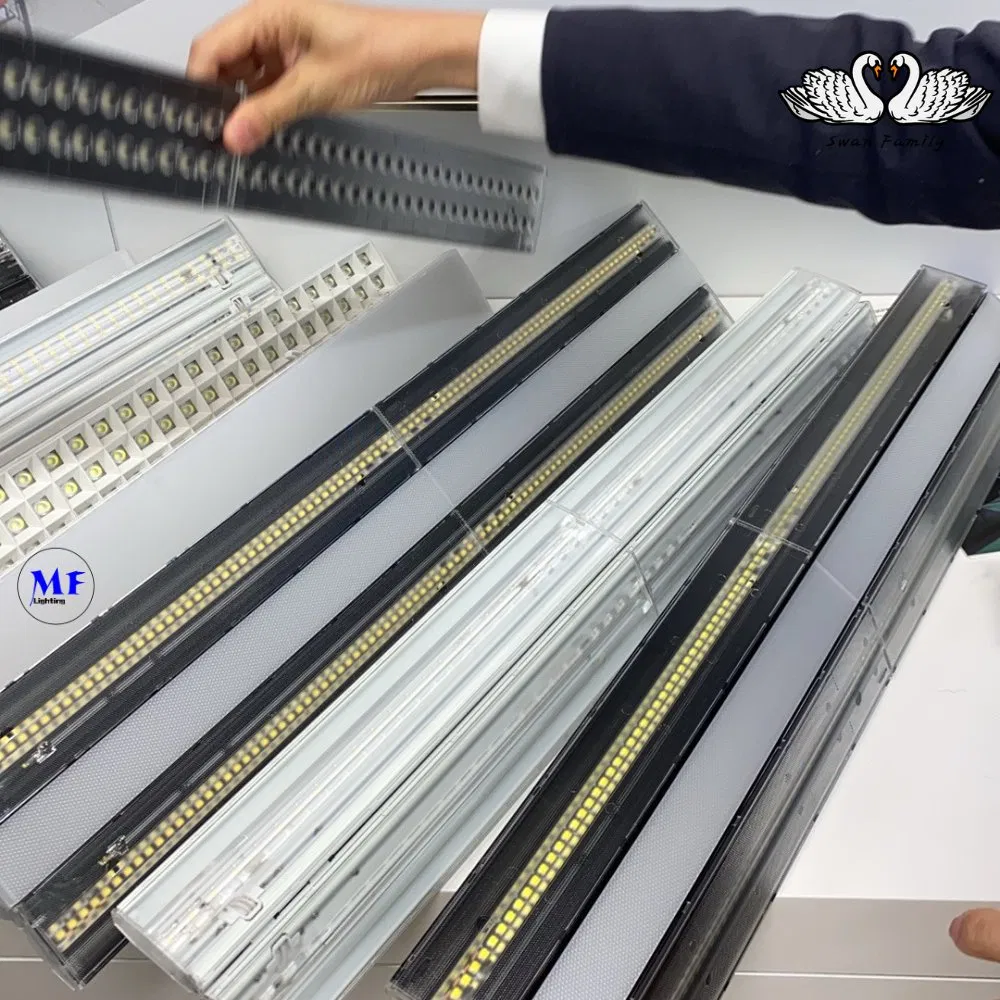

Linear Light Detail 1
Linear Light Detail 2
Linear Light Detail 3
Wiring Innovation
Flat Cable Availability
  • Tidy wiring inside trunking rail
  • 0% wire crossing risk
  • Halogen-free wiring optional

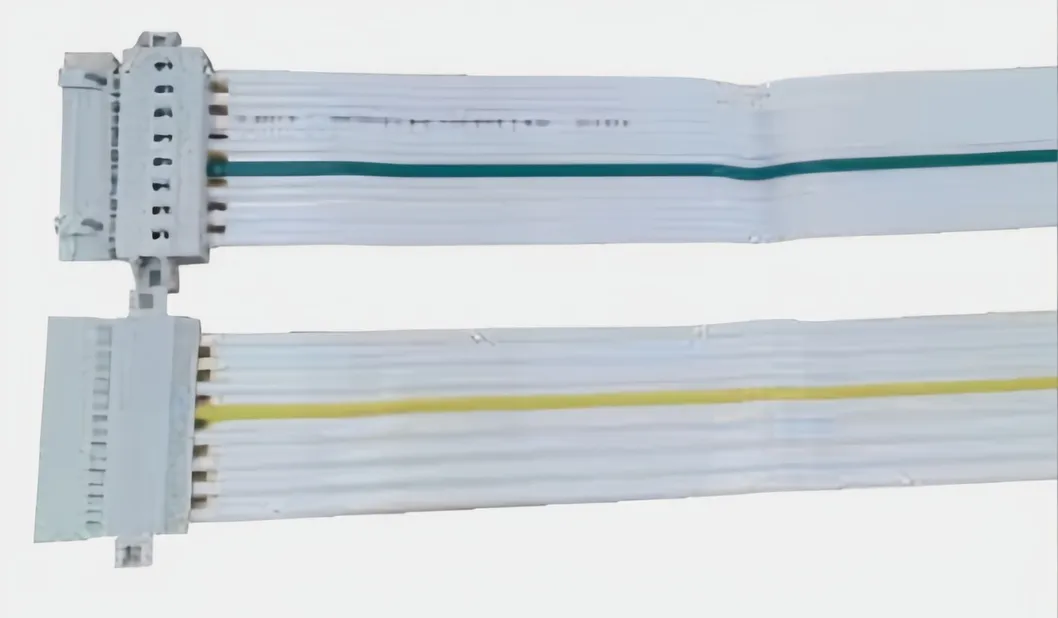

Wiring System
5-PIN SYSTEM:
L1, L2, L3, N, PE
5*2.5 mm²
3 phases selectable
On/off basic lighting

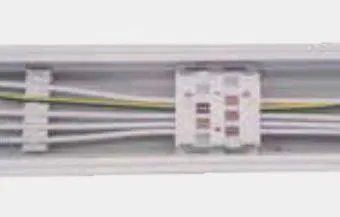

5-PIN System
8-PIN SYSTEM:
L1, L2, L3, N, PE, D+, D-, CHR
6*2.5 mm² + 2*1.5 mm²
DALI control cables
Battery emergency supply

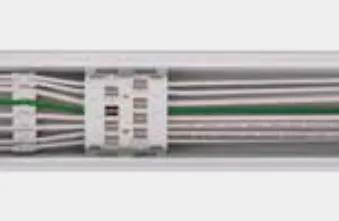

8-PIN System

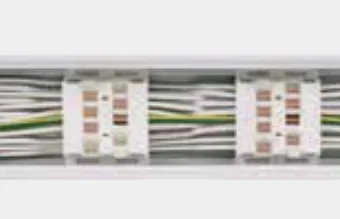

12-PIN SYSTEM:
L1, L2, L3, N, PE, D+, D-, CHR, EL1, EN1, EL2, EN2
10*2.5 mm² + 2*1.5 mm²
2 DALI control cables + 2 independent emergency power supply circuits
12-PIN System

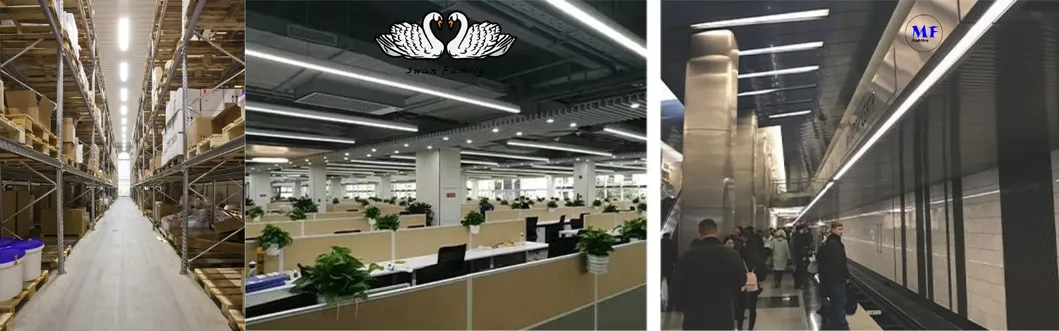

Application Places

Perfectly suited for public and industrial areas where high-quality linear lighting is essential:

Application 1

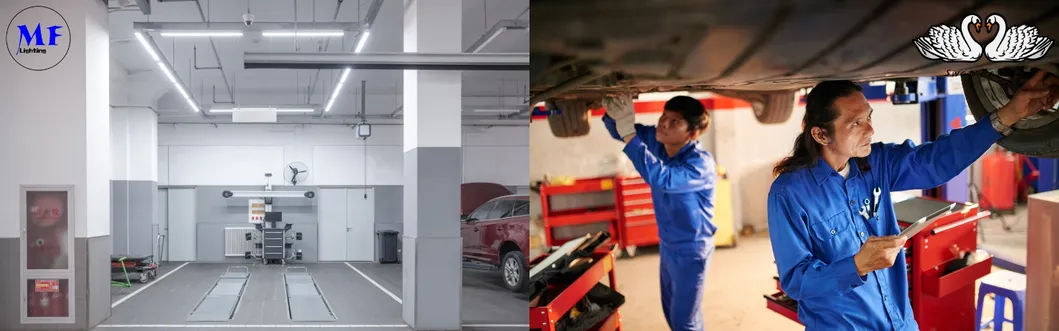

Application 2
Suitable for: Schools, Cloth Shops, Warehouses, Shopping Malls, Supermarkets, Workshops, Offices, Factories, Bike Shops, Basements, Retail Stock, and Fruit Markets.
Application 3
Application 4
Technical Parameters

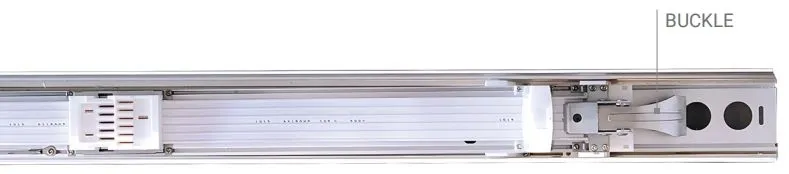

Parameters 1

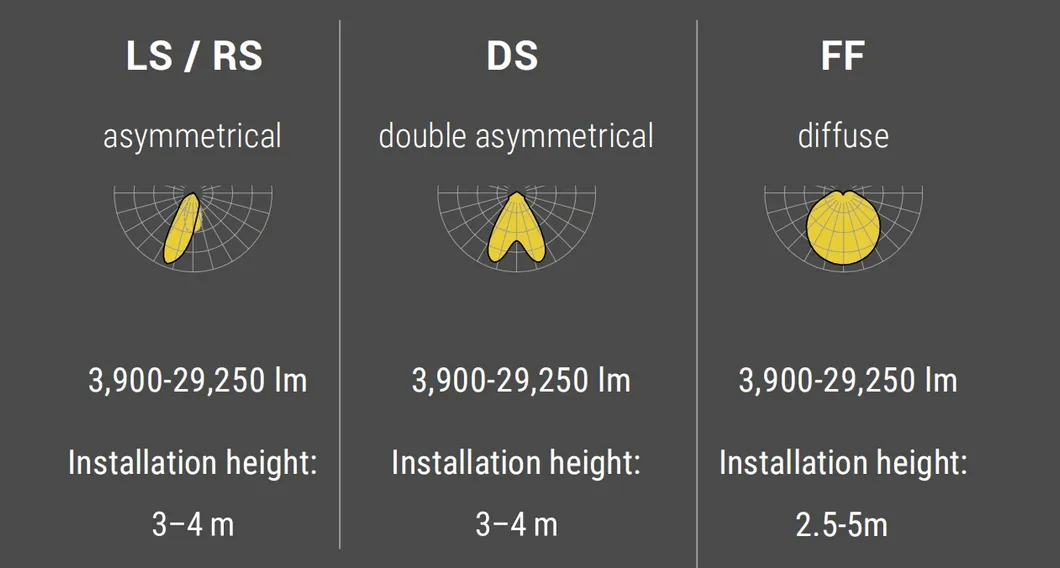

Parameters 2

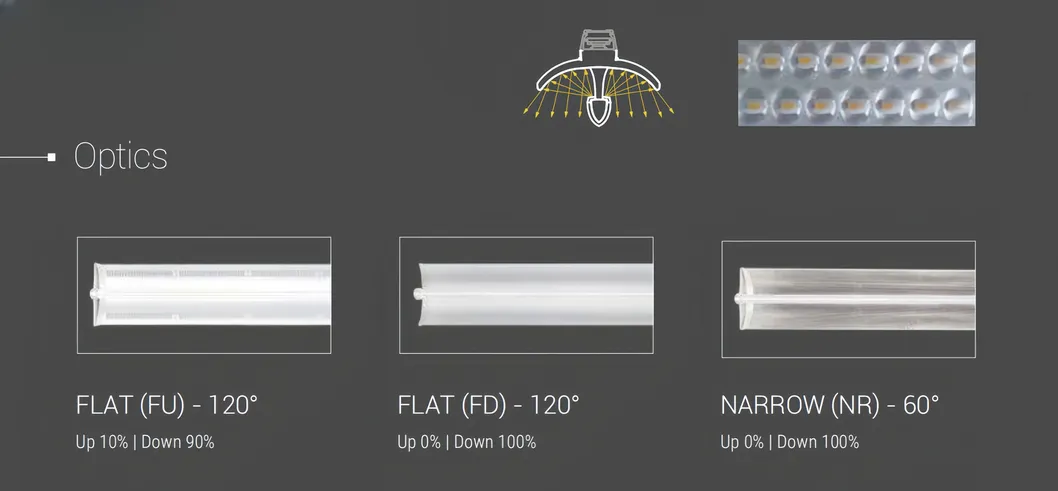

Parameters 3

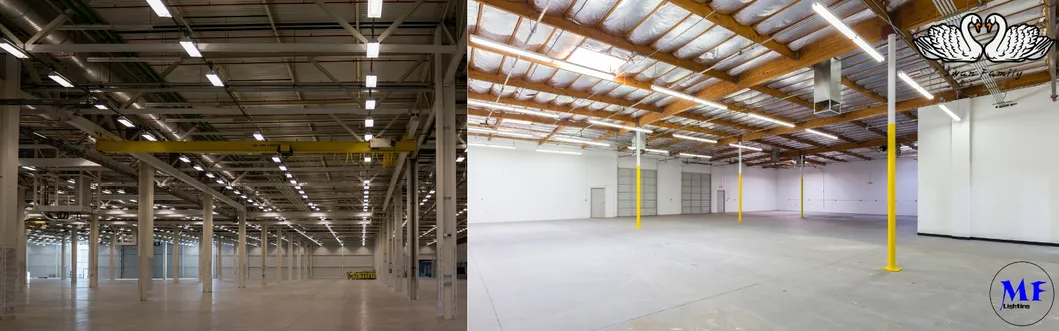

Parameters 4

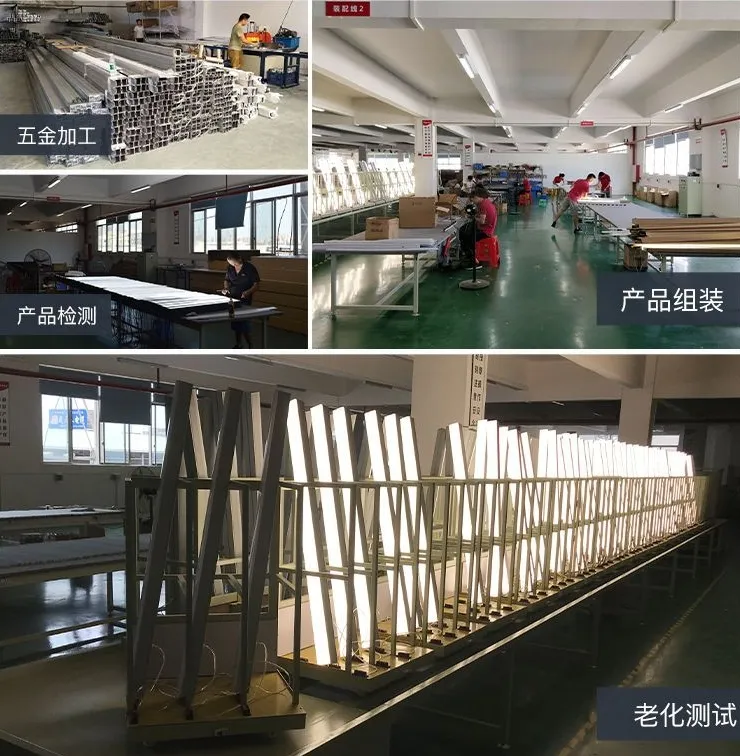

Production Line
Production Line
Quality Control
Packaging & Shipping
We adopt multi-layer packaging with protective sponge layers to ensure zero damage during transit. Our strategic location near major ports and airports facilitates efficient global delivery via air, sea, and land.
Package 1
Package 2
Professional Capability

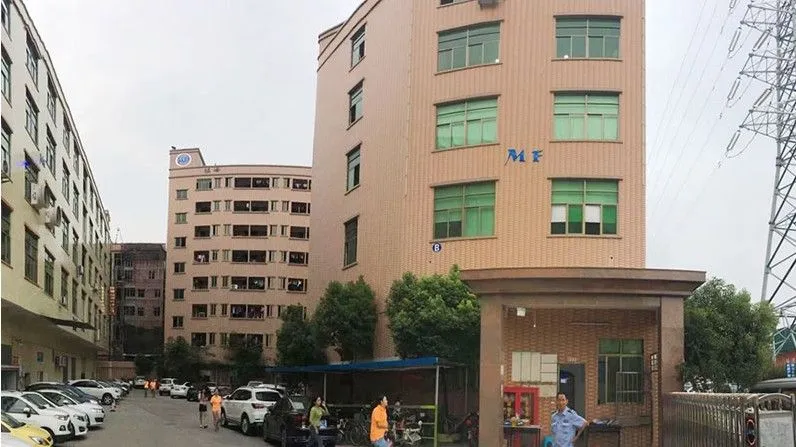

Factory Profile

With over 15 years of experience in exporting LED lighting products, we specialize in R&D and manufacturing according to ISO quality management systems since 2009. Our production range covers Indoor LED (Triproof, Vapor Tight, Panel, Linear) and Outdoor LED (Flood, High Bay, Stadium lights).

Production Facility
Frequently Asked Questions
1. What is the typical lifespan and warranty for this linear light?

The product features a lifespan of approximately 50,000 hours and comes with a 5-year warranty to ensure long-term performance and reliability.

2. Can I customize the design or printing on the fixtures?

Yes, we provide OEM services including logo printing on the light fixtures and customized label or color box designs to meet your branding requirements.

3. What lighting control options are available?

We offer various wiring configurations including 5-PIN, 8-PIN, and 12-PIN systems which support DALI control cables and emergency power supply circuits.

4. Are samples available for quality testing?

Yes, we welcome sample orders for quality inspection and testing. Mixed samples are acceptable to help you evaluate the best fit for your market.

5. How do you ensure the product isn't damaged during shipping?

We utilize a multi-layer packaging strategy with internal and external boxes, complemented by a thick sponge layer to absorb shocks during transportation.

6. Is the light suitable for high-humidity environments?

This specific model is IP40 rated, making it ideal for indoor retail, warehouse, and workshop environments. For higher moisture areas, please consult us for specific IP65+ rated options.
