Basic Information
Lamp Holder
G24 4pin / E27
Product Description

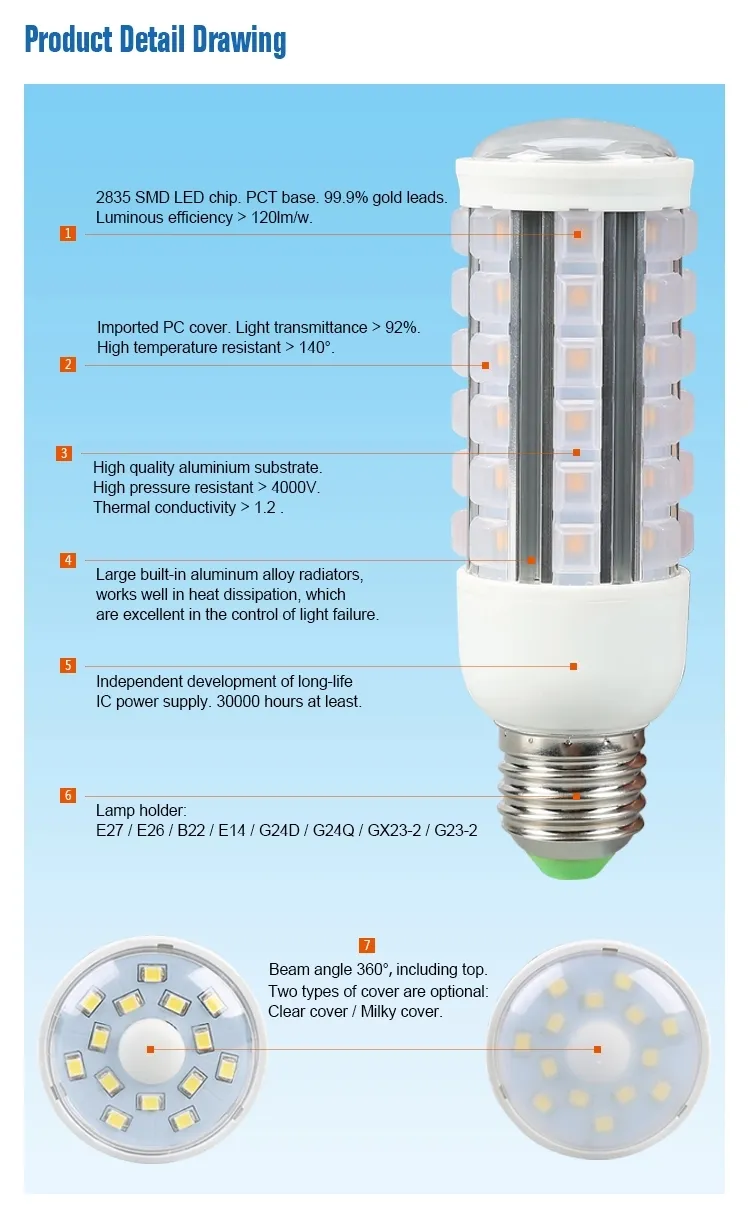

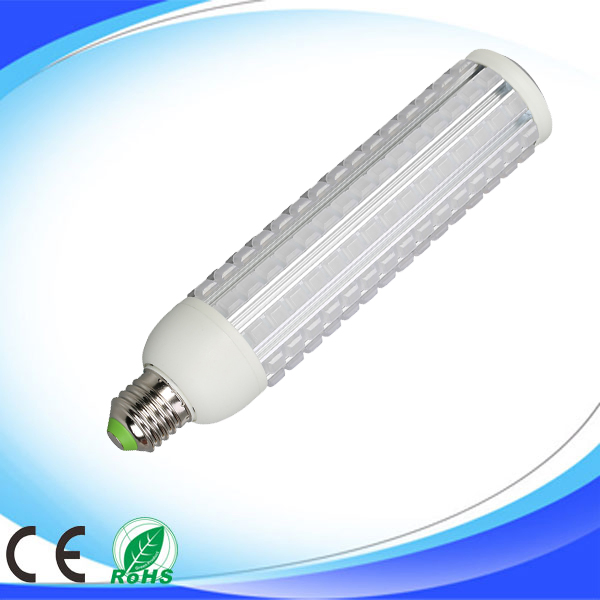

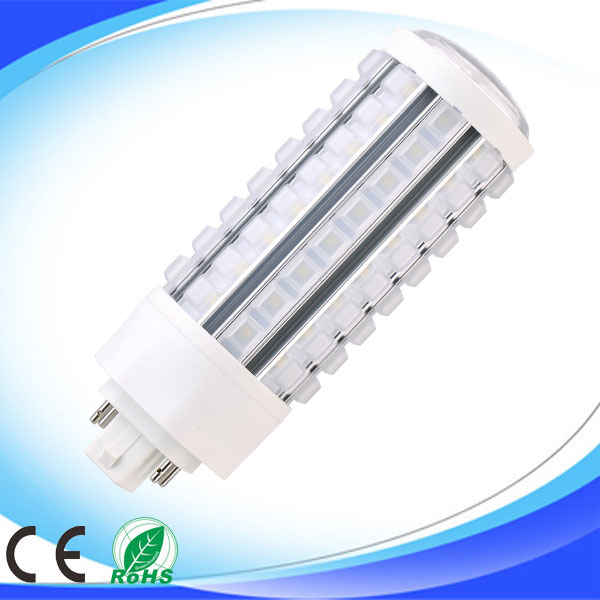

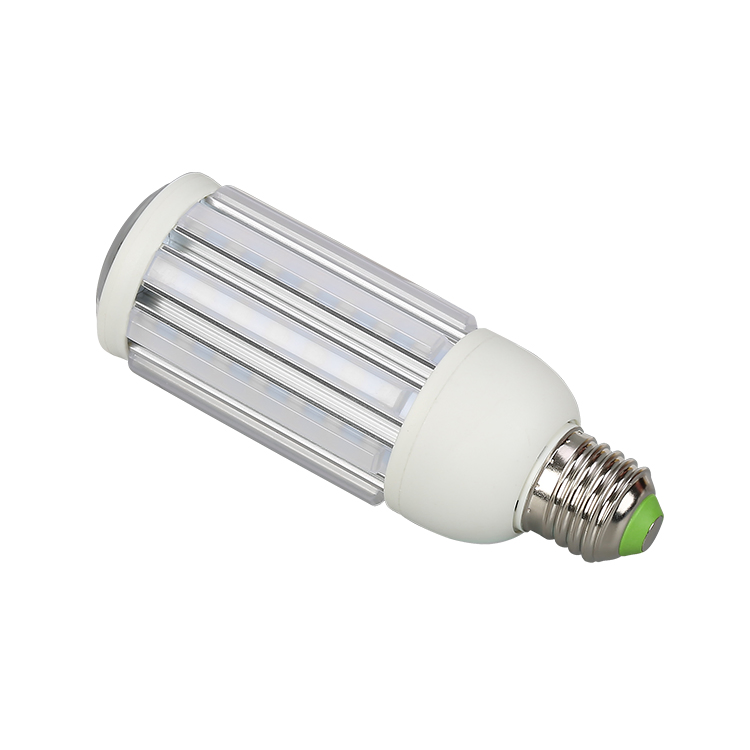

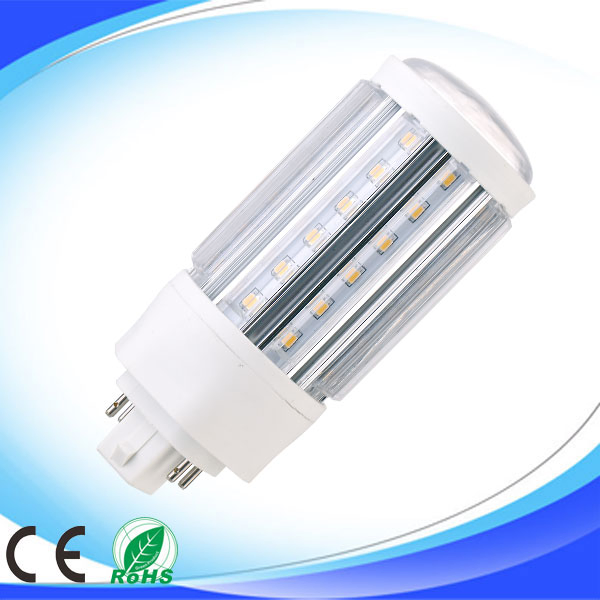

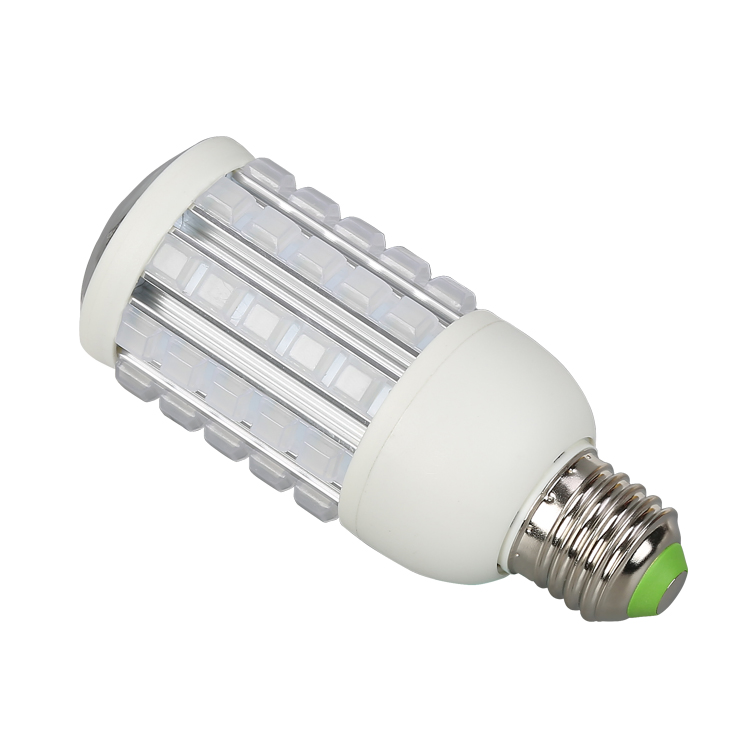

360 Degree E27 G24 LED Corn Light specifically designed for office and commercial environments. This energy-saving solution provides full-angle illumination with high-performance heat dissipation.
Beam angle 360° including the top for uniform light distribution.
High color rendering index Ra ≥ 82 and efficiency ≥ 120LM/W using A-level high brightness chips.
Excellent EMC characteristics with no high-frequency electromagnetic radiation, safe for high-precision equipment environments.
Standard size and lamp holder for direct replacement of traditional glass fluorescent lamps.
Dual-side aluminum alloy radiators for superior thermal management and minimal light failure.
12*35 large chip with pure gold wire and PCT support ensuring durability and high temperature resistance.

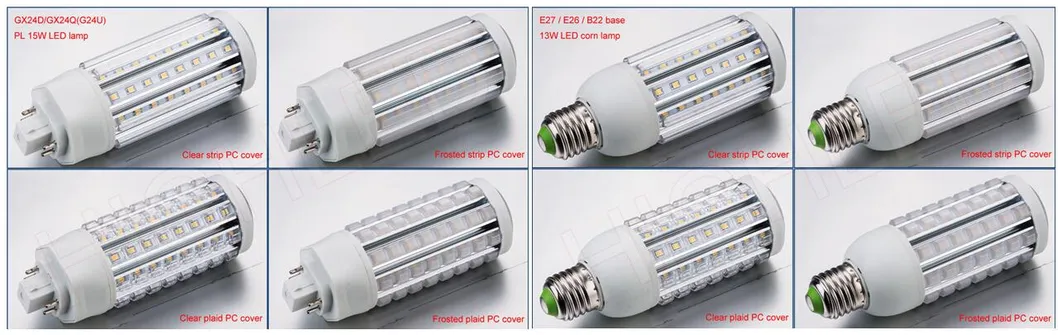

Heat-resistant PC cover and 6063-T aluminum radiator for rapid heat conduction and soft light output.
| Model No. |
Watts |
LED Qty |
Lumens |
Length (mm) |
Width (mm) |
Packing |
| PLC-10W | 5W | 49 | 400-550 | 115 | 41 | 50 PCS/CTN |
| PLC-13W | 7W | 56 | 550-700 | 128 | 41 | 50 PCS/CTN |
| PLC-18W | 9W | 63 | 700-850 | 138 | 41 | 50 PCS/CTN |
| PLC-26W | 11W | 70 | 850-1000 | 148 | 41 | 50 PCS/CTN |
| PLT-13W | 9W | 63 | 750-900 | 113 | 51 | 50 PCS/CTN |
| PLT-18W | 11W | 72 | 900-1050 | 126 | 51 | 50 PCS/CTN |
| PLT-26W | 13W | 81 | 1000-1150 | 136 | 51 | 50 PCS/CTN |
| PLT-42W | 20W | 108 | 1550-1950 | 165 | 51 | 50 PCS/CTN |
| PLT-57W | 30W | 153 | 2050-2650 | 222 | 51 | 50 PCS/CTN |

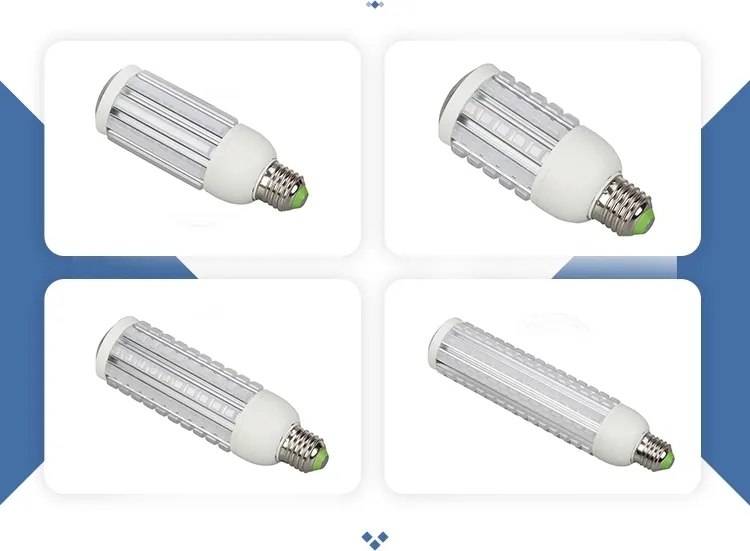

Key Selling Points
Superior Durability: Anti-glare, anti-ageing, high brightness, and low attenuation.
Premium Materials: Heat sink manufactured from 6063 high-quality pure aluminum; body utilizes G20 environmental protection PBT.
Safety Design: High safety performance isolation power source (EMC approved). Output voltage <36V.
Optical Grade Lens: Light diffusion PC material, flame retardant, temperature resistance ≥130ºC.

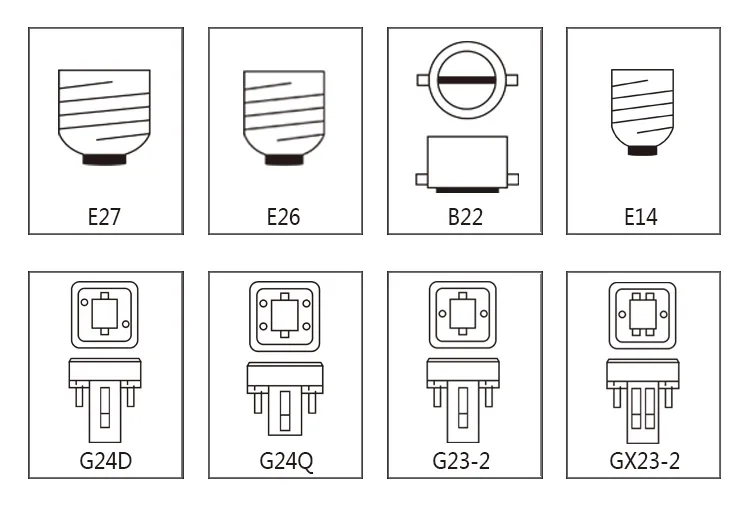

Versatile Bases: Multiple options available including E27, E26, E40, B22, E14, GX23, G23, G24D, and G24Q.
Applications
Ideal retro-fit replacement for fluorescent PL lamps and CFLs in various settings:
Home & Boutique decoration
Offices & Meeting rooms
Factories & Emporiums
Garden lights & Channel letters
Frequently Asked Questions
What are the available base types for this LED corn light?
We offer a wide range of bases including E27, E26, E40, B22, E14, GX23, G23, G24D, and G24Q to fit various fixtures.
What is the expected lifespan and warranty?
These lights are designed for long life with low attenuation. We provide a 3-year warranty for all our LED PL light products.
Is the driver safe for residential and commercial use?
Yes, the light uses a high-safety isolation power source that is EMC approved. The output voltage is less than 36V, making it very safe for human contact.
What color temperatures can I choose from?
Available color temperatures include Warm White (2800-3000K), Natural White (4000-4500K), and Cool White (6000-6500K).
Does this light require a specific voltage?
The standard input voltage is 100-240V. We also offer wide voltage versions (85-300V) and low voltage versions (10-30V) upon request.
How is the quality control managed?

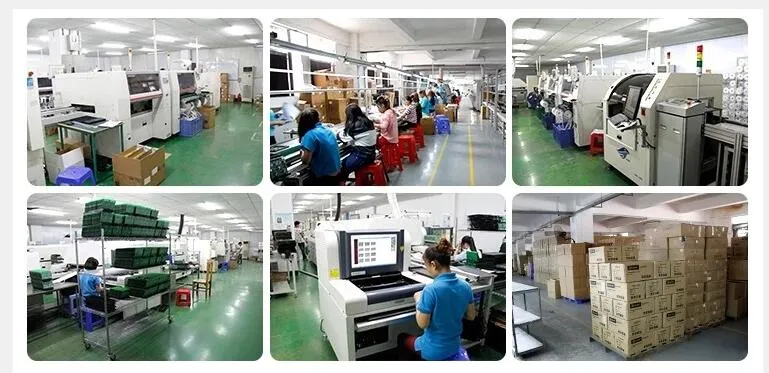

All lights undergo a 24-hour aging process and strict testing before delivery. Our production follows a rigorous quality control system with a defect rate of less than 0.2%.
