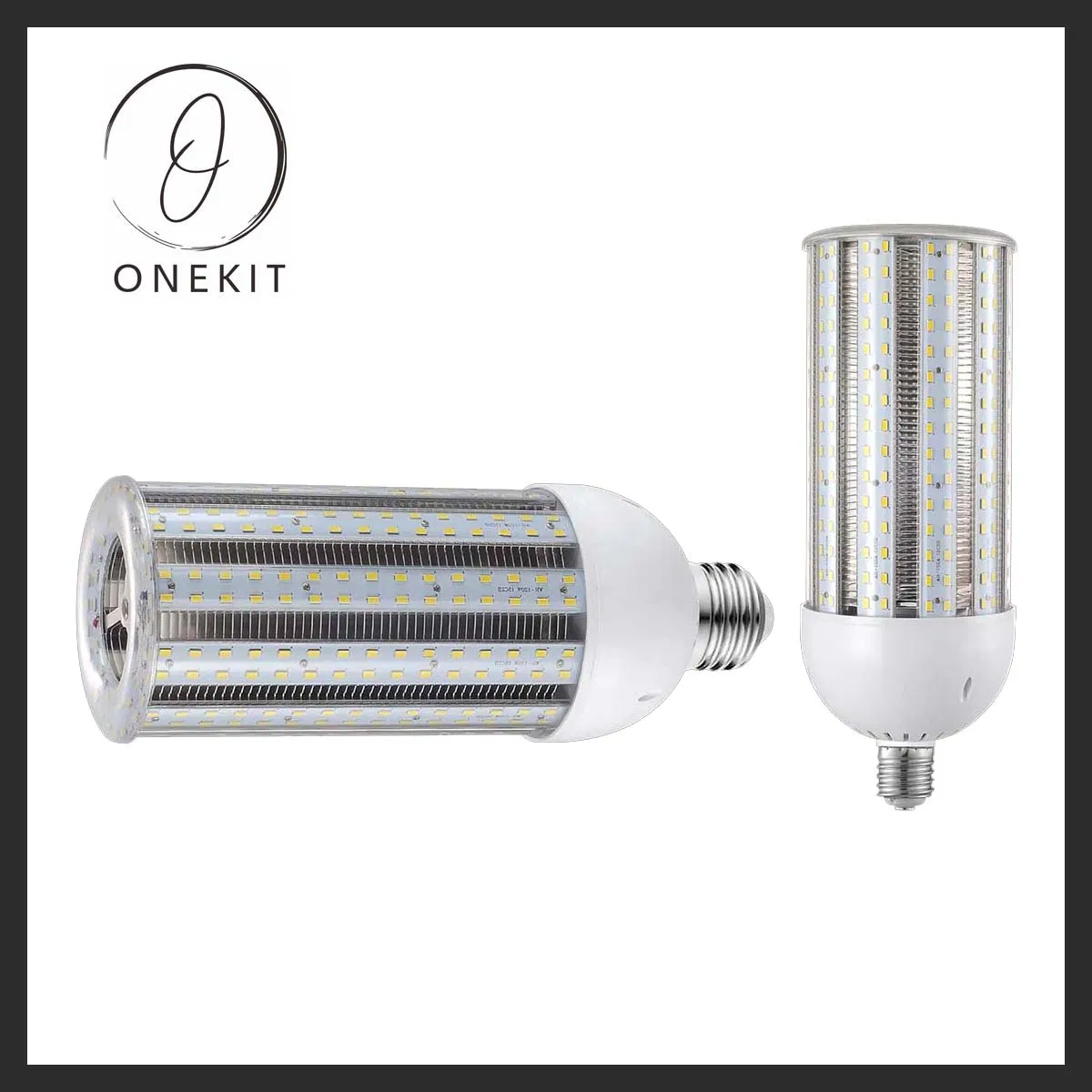

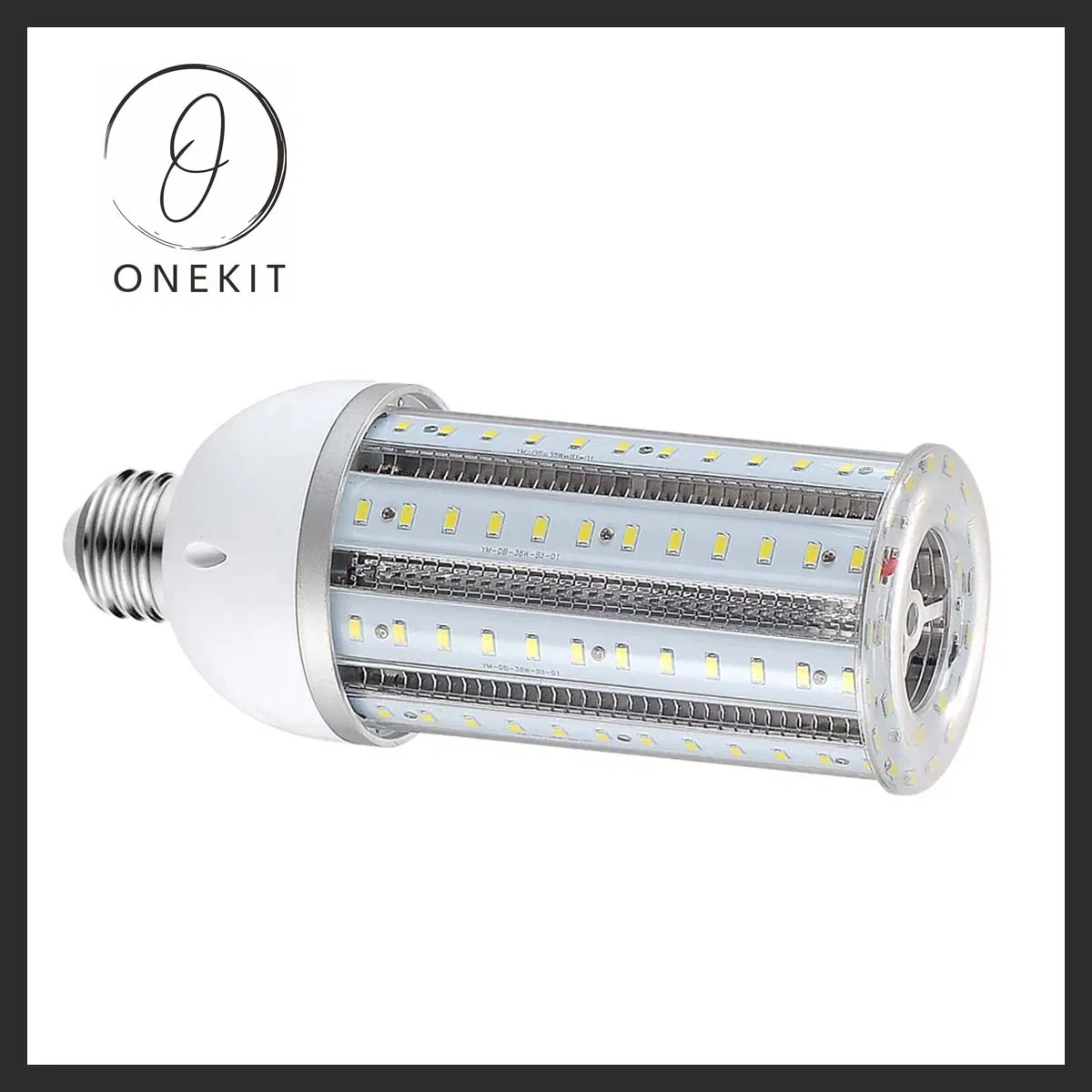

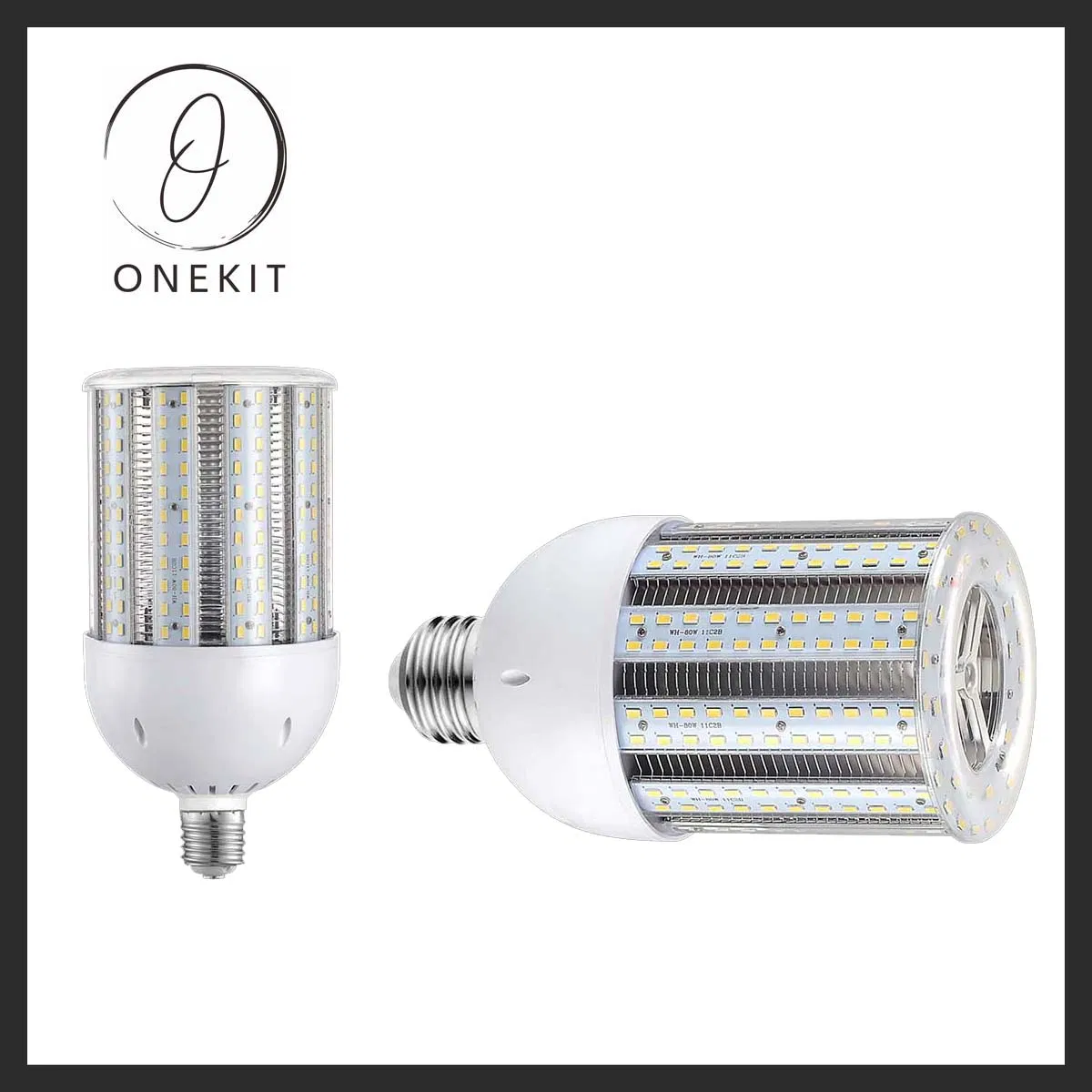

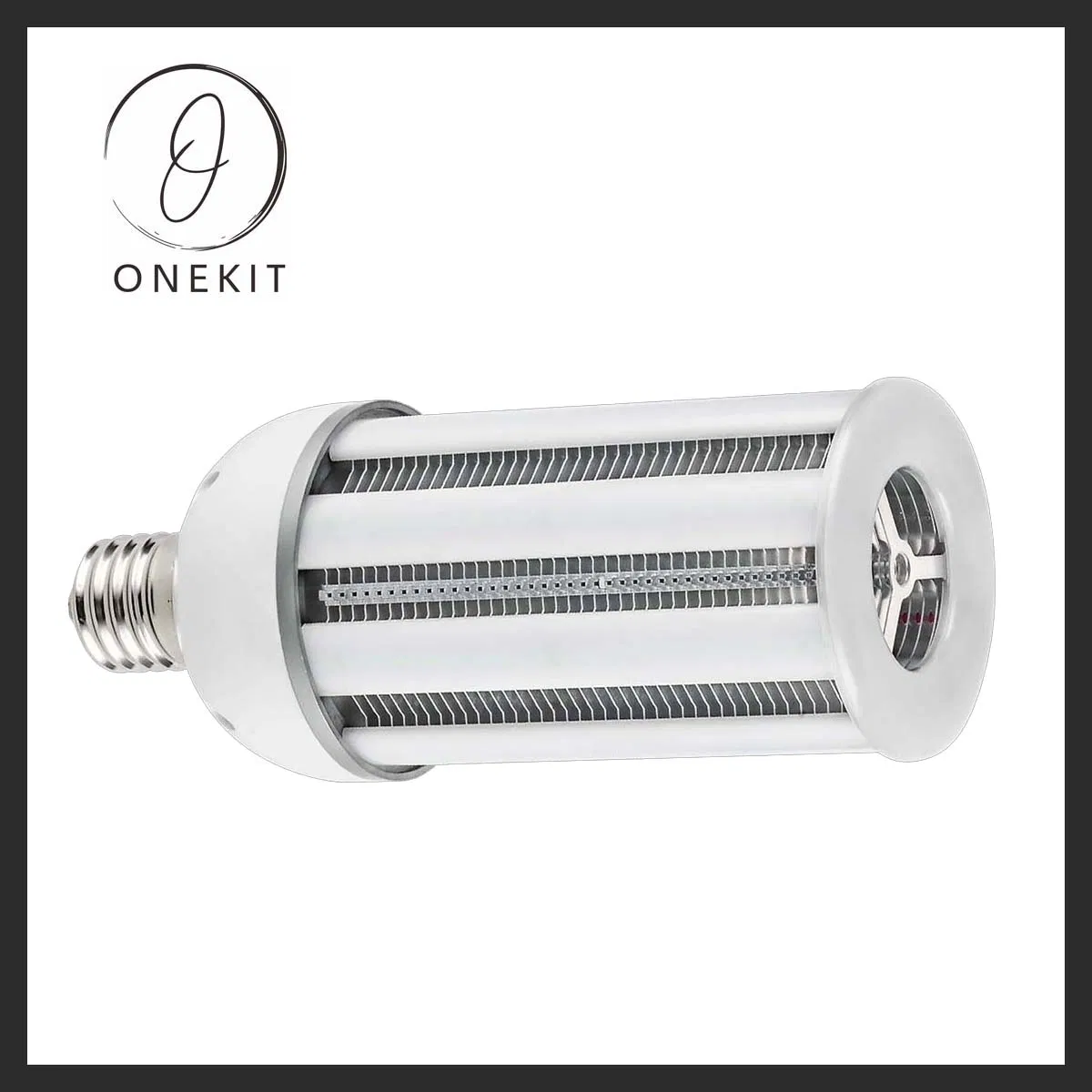

Energy Saving CE RoHS 30W 50W 80W 100W 120W Fin Aluminum Bright SMD LED Corn Light

Still deciding? Get samples of $ !
Order Sample

Product Description

🚀 Basic Information
Model NO.
LED Corn Light
Power
30W - 120W Options
LED Type
SMD2835 / SMD5630
Lamp Holder
E26, E27, E39, E40
Usage
Spot Lighting, Landscape, High Bay
Warranty
5 Years
IP Rating
IP64
Input Voltage
85-265V
Retrofit
HPS, Metal Halide, CFL
CCT
Selectable
Beam Angle
360 Degree
Origin
China
💡 Product Description

Led Corn Bulb Light is designed to replace HID counterparts. It offers an average of 75% more illumination over holder HID lamps. It's widely used as a retrofit light source in various lighting fixtures such as post tops, wall packs, high bays, and shoeboxes for gardens, paths, streets, and warehouses.

Key Benefits:
  • Quality Assurance: Made of aviation fin aluminum housing for superior heat dissipation. CE, RoHS, ETL, FCC certified.
  • Super Bright: Over 125 lm/w efficiency, CRI > 85, and a full 360-degree light angle.
  • ECO Performance: No RF interference, no IR/UV radiation, and mercury-free. Saves 70%~80% energy.
  • Protection: IP64 rated for dust and water protection.
  • Versatile Base: Multiple choices including E26, E27, E39, E40, and EX39.
📊 Technical Specifications
Wattage Voltage Lumen CRI (Ra) Color Temp Dimensions
20WAC 86-265V2500LM>802700-6500KΦ70x177mm
30WAC 86-265V3750LM>802700-6500KΦ70x197mm
50WAC 86-265V6250LM>802700-6500KΦ70x230mm
80WAC 86-265V10000LM>802700-6500KΦ106x245mm
100WAC 86-265V12500LM>802700-6500KΦ120x245mm
120WAC 86-265V15000LM>802700-6500KΦ120x280mm
150WAC 86-265V18750LM>802700-6500KΦ120x300mm
🎨 Multiple Options & PC Covers

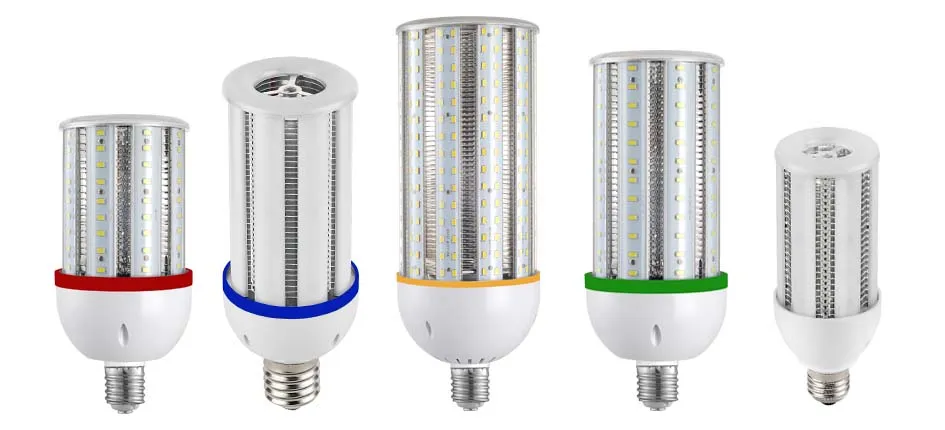

Housing Options
🔄 Equivalent Replacement Guide
LED Corn Bulb
CFL Replacement
HPS Replacement
LED Corn Bulb CFL HPS/MHL/HQL Incandescent
30W65W70W300W
50W105W150W500W
80W185W250W800W
120W250W400W1000W

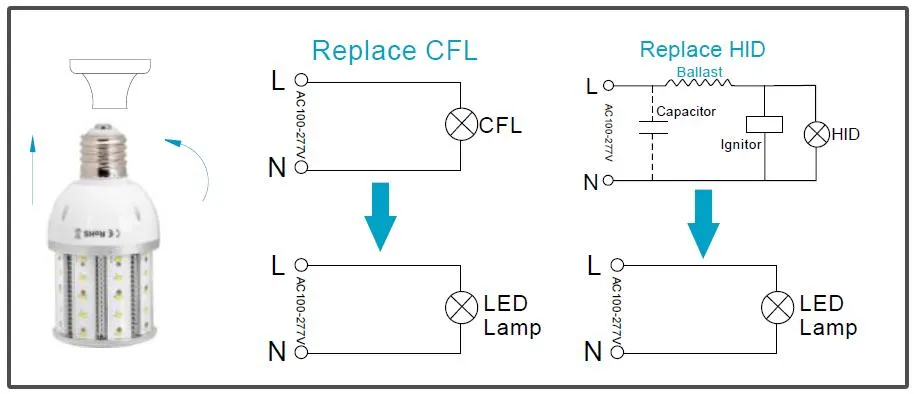

🛠 Installation Instruction
Installation Instruction

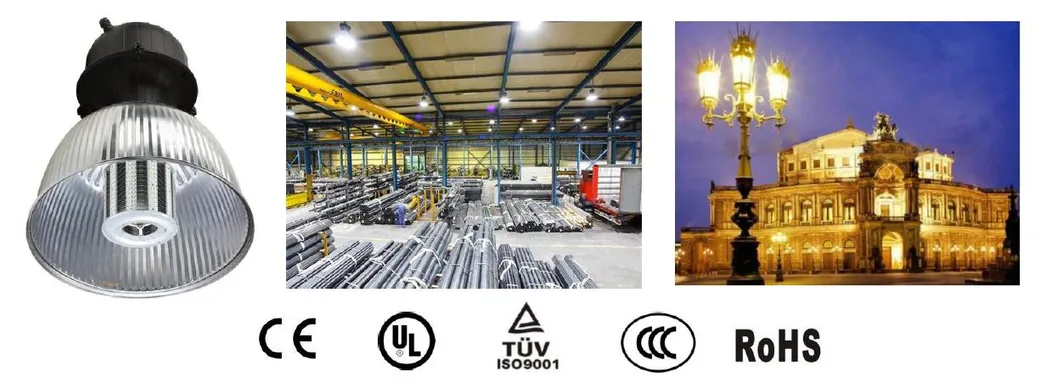

🏙 Applications

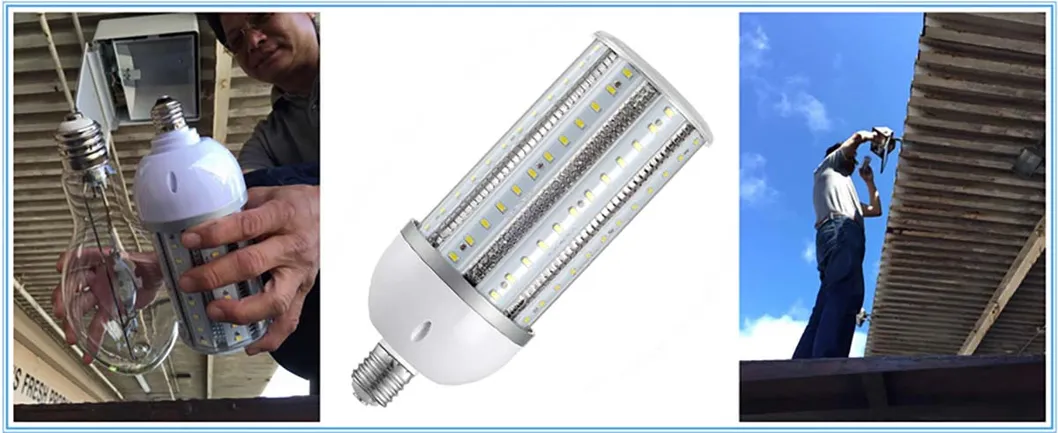

Application 1

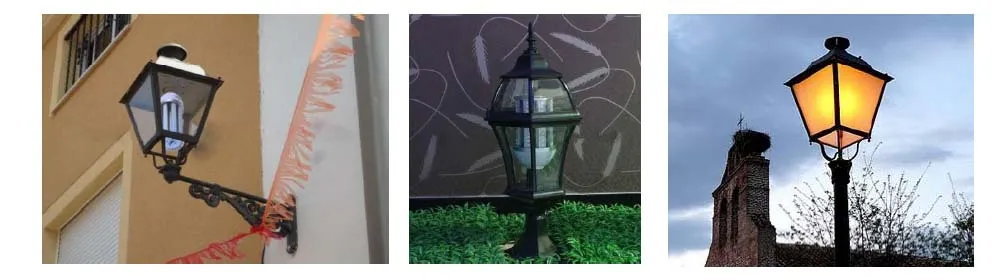

Application 2
Application 3
📦 Packaging & Shipping

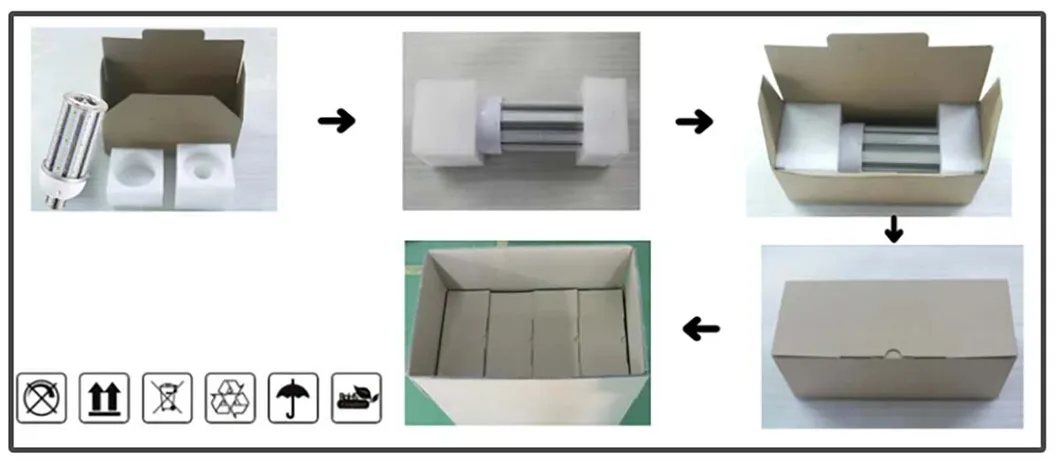

Packaging

Each lamp is individually placed in a PE bag and protected with foaming at both ends before being packed into a brown kraft box. Typically, 12 boxes are packed per carton.

🛡 Service Commitments
Quality Assurance

100% new raw materials. At least 24 hours of aging test and strict QC procedures before delivery.

Fast Delivery

Samples ready in 2-4 days via UPS/DHL/FedEx. Standard production within 15 working days.

Post-Sales Support

Free replacement for manufacturing defects and active response for any after-sales concerns.

Customized Support
❓ Frequently Asked Questions
1. Can these LED corn lights be used in enclosed fixtures?
Yes, these LED corn bulbs are applicable for use in enclosed fixtures thanks to their efficient aviation aluminum heat dissipation system.
2. Is it necessary to bypass the ballast for installation?
Yes, for most retrofit applications, you should bypass or remove the existing ballast and wire the lamp holder directly to the input voltage (85-265V).
3. What is the IP rating of these bulbs?
These lamps are rated IP64, making them protected against dust ingress and splashing water, suitable for damp locations.
4. What kind of warranty do you provide?
We provide a 5-year warranty on all our LED corn lights, covering any manufacturing defects with free replacements.
5. How much energy can I save by switching to LED corn bulbs?
By replacing traditional HPS, Metal Halide, or CFL bulbs, you can achieve energy savings of approximately 70% to 80% while maintaining or increasing brightness.
6. Are the color temperatures adjustable?
We offer selectable CCT options ranging from 2700K to 6500K to meet different lighting atmosphere requirements.
