En-5575 High Quality Mounted Pendant Aluminum Profile Luminaire Linkable Cove Line Lighting Lamp LED Linear Light LED Linear Lighting Solution

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.
EN-5575-LS60W18
IP Rating
IP20
Application
Office
Warranty
5-Year
Color Temp
3000K, 4000K, 6000K
CRI (Ra)
80
Working Temp
30-40℃
Capacity
50,000 Pcs/Month

Product Description

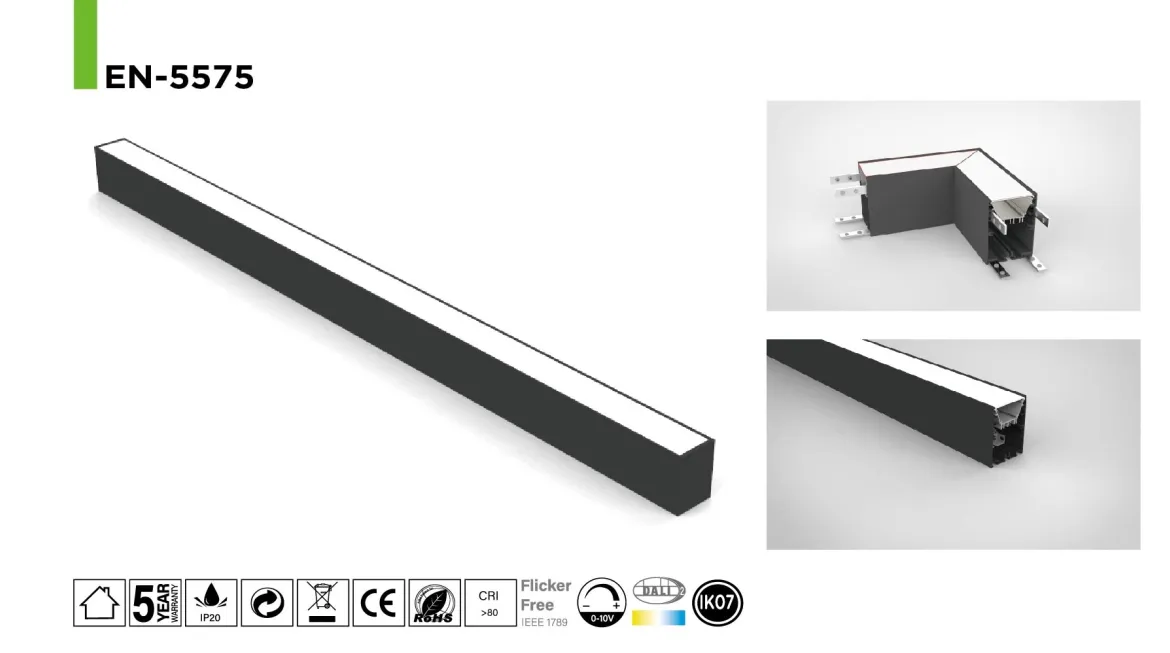

LED Linear Light Solution

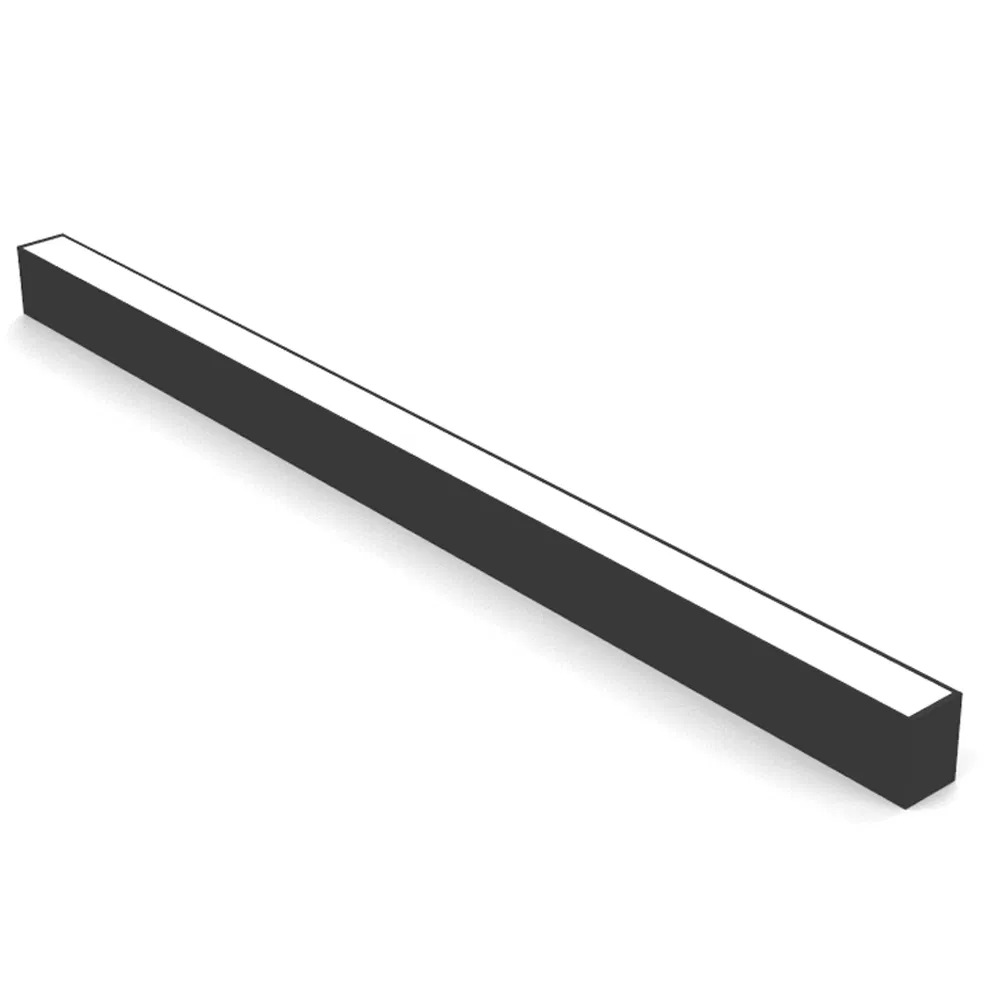

Aluminum Profile Luminaire

Technical Specification

Parameter Details
Length600mm / 1200mm / 1500mm / 1800mm / 2400mm
Profile SizeW55*H75mm
Material6063 Aluminium Profile + Opal/Prismatic Diffuser
InstallationSuspended / Surface Mount / Wall Mount
Finish ColorBlack / White
Input VoltageAC100-277V / AC220-240V, 50-60HZ
Wattage20W / 40W / 60W / 80W
Luminous Flux140Lm/W
LED ChipSMD2835
Warranty5 Years
W55 * H75 mm Series Data
Model No. Dimensions Power CCT Efficiency
EN-5575-LS20W06L600*W55*H75mm20W3000K-6000K135-140 LM/W
EN-5575-LS40W12L1200*W55*H75mm40W3000K-6000K135-140 LM/W
EN-5575-LS60W18L1800*W55*H75mm60W3000K-6000K135-140 LM/W
EN-5575-LS80W24L2400*W55*H75mm80W3000K-6000K135-140 LM/W

Size & Installation

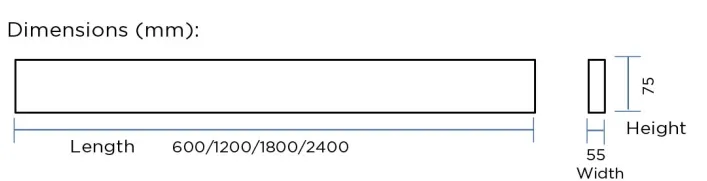

Size Options

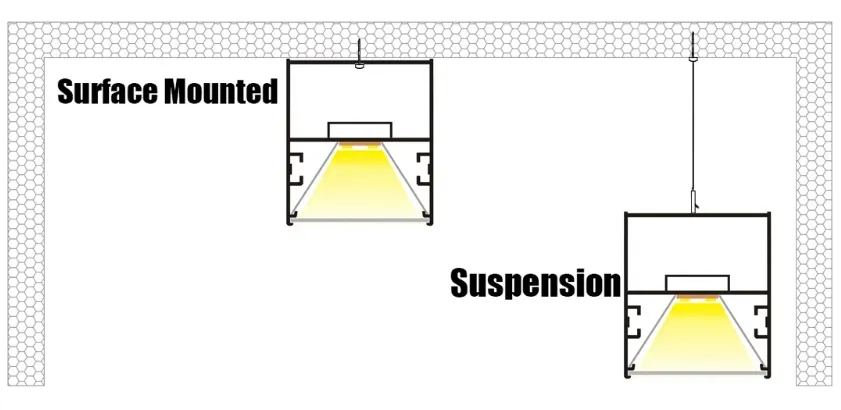

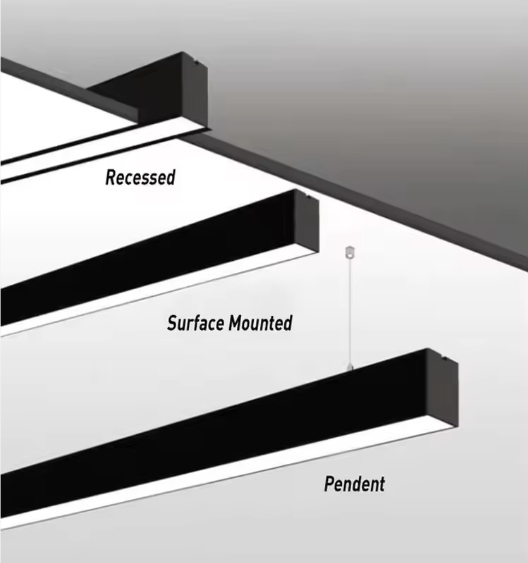

Installation Method

More Images

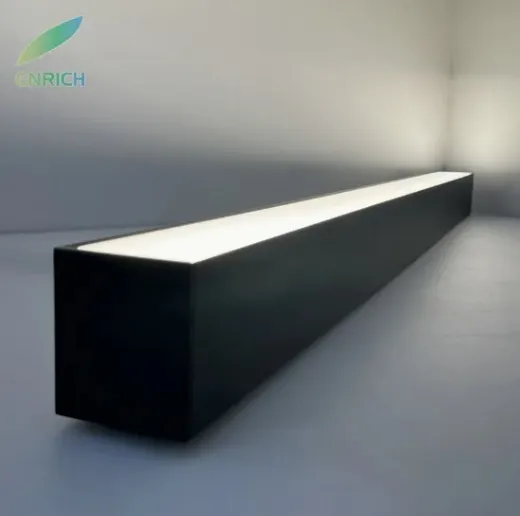

Linear Lighting View 1

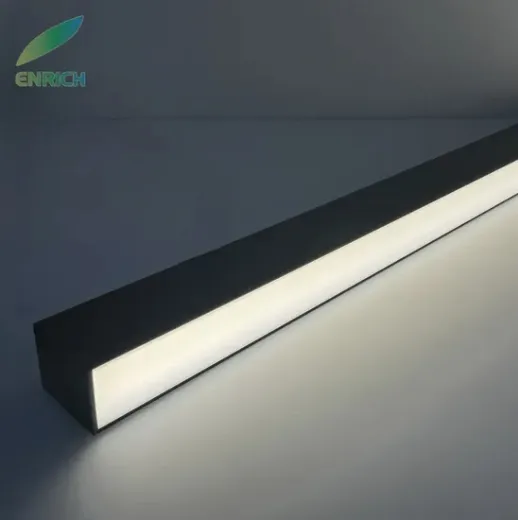

Linear Lighting View 2

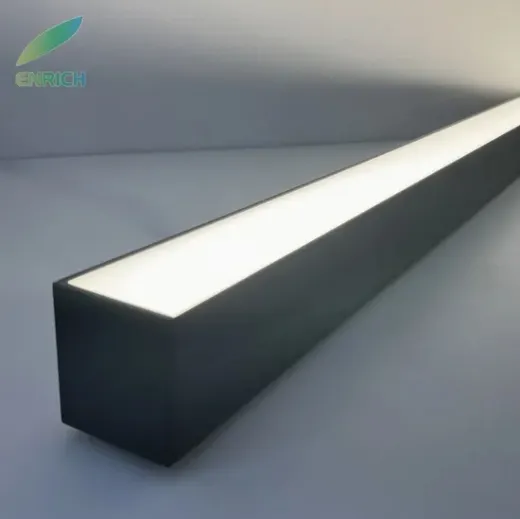

Linear Lighting View 3

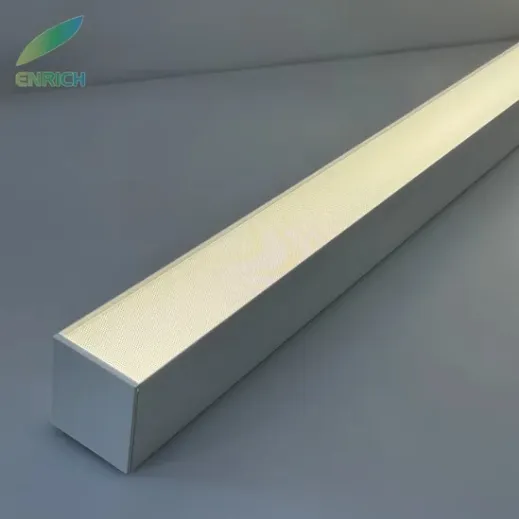

Linear Lighting View 4

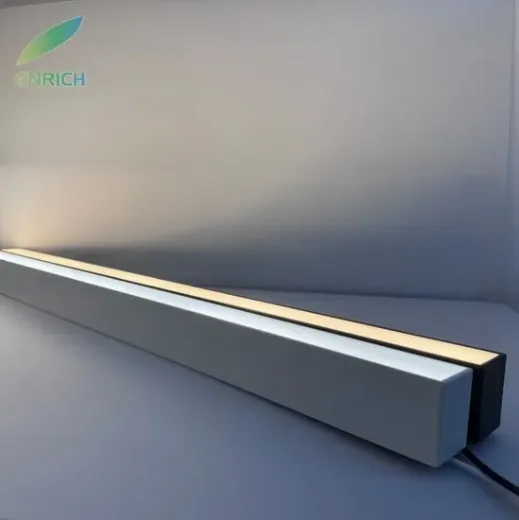

Linear Lighting View 5

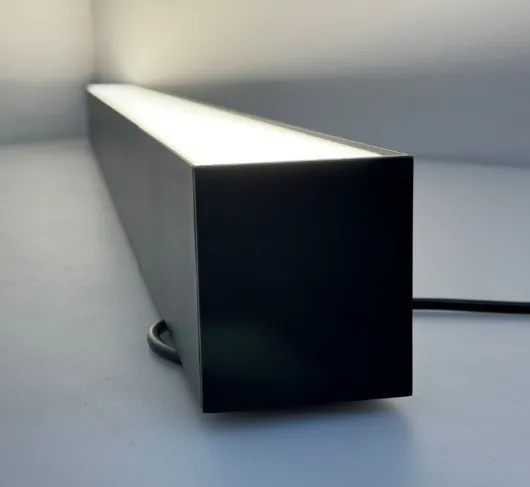

Linear Lighting View 6

Applications

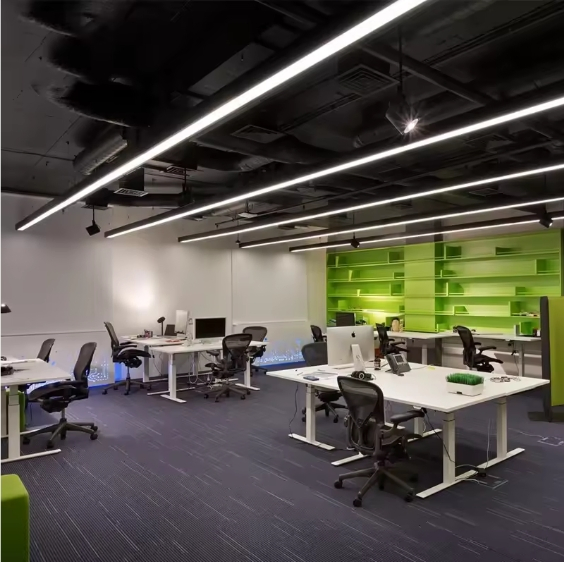

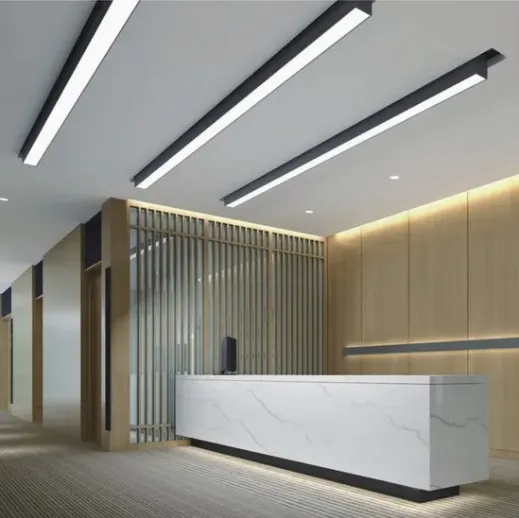

Office Application 1

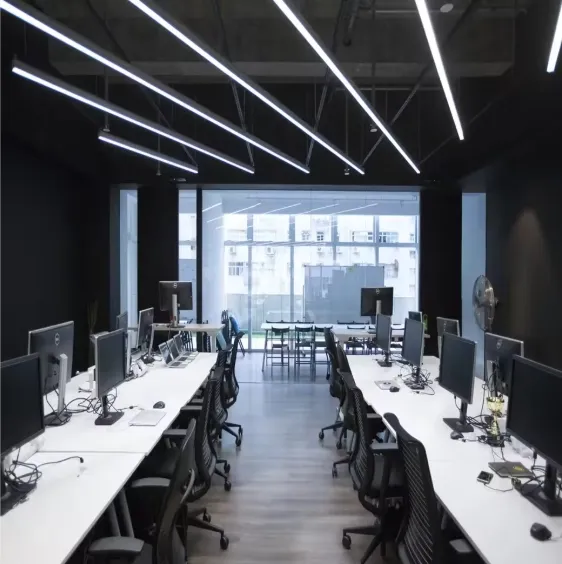

Office Application 2

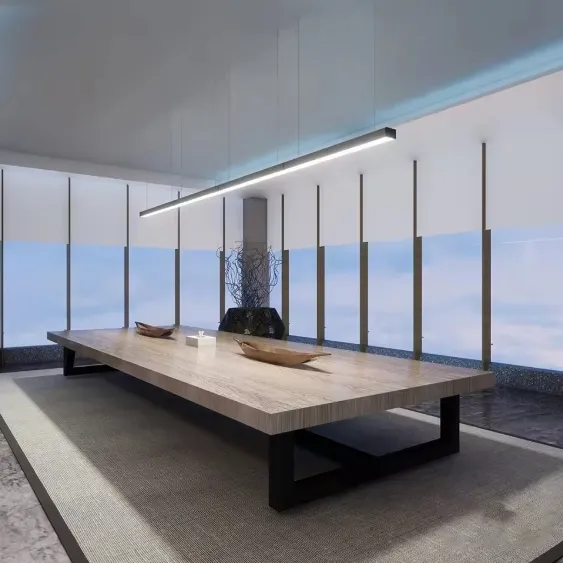

Office Application 3

Production Overview

Factory Overview
Production Line 1

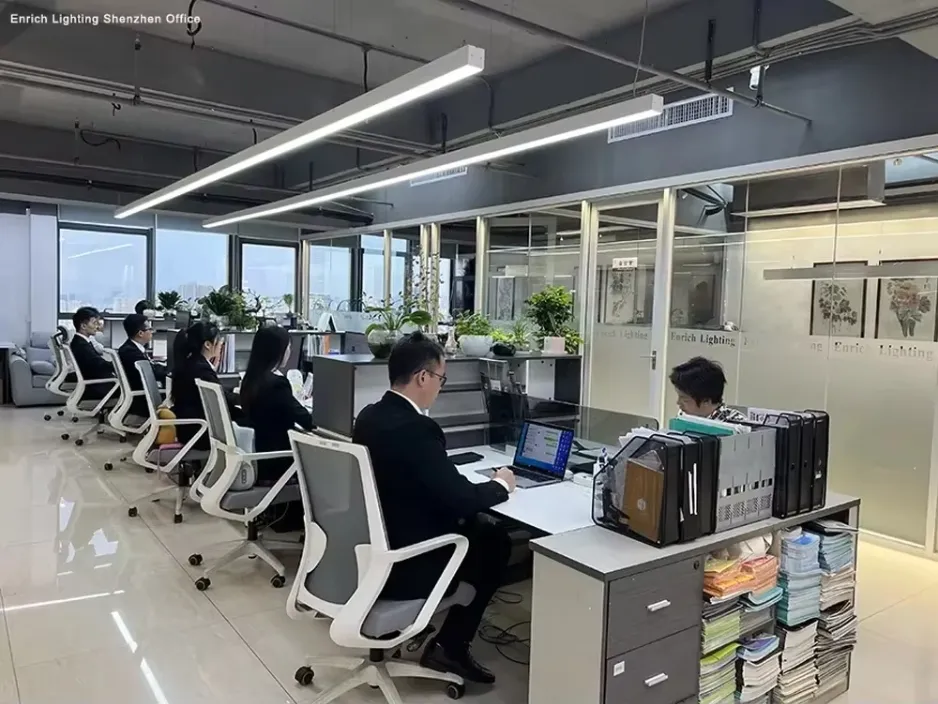

Production Line 2

Frequently Asked Questions

Can I have a sample order for LED light?
Yes, sample order can be arranged as request, you can test and check the quality first.
How long is the lead time?
Sample needs 4-7 days, mass production time needs 1-2 weeks, actual lead time depends on the order quantity.
Do you have MOQ for LED light order?
No MOQ. 1pc for sample testing is available.
How do you ship the cargoes and how long it takes?
We usually send cargoes by Express Services (DHL, UPS, FedEx, TNT). It usually takes 3-5 days. Airline and sea shipping are also options.
How to proceed an order for LED light?
First, let us know your requirements. Second, we quote. Third, customer confirms and places deposit. Fourth, we arrange production and shipping.
Do you offer guarantee for the LED products?
Yes, we offer 2-5 years warranty for our LED products depending on the specific model.
