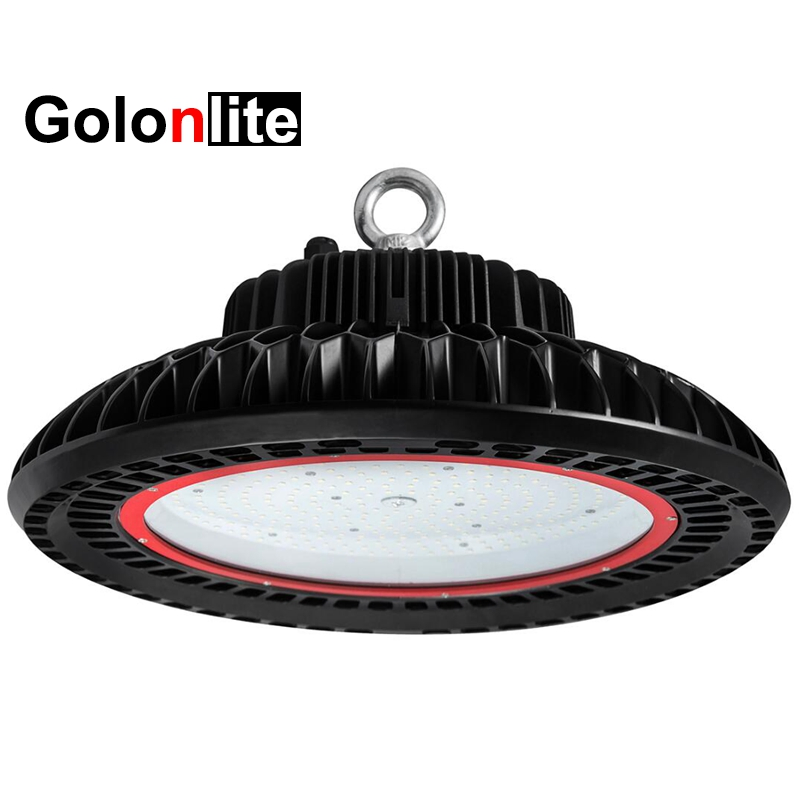

Dimmable Sensor 100-277V Bracket Ring Hanging 200W 200 Watts Industrial Highbay Low Bay UFO LED Light

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
GL-UHB-02D
Power
240W 200W 160W 100W
Usage
Factory, Garden, Square, Tunnels, Football Field
Lifespan
≥50000H
IP Rating
IP65
Certification
CE, EMC, LVD, RoHS
Beam Angle
40° / 60° / 90° / 120°
Warranty
5 Years
Material
Die Casting Aluminum Body
Driver
Meanwell / Sosen
CRI
>Ra80
Control
Motion & Daylight Sensor

Product Description

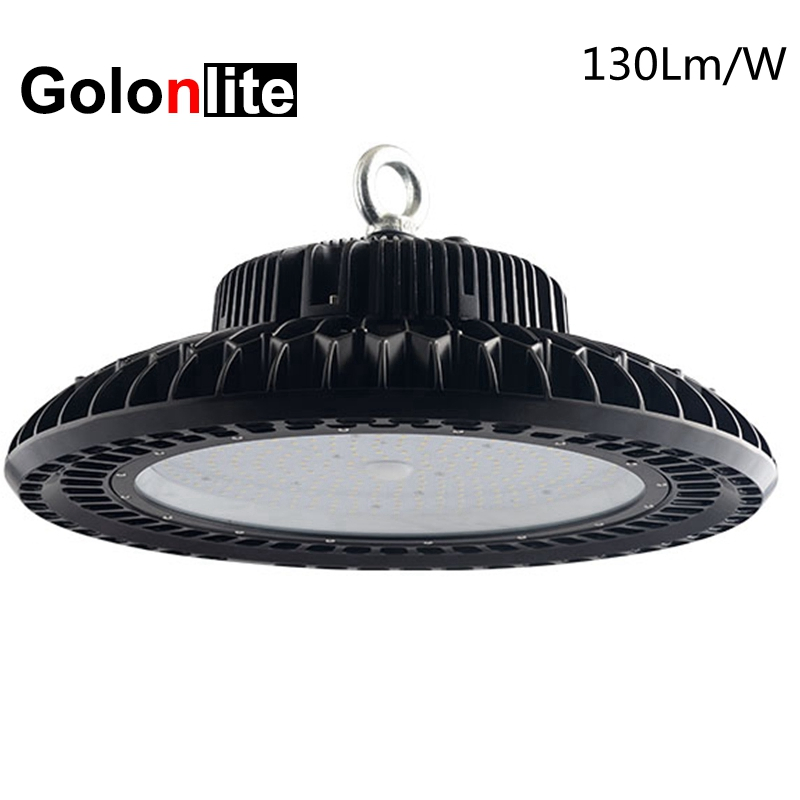

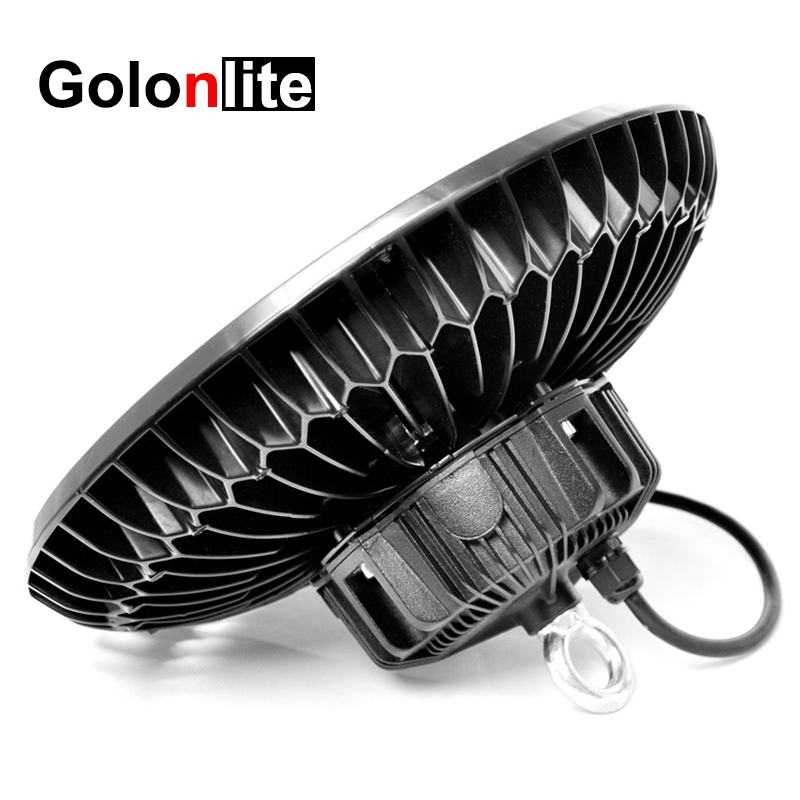

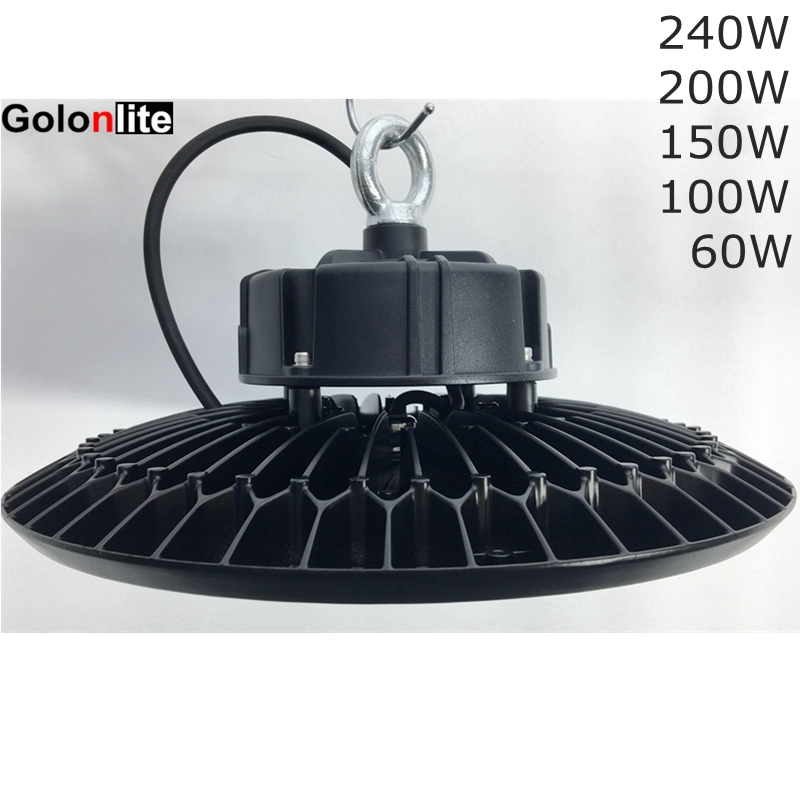

Dimmable Sensor 100-277V Industrial UFO LED High Bay Light

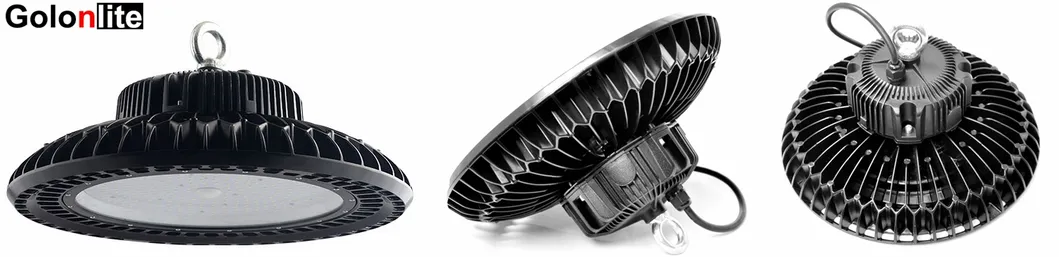

Key Features

💡 130Lm/W High Luminous Efficiency for maximum energy saving.
🔆 Three-in-one dimming function (1-10Vdc, PWM, or resistance).
📡 Optional Microwave sensor / Daylight / Photocell sensor.
🛡️ IP65 waterproof rating for both indoor and outdoor applications.

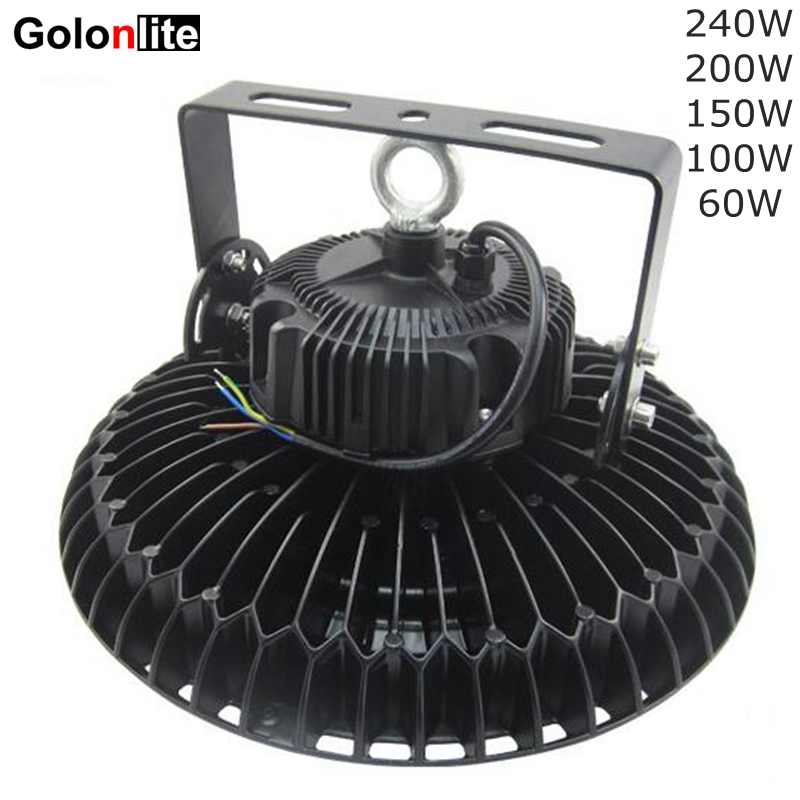

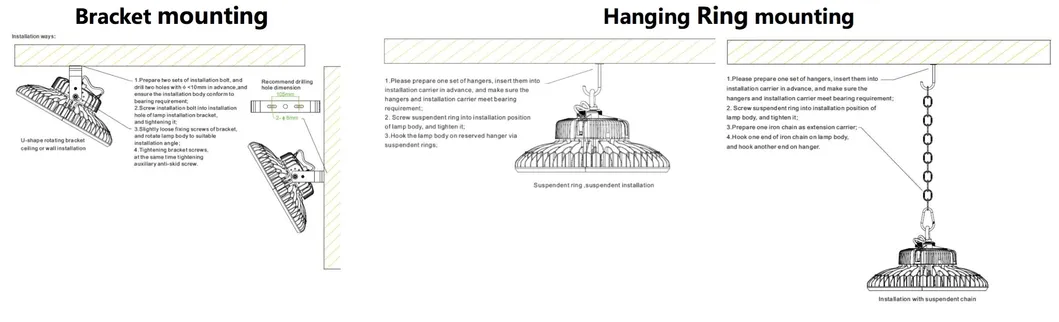

🔧 Flexible Installation: Ring/Hook hanging or adjustable bracket mounting.

Technical Specifications

Model Power LED Type Lumens Voltage Size (mm)
GL-UHB-01D240W315pcs Refond 303031200 Lm100-277VACΦ400*196
GL-UHB-02D200W266pcs Refond 303026000 Lm100-277VACΦ400*196
GL-UHB-03D160W210pcs Refond 303020800 Lm100-277VACΦ340*187
GL-UHB-04D100W133pcs Refond 303013000 Lm100-277VACΦ280*185
GL-UHB-05D60W84pcs Refond 30307800 Lm100-277VACΦ280*185

Product Visuals

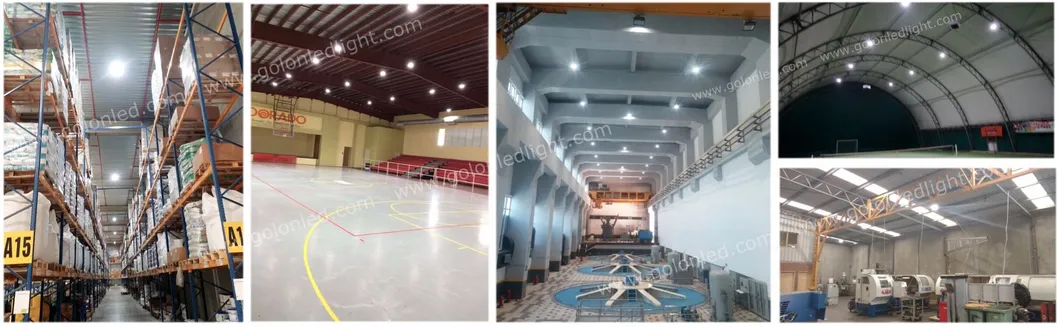

Application & Environment

Widely used in shopping malls, exhibition halls, parking lots, playgrounds, gymnasiums, billboards, parks, building facades, and public corridors. Suitable for both indoor and outdoor lighting projects.

Our Professional Services

✅ 24-hour response to all inquiries.
✅ Experienced staff to handle technical solutions.
✅ OEM & ODM services available.
✅ 5-Year Comprehensive Warranty.
✅ Free Lighting Design: IES files and Dialux solutions provided.

Frequently Asked Questions

1. What is the efficiency of this UFO LED high bay light?
The light offers a high luminous efficiency of 130Lm/W, providing superior brightness while reducing energy consumption.
2. Can this light be used in outdoor or wet conditions?
Yes, it features an IP65 protection grade, making it waterproof and ideal for both indoor and outdoor industrial environments.
3. What kind of dimming options are supported?
It supports a versatile three-in-one dimming function, including 1-10Vdc, PWM signal, or resistance control.
4. How long do these lights typically last?
The rated lifespan is ≥50,000 hours, and the product is backed by a 5-year warranty for peace of mind.
5. Are there different mounting options available?
Yes, the light supports multiple installation methods, including ring/hook hanging from the ceiling or using an adjustable bracket.
6. What brand of driver and LEDs are used in the product?

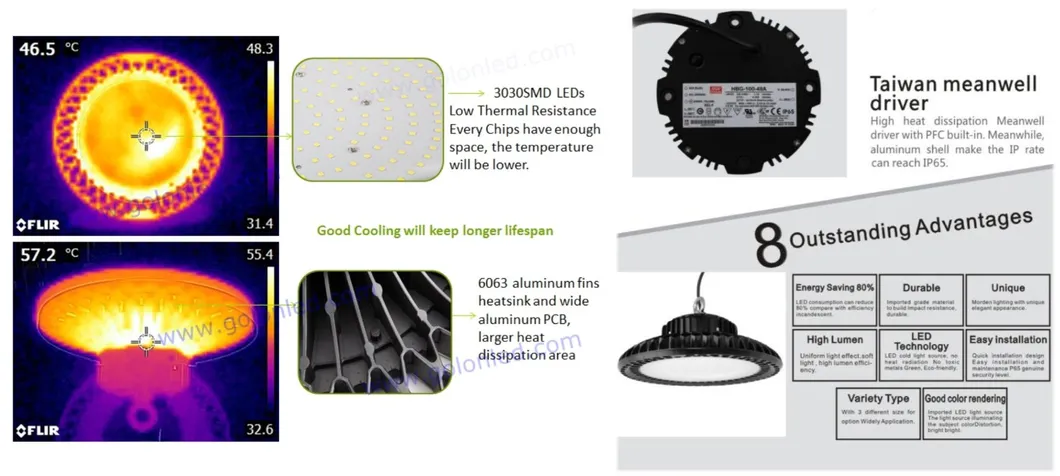

The product uses high-quality Refond SMD3030 LEDs and reliable Meanwell or Sosen drivers to ensure long-term performance.
