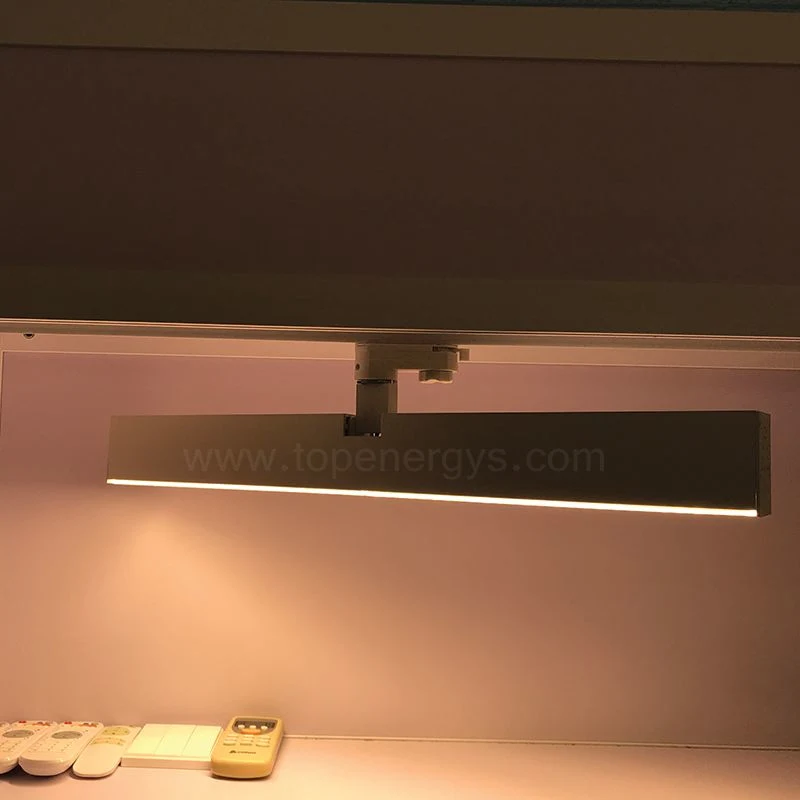

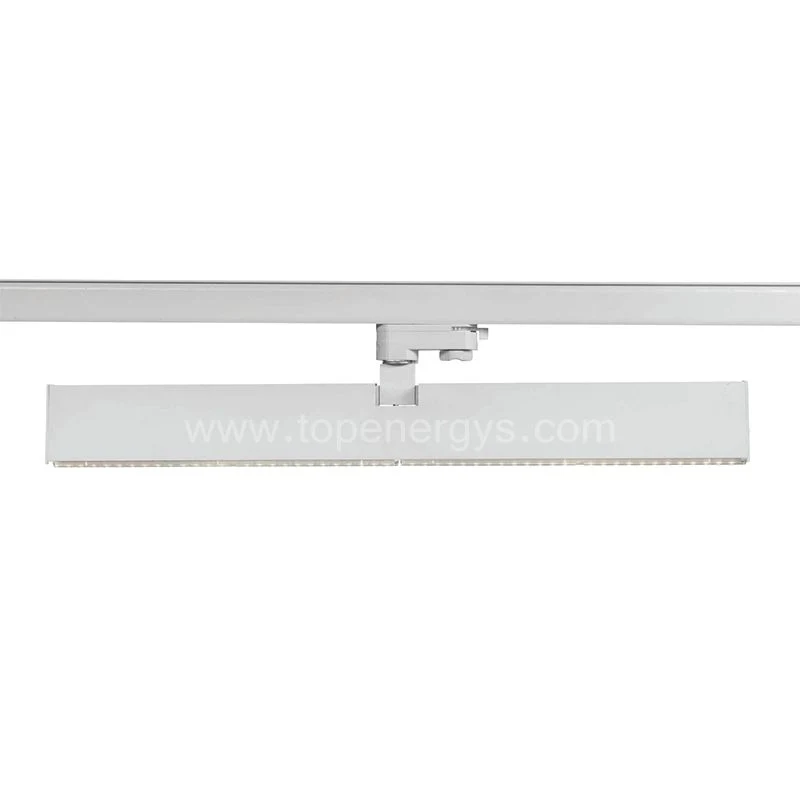

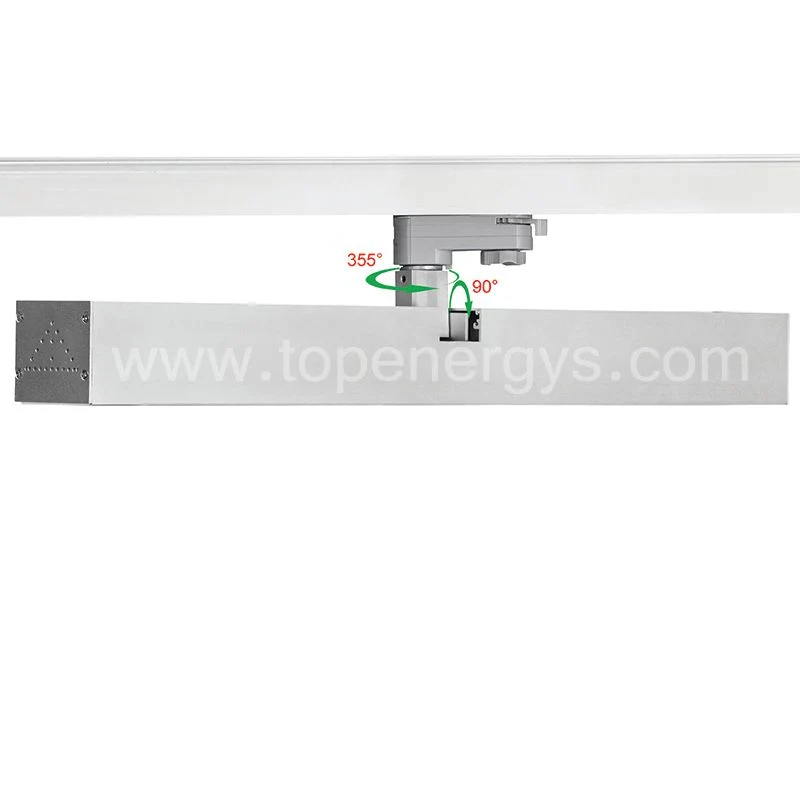

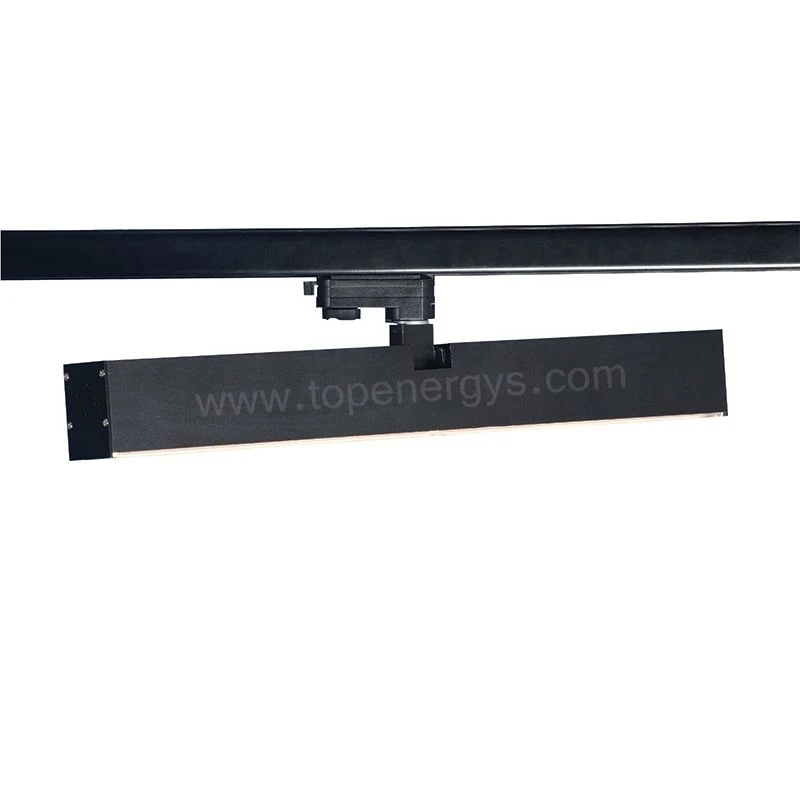

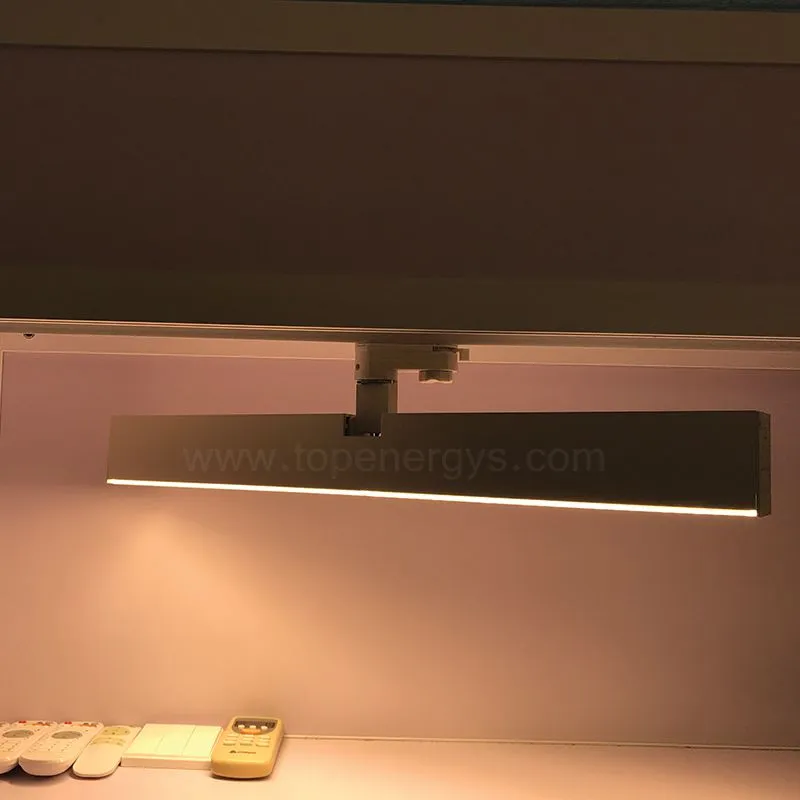

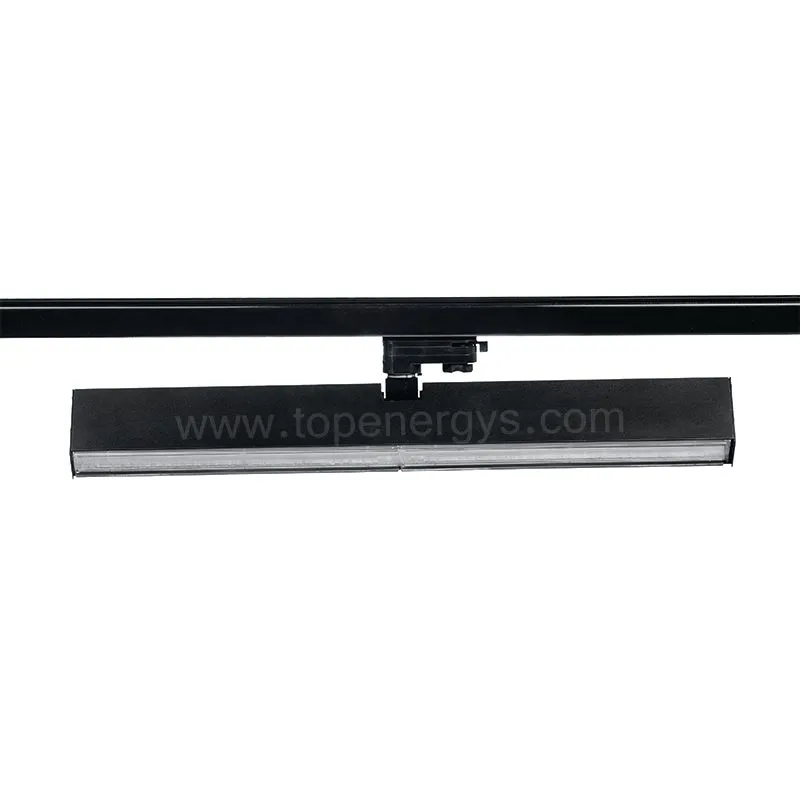

40W Rotatable, High Lumen Output LED Track Spot Light

1 / 5

40W Rotatable, High Lumen Output LED Track Spot Light

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

TL-40W-L

Style

European

Base Type

Trunking Rail

IP Rating

IP54

Voltage

90-260V

LED Chips

Samsung

Beaming Angle

25, 60, 90, 120 Degrees, Asymmetric

Certification

CCC, CE, EMC, ETL, FCC, RoHS, SAA

Product Description

The LED Linear Trunking System is a continuous LED lighting system where all system components, including trunking rails and luminaire inserts, are perfectly matched according to 1500mm/600mm system dimensions. Triple, double, and single-length rails can be combined to perfectly fit any architectural space.

Key Features

Low installation cost - everything in one box and tool-less installation
High light efficiency of 130 lm/W for reduced energy consumption
Color Rendering Index: Ra > 80
CCT options: 3,000K / 4,000K / 5,000K / 6,000K
Wide range of optics: 30° to 120°, asymmetric and double asymmetric distribution
Available in Emergency and Dimming versions
Standard Module Node connectors: X, L, and T shapes with electrical feed-in/out
Flexible Mounting: Chain, cord, rod suspended or surface mounted

Technical Data Sheet

Light Housing Properties
Material	Aluminum profile
Color Scheme	White

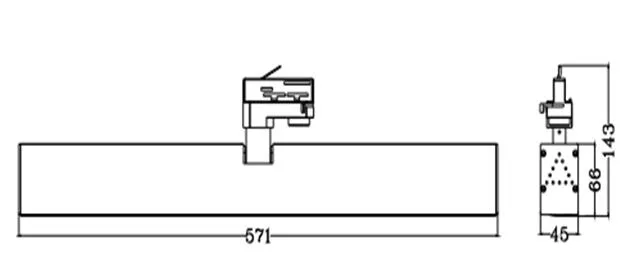

Dimensions (LxBxH)	571 x 40 x 66 mm
Protection Type	IP54
Illuminant Properties
Illuminant Type	LED-Moduls with Mid-Power-LEDs
Luminous Flux	5200lm
Luminous Output	120lm/w - 130lm/w
Lifetime (ta 30°)	50,000 h
Electronic Properties
Power Rating	40W
Operating Voltage	100 - 240V AC
Frequency	50 / 60 Hz

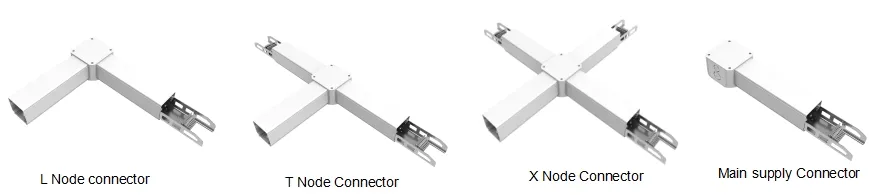

Advanced Node Connectivity

All system components can be combined without tools. X, T, and L connectors expand the application range significantly. Each node connector features diverse electrical feed-in and feed-out capabilities, allowing them to serve as electricity feed-in points while connecting the internal wiring.

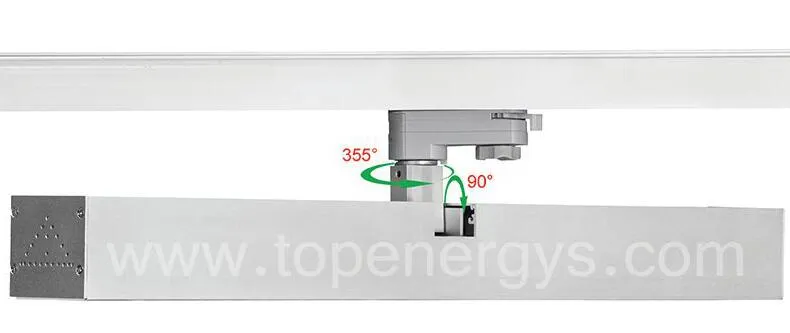

Installation & Safety

Installation and maintenance must be performed by authorized staff.
Ensure cables are de-energized before wiring.
Observe national safety regulations for lamp installation.
The light source should only be replaced by qualified professionals.
Application areas include halls, warehouses, manufacturing facilities, and sales premises.
Optimal installation height: 3 to 20 meters.

Frequently Asked Questions

1. What is the energy efficiency of the LED Linear Trunking System? The system provides high light efficiency of 130 lm/W, significantly reducing energy consumption.

2. Does the installation require professional tools? No, the system is designed for tool-less installation, making it cost-effective and easy to set up.

3. What are the available beam angles for this lighting? It offers a wide range of optics from 25° to 120°, including asymmetric and double-asymmetric distributions.

4. Is this system suitable for industrial environments? Yes, with an IP54 rating and robust aluminum profile, it is ideal for warehouses, manufacturing facilities, and industrial halls.

5. Can the luminaires be dimmed? Yes, dimming versions are available, including support for DALI power control systems.

6. What is the expected lifespan of the LEDs? The system is rated for a lifetime of 50,000 hours at an ambient temperature of 30°C.
