3CCT in One120cm 4FT Tube High Power LED Linear Batten Light
3CCT in One120cm 4FT Tube High Power LED Linear Batten Light
3CCT in One120cm 4FT Tube High Power LED Linear Batten Light
3CCT in One120cm 4FT Tube High Power LED Linear Batten Light
3CCT in One120cm 4FT Tube High Power LED Linear Batten Light
1 / 5
3CCT in One120cm 4FT Tube High Power LED Linear Batten Light
3CCT in One120cm 4FT Tube High Power LED Linear Batten Light
3CCT in One120cm 4FT Tube High Power LED Linear Batten Light
3CCT in One120cm 4FT Tube High Power LED Linear Batten Light
3CCT in One120cm 4FT Tube High Power LED Linear Batten Light

3CCT in One120cm 4FT Tube High Power LED Linear Batten Light

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
LL-7231-60W
IP Rating
IP20 / IP40
CCT
3000K, 4000K, 6000K
Lumen
100lm/W - 135lm/W
Certificates
CE-EMC, CE-LVD, RoHS, En62471
Wattage
18W - 120W Options
CRI
>80
Warranty
2~5 Years
Origin
China
Production Capacity
100,000 PCS/Month

Key Product Features

🏗️ High-Quality Construction
Aluminum back with high-quality PC cover for durability and heat dissipation.
⚡ High Power Output
Efficient performance, 120cm (4ft) models can reach up to 80W.
🛡️ Protection Design
IP40 indoor protection prevents insects and mosquitoes from entering the lamp.
💡 DOB Driver
Supports 170-265V / 110-137V voltage ranges with DOB driver technology.

Product Display

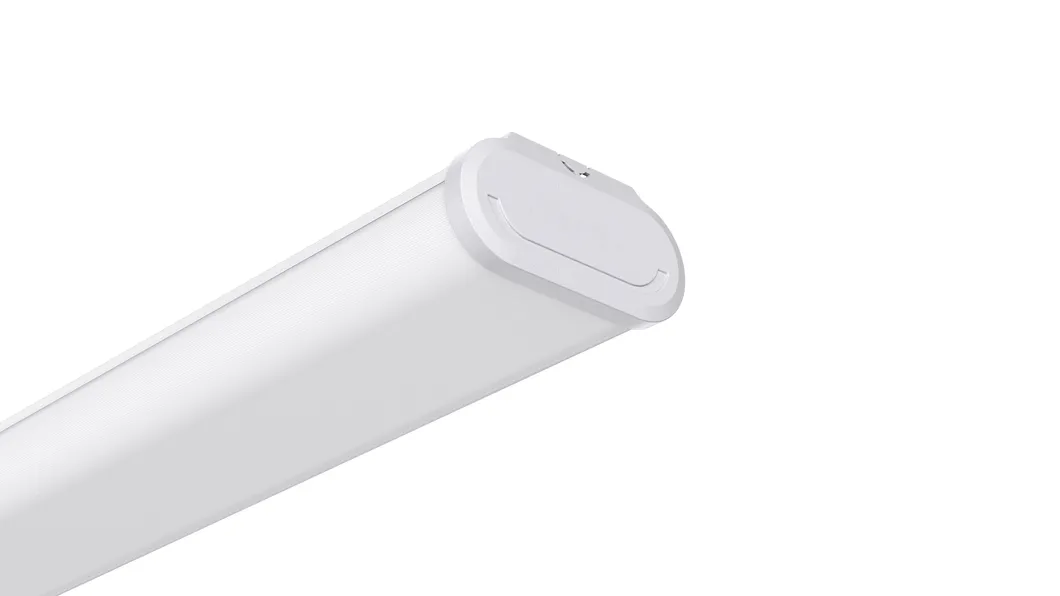

LED Linear Batten Light View 1
LED Linear Batten Light View 2
LED Linear Batten Light View 3
LED Linear Batten Light View 4
Technical Specifications

Product Parameters

Item No Watts Voltage(V) PF Color Ra Lm/W Dimension(mm) Warranty
LL-7231-18W18W170-265V0.53CCT80135600×72×H313 years
LL-7231-36W36W170-265V0.93CCT801351200×72×H313 years
LL-7231-60W60W170-265V0.93CCT801351500×72×H313 years
LL-6031-80W80W170-265V0.56500K801001200×60×H312 years
LL-7523-72W72W175-265V0.5Multi801001200×75×H232 years
LL-7523-120W120W175-265V0.56500K801001200×85×H232 years

Applications

Perfectly suited for: Aisle, Warehouse, Office, Supermarket, Shopping Mall, Living Rooms, and Public Areas.

Application Scenario

Production & Quality Control

Production Line
Testing Lab
Certificates
Exhibitions

Frequently Asked Questions

What are your payment terms for orders?
For samples, we require 100% payment in advance via Bank TT. For bulk orders, a 30% deposit is required, with the remaining 70% balance settled before shipment.
What is the estimated delivery time?
Sample orders are typically processed within 3-7 working days, while bulk orders generally take between 30 to 40 working days.
What shipping methods are available?
We offer shipping via Express (DHL, UPS, Fedex), Air Cargo (5-7 days), or Sea Freight for large and non-urgent quantities. You may also use your own shipping agent.
How long is the product warranty?
We offer 1, 2, 3, or 5 years of warranty based on your specific project requirements.
How do you ensure the quality of the lamps?
All lamps undergo a 100% quality reliability test, including a 24-hour lighting temperature test. Each unit is re-tested after cooling to ensure perfect functionality before shipping.
Do you offer customization or OEM services?
Yes, we provide comprehensive OEM services, including printing your own logo on products and customizing retail box packaging to fit your brand.
