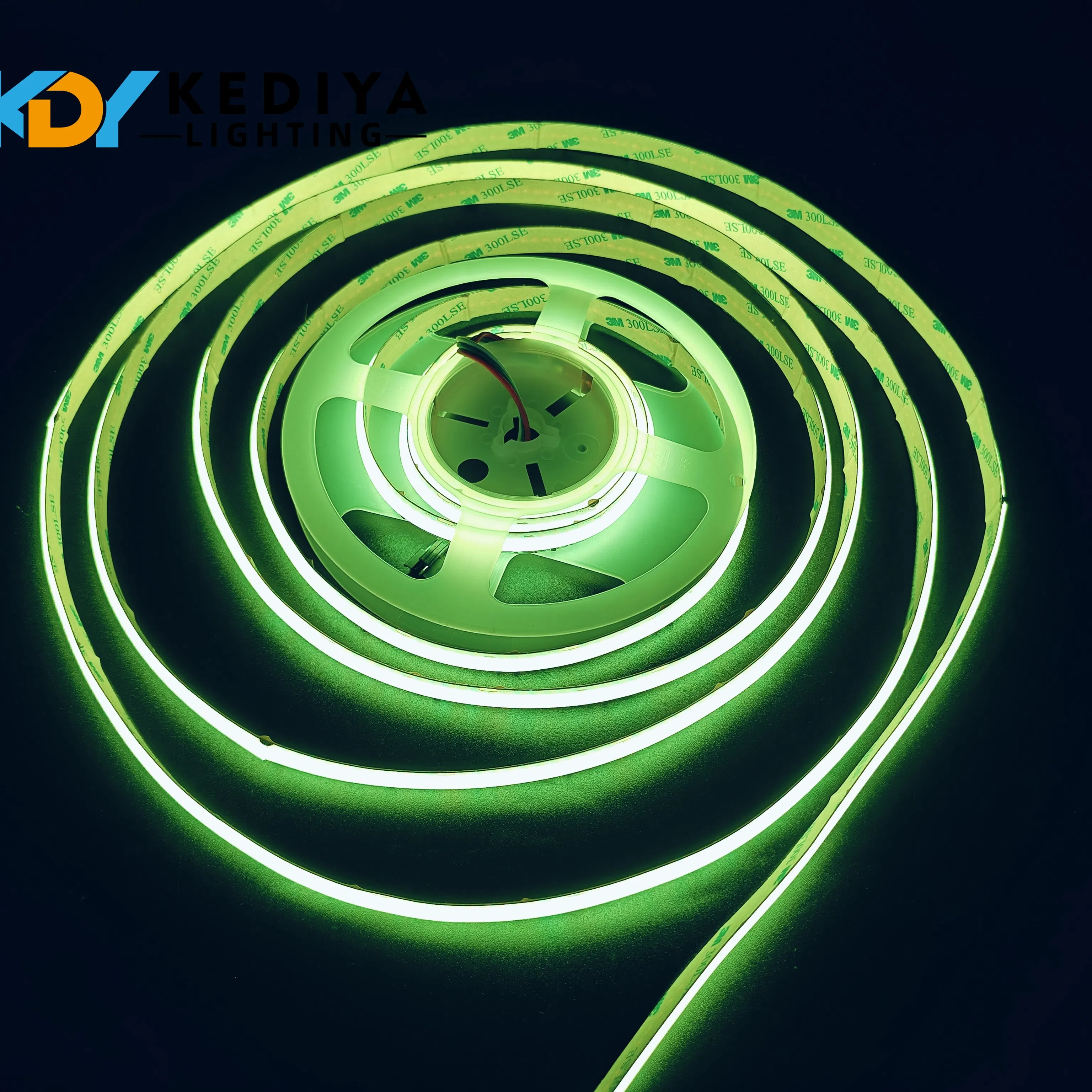

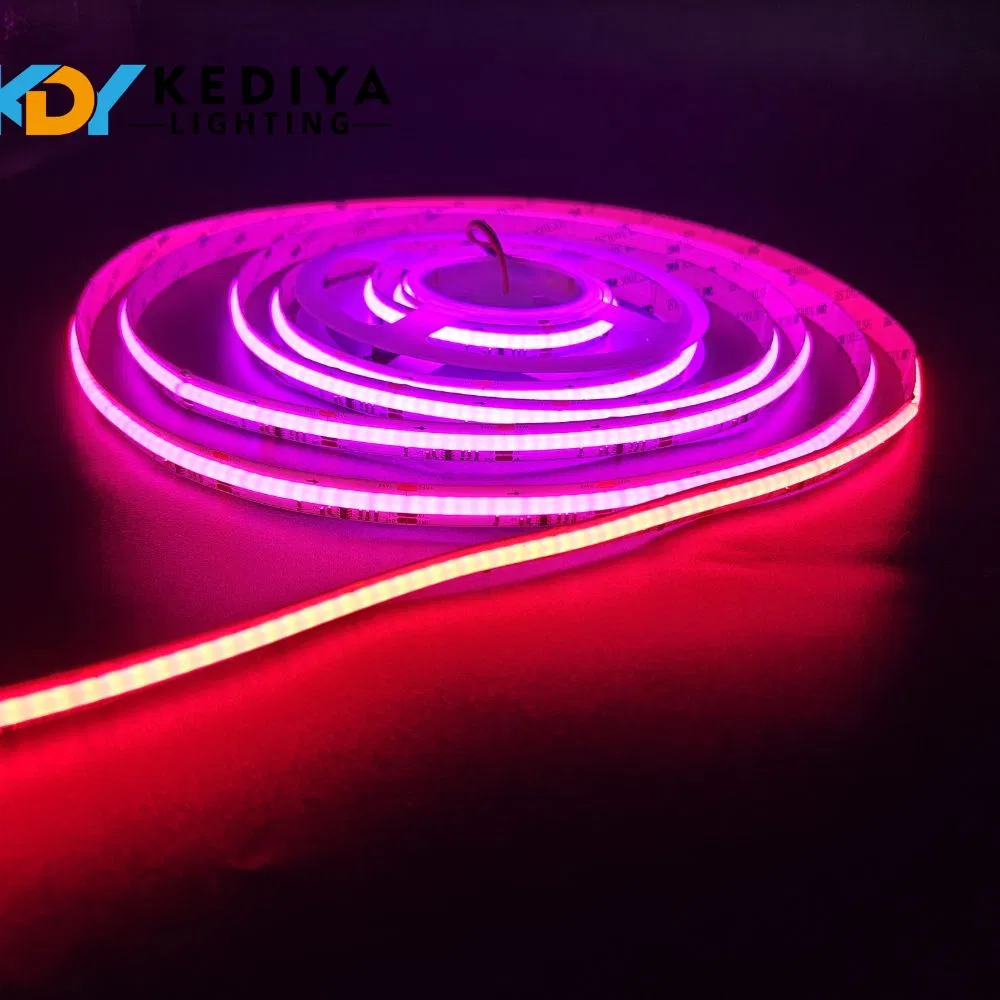

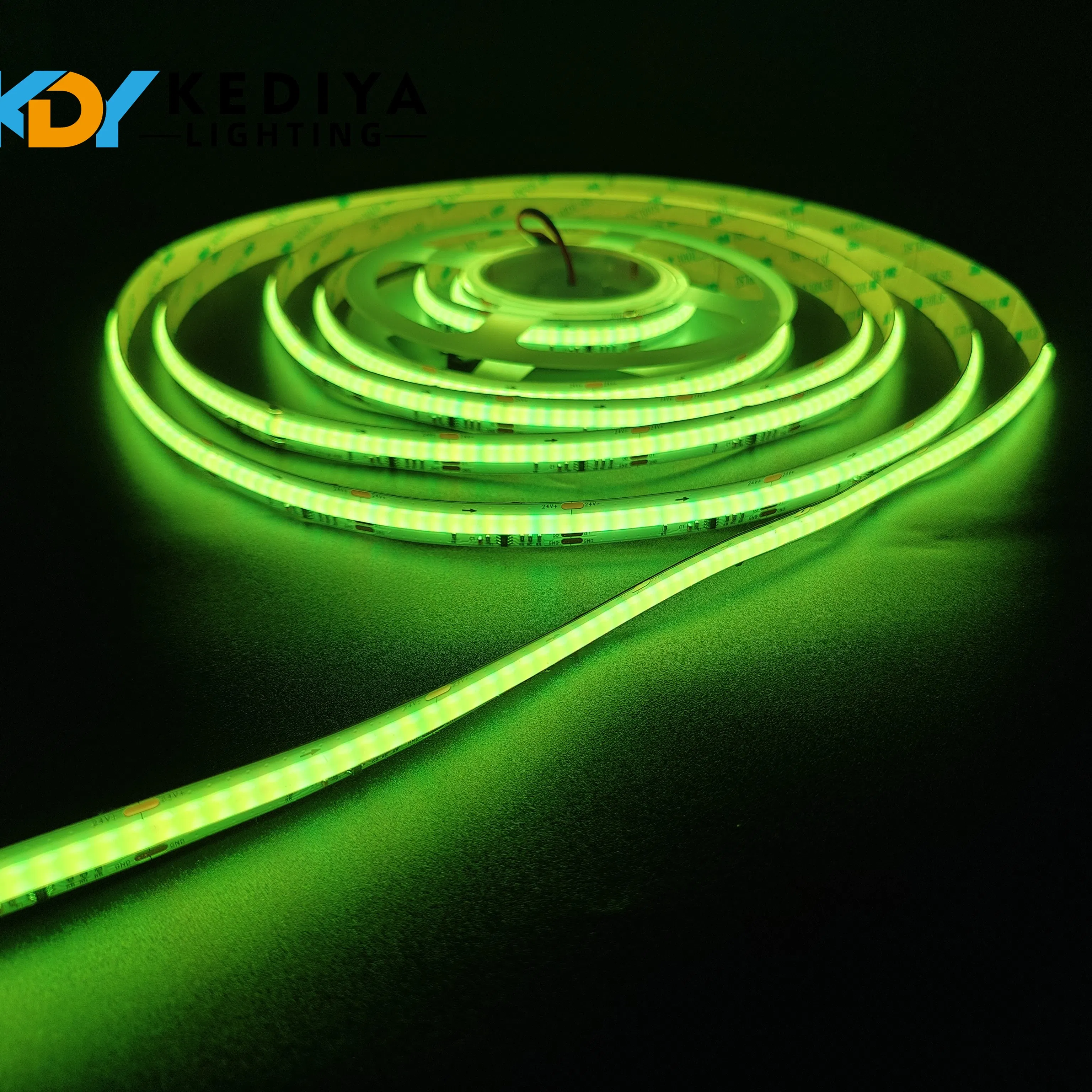

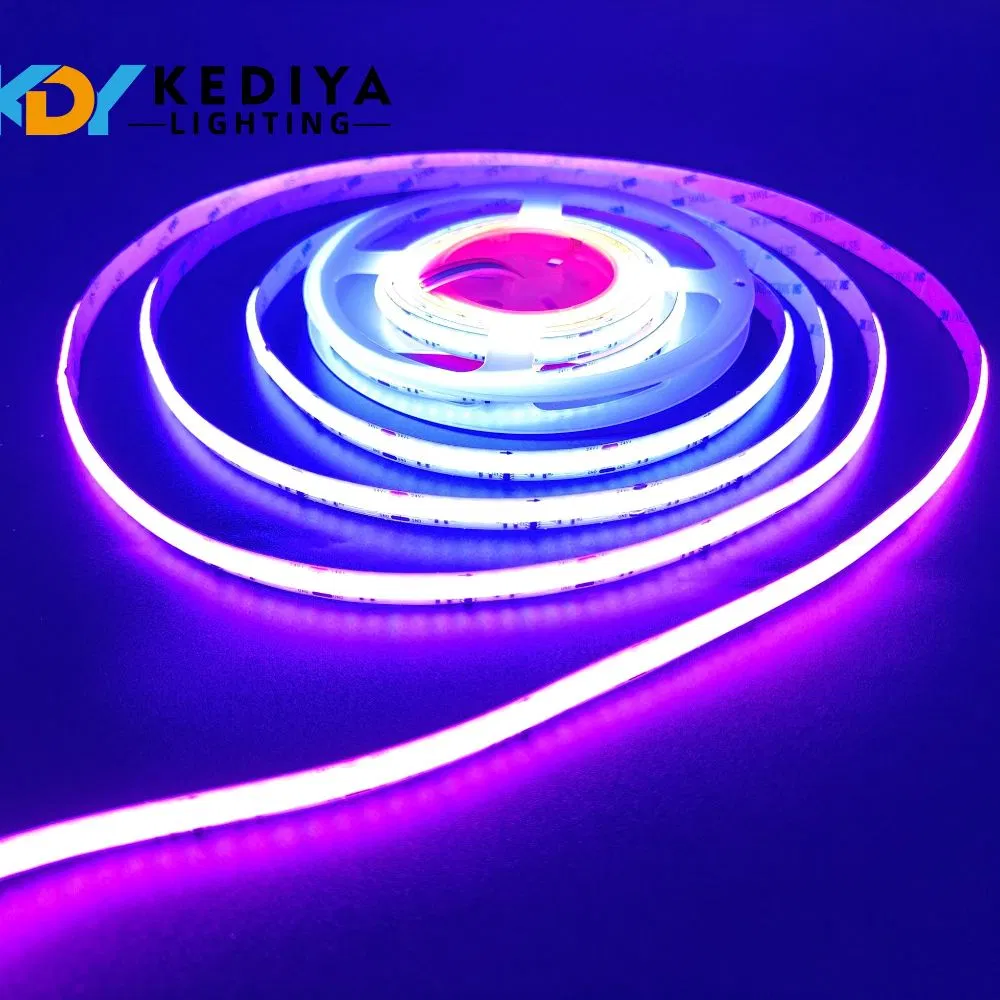

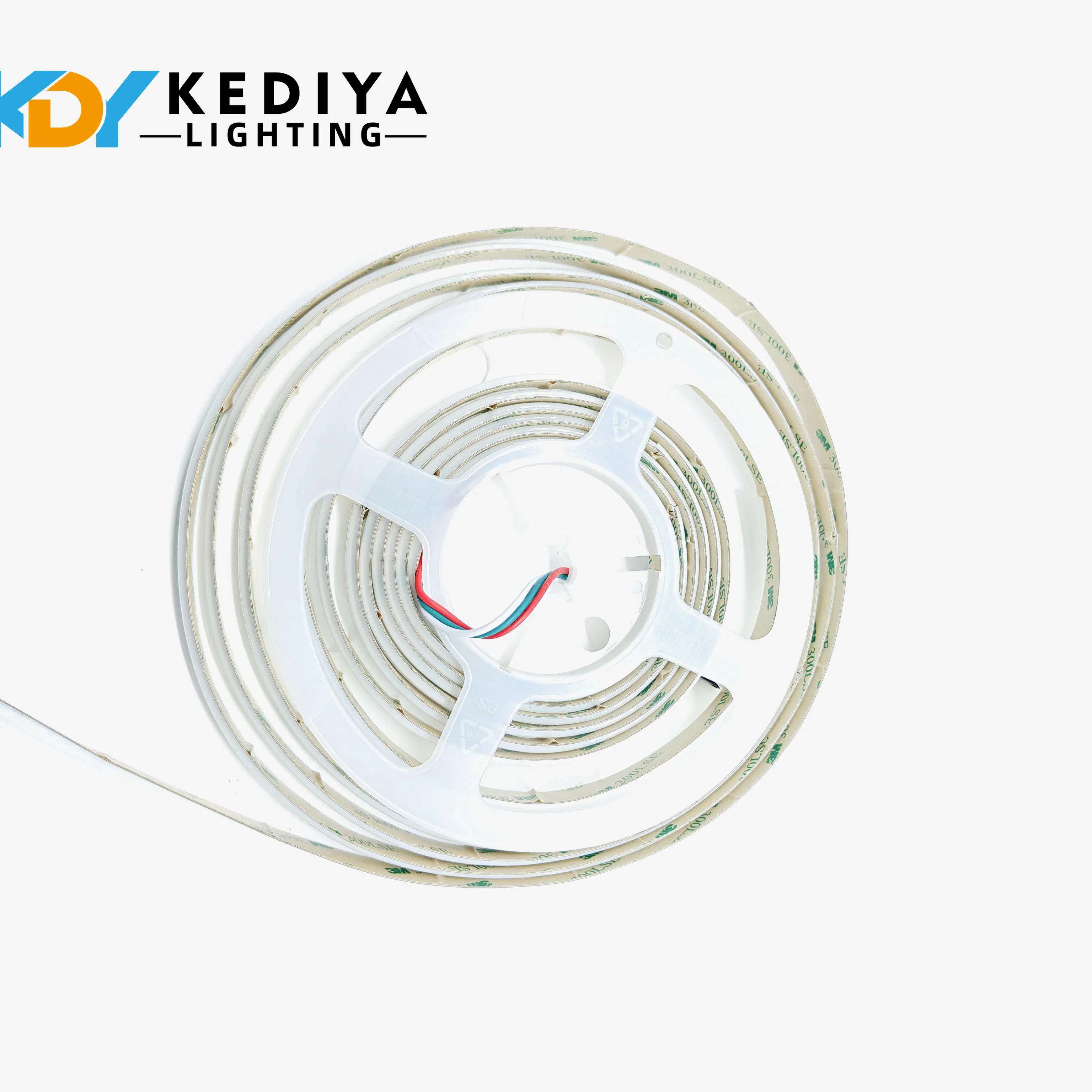

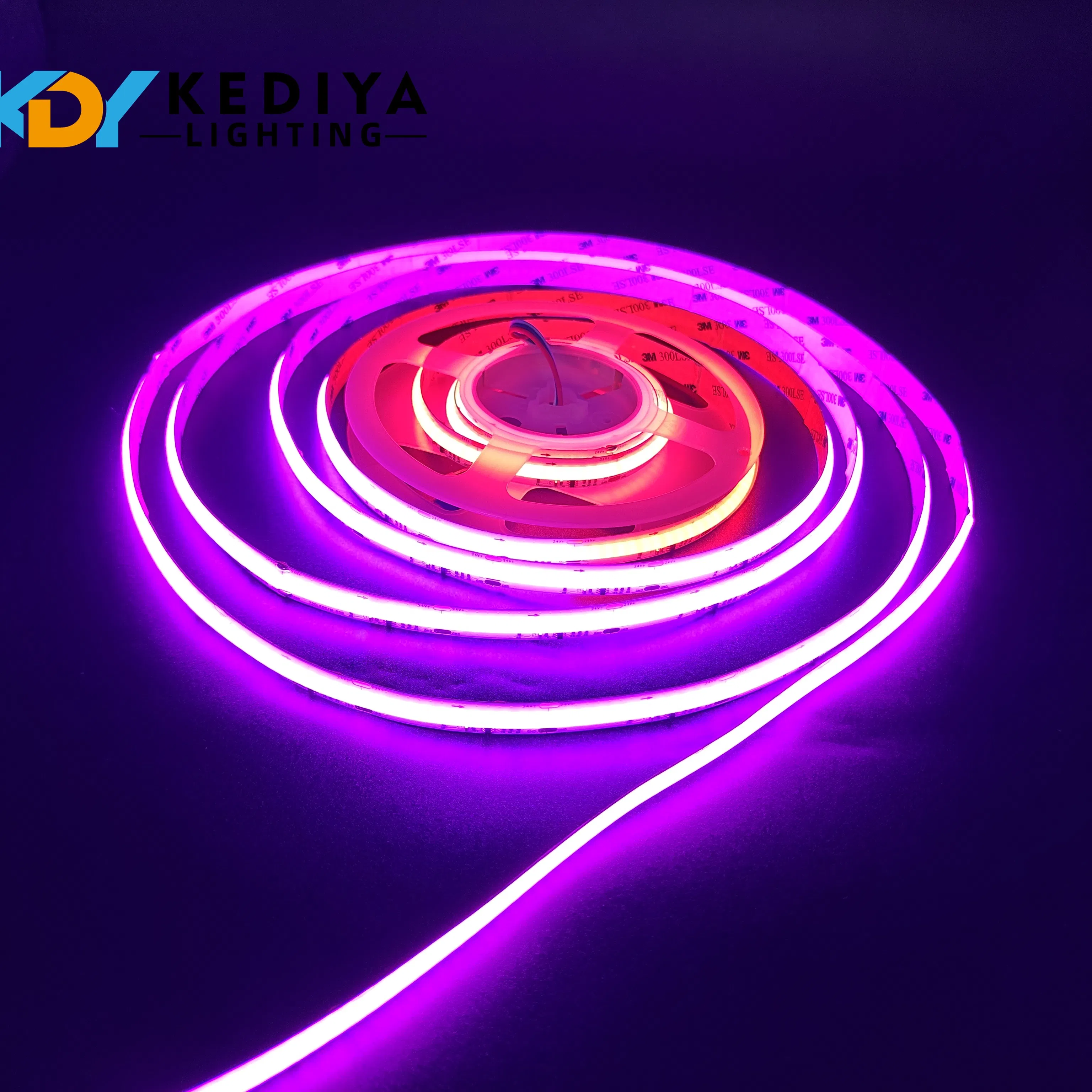

Enhance your space with high-performance 24V Dimmable LED Strip Lights. These energy-efficient linear solutions offer customizable illumination and professional-grade durability for modern lighting applications.
| Product Type | LED/m | Volt | W/m | PCB Width | Color | CRI |
|---|---|---|---|---|---|---|
| RGBW COB Strip | 560 | 24V | 16W | 10mm | RGBW | >90 |
| RGB COB Strip | 768/840 | 12V/24V | 14W/15W | 10mm | RGB | >90 |
| CCT COB Strip | 608 | 24V | 14W | 10mm | CCT | >90 |
| White COB Strip | 320/384/480 | 12V/24V | 8W-11W | 8mm | 2700K-6000K | >90 |

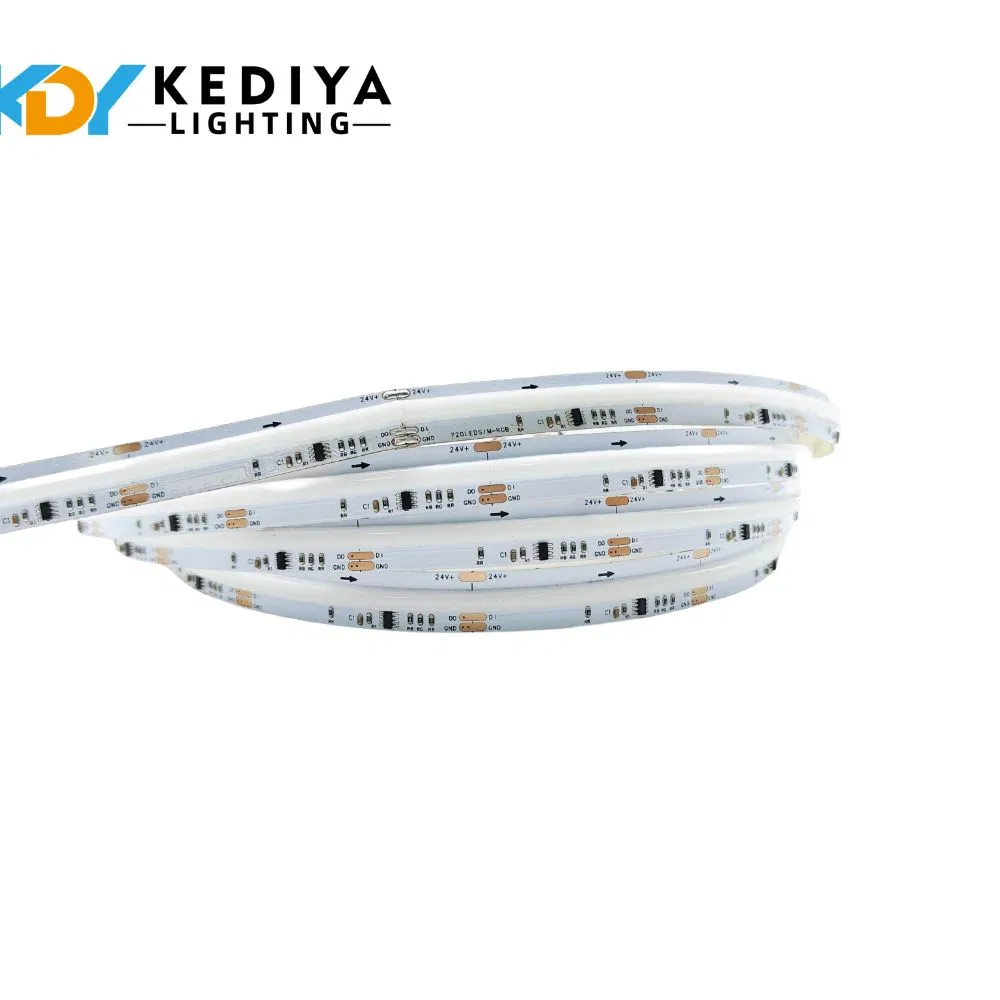

| Addressable COB | 240 | 5V | 21W | 10mm | Full Color | >90 |
| No. | Test Item | Test Conditions | Note | Result (Damaged) |
|---|---|---|---|---|
| 01 | Thermal Shock | -25ºC to 100ºC (15min each) | 300 Cycles | 0/22 |
| 02 | Life Test | Ta=25ºC | 1000 Hours | 0/22 |
| 03 | Temp/Humidity Storage | Ta=85ºC, RH=85% | 1000 Hours | 0/22 |
● Power Supply Selection: Ensure the total wattage of the LED strip is approximately 80% of the power supply's rated capacity for stable operation.
● Adhesion: Backed with adhesive tape for glass, metal, and plastic. For porous surfaces like wood or cloth, test adhesion prior to final installation.

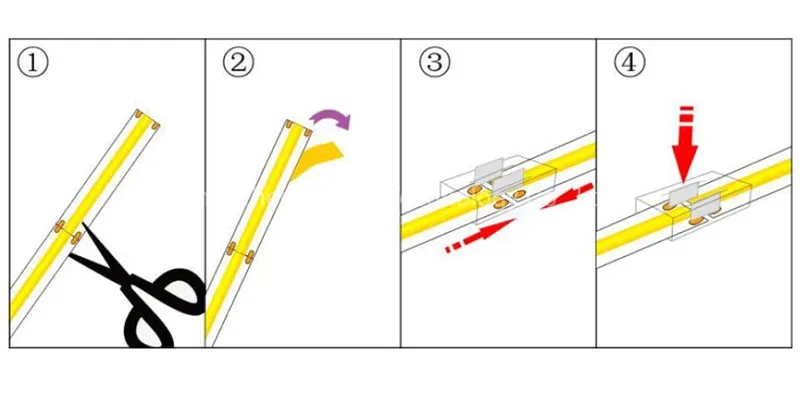

● Handling: Maintain a minimum bending diameter of 60mm. Do not bend at sharp angles to protect the Flexible Printed Circuit (FPC).
● Safety: Use a switch power supply with short circuit and over-voltage protection. Installation should be performed by a professional.
