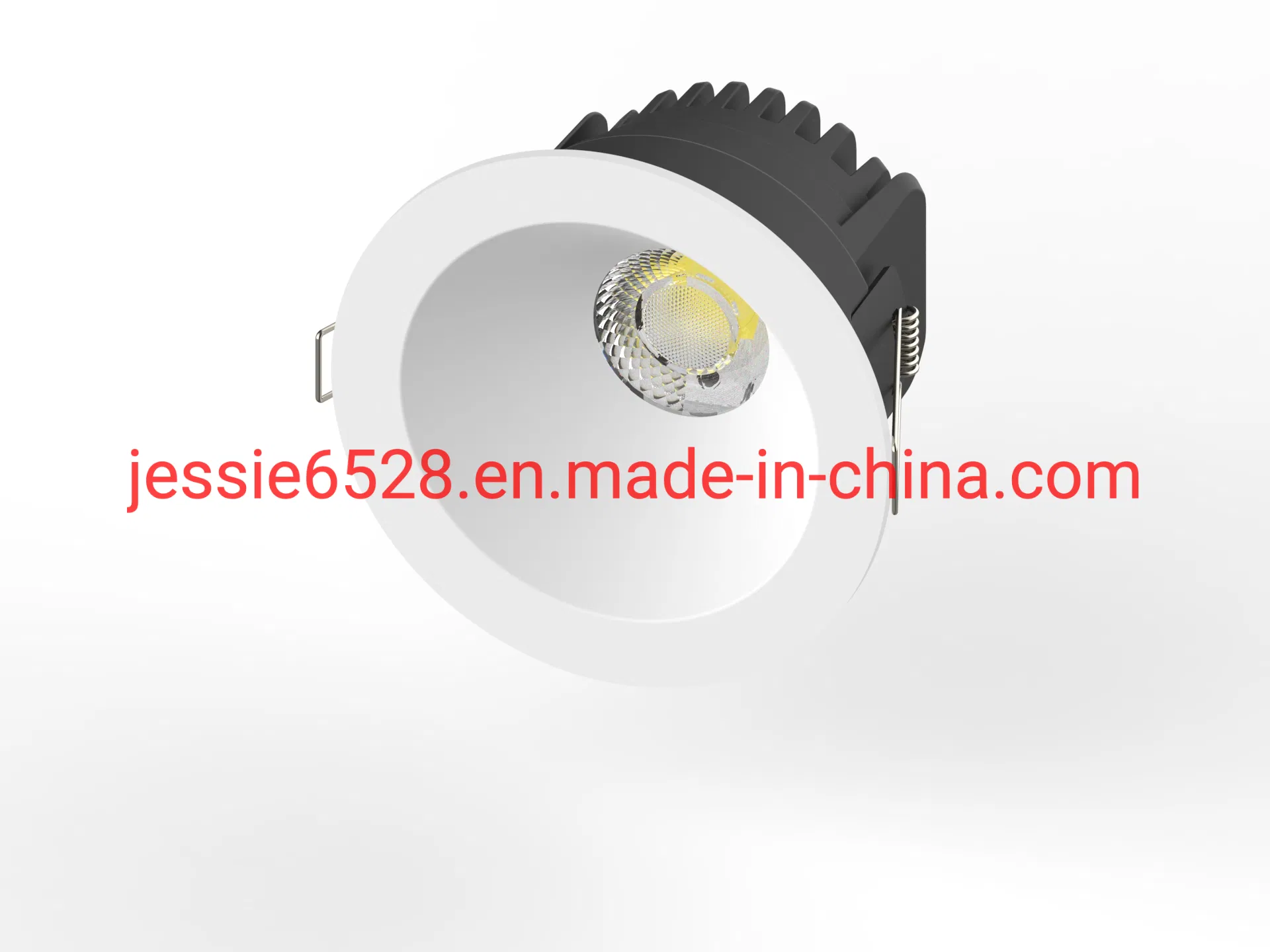

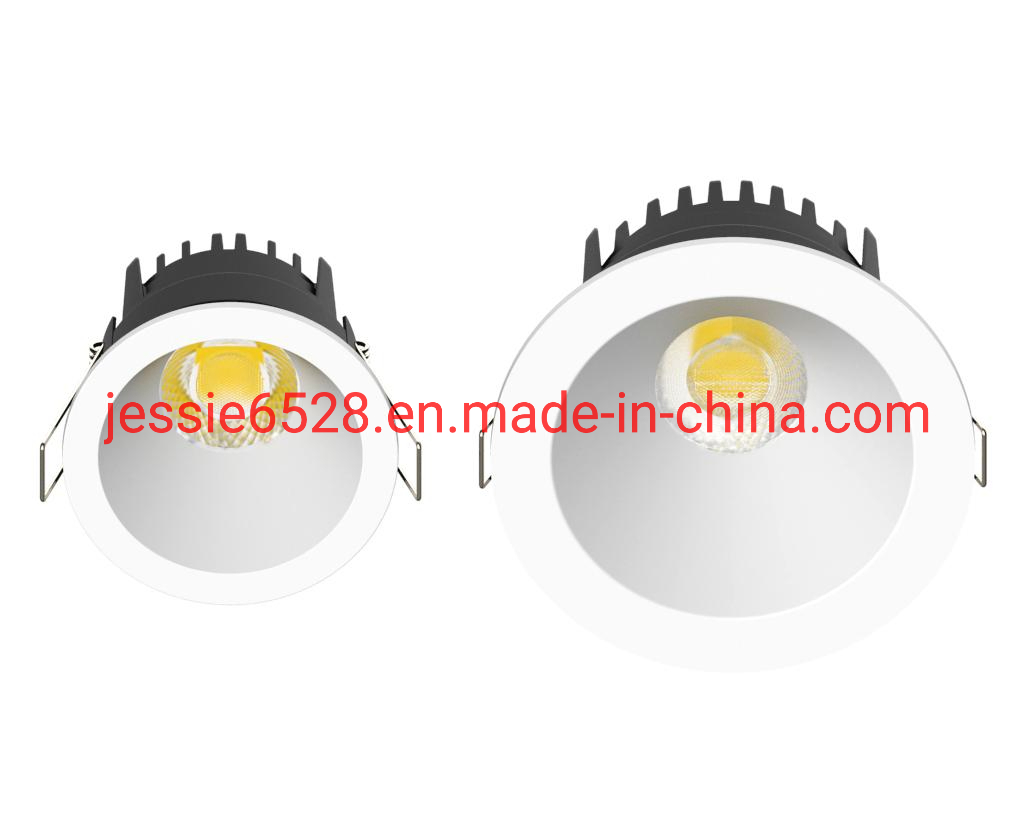

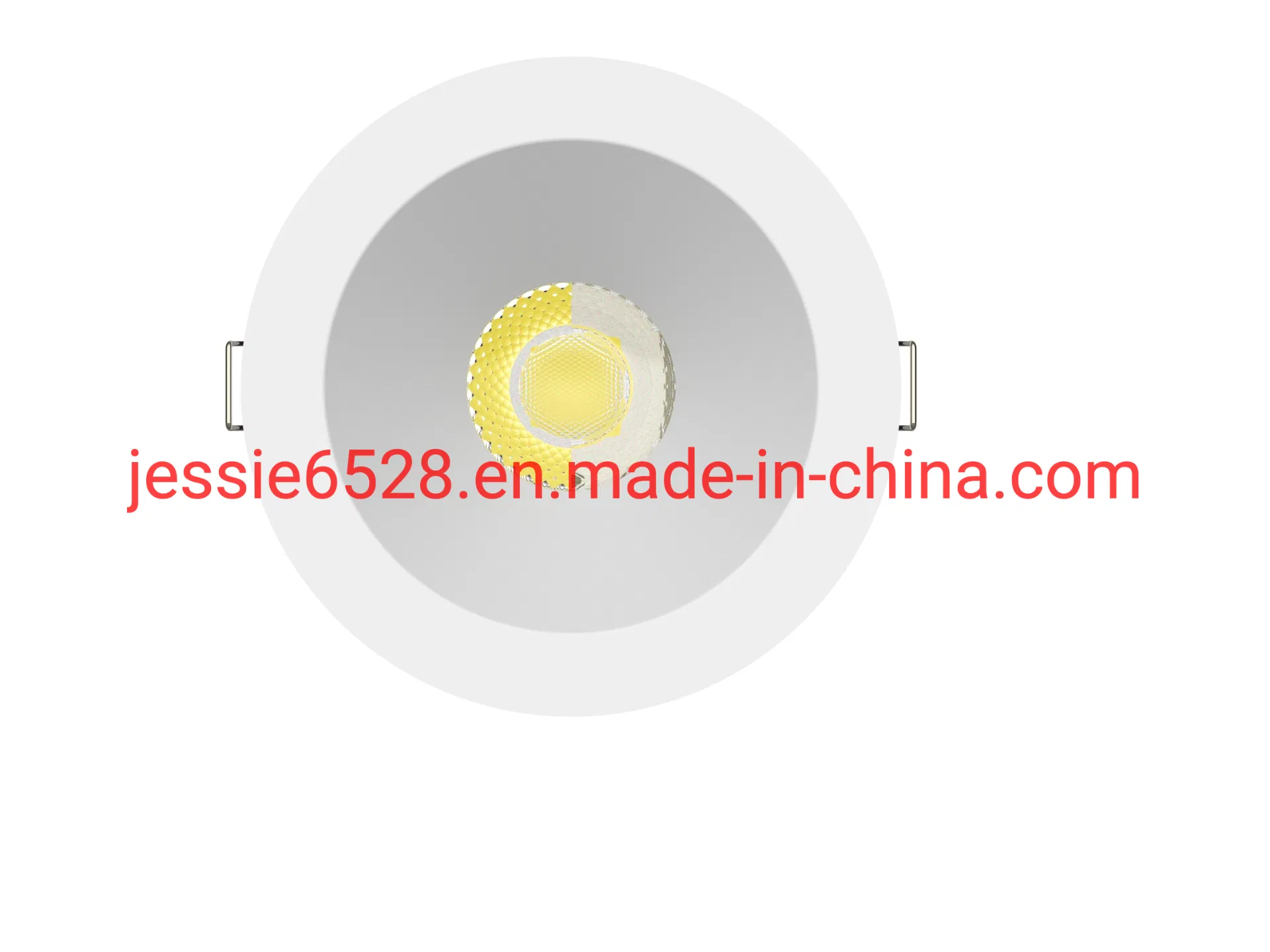

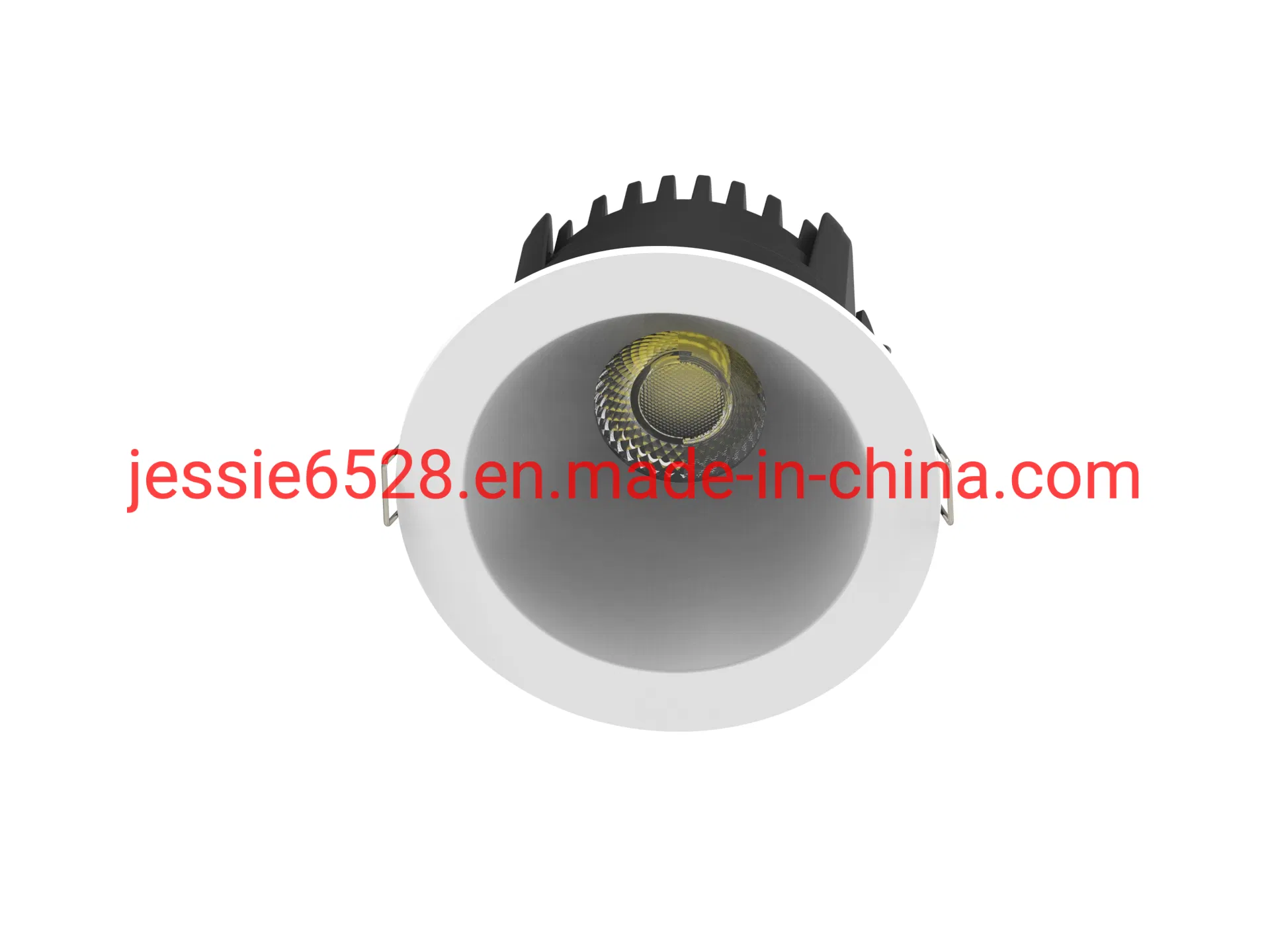

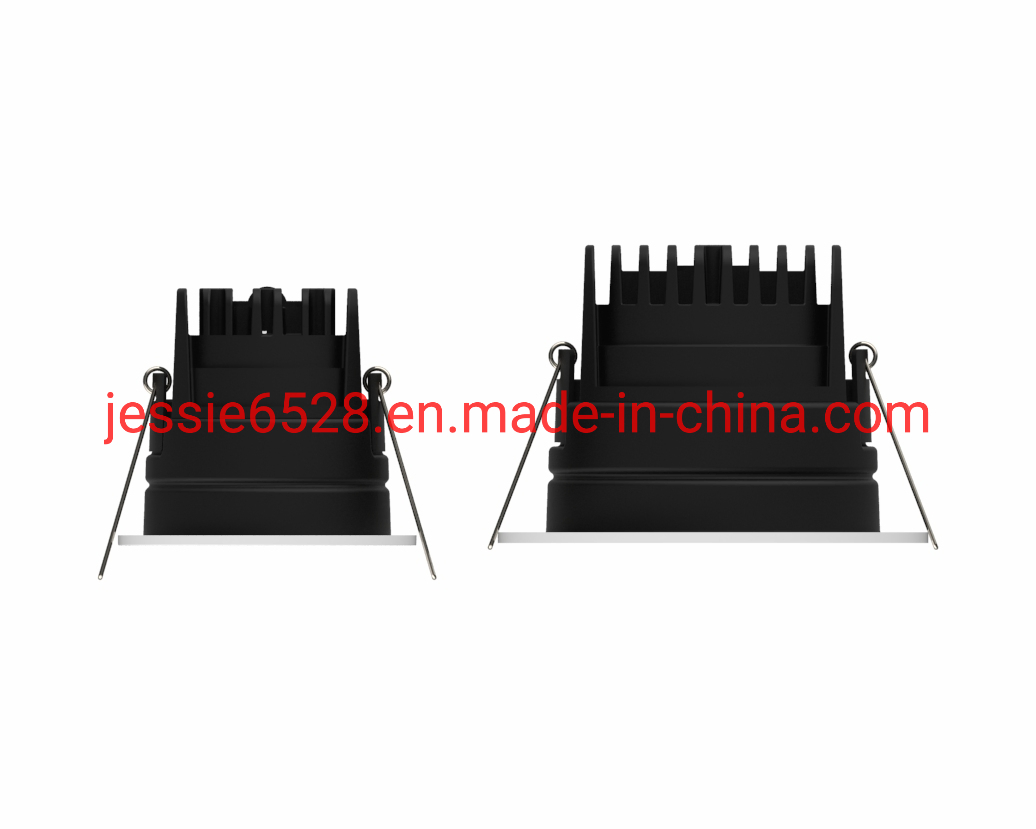

20W LED Downlight IP65 3CCT Fire Rated COB

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Specifications

Model NO. YH-IR20W Power 5W/10W/20W/40W
Color Temp 3000K/4000K/6000K Material Aluminum+Plastic
Installation Recessed / Plug Lamp Switch Type Touch On/Off Switch
Warranty 5 Years IP Rating IP65
Certification CE, EMC, LVD, RoHS Input Voltage 220V-240V 50/60Hz

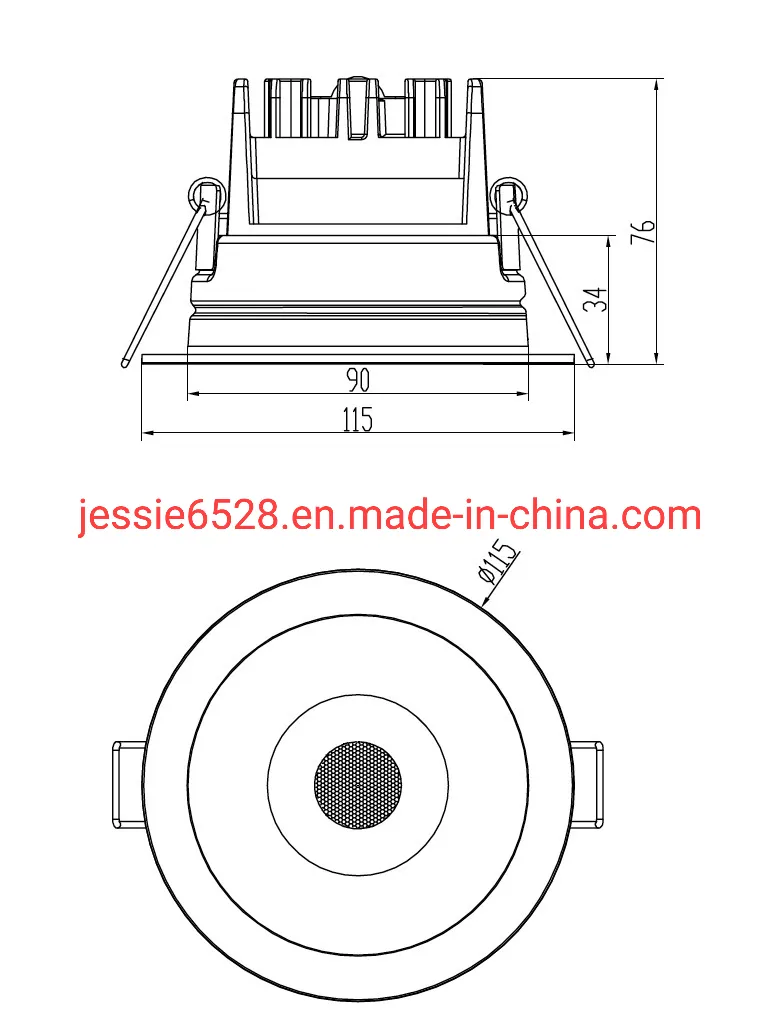

Lamp Size 115*76mm Cutout Size 90mm
LED Source COB Dimmable Trailing & Leading Edge
D

20W LED Downlight Details

Lumen Output 3000k > 800lm | 4000k > 850lm | 6000k > 750lm
CRI (Ra) 80 / 90 / 95
CMD <6

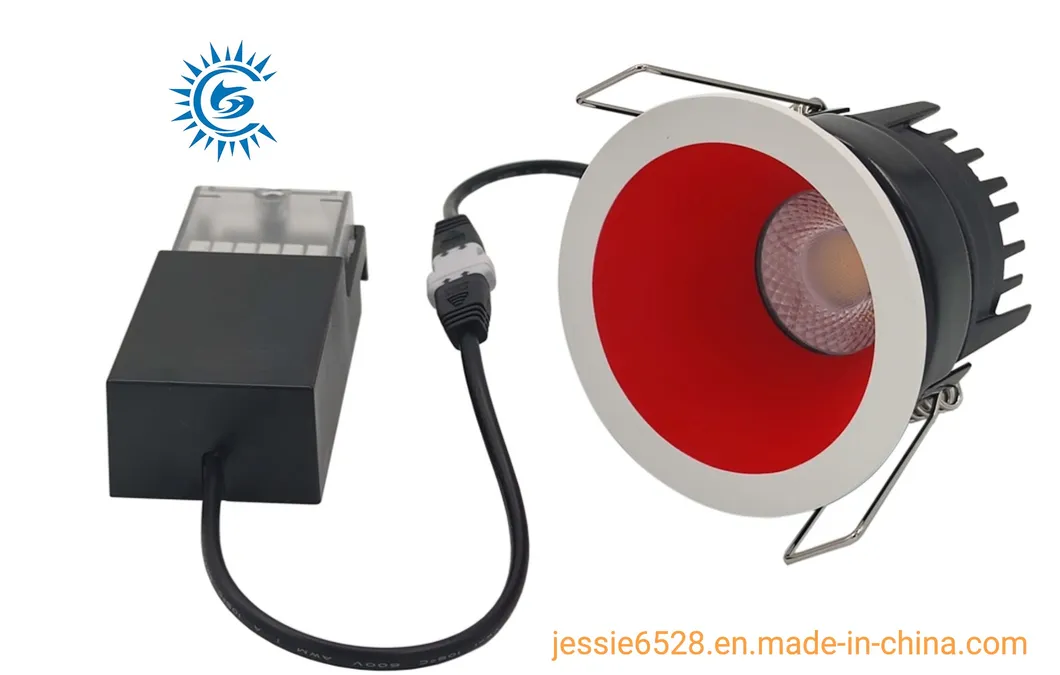

LED Downlight View 1

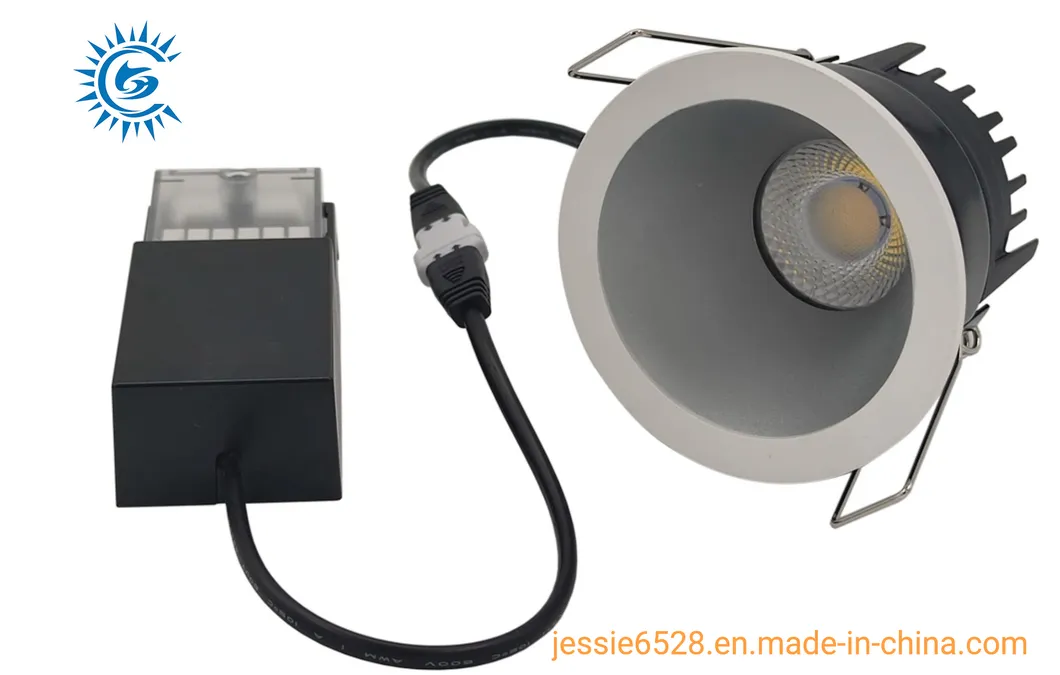

LED Downlight View 2

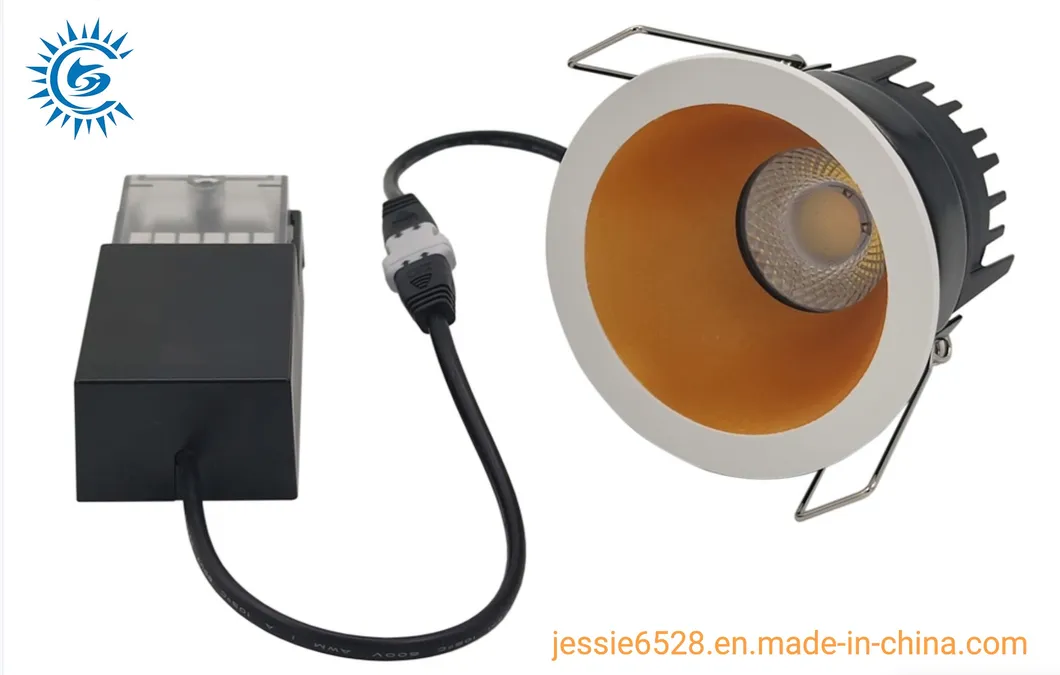

LED Downlight View 3
S

LED Downlight Series Display

Downlight Series 1
Downlight Series 2

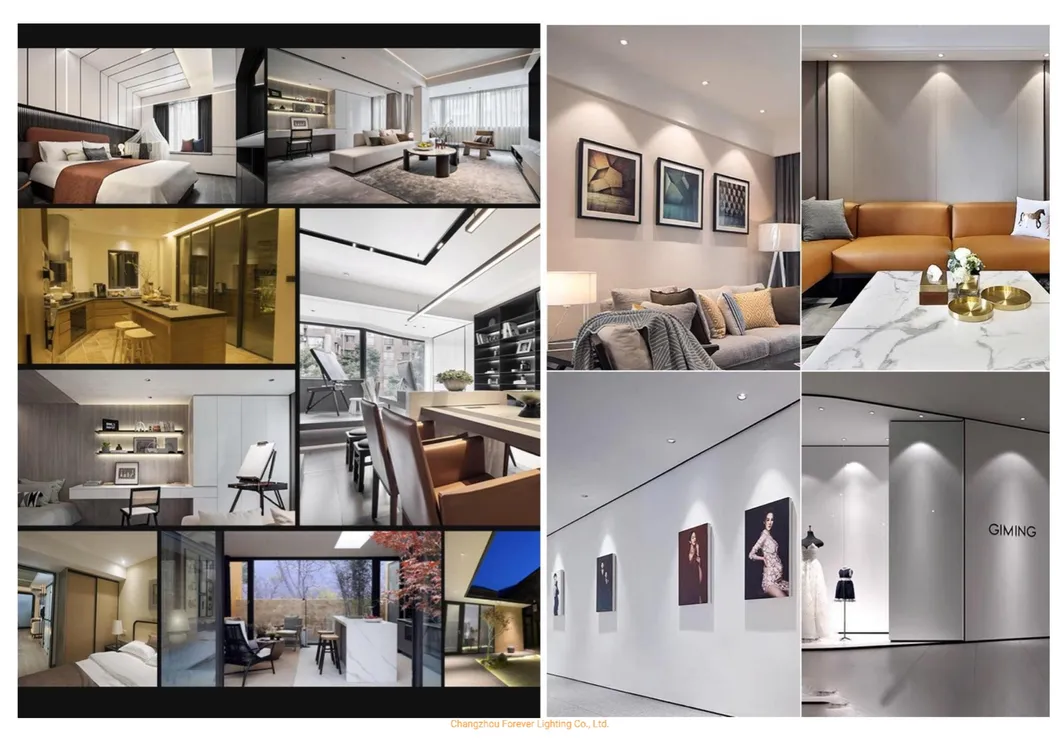

Application 1
Application 2
Technical Drawing

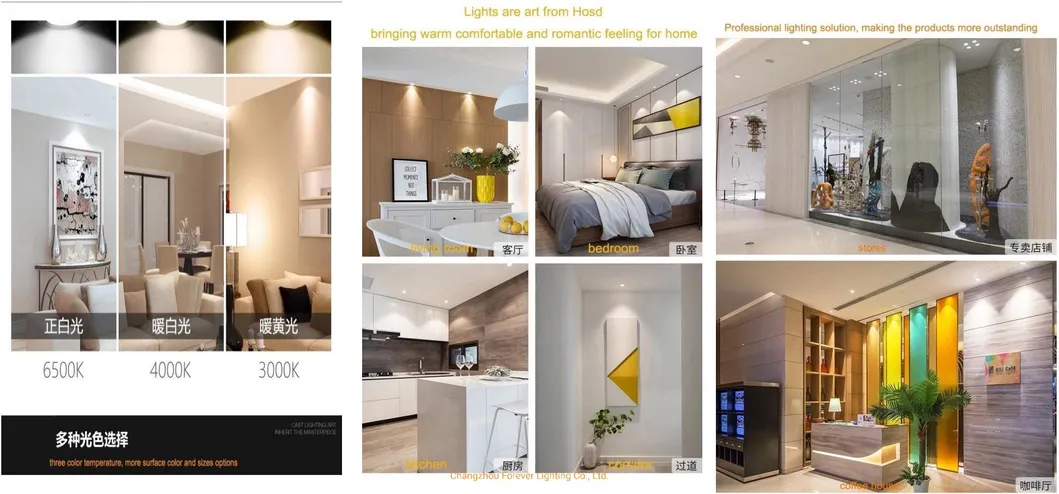

Packaging Info
Installation Guide

Professional Service

Fast Response Inquiries will be replied within 24 hours by our trained sales team.
OEM/ODM Support Customized services are available for products, specifications, and packing.
Expert Engineering Experienced R&D technicians are available to support complex ODM projects.
?

Frequently Asked Questions

Are you a direct LED lighting manufacturer?
Yes, we are a professional LED lighting manufacturer. Our main product range includes LED downlights, waterproof lights, linear lights, panel lights, street lamps, and high bay lights, primarily exported to Europe, Australia, and South America.
Do you offer special pricing for wholesale orders?
We actively seek long-term business cooperation. As a professional manufacturer, we provide competitive wholesale pricing along with full OEM & ODM support to ensure high-quality solutions for our clients.
What is the lead time for samples and mass production?
Samples are typically available within 5-7 working days. For mass orders, the lead time is approximately 30-35 days after the deposit is received.
What kind of warranty do you provide?
We offer 2 to 5 years of warranty depending on the product model. All products undergo strict testing by our QC team before shipment. We take full responsibility for any quality issues during the warranty period.
Is this 20W LED downlight suitable for outdoor or wet areas?
Yes, this model features an IP65 rating, making it highly resistant to dust and water, suitable for engineering, home furnishing, and commercial applications where moisture resistance is required.
What dimming options are supported?
The 20W LED Downlight supports both Trailing Edge and Leading Edge dimming, providing flexible control over your lighting environment.
