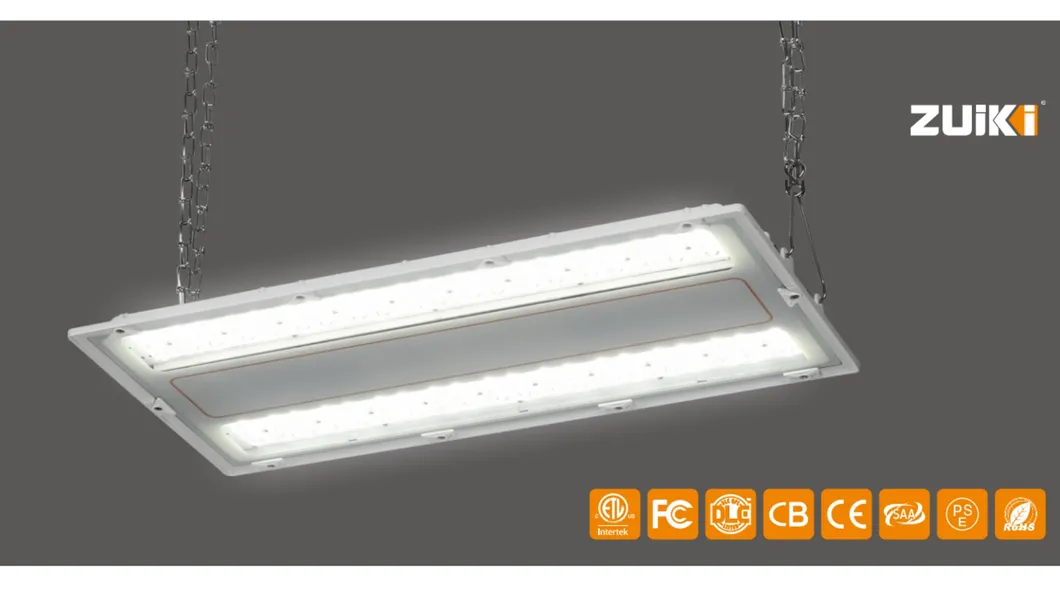

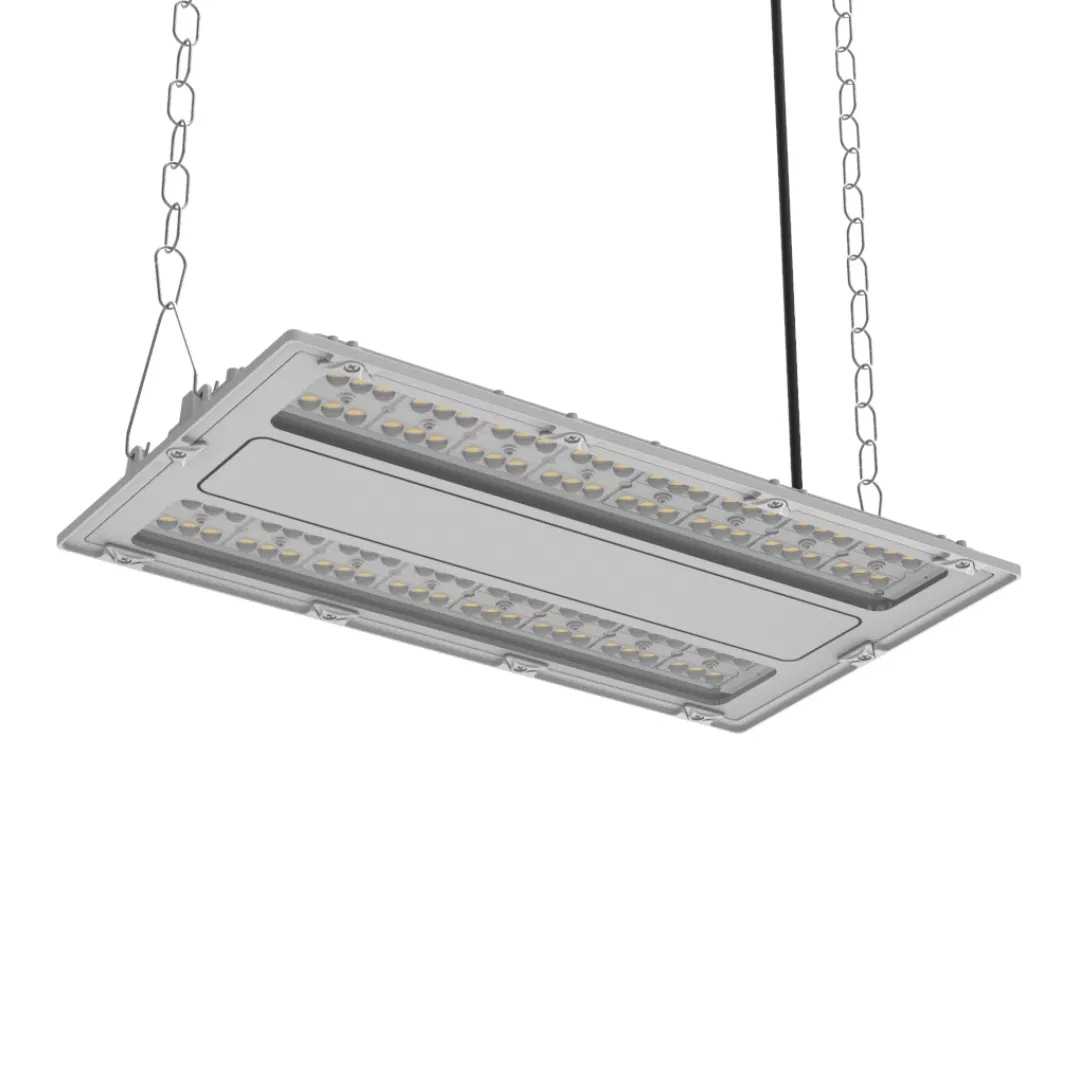

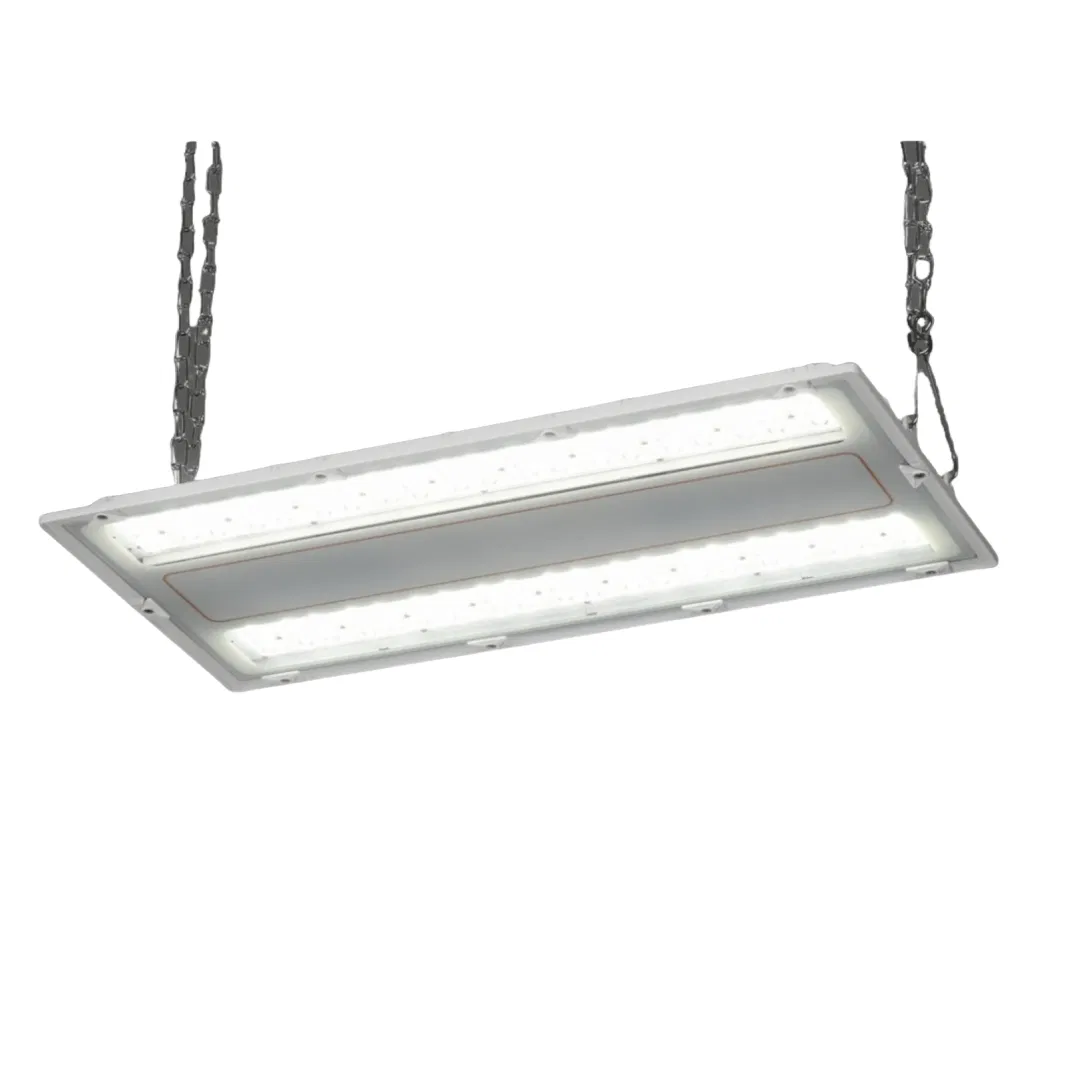

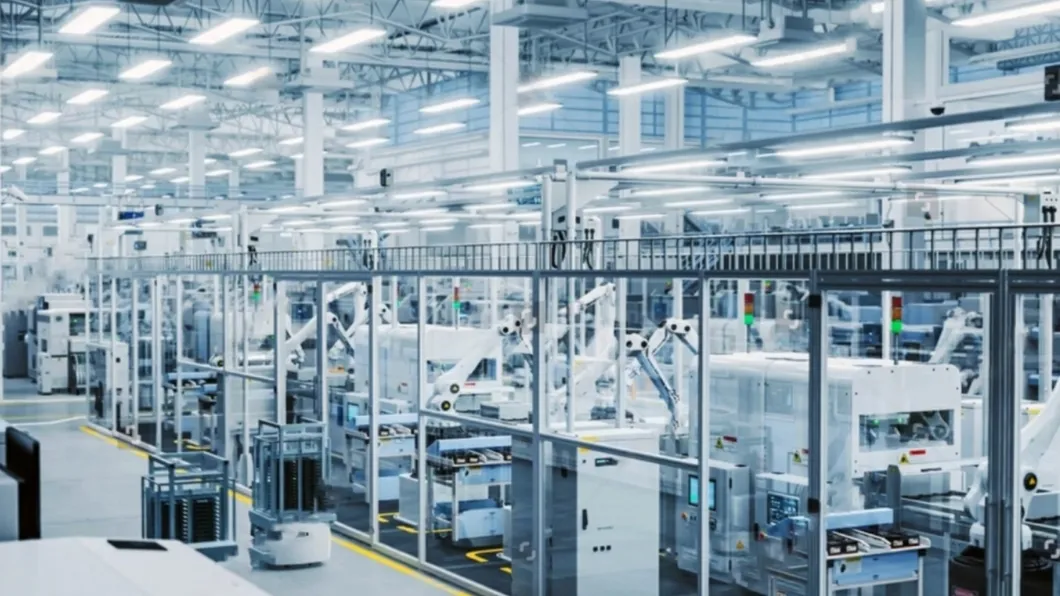

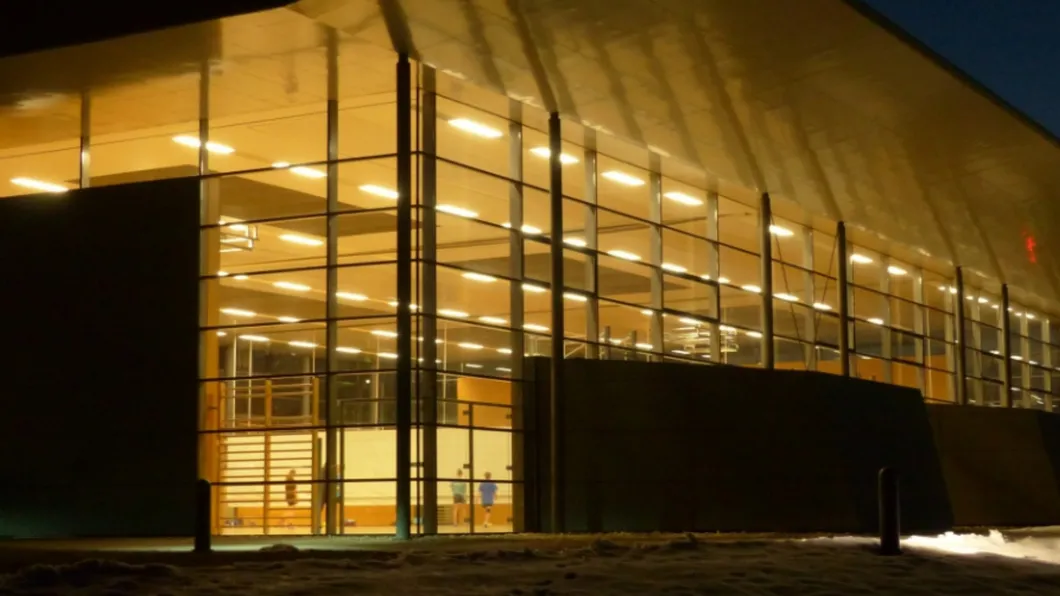

In industrial and commercial settings, excessive glare from high bay lights can significantly interfere with work operations and pose safety risks. The JR-ZKHB03A series LED linear high bay light is designed to provide uniform, low-glare, safe, and comfortable lighting solutions. This product is particularly suitable for environments such as parking lots, gymnasiums, workshops, supermarkets, and warehouse lighting.

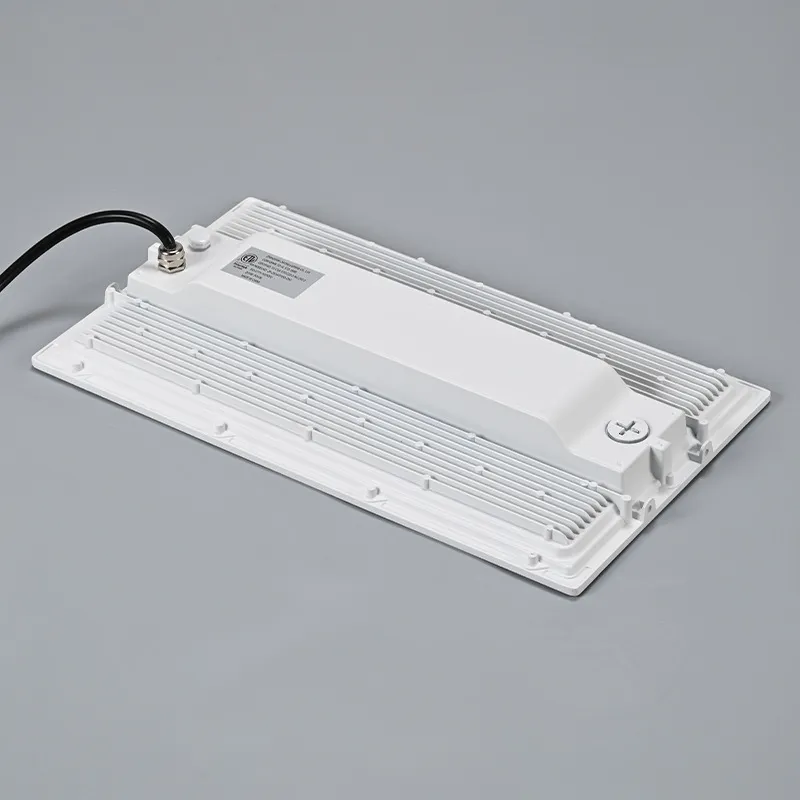

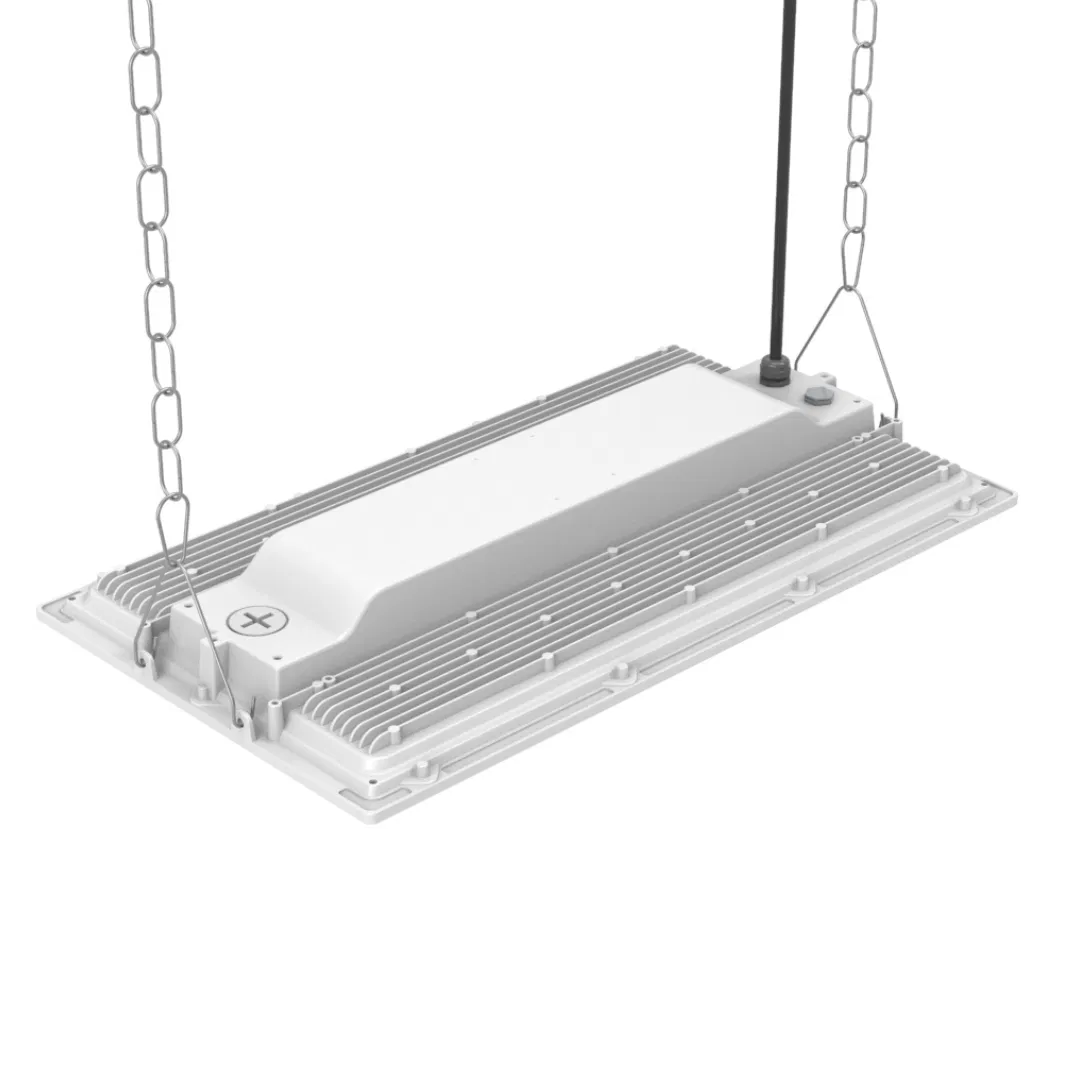

The series offers 100W, 200W, and 260W options with efficiency up to 170 lm/w. Standard 0-10V dimming and multiple beam angles (30°, 60°, 90°) provide versatile control. The one-piece die-cast aluminum housing ensures exceptional thermal management and durability.
| Parameter | Details |
|---|---|
| Input Voltage | AC100-277V 50/60Hz |
| Power Factor | PF > 0.9 |
| Efficiency | 160-170 lm/w |
| Color Rendering Index | Ra > 83 |
| Operation Temperature | -40°C ~ +50°C |
| Material | Aluminum + PC |
| CCT Options | 3000K / 4000K / 5000K / 6000K |
| Model | Length | Power | LED Type | Lumens (lm) |
|---|---|---|---|---|
| JR-ZKHB03A038-100D | 1.0 FT | 100W | SMD3030 | 16000 |
| JR-ZKHB03A048-200D | 1.5 FT | 200W | SMD3030 | 32000 |
| JR-ZKHB03A059-260D | 2.0 FT | 260W | SMD3030 | 41600 |
Through our OEM/ODM division, we provide complete customization options, including tailored power sources, optical lenses, and cutting-edge thermal management solutions to meet specific brand needs.
